Description

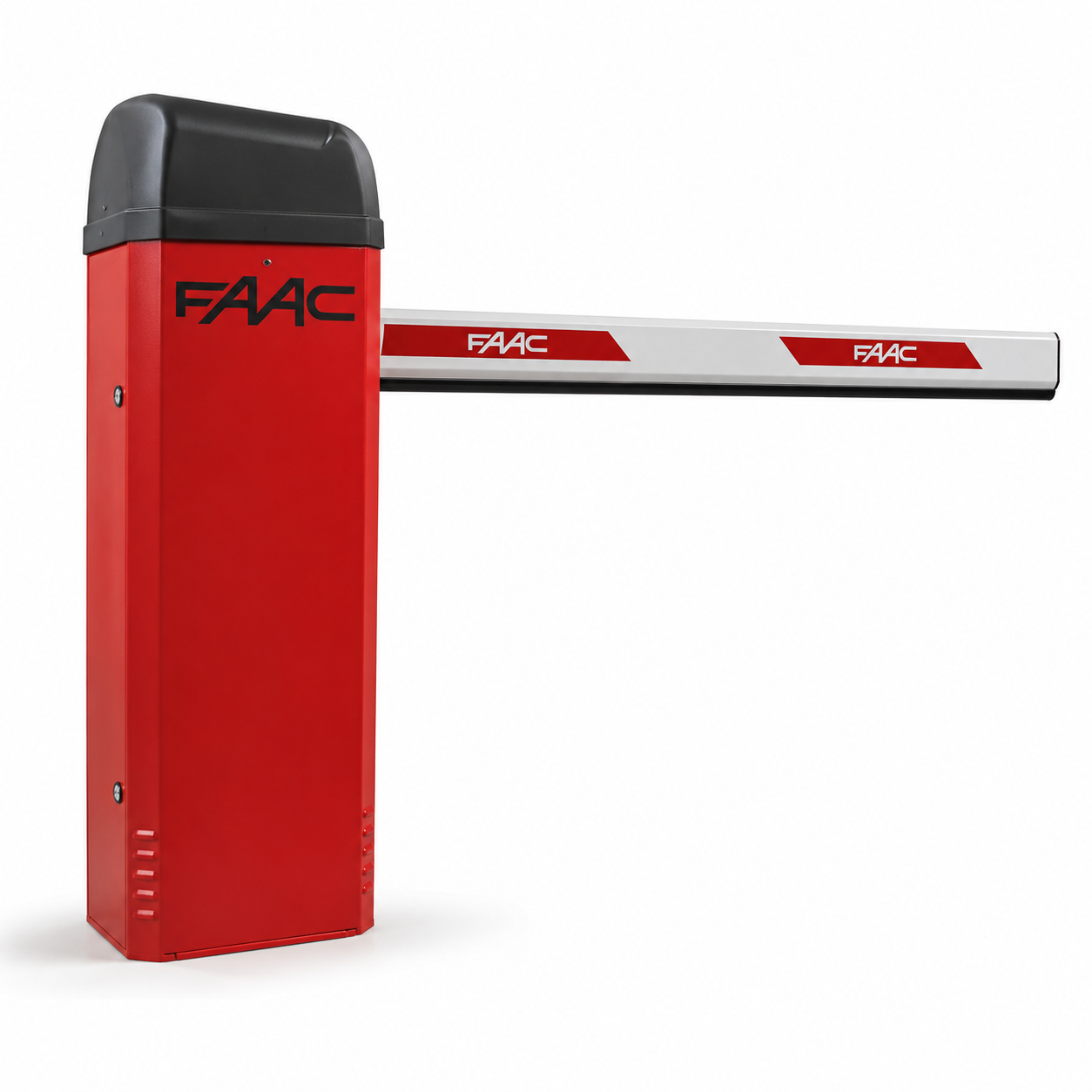

The FAAC B614 24Vdc Barrier Kit is a high-performance automatic vehicle barrier system designed for residential, commercial and car park access control applications.
Combining a powerful 24Vdc electromechanical motor, integrated encoder, built-in E614 electronic control unit and support for barrier beams up to 5 metres, the B614 provides fast, smooth and reliable vehicle access control in a compact modern design.
Designed for continuous-duty operation, the B614 is ideal for locations requiring frequent vehicle movements while providing the flexibility to integrate with remote controls, access control systems, safety devices and other compatible FAAC accessories.
🚧 Automatic Vehicle Access Control
The FAAC B614 is designed to control vehicle access using an automatically operated barrier beam.
When activated by a compatible remote control, access control system or other command device, the barrier raises to allow the vehicle to pass before returning to the closed position.
This makes the B614 ideal for:
- Residential complexes
- Apartment buildings
- Commercial car parks
- Staff parking areas
- Private roads
- Industrial facilities
- Controlled vehicle entrances
- Commercial properties
- Strata and shared access applications
⚡ Fast Barrier Operation
The FAAC B614 provides fast opening and closing operation to help maintain efficient vehicle flow through the controlled entrance.
With a 3 metre barrier beam, the B614 can complete an 80° opening movement in less than 2 seconds.
Fast operation is particularly useful for busy entrances where reducing vehicle waiting time is important.
🔄 Continuous-Duty Operation
The B614 is designed for continuous-use applications, making it suitable for entrances that experience frequent vehicle movements throughout the day.
Unlike barrier systems intended only for occasional operation, the B614 has been engineered to provide reliable operation in applications where the barrier may be required to cycle regularly.
This makes it an excellent choice for residential complexes, commercial properties and car parks with higher traffic volumes.
📏 Barrier Beams Up to 5 Metres
The FAAC B614 supports compatible barrier beam configurations up to a maximum length of 5 metres.
Both round and rectangular FAAC barrier beam options are available, allowing the barrier system to be configured according to the requirements and appearance of the individual installation.
The correct balancing spring configuration must be selected according to the beam length and accessories fitted.
⚙️ 24Vdc Electromechanical Motor
At the heart of the B614 is a powerful 24Vdc brushed electromechanical motor.
The motor provides up to 300Nm of torque and is designed to deliver smooth, controlled movement of the barrier beam.
The 24V platform also allows the barrier to incorporate compatible battery backup equipment where continued operation during a mains power failure is required.
🎯 Integrated Encoder
The FAAC B614 motor incorporates an integrated incremental encoder.
The encoder allows the control system to accurately monitor the position and movement of the barrier during operation.
This provides the E614 controller with the information required for precise movement management, smooth operation and obstacle detection.
🛑 Anti-Crushing Safety
The B614 incorporates motor control and encoder technology designed to provide anti-crushing protection during barrier movement.
The control system monitors the movement of the barrier and can respond when abnormal resistance or an obstruction is detected.
This functionality should be used together with correctly installed safety devices such as photocells or vehicle detection systems according to the requirements of the individual installation.
🧠 Built-In E614 Control Unit
The FAAC B614 incorporates the E614 electronic control unit directly within the upper section of the barrier cabinet.
Positioning the controller in the upper section provides convenient access during installation, programming and servicing.
The E614 manages the operation of the barrier motor and provides connections for compatible:
- Safety devices
- Access control equipment
- Radio receivers
- Flashing lights
- Vehicle detection systems
- Command devices
- Other compatible accessories
🎚️ Adjustable Speed & Smooth Operation
The B614 allows the operating speed of the barrier to be adjusted according to the requirements of the installation.
Electronic and mechanical deceleration help provide smooth movement as the barrier approaches its opening and closing positions.
This reduces harsh movement at the ends of travel and provides a more refined automatic barrier operation.
📡 Remote Control & Access Control Integration
The FAAC B614 can be integrated with a wide range of compatible access control systems.
Depending on the installation, the barrier can be activated using:
- FAAC remote controls
- Radio receivers
- Access control readers
- Keypads
- Intercom systems
- Push buttons
- Key switches
- Vehicle detection loops
- Ticketing systems
- Building access control systems
This allows the B614 to be configured for anything from a simple remote-controlled driveway entrance to a more comprehensive commercial vehicle access system.
🛡️ Safety Device Integration
A complete automatic barrier system can incorporate additional safety equipment to monitor vehicles and pedestrians around the barrier.
Compatible safety equipment may include:
- FAAC photocells
- Vehicle detection loops
- Safety devices
- Warning lights
- Integrated barrier lighting
- Other compatible access safety equipment
The appropriate safety equipment should be selected according to the layout and operating requirements of the individual site.
🚨 Optional Integrated Flashing Light
The B614 can be fitted with a compatible integrated flashing traffic light.
This provides a highly visible warning indication directly from the barrier cabinet when the system is operating.
An external FAAC XLED flashing light can also be incorporated into the installation where additional warning visibility is required.
🔋 Optional Battery Backup
The FAAC B614 is compatible with the optional FAAC XBAT 24 emergency battery kit.
Battery backup can allow the barrier system to continue operating during a mains power failure, depending on the system configuration and condition of the batteries.
This can be particularly useful for controlled entrances where vehicle access must remain available during temporary power interruptions.
🏗️ Durable Steel Barrier Cabinet
The B614 barrier cabinet is manufactured from steel and designed for outdoor access control installations.
The cabinet receives a pre-hot-dip galvanised treatment followed by polyester powder coating to provide protection against environmental exposure.
The electronic control unit itself carries an IP55 protection rating, while the barrier assembly is rated IP44.
🔓 Manual Release
In the event that manual operation is required, the B614 incorporates a manual release system.
The barrier is supplied with a triangular release key, allowing the drive mechanism to be released so that the beam can be manually moved when required.
This provides an alternative means of access during servicing or other situations where automatic operation is unavailable.
🧰 Wide Range of FAAC Accessories
The B614 can be configured with a wide range of genuine FAAC accessories to suit the individual installation.
Available accessories include:
- Round barrier beams
- Rectangular barrier beams
- Beam mounting brackets
- Beam lighting
- Reflective strips
- Beam skirt kits
- Adjustable end supports
- Adjustable beam forks
- Integrated flashing traffic light
- XLED flashing light
- XBAT 24 emergency battery kit
- Photocells
- Radio receivers
- Remote controls
- Access control equipment
This allows the B614 to be configured for everything from a straightforward residential entrance to a more comprehensive commercial vehicle access system.
🏢 Ideal for Residential & Commercial Applications
The combination of continuous-duty operation, fast opening speed and flexible accessory integration makes the B614 suitable for a wide range of applications.
It is particularly well suited to:
- Residential apartment complexes
- Strata properties
- Commercial car parks
- Office buildings
- Industrial premises
- Staff parking facilities
- Private vehicle entrances
- Controlled access roads
- Commercial access control systems
🔧 Professional Installation Recommended
An automatic vehicle barrier requires correct installation, balancing, programming and commissioning.
The appropriate barrier beam, balancing spring and safety equipment must be selected according to the width of the entrance and accessories installed on the beam.
Professional installation is recommended to ensure the barrier is correctly assembled, balanced and configured for safe and reliable operation.
🧰 Genuine FAAC Automatic Barrier
The FAAC B614 is a genuine FAAC automatic barrier system designed specifically for vehicle access control applications.
Its combination of fast 24Vdc operation, continuous-duty capability, integrated encoder and flexible E614 control system provides a professional solution for residential and commercial vehicle entrances.
Key Features
- Genuine FAAC automatic barrier system
- B614 24Vdc barrier
- 24Vdc electromechanical motor
- Maximum beam length up to 5 metres
- Compatible with round and rectangular FAAC beams
- Less than 2 second opening time with 3m beam
- Continuous-duty operation
- Maximum motor power of 165W
- Maximum torque of 300Nm
- Integrated incremental encoder
- Anti-crushing safety functionality
- Adjustable operating speed
- Smooth electronic and mechanical deceleration
- Built-in FAAC E614 electronic control unit
- Convenient top-mounted control board access
- Compatible with FAAC radio control systems
- Access control system integration
- Safety device compatibility
- Optional integrated flashing traffic light
- Optional beam lighting
- Optional beam skirt kits
- Optional XBAT 24 emergency battery backup
- Manual release system
- Durable steel barrier cabinet
- Suitable for residential and commercial applications
- Ideal for frequent vehicle access
- Genuine FAAC automation system
Specifications
- Manufacturer: FAAC
- Model: B614
- Product Type: Automatic Vehicle Barrier
- Barrier Item Code: 104614
- Mains Power Supply: 220–240V AC, 50/60Hz
- Electric Motor: 24Vdc Brushed Motor
- Maximum Power: 165W
- Maximum Torque: 300Nm
- Encoder: Integrated Incremental Encoder
- Maximum Beam Length: 5m
- Beam Compatibility: Round & Rectangular
- Opening Time: Less than 2 Seconds at 80° with 3m Beam
- Duty Cycle: Continuous Use
- Deceleration: Electronic + Mechanical
- Electronic Control Unit: FAAC E614
- Cabinet Material: Steel
- Cabinet Treatment: Pre-Hot-Dip Galvanised + Polyester Powder Coating
- Electronic Control Unit Protection: IP55
- Barrier Protection: IP44
- Operating Temperature: -20°C to +55°C
- Barrier Weight: Approximately 40kg
- Dimensions: 360 x 250 x 1163mm
- Installation Base: 305 x 230mm
Kit Configuration
The FAAC B614 Barrier Kit is configured around the B614 automatic barrier and the appropriate beam components required for the selected entrance width.
Depending on the kit option selected, components may include:
- FAAC B614 barrier cabinet with motor and transmission
- Built-in FAAC E614 control unit
- Installation accessories
- Manual release key
- Barrier beam
- Beam mounting bracket
- Correct balancing spring configuration
- Other accessories specified with the selected kit
Please refer to the individual kit option or product selection for the exact components supplied.
Optional Accessories
A wide range of compatible FAAC accessories can be added to the B614 system, including:
- FAAC XLED Flashing Light
- FAAC 2m Beam Skirt Kit
- FAAC Integrated Flashing Traffic Light
- FAAC XBAT 24 Emergency Battery Kit
- Adjustable Beam End Foot
- Adjustable Beam Support Fork
- FAAC BUS 2easy Photocells
- FAAC XP20W Wireless Photocells
- Beam lighting and connection kit
Accessory compatibility depends on the beam type, beam length and overall barrier configuration.
⚠️ Please Note
The FAAC B614 supports barrier beams up to a maximum of 5 metres; however, the maximum permitted beam length can be reduced when accessories such as beam skirts, lights, end supports or articulated components are installed.
The correct balancing spring configuration must be selected according to the beam length and accessories fitted.
The B614 barrier body itself includes the barrier cabinet, electromechanical gearmotor and transmission unit, E614 electronic control unit, installation accessories and triangular manual release key. Barrier beams, mounting brackets, foundation plates and other accessories are separate components unless specifically included in the selected kit.
Please check the exact kit configuration and selected beam length before ordering.
Professional installation and commissioning are recommended for safe and reliable operation.
