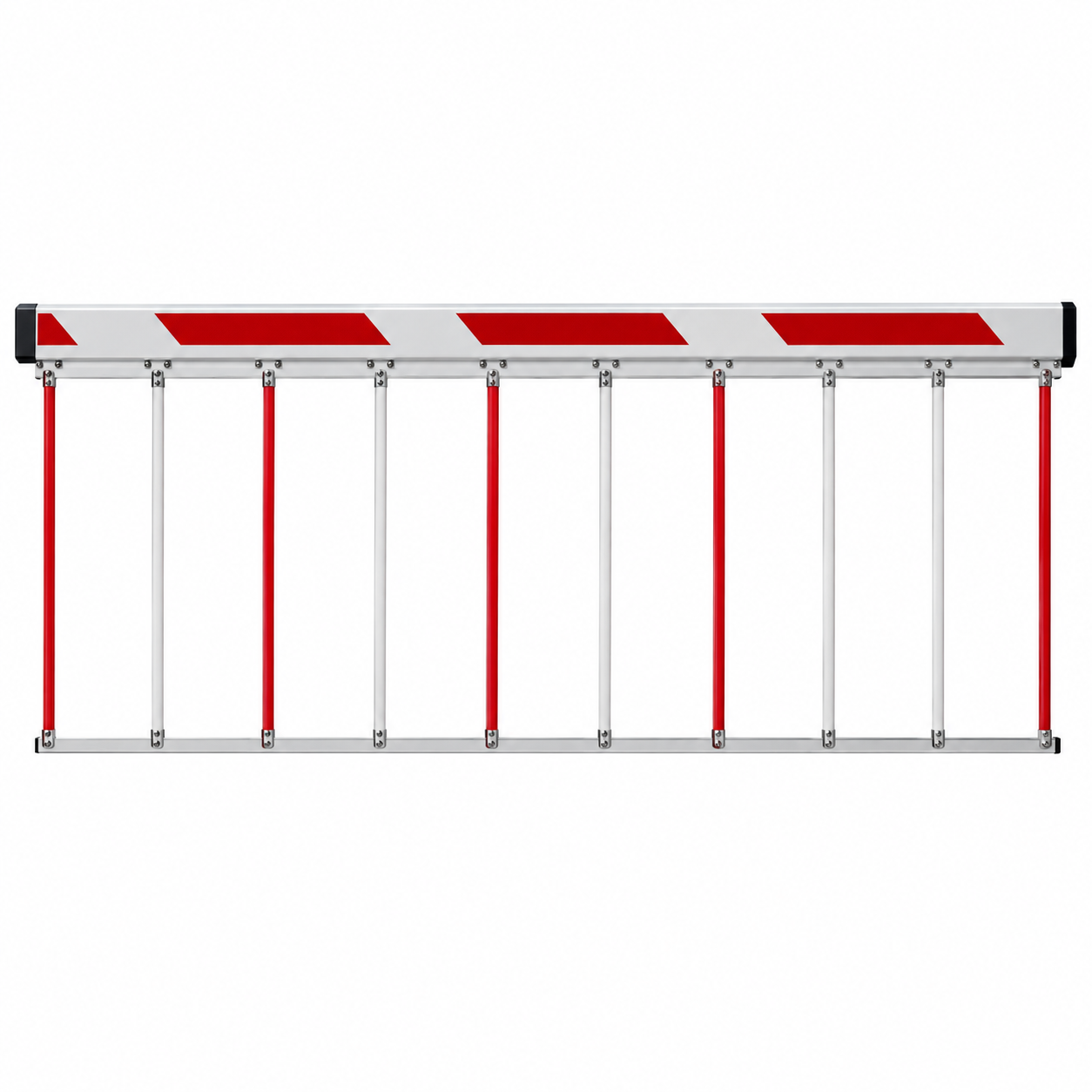

2m Beam Skirt Kit – B614/B680H

Some FAAC barrier gate operators feature beams that are so high that smaller vehicles are able to pass under them. Prevent unwanted access through checkpoints with the skirted boom kit.

The skirts are made from a series of interlocking jointed metal pieces that form a framework which can be attached to the bottom of a metal or wood beam arm. When the beam raises, the pieces fold against the arm to allow traffic to pass through. The skirts are lightweight and do not tax the gate motor more than the operator would normally handle.

This kit includes skirts and the hardware necessary to attach the beam to the skirt.

Note: These skirts may also be used to retrofit older beams, but could require different compression springs for the older model barrier operator. Please contact us for additional information. For proper balancing of the arm, the spring and pump size must be correct.

$343.00

SKU: 428441 Categories: , Tag: Brand:

Description

FAAC 2m Beam Skirt Kit – B614/B680H – 428441

The FAAC 2m Beam Skirt Kit is a genuine barrier accessory designed to increase the visibility of compatible FAAC automatic barrier boom arms.

Installed beneath the barrier beam, the hanging skirt creates a larger and more visible physical barrier, making the closed boom easier for approaching vehicles and pedestrians to identify.

FAAC Part Number: 428441

🚧 Increased Barrier Visibility

The beam skirt hangs beneath the main barrier boom, increasing the overall visible area of the closed barrier.

It is particularly suited to:

  • Car parks
  • Commercial entrances
  • Industrial sites
  • Apartment complexes
  • Controlled vehicle entrances
  • Areas where increased boom visibility is desirable

FAAC specifically describes its skirt system as serving to increase barrier visibility.

📏 2m Skirt Kit

The 428441 provides a 2 metre skirt section for compatible FAAC barrier beams.

FAAC offers skirt kits in two standard lengths:

  • 428441 – 2m Beam Skirt Kit
  • 428446 – 3m Beam Skirt Kit

The appropriate skirt configuration can be selected according to the barrier boom length and installation requirements.

⚙️ B614 Balancing Requirements

Adding a skirt increases the weight carried by the barrier boom and therefore changes the required balancing configuration.

For the B614, FAAC provides dedicated balancing ranges for beams fitted with:

  • Skirt only
  • Lights and skirt
  • Skirt and end foot
  • Lights, skirt and end foot

Depending on the completed boom length and accessories fitted, either one or two B614 balancing springs may be required.

The applicable components are:

  • 721209 – B614 Balancing Spring
  • 490186 – Double Spring Fitting where two springs are required

🔧 B614 & B680H Compatibility

FAAC lists the 428441 as a common accessory for both the B614 and B680H automatic barrier systems.

For the B680H, FAAC permits skirts on appropriate S and L beam configurations, although the allowable accessories depend on the effective passage width and beam configuration.

Key Features

  • Genuine FAAC accessory
  • FAAC Part Number: 428441
  • 2 metre beam skirt kit
  • Installs beneath compatible barrier boom arms
  • Increases barrier visibility
  • Compatible with FAAC B614
  • Compatible with FAAC B680H
  • Suitable for compatible Round S beam configurations
  • Suitable for compatible B680H Round L configurations
  • Can be combined with additional skirt sections where appropriate
  • Suitable for new installations or barrier upgrades

Specifications

  • Manufacturer: FAAC
  • Brand: FAAC
  • Part Number: 428441
  • Product Type: Barrier Beam Skirt Kit
  • Length: 2m
  • Application: Automatic Barrier Boom
  • B614 Compatibility: Yes
  • B680H Compatibility: Yes

Compatibility

Compatible with appropriate configurations of:

  • FAAC B614
  • FAAC B680H
  • FAAC Round S barrier beams
  • FAAC Round L B680H beam configurations where permitted

FAAC also lists the 428441 skirt kit as an accessory for other compatible barrier systems, including the FAAC 620.

⚠️ Please Note

This listing is for one FAAC 2m Beam Skirt Kit – 428441.

The barrier operator, boom arm, balancing components and other accessories are not included.

When installing a skirt on a B614, the additional weight must be taken into account when selecting and adjusting the balancing spring configuration.

For B680H installations, skirt compatibility depends on the beam type and effective passage width. FAAC does not permit skirt kits on its pivoting round beam system.
