Description

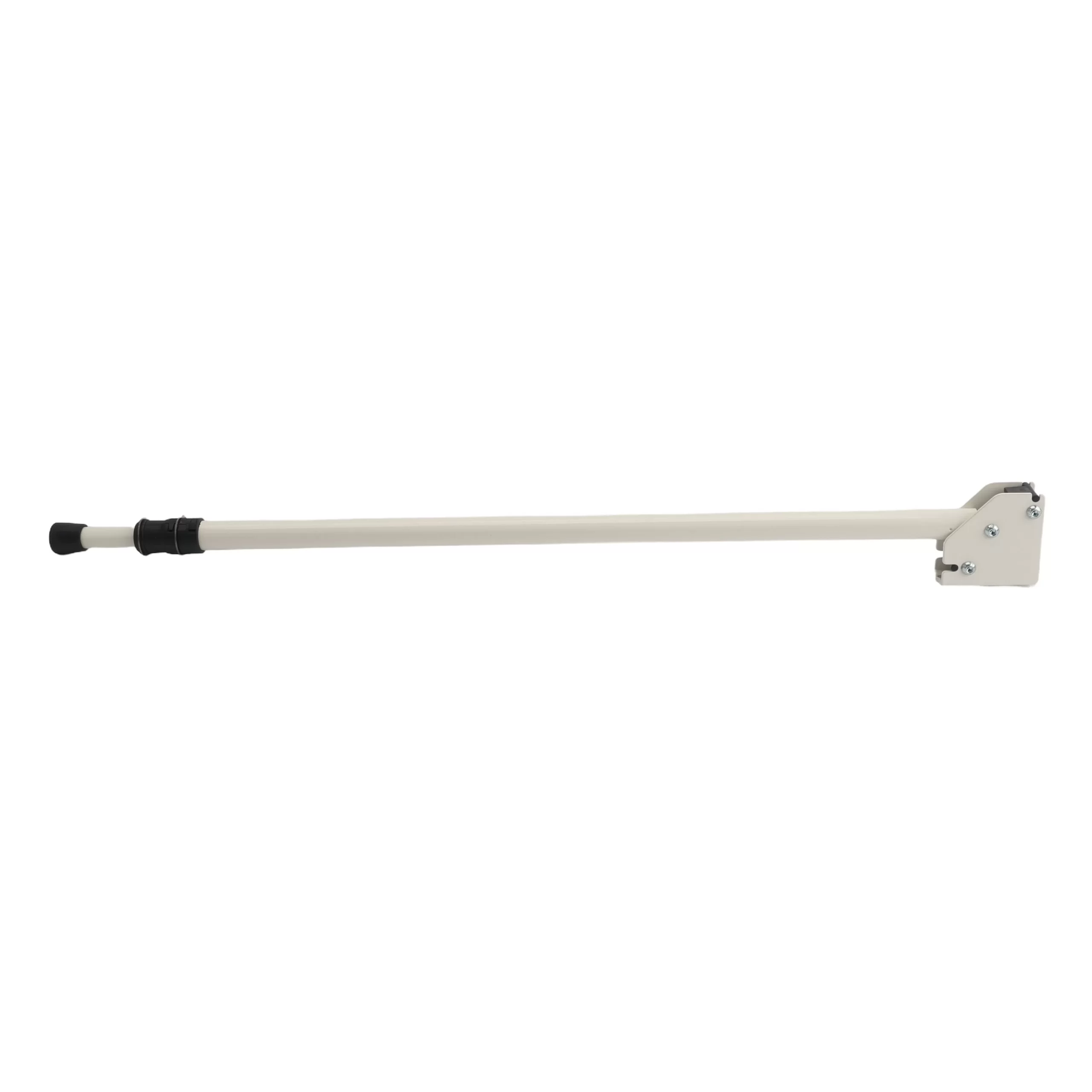

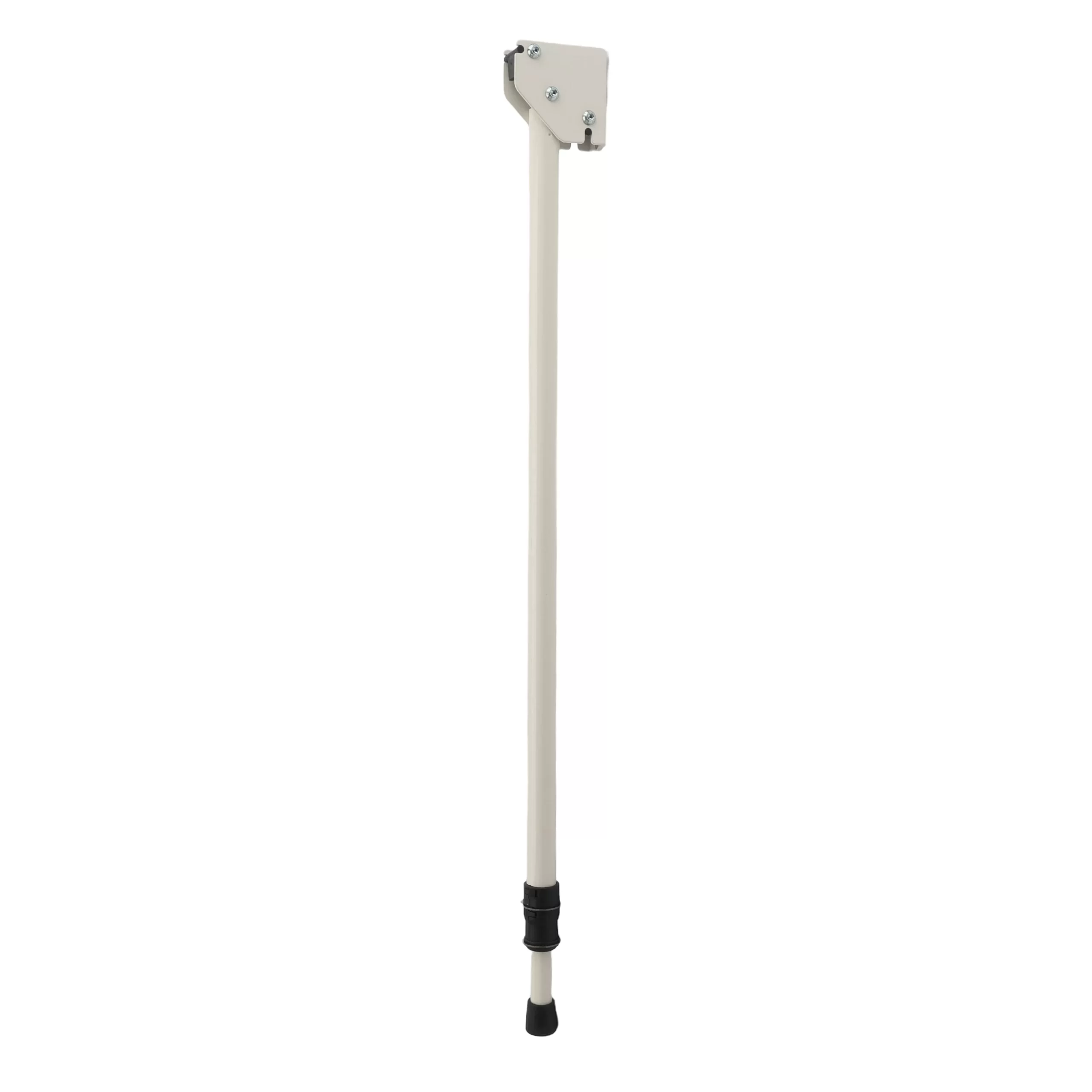

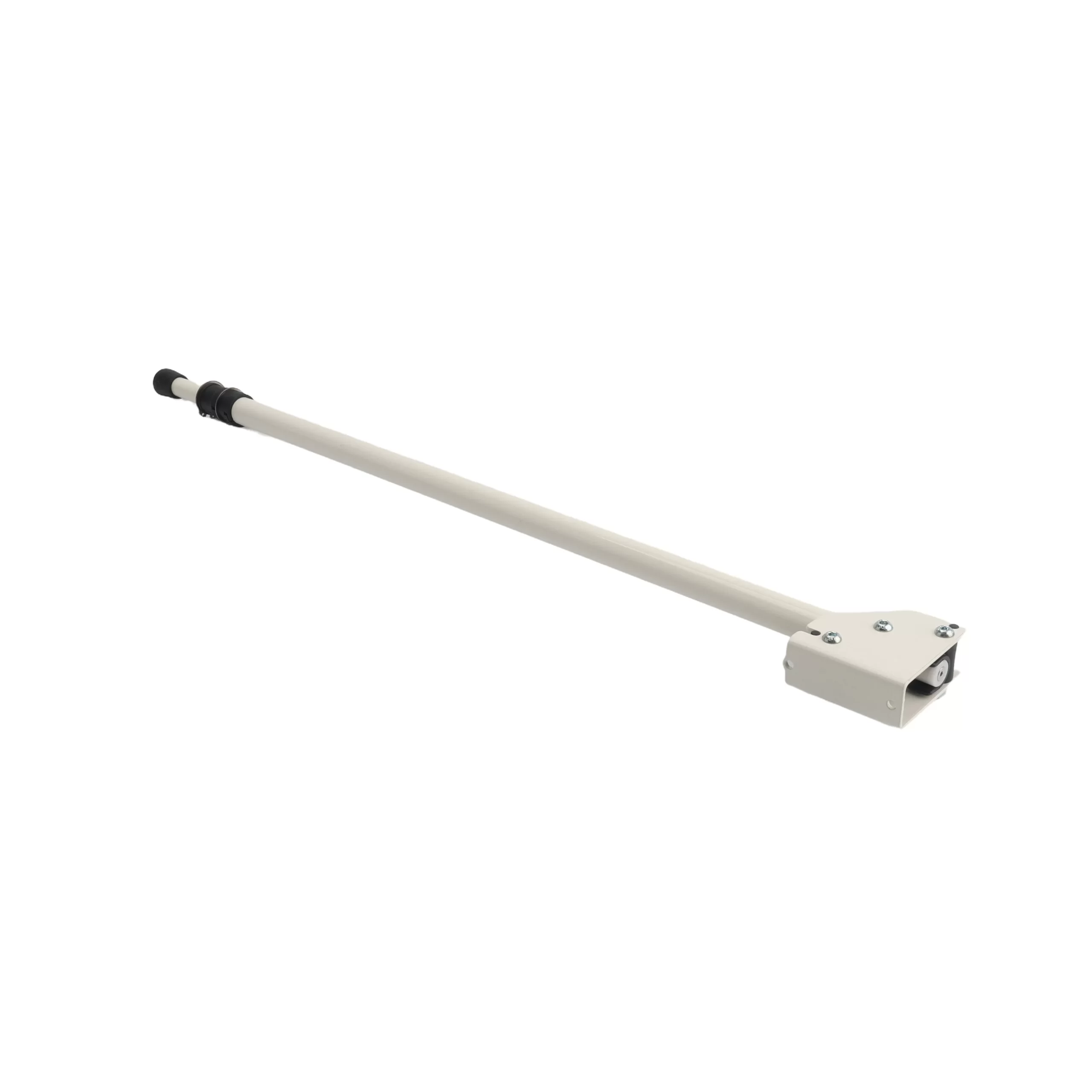

FAAC Beam Adjustable End Foot – B614/B680H – 428805
The FAAC Adjustable End Foot is a genuine barrier accessory designed to support the free end of a compatible FAAC barrier boom when the barrier is in the closed position.
Mounted directly to the boom arm, the foot lowers with the beam and rests on the ground when closed, providing additional support for longer barrier beams.
FAAC Part Number: 428805
🚧 Support for the Barrier Beam
The primary purpose of the 428805 End Foot is to support the end of the barrier beam when closed.
This is particularly useful on longer boom installations where additional support at the free end of the beam can help maintain a stable closed position.
Unlike a fixed support fork, the end foot travels with the boom as the barrier opens and closes.
📏 Adjustable Height
The lower section of the foot is adjustable, allowing it to be set according to the installed height of the barrier and finished ground level.
FAAC specifies:
- Minimum height: 730mm
- Maximum height: 1155mm
- Installation: Mounted directly to barrier beam
- Maximum quantity: One end foot per beam
The lower tube is extended until it reaches ground level with the barrier closed, then secured in position.
⚙️ B614 Balancing Requirements
When an end foot is fitted to a FAAC B614, its additional weight must be included when determining the correct balancing spring configuration.
FAAC provides specific B614 balancing configurations for beams fitted with an end foot, including combinations with beam lighting and skirts.
After installation, the boom should be correctly rebalanced according to the applicable FAAC barrier instructions.
🔧 B614 & B680H Compatibility
The 428805 is suitable for compatible FAAC barrier systems including the B614 and B680H. FAAC lists the adjustable end foot as a B614 accessory, while its B680H documentation permits an end foot on appropriate S and L beam configurations.
For the B680H, accessory compatibility depends on the beam type and effective passage width.
Key Features
- Genuine FAAC barrier accessory
- FAAC Part Number: 428805
- Supports the free end of the barrier boom when closed
- Mounts directly to the barrier beam
- Travels with the boom during operation
- Adjustable height from 730–1155mm
- Compatible with FAAC B614
- Compatible with appropriate FAAC B680H configurations
- Suitable for longer barrier boom installations
- One end foot permitted per beam
- Suitable for new installations or replacement applications
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Part Number: 428805
- Product Type: Adjustable Barrier Beam End Foot
- Application: Barrier Boom Support
- Adjustable Height: 730–1155mm
- Installation: Beam Mounted
- Maximum Quantity: 1 Per Beam
- B614 Compatibility: Yes
- B680H Compatibility: Yes, subject to beam configuration
Compatibility
Compatible with appropriate configurations of:
- FAAC B614
- FAAC B680H
- FAAC Round S barrier beams
- FAAC Round L B680H beam configurations where permitted
The 428805 is also listed for selected other FAAC barrier systems.
⚠️ Please Note
This listing is for one FAAC Beam Adjustable End Foot – 428805.
The barrier operator, boom arm and other accessories are not included.
Only one adjustable end foot should be installed per barrier beam.
When fitted to a B614, the additional weight of the end foot must be considered when selecting and adjusting the balancing spring configuration.
For B680H installations, the end foot is not compatible with every beam configuration. FAAC specifically states that an end foot cannot be fitted to the pivoting round beam system.
