Description

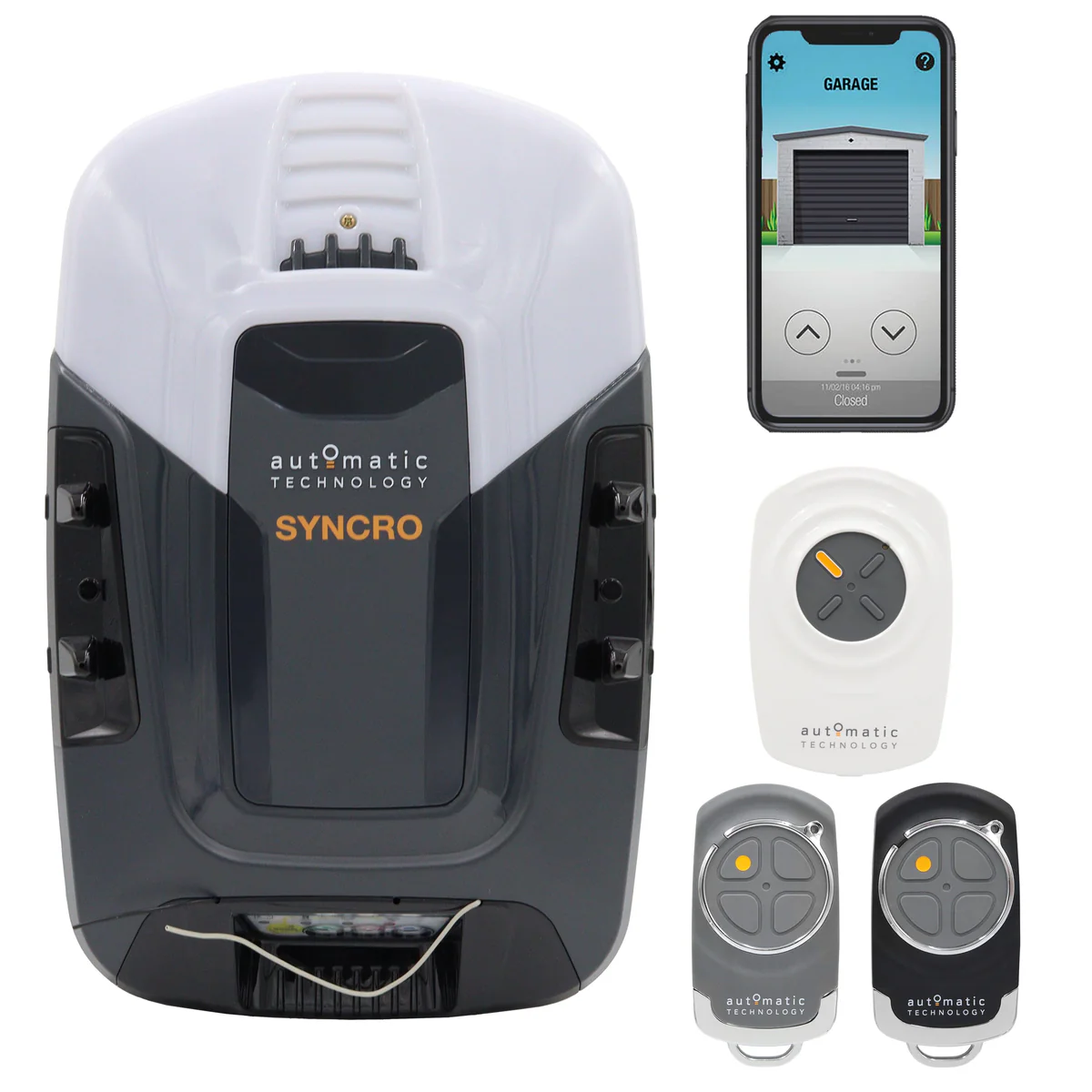

ATA Syncro Garage Door Opener
The ATA Syncro garage door opener is a smart automation system designed for reliable operation, fast opening speeds and built-in connectivity. It allows you to monitor and control your garage door using a smartphone, without requiring additional modules.
🔄 Direct Replacement for Existing ATA Openers
The ATA Syncro garage door opener is designed as a direct replacement for a wide range of existing Automatic Technology models.
Compatible replacement for:
- GDO-9V1
- GDO-9V2
- GDO-9V3
- GDO-9V2G2
- GDO-9V3G2
- GDO-9V3G2WE
- GDO-11V1
- GDO-11V3
In most installations, the existing drive rail can be reused. This reduces installation time and makes upgrading simpler without needing to replace the full rail system.
🔧 Simple Upgrade Installation
Reusing the existing rail allows the motor unit to be replaced without major changes to the door setup. This helps maintain alignment and reduces installation time compared to a full system replacement.
📱 Smart Control and Connectivity
The ATA Syncro garage door opener includes built-in smart functionality, allowing control via smartphone. You can open, close and monitor the door remotely, as well as manage access when required.
⚡ Fast and Reliable Operation
The system is designed for smooth and efficient operation, with a fast opening speed that improves access in and out of the garage.
The DC motor provides consistent performance with reduced noise and vibration.
🛡️ Safety Features
Auto Reverse Function
The ATA Syncro garage door opener will stop and reverse if an obstruction is detected during closing.
Safety Beam Compatibility
Compatible with safety beam systems to prevent the door closing when an obstruction is present.
🔄 Soft Start and Stop
The motor gradually increases and decreases speed during operation. This reduces wear on the door and opener and improves long-term reliability.
🔒 Security Features
Auto Close Function
Automatically closes the door after operation to reduce the risk of it being left open. Safety beams are required when using this feature.
Vacation Mode
Limits operation to a master remote only, preventing unauthorised access while away.
🔔 Service Reminder
The ATA Syncro garage door opener includes an audio and visual reminder when servicing is required.
🎮 Multi Device Control
Allows multiple doors, gates or systems to be operated from a single remote.
📦 What’s Included
- Opener drive unit
- 2 x TrioCode128 keyring transmitters
- 1 x wireless wall controller
⚙️ Optional Accessories
Battery Backup
Allows operation during power outages.
Safety Beams
Provide obstruction detection and are required for certain features such as auto close.
📊 Technical Specifications
- Voltage: 230V – 240V
- Frequency: 50Hz / 60Hz
- Power input: 225W
- Maximum door area: 18m²
- Maximum door weight: 236kg
- Minimum headroom: 57mm
- Peak force: 1100N
- Rated load: 400N
- Nominal force: 200N
- Transmitter type: TrioCode128
- Receiver type: Multi-frequency UHF
- Receiver capacity: 64 transmitters
- Main light: LED
- Connectivity: Built-in smart hub
🏠 Applications
- Residential sectional garage doors
- Tilt doors (where compatible)
- Replacement of existing openers
- New installations
📋 Warranty
7 year / 20,000 cycle warranty.
