Description
The ATA WPE-3V2 Wireless Safety Beam Kit is a genuine wireless photoelectric safety system designed for compatible ATA and B&D garage door operators.
The system creates an invisible infrared beam across the garage door opening to detect vehicles, people, pets or other obstructions before the closing door makes contact with them.
Using battery-powered wireless safety beams and a dedicated base station, the WPE-3V2 provides additional protection without requiring traditional safety beam wiring to be run across the garage door opening.
It is an ideal safety upgrade for compatible ATA and B&D garage door operators, particularly where Auto-Close, smart connectivity or additional non-contact obstruction detection is required.
👁️ Additional Garage Door Safety
The WPE-3V2 provides an additional level of protection for an automatic garage door by monitoring the opening with an infrared safety beam.
The transmitter and receiver are installed opposite each other near the bottom of the garage door opening.
When correctly aligned, an invisible infrared beam passes between the two units.
If the beam is interrupted while the garage door is closing, the connected operator can respond by stopping and reversing the door.
This helps protect:
- Vehicles
- People
- Children
- Pets
- Bicycles
- Equipment
- Stored items
- Other objects within the garage door opening
🛑 Non-Contact Obstruction Detection
One of the major advantages of photoelectric safety beams is their ability to detect an obstruction before the garage door physically makes contact with it.
Standard force-based obstruction detection generally relies on the operator detecting an unexpected increase in resistance.
Safety beams instead monitor the doorway itself.
If an obstruction enters the beam path, the operator receives a safety signal before the closing door reaches the object.
This provides an important additional layer of protection for automatic garage doors.
📡 Wireless Safety Beam System
The WPE-3V2 uses wireless communication to simplify installation.
Rather than running control wiring from the garage door operator to safety beam sensors on both sides of the opening, the WPE-3V2 uses battery-powered beam units communicating with a dedicated wireless base station.
This provides several advantages:
- Reduced installation wiring
- Cleaner finished installation
- No wiring required across the garage door opening
- Reduced need for exposed conduit
- Easier installation on existing garage doors
- Greater flexibility when positioning the sensors
- Ideal for retrofit applications
This makes the WPE-3V2 particularly useful when adding safety beams to an existing garage door installation.
🔋 Battery-Powered Transmitter & Receiver
The WPE-3V2 transmitter and receiver are battery powered.
This eliminates the need to provide a separate wired power supply to each safety beam location.
The battery-powered design makes installation considerably easier in garages where wiring was not installed when the garage door was originally fitted.
It also provides a much cleaner installation where running additional cables or conduit around the garage opening would be difficult or undesirable.
📶 Dedicated Wireless Base Station
The WPE-3V2 system incorporates a dedicated base station that interfaces with the compatible garage door operator.
The wireless transmitter and receiver communicate with the base station, allowing the garage door operator to monitor the status of the safety beam system.
This arrangement combines the convenience of wireless sensors with direct integration into the operator’s safety controls.
📏 Suitable for Residential Garage Door Openings
The WPE-3V2 is designed to provide sufficient beam range for typical residential garage door applications.
With the transmitter and receiver positioned opposite each other, the infrared beam can span both standard single and compatible double garage door openings.
Correct positioning and alignment are essential to ensure reliable communication between the two safety beam units.
📐 Low-Level Beam Positioning
The safety beams are installed close to floor level so they can detect objects positioned within the path of the closing garage door.
Correct mounting height helps ensure that vehicles, people, pets and other objects are detected before the garage door reaches them.
Both beam units must be mounted securely and positioned directly opposite each other with a clear line-of-sight.
💡 Alignment Indicators
The WPE-3V2 incorporates visual indication to assist with installation and alignment.
During commissioning, the installer can use the indicators to confirm that the transmitter and receiver are correctly positioned and communicating.
Correct alignment is essential for reliable operation.
Once installed, the system should be tested to confirm that interrupting the beam produces the correct response from the garage door operator.
🚗 Helps Protect Vehicles
Safety beams are particularly useful for protecting vehicles around an automatic garage door.
A vehicle may occasionally stop partially within the garage door opening while loading, unloading or manoeuvring.
If the garage door begins closing while the vehicle is interrupting the safety beam, the WPE-3V2 can signal the compatible operator to stop and reverse the door before it makes contact.
This provides an important additional level of protection beyond the operator’s normal obstruction detection.
🐕 Ideal for Homes With Children & Pets
The WPE-3V2 can also provide additional protection where children or pets regularly move through the garage door opening.
Because the beam is positioned close to floor level, it can detect many low-level obstructions that may otherwise be difficult to see from inside a vehicle or elsewhere on the property.
Safety beams are therefore a highly recommended addition to frequently used automatic garage doors.
🔄 Auto-Close Compatibility
Safety beams are particularly important when using Auto-Close functionality on a compatible garage door operator.
Auto-Close allows the garage door to automatically close after a programmed period rather than requiring the user to manually activate the close command.
Because the garage door may begin moving automatically, the safety beam system monitors the doorway for obstructions.
If the beam is interrupted, the operator can prevent or interrupt the closing cycle according to its programmed safety operation.
📱 Ideal for Smart Garage Door Systems
The WPE-3V2 is also an important addition when using compatible smart garage door functionality.
Smart connectivity can allow a compatible garage door operator to be controlled from a connected device, potentially when the user does not have direct line-of-sight to the garage door.
Adding photoelectric safety beams provides an additional method of monitoring the garage door opening for obstructions during automatic operation.
This makes the WPE-3V2 particularly useful when upgrading a compatible ATA or B&D operator with smart connectivity.
🏠 Ideal for Existing Garage Doors
The wireless design makes the WPE-3V2 particularly well suited to existing garage door installations.
Traditional wired safety beams can require additional cabling to be installed around the garage door opening.
With the WPE-3V2, the battery-powered beam units eliminate much of this wiring requirement.
This makes the kit ideal for:
- Existing automatic garage doors
- New garage door installations
- Smart garage door upgrades
- Auto-Close installations
- Safety upgrades
- Garages where wiring is difficult
- Installations where exposed conduit is undesirable
🔧 Ideal for New Garage Door Installations
The WPE-3V2 can also be installed when fitting a new compatible ATA or B&D garage door operator.
Installing the safety beams as part of the original automation system provides additional obstruction detection from the beginning and allows compatible automatic functions to be configured where required.
The wireless design also helps simplify the installation process and reduces the amount of cabling required around the garage door opening.
🔄 Ideal Upgrade for Existing ATA & B&D Openers
Owners of compatible ATA and B&D garage door operators can add the WPE-3V2 as an upgrade to an existing system.
This can be particularly useful when:
- Adding additional safety protection
- Enabling compatible Auto-Close functionality
- Adding smart garage door control
- Modernising an existing garage door system
- Reducing the risk of the door contacting vehicles or other objects
There is generally no need to replace the complete compatible garage door operator simply to add photoelectric safety protection.
🧹 Simple Ongoing Maintenance
Once installed, the WPE-3V2 requires relatively little routine maintenance.
The safety beam lenses should be periodically inspected and kept clean so dirt, dust, insects or other debris do not interfere with the infrared beam.
The batteries should also be replaced when required.
The system should be tested periodically by interrupting the beam and confirming that the garage door responds correctly.
🧰 Genuine ATA Safety Accessory
The WPE-3V2 is a genuine Automatic Technology Australia safety accessory designed specifically to integrate with compatible ATA and B&D garage door operators.
Using the correct safety beam system ensures that the transmitter, receiver and base station are designed to communicate correctly with the compatible garage door operator.
This provides a purpose-designed safety solution rather than relying on a generic aftermarket interface.
📦 Kit Includes

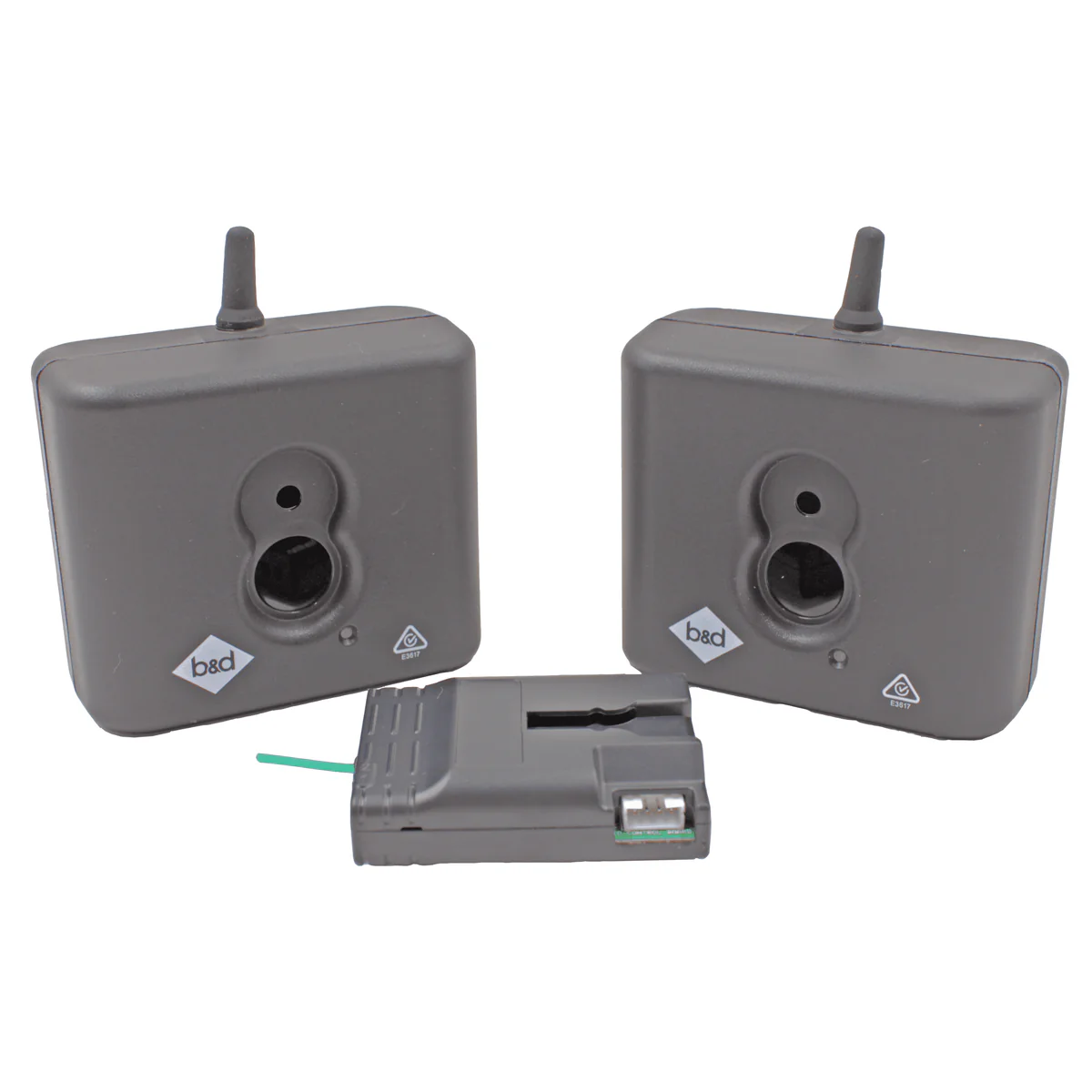

The ATA WPE-3V2 Wireless Safety Beam Kit includes the primary components required to add wireless photoelectric safety protection to a compatible garage door operator.
The kit includes:
- Wireless Safety Beam Transmitter
- Wireless Safety Beam Receiver
- Wireless Base Station
- Mounting brackets
- Required mounting accessories
- Batteries
This provides the main components required to install and commission the wireless safety beam system.
Key Features
- Genuine ATA wireless safety accessory
- Model WPE-3V2
- Wireless photoelectric safety beam system
- Non-contact obstruction detection
- Helps detect vehicles, people, pets and other objects
- Battery-powered transmitter
- Battery-powered receiver
- Dedicated wireless base station
- Invisible infrared safety beam
- Helps prevent the door closing onto an obstruction
- Reduced installation wiring
- No safety beam wiring required across the garage door opening
- Cleaner installation than conventional wired safety beams
- Suitable for new installations
- Ideal for existing garage door upgrades
- Suitable for compatible Auto-Close applications
- Ideal for compatible smart garage door systems
- Visual alignment indication
- Simple ongoing maintenance
- Compatible with selected ATA garage door operators
- Compatible with selected B&D garage door operators
Specifications
- Manufacturer: Automatic Technology Australia (ATA)
- Product: Wireless Safety Beam Kit
- Model: WPE-3V2
- Product Type: Wireless Photoelectric Safety System
- Detection Method: Infrared Safety Beam
- Communication: Wireless
- Beam Transmitter: Included
- Beam Receiver: Included
- Wireless Base Station: Included
- Sensor Power: Battery
- Mounting Brackets: Included
- Application: Automatic Garage Door Safety
- Obstruction Detection: Non-Contact
- Auto-Close Support: Yes, with compatible operators
- Smart Control Applications: Suitable with compatible operators
- Installation: New or Existing Garage Door Systems
Compatibility
The ATA WPE-3V2 Wireless Safety Beam Kit is designed for compatible ATA and B&D garage door operators, including:
B&D Garage Door Operators
- B&D Secure SDO-6
- B&D Smart SDO-7
- B&D PanelMax SDO-8
- B&D Smart Pro SDO-9
ATA Garage Door Operators
- ATA ATS-1
- ATA Tempo ATS-2
- ATA Synchro ATS-3
The WPE-3V2 provides a purpose-designed wireless safety beam solution for these compatible operators and can be particularly useful when adding Auto-Close, smart functionality or additional obstruction protection.
⚠️ Please Note
The WPE-3V2 is a safety accessory and must be correctly installed, aligned, programmed and tested before use.
The transmitter and receiver must have a clear line-of-sight and should be securely mounted at the appropriate height on opposite sides of the garage door opening.
The safety beam system should be tested after installation and periodically thereafter to confirm that interrupting the beam causes the garage door operator to respond correctly.
Safety beams should not be used as a substitute for maintaining the garage door itself. The garage door must remain correctly balanced, mechanically sound and properly maintained.
Compatibility should always be confirmed against the exact garage door operator model before ordering, as ATA and B&D have produced different generations of safety beam systems and associated accessories.
