Description

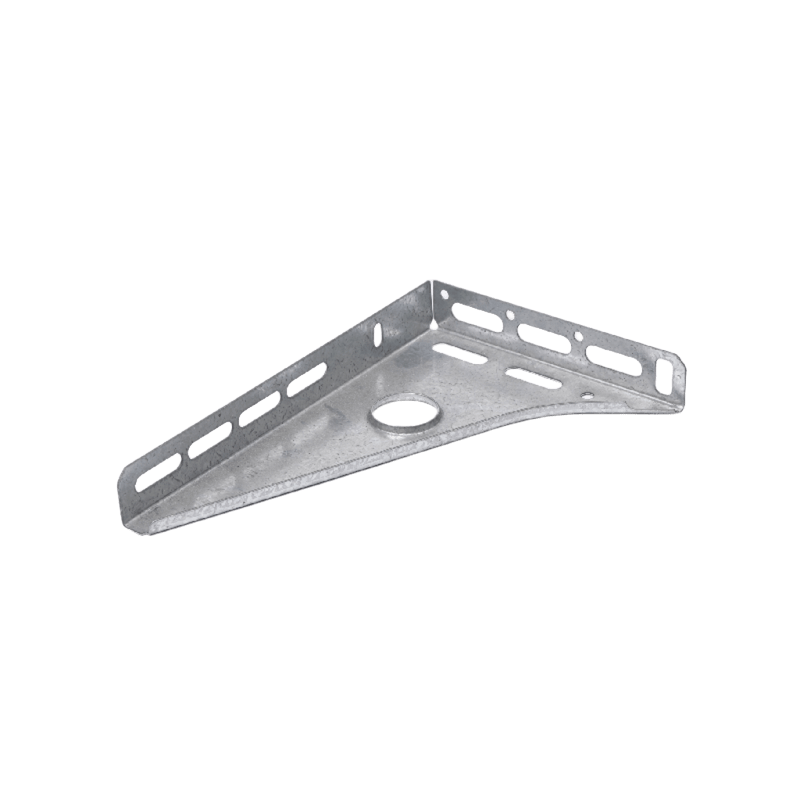

The Bracket A Pressed LH is a left-hand pressed steel mounting bracket designed for compatible B&D Roll-A-Door installations.
Installed on the left-hand side of the door, the bracket provides the structural mounting and support point for the roller door barrel and axle assembly.
It is suitable for replacement, repair and compatible new-door installations where a left-hand Bracket A configuration is required.
🔧 Pressed Steel Roller Door Bracket
The Bracket A Pressed LH is manufactured as a formed steel bracket designed to support the roller door assembly at the end of the door barrel.
The pressed construction provides a rigid mounting platform while maintaining the required geometry for the roller door axle and associated hardware.
⬅️ Left-Hand Configuration
This product is the:
- LH – Left-Hand bracket
The handing of the bracket is important and should be confirmed before ordering.
The left-hand and right-hand brackets are handed components and should not automatically be considered interchangeable.
🚪 B&D Roll-A-Door Application
The Bracket A Pressed LH is designed for compatible B&D Roll-A-Door hardware configurations.
The bracket forms part of the supporting hardware used to mount the roller door barrel assembly above the opening.
Correct bracket selection and installation are essential for maintaining the correct position of the door barrel.
🏗️ Supports the Door Barrel Assembly
Roller door mounting brackets provide the structural connection between the door barrel assembly and the building.
The bracket supports the end of the roller door axle and transfers the associated door loads into the supporting structure.
For this reason, the bracket must always be securely fixed to an appropriate structural substrate.
📐 Correct Bracket Positioning
Correct bracket positioning is essential during roller door installation.
The brackets must be positioned according to the required door dimensions and installation clearances.
Both sides must also be installed level with each other.
Incorrect bracket positioning can affect:
- Door alignment
- Barrel position
- Curtain tracking
- Guide alignment
- Spring operation
- Overall door operation
Always follow the applicable B&D installation instructions when positioning the bracket.
📏 Side Room Requirements
The available side room should be checked before installing the bracket.
The required clearance can vary according to:
- Door size
- Bracket configuration
- Headroom arrangement
- Operator installation
- Supporting structure
Additional side room may be required where an automatic roller door opener is being installed.
🧱 Structural Mounting
The Bracket A Pressed LH must be securely fixed to a suitable structural mounting surface.
Depending on the installation, this may include compatible:
- Timber jambs
- Steelwork
- Masonry
- Structural framing
Fasteners must be selected according to the supporting structure and loads associated with the particular roller door.
⚖️ Brackets Must Be Level
The left-hand and right-hand roller door mounting brackets must be installed level with each other.
Correct levelling helps ensure the barrel and curtain remain correctly positioned throughout operation.
The bracket positions should be checked using an appropriate:
- Laser level
- Spirit level
- Water level
Bracket alignment should be confirmed before the roller door is placed onto the brackets.
🔩 Replacement Bracket
The Bracket A Pressed LH can be used as a replacement for a damaged or unsuitable compatible existing bracket.
When replacing an existing bracket, check:
- Existing bracket type
- Left-hand / right-hand orientation
- Door series
- Door size
- Existing fixing arrangement
- Axle configuration
- Available side room
The replacement bracket should match the required hardware configuration of the door.
🛠️ Suitable for Garage Door Repairs
This bracket is ideal for professional garage door repair and refurbishment work where an existing left-hand mounting bracket requires replacement.
Replacement may be required where the original bracket has been:
- Damaged
- Bent
- Corroded
- Modified
- Incorrectly installed
- Removed during building work
The surrounding structure should also be inspected before fitting a replacement bracket.
⚠️ Structural Component
The roller door mounting bracket is a structural component of the door installation.
It supports the roller door assembly and is associated with a spring-loaded door system.
Correct installation is therefore essential.
The bracket should not be installed into unsuitable material or attached using inadequate fasteners.
⭐ Key Features
- Bracket A Pressed
- Left-hand configuration
- LH bracket
- Pressed steel construction
- Designed for compatible B&D Roll-A-Door installations
- Supports the roller door barrel and axle assembly
- Suitable for replacement applications
- Suitable for repair applications
- Suitable for compatible new installations
- Structural roller door mounting component
- Designed for professional garage door installations
- Handed component – confirm LH before ordering

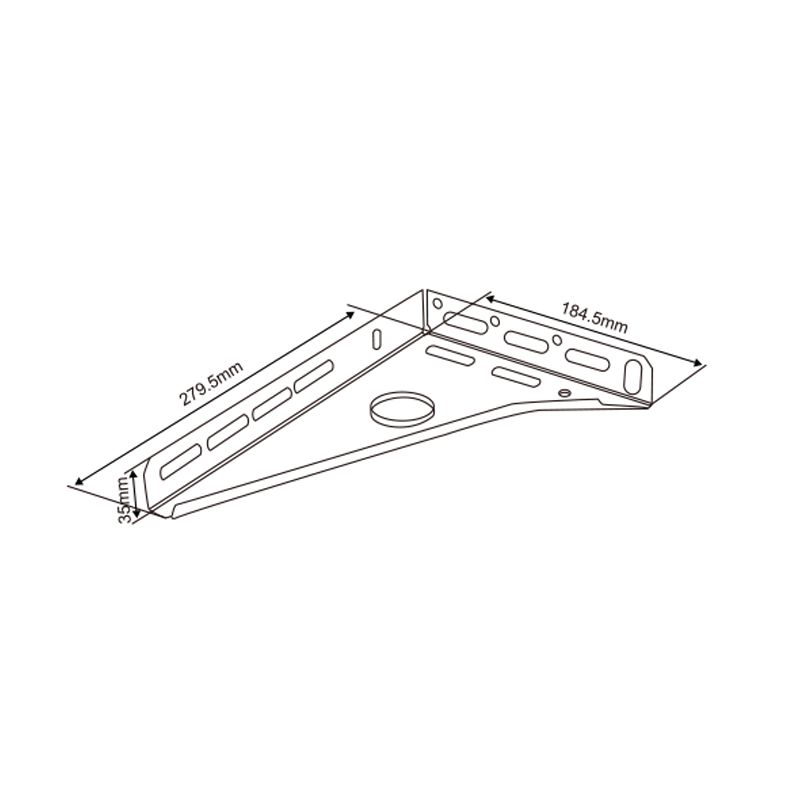

🔧 Specifications
- Product: Bracket A Pressed LH
- Product Type: Roller Door Mounting Bracket
- Bracket Type: A
- Construction: Pressed Steel
- Handing: Left Hand
- Orientation: LH
- Application: Roller Door Hardware
- Installation Position: Left-Hand Side of Door
- Primary Function: Support / Mounting of Roller Door Barrel Assembly
- Suitable for Replacement: Yes, where compatible
- Suitable for New Installation: Yes, where compatible
🔗 Compatibility
Designed for compatible B&D Roll-A-Door installations requiring a left-hand Bracket A pressed mounting bracket.
Always confirm:
- Door model / series
- Bracket type
- Bracket handing
- Door size
- Axle configuration
- Existing mounting arrangement
before ordering.
Bracket A Pressed LH should be paired with the appropriate compatible right-hand bracket where a complete left and right bracket arrangement is required.
⚠️ Please Note
This product is the Bracket A Pressed LH only.
This is the left-hand version.
Always confirm the required bracket handing before ordering.
The opposite right-hand bracket is a separate component unless specifically stated otherwise.
Roller door mounting brackets are structural components and must be securely fixed to suitable structural material using fasteners appropriate for the substrate and installation.
Both door brackets must be correctly positioned and level before the roller door is installed.
Garage door springs and roller door assemblies can store significant mechanical energy. Installation, adjustment and repair should be carried out by appropriately trained personnel.
If you are unsure whether this bracket is suitable for your B&D roller door, contact our Technical Support team on 1300 733 066 for assistance.
