Description

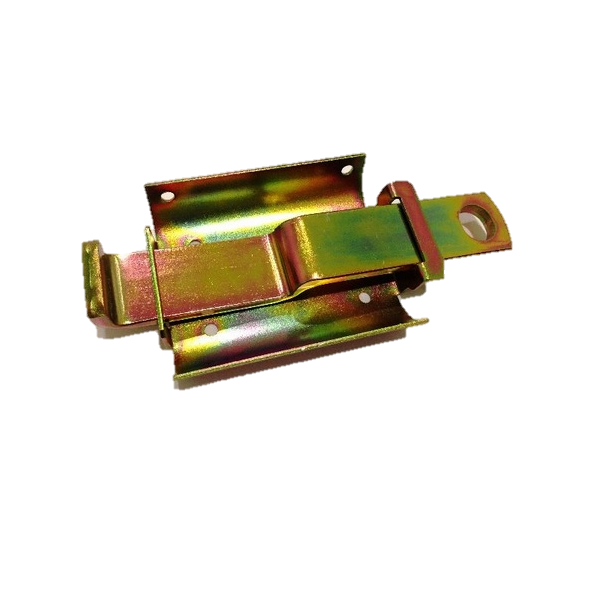

B&D Waist High Internal Slide Bolt Lock – Series 2
Genuine B&D internal waist-high slide bolt lock assembly designed for compatible B&D Series 2 roller doors.
The lock is mounted internally at approximately waist height and operates the door’s locking mechanism from inside the garage, providing a convenient manual locking point for compatible Series 2 doors.
B&D Part Number: 6136
🔐 Internal Waist High Lock
The 6136 is B&D’s genuine Series 2 Internal Waist High Lock.
Positioned at a convenient operating height on the inside of the roller door, the lock operates the slide bolt / shoot bolt locking system to manually secure the door in the closed position.
🚪 Designed for B&D Series 2
B&D specifically lists part number 6136 as the:
Internal Waist High Lock – Series 2
It is intended as a replacement for compatible B&D Series 2 roller doors originally fitted with this style of internal locking system.
🔧 Genuine Replacement Assembly
Ideal for replacing an existing waist-high lock assembly that has become:
- Damaged
- Bent
- Broken
- Worn
- Difficult to operate
- Missing from the door
Using the correct replacement assembly helps retain the original locking arrangement of the Series 2 door.
🏠 Internal Manual Security
The waist-high lock is operated from inside the garage.
When engaged, the slide bolt / shoot bolt mechanism secures the roller door to help prevent it from being manually lifted from the closed position.
This makes it particularly useful on manually operated roller doors or installations where an additional internal mechanical locking method is required.
Key Features
- Genuine B&D spare part
- B&D Part Number: 6136
- Internal waist-high lock
- Slide bolt / shoot bolt locking assembly
- Designed for compatible B&D Series 2 roller doors
- Convenient waist-height operation
- Operated from inside the garage
- Manual mechanical locking
- Replacement for damaged or worn original assemblies
- Ideal for garage door repairs and servicing
Specifications
- Manufacturer: B&D Doors Australia
- Brand: B&D
- Product: Internal Waist High Lock
- Part Number: 6136
- Lock Type: Internal Slide Bolt / Shoot Bolt
- Mounting Position: Waist Height
- Operation: Manual
- Door Series: B&D Series 2
- Application: Compatible B&D Roller Doors
Compatibility
Designed to suit compatible:
- B&D Series 2 Roller Doors
B&D also produced different waist-high locking assemblies for other roller door series.
The Series 3 Internal Waist High Lock is a different component and is listed by B&D under part number 48605.
Please confirm that your existing door uses the Series 2 locking arrangement before ordering.
⚠️ Please Note
This is the B&D Series 2 waist-high internal lock, part number 6136.
It should not be confused with the later Series 3 waist-high lock, part number 48605.
B&D has used several different locking arrangements across its roller door ranges, so we recommend confirming the existing lock style and door series before ordering.
If the roller door is fitted with an automatic opener, do not engage a manual slide bolt lock before operating the door. Attempting to operate an automatic roller door while mechanically locked can damage the door and opener.
If you are unsure whether the 6136 lock suits your B&D roller door, use our compatibility checker or contact our Technical Support team on 1300 733 066.
