Description

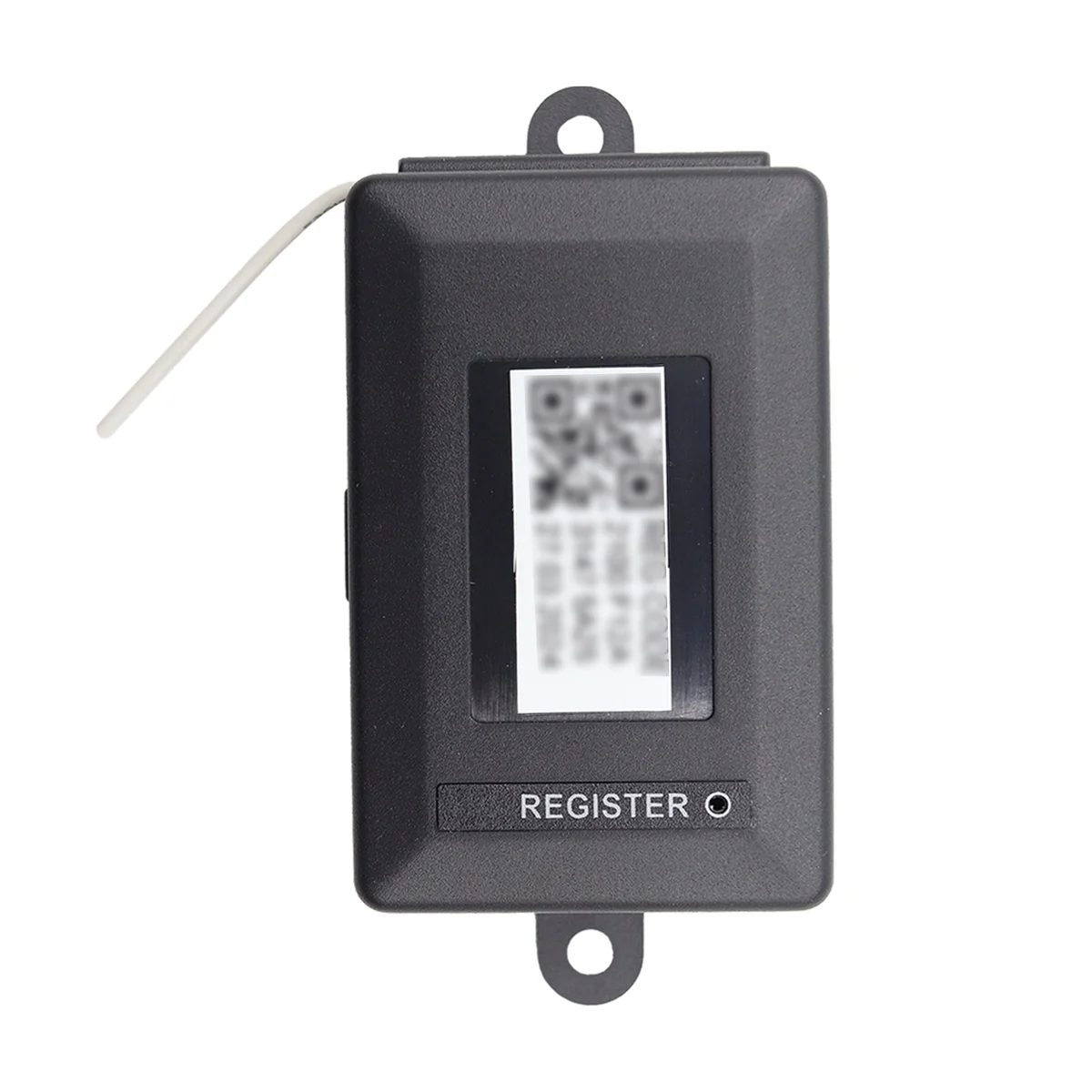

The ATA Network Transceiver NTR-1V1 – Part No. MC0009 is a genuine Automatic Technology communication module designed for use with compatible ATA Smart Phone Control systems.
The NTR-1V1 connects directly to a compatible garage door or gate operator and provides the communication link between the operator and the ATA Network Smart Hub. This allows the Smart Hub to exchange commands and door or gate status information with the operator for supported smartphone control and monitoring functions.
It is ideal for adding another compatible operator to an existing ATA Smart Hub system or replacing an existing NTR-1V1 transceiver.
📡 Communication Between the Operator & Smart Hub
The NTR-1V1 acts as the communication interface between the compatible ATA operator and the Network Smart Hub.
Once installed, the transceiver allows commands and status information to be exchanged between the garage door or gate operator and the smart control system.
This enables supported functions such as:
- Smartphone operation
- Remote opening and closing
- Door or gate status monitoring
- Smart notifications
- Activity monitoring
- Remote access through the ATA smart control system
🏠 Works with the ATA Network Smart Hub
The NTR-1V1 is designed to operate as part of the ATA Smart Phone Control system and requires a compatible Network Smart Hub.
The Smart Hub provides the network connection, while the NTR-1V1 is installed at the garage door or gate operator.
Together, these components allow the compatible operator to communicate with the ATA smartphone platform.
The NTR-1V1 has been documented for use with ATA Network Smart Hub systems including the Network Smart Hub Kit 14880.
🔄 Add Another Operator to an Existing Smart Hub
The NTR-1V1 can be particularly useful where an ATA Network Smart Hub is already installed and smartphone connectivity needs to be added to another compatible operator.
Rather than purchasing another complete Smart Hub system, an additional compatible transceiver can be installed at the additional operator.
This makes the NTR-1V1 suitable for properties with:
- Multiple garage doors
- Multiple compatible openers
- Garage door and gate automation
- Existing ATA Smart Phone Control systems
🔧 Replacement Transceiver
The NTR-1V1 can also be used to replace an existing compatible transceiver that has become damaged or failed.
This allows the Smart Phone Control system to be repaired without replacing the Network Smart Hub or complete garage door operator.
Replacement applications may include:
- Failed network transceiver
- Damaged transceiver
- Damaged connection harness
- Existing smart control system repairs
- Replacement during operator servicing
📲 Enables Supported Smartphone Functions
When combined with the correct Network Smart Hub and compatible operator, the NTR-1V1 allows the operator to form part of the ATA smartphone control system.
Depending on the operator and system configuration, supported functions can include:
- Remote operation
- Door or gate status monitoring
- Smartphone access
- Notifications
- Activity information
- Connected access functionality
The transceiver itself does not connect directly to the user’s smartphone. It provides the communication interface between the automation equipment and the Network Smart Hub.
📶 Dedicated Wireless Communication
The NTR-1V1 is a wireless network transceiver rather than a conventional garage door remote receiver.
ATA technical documentation identifies the NTR-1V1 as a radio transceiver operating in the 912.5–926.9 MHz range. The module connects to the garage door or gate controller for power and for the exchange of commands and status information.
This communication allows the Smart Hub and connected operator to operate as a complete smart control system.
🔌 Direct Connection to Compatible Operators
The NTR-1V1 connects directly to the compatible garage door or gate operator using the appropriate connection harness.
ATA documentation for the NTR-1V1 transceiver kit specifies a 400mm VR12 timing harness together with the network transceiver.
The exact connection arrangement depends on the operator being used, so compatibility should always be confirmed before ordering.
🧩 Part of the ATA Smart Phone Control System
The complete smart control arrangement generally consists of:
- Compatible ATA garage door or gate operator
- ATA Network Transceiver NTR-1V1
- ATA Network Smart Hub
- Suitable internet / network connection
- ATA smartphone application
- Appropriate safety devices for the application
The transceiver and Smart Hub perform different functions and both are required for compatible NTR-1V1 smart control installations.
🌐 Smart Hub Sold Separately
This product is the NTR-1V1 transceiver component and does not include the ATA Network Smart Hub unless specifically stated otherwise.
If smartphone control is being added to an operator that does not already form part of an ATA Smart Hub system, a compatible Network Smart Hub will also be required.
If a Network Smart Hub is already installed, the NTR-1V1 may be used to add another compatible operator or replace an existing transceiver.
🛡️ Smart Control & Safety
Smartphone control can allow an automatic garage door to operate when the user is away from the property and does not have direct line-of-sight of the door.
ATA’s Smart Hub installation documentation specifically warns that the system permits operation when the door or gate and opener are not within the user’s line of sight.
Appropriate safety equipment is therefore particularly important when smartphone control is enabled.
⚠️ Safety Beams for Smart-Controlled Garage Doors
Australian requirements call for appropriate safety/PE beam protection when an automated garage door can be controlled by a smart device and therefore operated without direct line-of-sight.
For safety and compliance, compatible photoelectric safety beams should be installed and correctly commissioned before smartphone control is enabled.
🔄 Existing Remotes Continue to Operate
Installing an NTR-1V1 does not replace the normal remote control receiver within the compatible garage door or gate operator.
Existing compatible handheld transmitters, wall controls and other local controls can continue to operate normally.
The NTR-1V1 simply adds the communication interface required for compatible ATA smartphone functionality.
🧰 Genuine Automatic Technology Component
The NTR-1V1 is a genuine Automatic Technology network transceiver designed specifically for compatible ATA and related automation equipment.
Technical certification documentation identifies the device as:
- Manufacturer: Automatic Technology Australia
- Model: NTR-1V1
- Product Type: Network Transceiver Module
- Operating Supply: 24V DC
- Operating Frequency: 912.5–926.9 MHz
Using the genuine transceiver helps ensure correct communication with the compatible operator and ATA Network Smart Hub.
📦 What’s Included
The MC0009 NTR-1V1 Transceiver Kit is supplied with the components required for a compatible installation.
The kit includes:
- 1 x Network Transceiver NTR-1V1
- 1 x 400mm VR12 Timing Harness
- 2 x M4 x 12 Taptite Screws
- 1 x 20 x 50mm Velcro Mounting Strip
The Network Smart Hub is not included and is available separately.
Key Features
- Genuine Automatic Technology component
- Part No. MC0009
- Model NTR-1V1
- Network transceiver for ATA Smart Phone Control systems
- Connects compatible operators to the ATA Network Smart Hub
- Allows commands and status information to be exchanged
- Supports compatible remote smartphone operation
- Supports compatible door or gate status monitoring
- Suitable for adding another compatible operator to an existing Smart Hub
- Suitable as a replacement transceiver
- 400mm connection harness included
- Mounting hardware included
- Operates from 24V DC
- Dedicated wireless communication with the Smart Hub
- Network Smart Hub sold separately
Specifications
- Manufacturer: Automatic Technology Australia
- Brand: ATA
- Product: Network Transceiver
- Model: NTR-1V1
- Part Number / SKU: MC0009
- Product Type: Smart Control Network Transceiver
- Supply Voltage: 24V DC
- Operating Frequency: 912.5–926.9 MHz
- Application: Garage Door & Gate Smart Control
- Network Smart Hub Required: Yes
- Compatible Operator Required: Yes
- Smartphone Control: Supported as part of a complete compatible system
- Genuine Automatic Technology Component: Yes
⚠️ Please Note
Part No. MC0009 is the ATA NTR-1V1 Network Transceiver Kit and is intended to form part of a compatible ATA Smart Phone Control system.
The Network Smart Hub is required and is sold separately unless already installed at the property.
The NTR-1V1 should not be confused with other ATA network transceivers used on different generations of garage door and gate operators.
Power to the operator should be switched off before connecting or disconnecting the transceiver.
For smart-controlled garage door applications, compatible safety beams should be installed and correctly commissioned before remote smartphone operation is enabled.
