Description

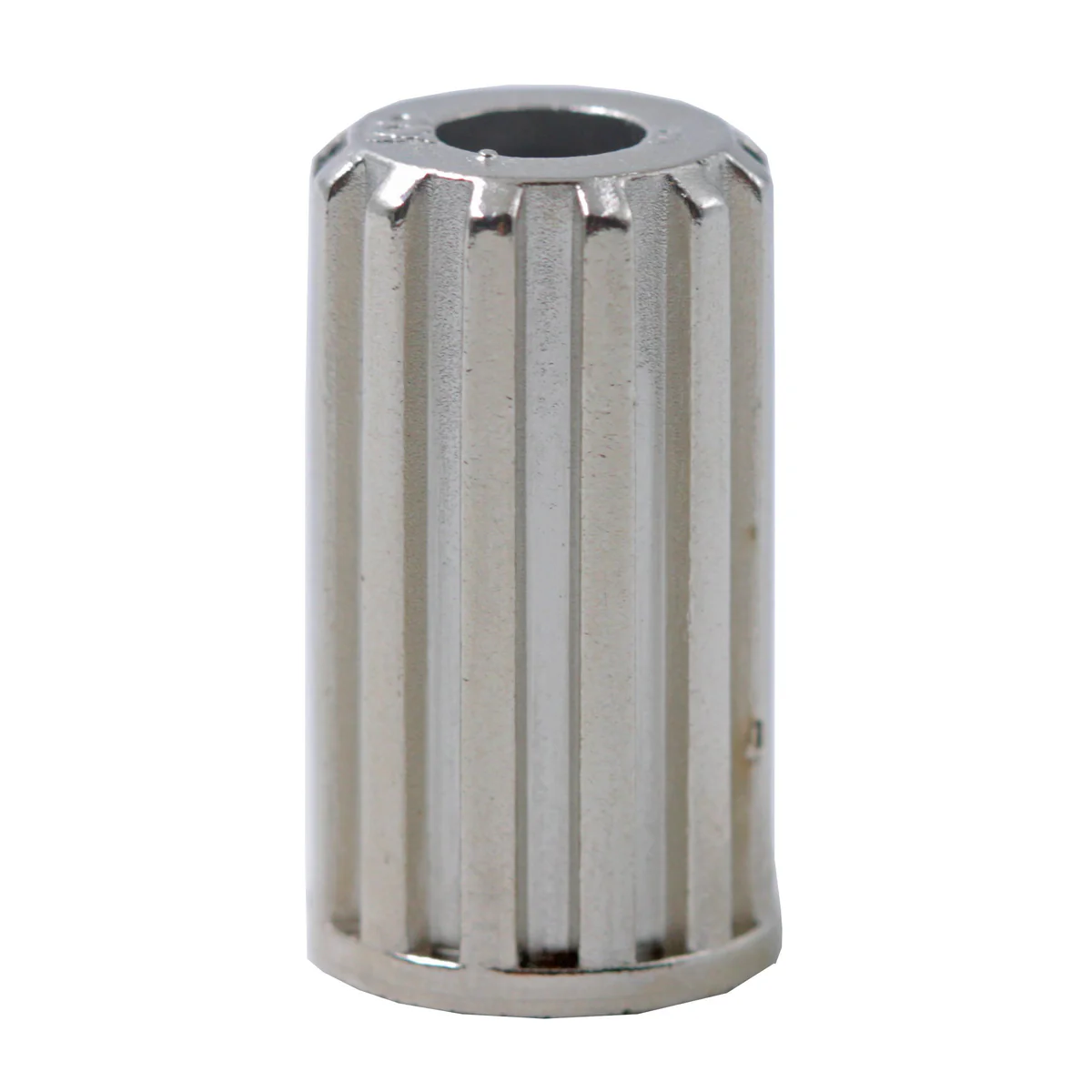

The Merlin Shaft Adaptor (Part No. 041A4017) is a genuine replacement component designed to connect the motor drive shaft to the rail drive system on a range of compatible Merlin garage door operators and Grifco LR Drive operators.
This small but critical component transfers the rotational drive from the operator motor into the rail system, allowing the opener to move the garage door during opening and closing.
Suitable for a wide range of Merlin EVO and myQ operators, the shaft adaptor is ideal for replacing an original adaptor that has become worn, damaged or broken.
⚙️ Motor to Rail Drive Connection
The shaft adaptor forms the mechanical connection between the garage door operator and its rail drive mechanism.
When the motor operates, the adaptor transfers the rotational movement of the motor shaft into the rail drive system.
Without a correctly functioning shaft adaptor, the motor may operate but be unable to correctly transfer drive to the garage door.
Merlin documentation identifies the component as the motor shaft adaptor within the rail assembly.
🔩 Genuine Merlin Replacement Component
The Merlin 041A4017 Shaft Adaptor is designed specifically for compatible Merlin garage door operator and rail combinations.
Later versions of this component are also commonly identified as Part No. 041A4017-1 and use a metal construction. Merlin replacement-parts documentation identifies 041A4017-1 as the motor shaft adaptor.
This makes it an ideal replacement where the original shaft adaptor has failed while the motor, rail and other operator components remain serviceable.
🔄 Ideal Replacement for a Damaged Shaft Adaptor
The shaft adaptor is subjected to mechanical load every time the garage door opens or closes.
If the adaptor becomes worn, stripped or broken, the operator may no longer correctly drive the rail even though the motor itself is still functioning.
Replacing the shaft adaptor can provide a practical repair without replacing the complete garage door operator.
It is particularly useful for:
- Broken shaft adaptors
- Worn or damaged drive connections
- Operators where the motor runs but the rail does not drive correctly
- Garage door operator servicing
- Rail and motor repairs
- Refurbishment of compatible Merlin operators
🚪 Compatible with Merlin EVO Operators
The Merlin Shaft Adaptor is compatible with a range of Merlin EVO garage door operators, including:
- Merlin MT60EVO
- Merlin MT100EVO
- Merlin MT110MYQ
- Merlin MT120EVO
Compatibility with the MT60EVO, MT100EVO and MT120EVO families is also documented by replacement-parts suppliers, while Merlin documentation identifies the 041A4017/041A4017-1 as the motor shaft adaptor used within this rail system.
📱 Compatible with Merlin myQ Operators
The same shaft adaptor is also used across compatible Merlin myQ garage door operator models.
Compatible models include:
- Merlin MS65MYQ
- Merlin MS105MYQ
- Merlin MS125MYQ
- Merlin MS127MYQ
- Merlin MS135MYQ
- Merlin MS137MYQ
This makes the 041A4017 a useful replacement component across multiple generations of Merlin sectional and tilt garage door operators.
🏭 Compatible with Grifco LR Drive
The shaft adaptor is also compatible with the Grifco LR Drive rail operator system.
Grifco service documentation identifies the metal 041A4017-1 Motor Shaft Adaptor as a replacement rail component within its drive platform.
This allows the same replacement adaptor to be used across compatible Merlin and Grifco operator applications.
🛠️ Small Component, Important Function
Although physically small, the shaft adaptor performs an essential function within the garage door operator.
The component must transfer the motor’s output into the rail every time the garage door operates.
A failed adaptor can therefore result in symptoms such as:
- Motor operating without corresponding door movement
- Rail drive failing to engage correctly
- Grinding or abnormal drive noises
- Intermittent movement
- Complete loss of drive between the motor and rail
The complete garage door and operator should be inspected when an adaptor has failed to determine whether another mechanical issue contributed to the failure.
⚠️ Check the Garage Door After Adaptor Failure
A damaged shaft adaptor can sometimes be the result of excessive load being placed on the garage door operator.
Before returning the operator to service, the garage door should be checked to ensure that it is correctly balanced and moves freely throughout its complete travel.
Items worth checking include:
- Garage door springs
- Door balance
- Rollers and hinges
- Tracks
- Rail and trolley
- Door travel
- Mechanical obstructions
- Operator force and travel settings
A garage door opener should not be used to compensate for a heavy, binding or incorrectly balanced garage door.
🔧 Ideal for Service & Repair
The Merlin 041A4017 Shaft Adaptor provides a cost-effective repair option where the remainder of the garage door operator remains in good working condition.
Rather than replacing the complete opener because of a failed drive connection, the individual shaft adaptor can be replaced where appropriate.
This makes it particularly useful for garage door technicians carrying out repairs and preventative maintenance on compatible Merlin and Grifco operators.
🧰 Genuine Merlin Spare Part
The Merlin Shaft Adaptor – Part No. 041A4017 is a genuine replacement component designed for compatible garage door operator applications.
The later metal replacement version may also be identified as 041A4017-1 in parts documentation.
Using the correct replacement adaptor ensures the motor and rail remain connected using the component intended for the operator drive system.
Key Features
- Genuine Merlin replacement component
- Merlin Part No. 041A4017
- Later replacement version may be marked 041A4017-1
- Motor shaft to rail drive adaptor
- Transfers motor drive into the garage door rail
- Replacement for worn, damaged or broken adaptors
- Compatible with selected Merlin EVO operators
- Compatible with selected Merlin myQ operators
- Compatible with Grifco LR Drive
- Ideal for garage door operator repairs
- Allows individual drive component replacement
- Suitable for service and maintenance applications
Compatibility
Compatible with the following garage door operators:
Merlin EVO / MT Series
- Merlin MT60EVO
- Merlin MT100EVO
- Merlin MT110MYQ
- Merlin MT120EVO
Merlin myQ / MS Series
- Merlin MS65MYQ
- Merlin MS105MYQ
- Merlin MS125MYQ
- Merlin MS127MYQ
- Merlin MS135MYQ
- Merlin MS137MYQ
Grifco
- Grifco LR Drive
Please compare the existing shaft adaptor and operator model before ordering.
⚠️ Please Note
This listing is for the Merlin Shaft Adaptor – Part No. 041A4017 only.
The complete garage door operator, motor, rail, sprocket assembly and other components are not included unless specifically stated.
The updated metal replacement may be identified as Part No. 041A4017-1 in Merlin/Grifco replacement-parts documentation.
If the original shaft adaptor has failed, the garage door should be inspected for excessive resistance, incorrect balance or another mechanical fault before the replacement adaptor is installed.
Please confirm your garage door operator model before ordering.
