Description
Smart Safety Protection for Merlin Garage Door Openers

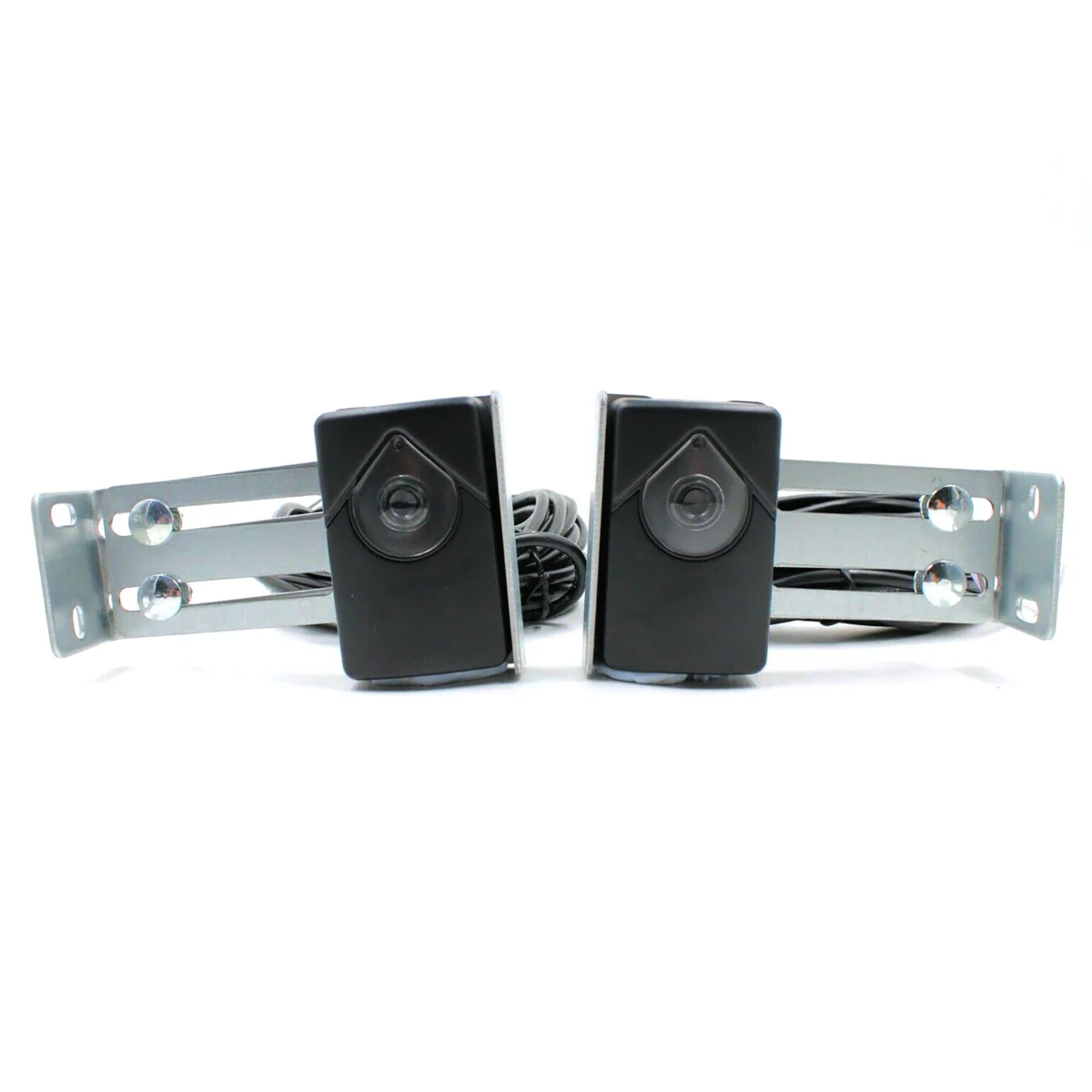

The Merlin 774ANZ Safety Beams are a genuine Merlin Protector System designed to provide monitored infrared safety protection for compatible garage door openers.
Unlike generic safety beams, the 774ANZ operates using a monitored signal system, allowing the opener to continuously verify that the safety beams are correctly installed, aligned, and functioning. This ensures reliable obstruction detection and fault monitoring for safe operation.
Designed for Safe & Compliant Operation
The 774ANZ beams are engineered specifically for Merlin openers that require a monitored safety beam system.
If the beam is interrupted—or if a fault occurs such as misalignment, wiring issues, or power loss—the opener will prevent closing or reverse immediately. This is critical for both user safety and smart control compliance.
Key Features
🛡️ Infrared Obstruction Detection
Creates an invisible beam between transmitter and receiver. If interrupted, the door will stop and reverse to prevent injury or damage.
🔄 Monitored Safety System
The opener continuously checks the beam signal to detect:
- Obstruction
- Misalignment
- Wiring faults
- Power loss
📱 Required for myQ Smart Control
Mandatory for enabling remote operation via the Merlin myQ system on compatible openers.
🔧 Plug & Play Integration
Designed specifically for Merlin systems—connects directly to the opener with no relays or additional interfaces required.
🌧️ Durable Residential Design
Built for long-term reliability in typical garage environments.
Benefits
For End Users
- Prevents the door closing on people, pets, or vehicles
- Enables safe remote operation via smartphone
- Provides peace of mind with active system monitoring
For Installers
- Required component for myQ upgrades
- Fast, straightforward installation
- No need for external relays or workarounds
- Ensures compliance with monitored safety requirements
How It Works
The 774ANZ system consists of a transmitter (TX) and receiver (RX) installed on either side of the garage opening:
- The transmitter sends an infrared beam across the doorway
- The receiver detects the beam and returns a monitored signal
- The opener continuously checks this signal
- If the beam is interrupted or a fault is detected, the door stops or reverses
- The door will not close until the system is restored
Compatibility Notes (IMPORTANT)
- Designed for Merlin / Chamberlain openers using the Protector System
- Required for myQ connectivity and remote operation
- Not compatible with standard dry-contact (NC) safety beam inputs
- Not suitable for systems requiring 2-wire pulsed beam circuits (e.g. Grifco-type systems)
⚠️ Always confirm compatibility with your opener before installation.
