Description

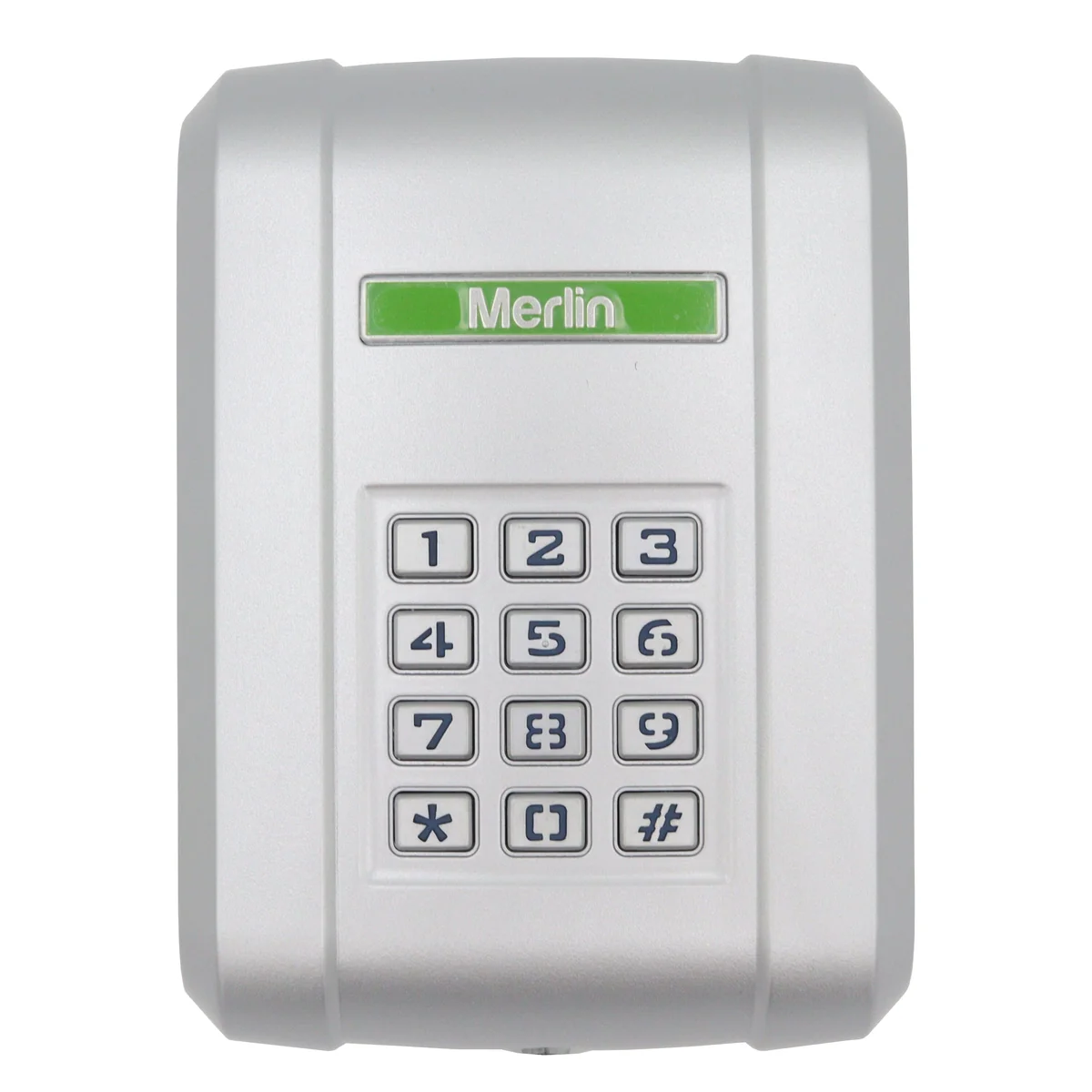

The Merlin E850M Security+ 2.0 Wireless Keypad provides convenient keyless access to compatible Merlin garage door and gate openers using a secure 4-digit PIN.
Designed for outdoor installation, the E850M allows authorised users to operate a compatible garage door or automatic gate without carrying a handheld remote control. Simply enter a valid 4-digit PIN followed by the # key to transmit an encrypted wireless command to the opener.
With support for multiple permanent and temporary PIN codes, IP55 weather resistance and an illuminated keypad, the E850M is ideal for residential homes, family access, tradespeople, deliveries and other applications where controlled keyless entry is required.
🔐 Keyless PIN Access
The E850M eliminates the need to carry a garage door or gate remote when entering the property.
Operation is simple:
- Enter a valid 4-digit PIN
- Press the # key
- The keypad transmits the encrypted wireless command
- The connected garage door or gate opener operates
A long confirmation tone indicates that a valid PIN has been entered.
🛡️ Security+ 2.0 Rolling Code Technology
The E850M uses Merlin Security+ 2.0 rolling code technology.
Rather than repeatedly transmitting a fixed code, Security+ 2.0 provides encrypted wireless communication between the keypad and compatible opener.
This makes the E850M suitable for modern Merlin garage door and gate automation systems using Security+ 2.0 radio technology.
📡 Multi-Frequency Wireless Operation
The E850M operates using Merlin’s multi-frequency Security+ 2.0 system.
Supported frequencies include:
- 433.30 MHz
- 433.92 MHz
- 434.54 MHz
No control cable is required between the keypad and opener.
Once programmed, the keypad communicates wirelessly with the compatible Merlin operator.
🔢 Up to 5 Permanent PIN Codes
The E850M can store up to:
- 5 permanent 4-digit PIN codes
This allows different authorised users to have their own access code.
Permanent PINs are ideal for:
- Family members
- Employees
- Regular authorised users
- Property occupants
- Maintenance personnel requiring ongoing access
⏱️ Up to 10 Temporary PIN Codes
In addition to permanent users, the E850M can store up to:
- 10 unique temporary 4-digit PIN codes
Temporary PINs can be programmed for visitors or people who only require limited access.
Each temporary PIN can be configured for up to nine uses before it expires.
This makes temporary codes useful for:
- Tradespeople
- Contractors
- Cleaners
- Gardeners
- Visitors
- Temporary staff
- Service technicians
Access can be provided without handing over a permanent remote control.
🔑 Master Code Protected Programming
The keypad uses a separate 6-digit Master Code to protect access to its programming functions.
The Master Code is required when adding or changing user PINs and is separate from the 4-digit PIN codes used to operate the garage door or gate.
The factory Master Code should be changed during initial setup to prevent unauthorised changes to the keypad configuration.
💡 Backlit Keypad
The E850M incorporates keypad backlighting for improved visibility in low-light conditions.
Pressing a key illuminates the keypad, making the buttons easier to identify when accessing the garage or gate at night.
The backlight remains illuminated for approximately 15 seconds following keypad activation.
🌧️ IP55 Weather Resistant
The Merlin E850M carries an:
- IP55 rating
This provides protection suitable for appropriately installed outdoor applications.
The keypad is designed to withstand the environmental conditions typically encountered around external garage doors and automatic gates.
🌡️ Wide Operating Temperature Range
The E850M is specified for operation between:
- -20°C to +60°C
This makes it suitable for a broad range of Australian environmental conditions when installed according to Merlin’s instructions.
🔋 Battery Powered
The E850M is powered by:
- 1 × 9V lithium battery
Battery operation eliminates the need to run a dedicated power cable to the keypad.
This makes installation significantly easier, particularly when retrofitting keyless access to an existing garage door or gate automation system.
🔔 Audible Confirmation
The keypad provides audible feedback during operation.
A long tone confirms a valid PIN entry, while three short tones indicate an invalid code.
This gives the user immediate confirmation that their PIN entry has been recognised.
🚪 Garage Door Access
The E850M is ideal for providing keyless access through a compatible Merlin automatic garage door.
This can be particularly useful when:
- Going for a walk or run without carrying keys
- Children require access to the home
- Multiple family members require garage access
- A remote control is inconvenient
- Temporary access needs to be provided
- A spare access method is required
🚧 Automatic Gate Access
The E850M can also be used with compatible Merlin Security+ 2.0 gate automation systems.
Mounted near the property entrance, the keypad provides PIN-controlled gate operation without requiring a separate handheld transmitter.
The keypad must be positioned according to Merlin’s installation requirements and where the moving gate can be clearly observed during operation.
🧱 Flexible Mounting
The E850M can be mounted to a suitable:
- Wall
- Flat surface
- Pedestal
The mounting arrangement supports a 76mm × 76mm mounting pattern for compatible pedestal installations.
Merlin specifies that the keypad should be located at least 1.8m away from moving parts of the gate and positioned so the user cannot reach through, over, under or around the gate to operate the controls.
📦 What’s Included
The E850M package includes the components required for a typical installation, including:
- 1 × Merlin E850M Wireless Keypad
- 1 × 9V lithium battery
- Mounting hardware
- Keypad keys
- Installation / programming instructions
The keypad must be programmed to the compatible garage door or gate opener before use.
⭐ Key Features
- Genuine Merlin wireless keypad
- Model E850M
- Security+ 2.0 technology
- Rolling code security
- Keyless garage door and gate access
- 4-digit user PIN operation
- Up to 5 permanent PIN codes
- Up to 10 temporary PIN codes
- Temporary PINs support up to 9 uses
- 6-digit Master Code protects programming
- Multi-frequency wireless transmission
- 433.30 MHz
- 433.92 MHz
- 434.54 MHz
- Backlit keypad
- Audible confirmation tones
- IP55 weather-resistant construction
- Suitable for outdoor installation
- 9V lithium battery powered
- No control wiring required
- Suitable for compatible Merlin garage door operators
- Suitable for compatible Merlin gate operators
- Ideal for family and visitor access
- 1-year manufacturer warranty
🔧 Specifications
- Brand: Merlin
- Model: E850M
- Product Type: Wireless Security Keypad
- Technology: Merlin Security+ 2.0
- Security: Rolling Code
- Frequency: Multi-Frequency 433 MHz
- Frequencies: 433.30 / 433.92 / 434.54 MHz
- User PIN Length: 4 Digits
- Permanent PIN Capacity: Up to 5
- Temporary PIN Capacity: Up to 10
- Temporary PIN Usage: Up to 9 Uses Per Code
- Programming Security: 6-Digit Master Code
- Battery: 1 × 9V Lithium
- Backlit Keypad: Yes
- Audible Confirmation: Yes
- IP Rating: IP55
- Operating Temperature: -20°C to +60°C
- Wireless: Yes
- Hardwired Control Connection Required: No
- Intended Use: Compatible Garage Door & Gate Openers
- Warranty: 1 Year
🔗 Compatibility
The Merlin E850M is designed for garage door and gate openers equipped with compatible Security+ 2.0 radio technology.
Current Merlin compatibility information includes selected:
Garage Door Openers
- Merlin SilentDrive Essential MR655MYQ
- Merlin WeatherDrive MR555MYQ
- Merlin SilentDrive Elite MR855MYQ
- Merlin Commander Ultimate MJ3800MYQ
- Merlin Commander Platinum II MS137MYQ
- Merlin Commander Extreme II MS127MYQ
- Merlin Commander Elite II MS107MYQ
- Merlin Commander Elite MS105MYQ
- Merlin Commander Essential MS65MYQ
Gate Openers
- Merlin Slide 600 MGSK600
- Merlin Swing L 300 Single Gate Opener
- Merlin Swing L 300 Double Gate Opener
- Merlin Swing A 200 Articulated Single Gate Opener
- Merlin Swing A 200 Articulated Double Gate Opener
- Merlin Swing LR 500 Rural Gate Opener
The E850M is intended for Security+ 2.0 systems and should not be assumed compatible with older Merlin operators simply because they operate on a similar frequency.
Always confirm the opener model before ordering.
⚠️ Please Note
The Merlin E850M should be programmed to one compatible garage door or gate opener.
A permanent 4-digit PIN must first be programmed into the keypad before the keypad can be paired with the opener.
The keypad requires a compatible Security+ 2.0 garage door or gate operator.
Always confirm compatibility with your existing Merlin opener before ordering.
The keypad should be installed where the user has a clear view of the garage door or gate while operating it.
For gate installations, Merlin specifies that the keypad must be installed at least 1.8m away from moving parts and positioned so that users cannot reach through, over, under or around the gate to activate the controls.
The keypad is supplied with a 9V lithium battery. Replacement batteries should be of the correct specified type.
If you are unsure whether the Merlin E850M is compatible with your garage door or gate operator, contact our Technical Support team on 1300 733 066 for assistance.
