Description
Technical Specifications

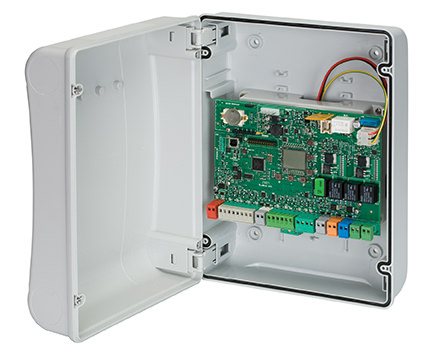

Model: E124S
Power supply voltage: 220-240V~ 50/60 Hz
Max. power: 4 W Stand-by – approx. 400 W max W
Motor max power: 7 A
Max. accessories load: 500 mA 24V – 500 mA BUS 2easy
Accessories power supply: 24V
Programming: No. 3 buttons (+,-, F) and LCD display or Simply Connect devices
Operating logic: Automatic (A), Semi-automatic (E), Automatic 1 (A1), Automatic step-by-step (AP), Man present (C), Automatic safety (S), Step-by-step safety (SP), Semi-automatic step-by-step (EP), Semiautomatic B (B), Mixed logic (BC), Custom
Programmable functions: (*) Logic, pause time A, pause time B, thrust, speed, deceleration spaces, leaf delay, wind resistant, reverse-stroke, soft-touch, stroke at opening and closing, initial thrust, deceleration speed, LED, failsafe, programming of 2 Easy BUS devices, service request, power-safe, battery charger timer function, battery operation, clock, time-out, pre-flashing time, motor type, encoder sensitivity
Work time: Programmable (from 0 to 10 min)
Pause time: Programmable (from 0 to 10 min)
Thrust power: Programmable on 50 levels
Speed adjustment: Programmable on 10 levels
Terminal board inputs: BUS 2easy, Fully programmable inputs via Simply Connect devices (open A, open B, close, priority open, priority close, emergency close, emergency open, stop, safety open, safety close), Inputs for 4 limit switches (open, close, motor 1/motor 2), connection inputs 2 motors, encoders
Terminal board outputs: 2 programmable multifunction outputs
Rapid connector FDS TECHNOLOGY ( XF 433-868MHZ), OmniDEC (XF433 or XF868), 5-pin board plug for MINIDEC, DECODER, RP/RP2 receiver
Protection Fuses: Self-resetting
Operating ambient temperature -20°C ÷ +55°C
Simply Connect: The Simply Connect quick connector allows the use of connectivity devices that allow the remote programming and management via web and/or app of all the automations connected to the Simply Connect cloud platform: diagnosis, fault check, remote intervention and organisation of your activity
