Description

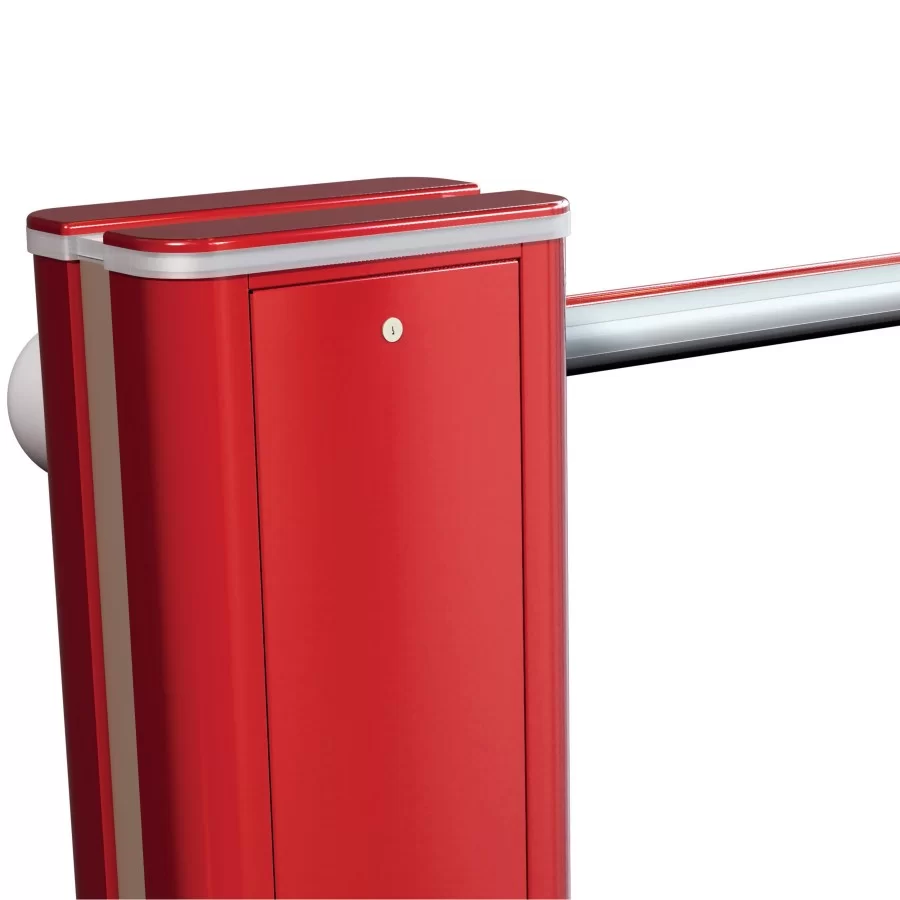

FAAC Barrier Cover Complete Red – B680H – 416016
The FAAC B680H Complete Red Barrier Cover is the genuine external cabinet designed specifically for the FAAC B680H Hybrid automatic barrier.
Finished in FAAC’s Flame Red RAL 3020, the removable cabinet encloses and protects the B680H operator while providing the distinctive finished appearance of the complete barrier.
FAAC Part Number: 416016
🔴 Flame Red RAL 3020
The 416016 cabinet is factory finished in:
- Colour: Flame Red
- RAL Colour: RAL 3020
- Application: FAAC B680H
- Construction: Steel
- Finish: Protective primer with polyester coating
FAAC specifies a 100-micron protective primer and polyester-painted finish for the painted B680H cabinets, providing protection for outdoor barrier installations.
🚧 Complete B680H External Cabinet
The B680H is designed with a removable external cabinet that is separate from the main 104680 operator.
The cabinet fits around the B680H pillar and internal drive system to provide the complete external barrier housing.
This removable design also allows the cabinet to be removed for access to the internal barrier components during installation, servicing and maintenance.
🔧 Designed Specifically for the B680H
The 416016 is a dedicated B680H component rather than a universal barrier cover.
FAAC’s standard B680H configuration consists of the:
- 104680 – B680H Hybrid Barrier Operator
- 416016 – Red Cabinet RAL 3020
The boom, beam pocket and balancing spring are then selected separately according to the required barrier configuration.
🎨 Alternative Stainless Steel Cabinet
For installations requiring a different finish, we also offer:
- 416020 – B680H Stainless Steel Cabinet
This provides the two cabinet options available with our B680H Barrier Kits:
- Flame Red RAL 3020
- Stainless Steel
Key Features
- Genuine FAAC B680H cabinet
- FAAC Part Number: 416016
- Flame Red RAL 3020 finish
- Complete external barrier cover
- Designed specifically for the FAAC B680H
- Steel construction
- Protective primer and polyester-painted finish
- Removable cabinet design
- Provides access to internal components for servicing
- Suitable for new B680H installations or replacement applications
- Used as a component in complete FAAC B680H Barrier Kits
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Part Number: 416016
- Product Type: Complete Barrier Cabinet / Cover
- Compatible Barrier: FAAC B680H
- Colour: Flame Red
- RAL Colour: RAL 3020
- Material: Steel
- Surface Treatment: 100-Micron Protective Primer + Polyester Painting
- Installation: Removable External Cabinet
- Approximate Cabinet Weight: 20kg
FAAC specifies the complete B680H at approximately 85kg, comprising a 65kg pillar/operator assembly and 20kg cabinet.
Compatibility
Designed specifically for:
- FAAC B680H Hybrid Automatic Barrier – 104680
- FAAC B680H Hybrid 24Vdc Barrier Kits
This cabinet is not intended for the FAAC B614 or other FAAC barrier models.
⚠️ Please Note
This listing is for one FAAC B680H Complete Red Barrier Cover – 416016.
The FAAC B680H operator is not included.
The barrier boom, beam pocket, balancing spring, foundation plate and other accessories are also not included unless specifically stated.
The 416016 is the Flame Red RAL 3020 cabinet used with the 104680 B680H operator to form the complete external barrier assembly.
For a complete barrier system, see our FAAC B680H Hybrid 24Vdc Barrier Kit, which combines the operator, selected cabinet, boom and appropriate balancing components.
