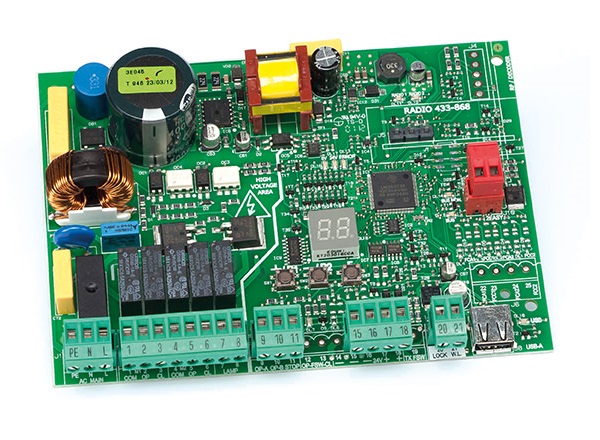

FAAC E045S Control Board – 240Vac

  • Advanced control board programmed via LCD display/ compatible with all 240 Vac swing motors
  • Switching power supply 90V – 260 Vac
  • Significant reduction in energy consumption(up to 50%)
  • Motor pilot relay redundancy (5x relay’s that share load if one relay should fail)
  • SAFEzone with obstacle detection and accuracy when used with the SAFEcoder (Absolute Encoder)
  • The SAFEcoder eliminates the need to use physical ground stops
  • 7 function logics / Programmed deceleration via percentage of travel
  • Bus connector for Bus Safety-beams
  • Omnidec receiver that can store 256 transmitters
  • USB Interface that allows you to backup the transmitter codes and board configuration

Included Technology

$379.00

SKU: 790077 Category: Tag: Brand:

Description

TECHNICAL SPECIFICATIONS
Model: E045S
Power supply voltage: 220-240V~ 50/60 Hz
Max. power: 4W Stand by W
Motor max power: 800W
Max. accessories load: 500 mA 24V – 500 mA BUS 2easy
Max. electric lock load: FAAC lock (12V~ – 24V )
Programming: LED display and buttons, via Simply Connect connectivity devices
Status signalling: Display and LED
Terminal board inputs: Open, Open pedestrian leaf, Stop (closed), BUS 2easy, Power + Earth
Terminal board outputs: Lamp, Motors, Accessories power supply 24V2 ,Indicator light 24V , Electric lock power supply 12V~
Rapid connector: XF 433/868 module for OmniDEC decoding, USB-A and Simply Connect connectivity modules XMBX (GSM) or XWBL (WiFi/LAN)
Protection Fuses: 1 (2.5A)
Operating ambient temperature: -20°C ÷ +55°C
Note: The E045S control unit can control one or two operators
