Description

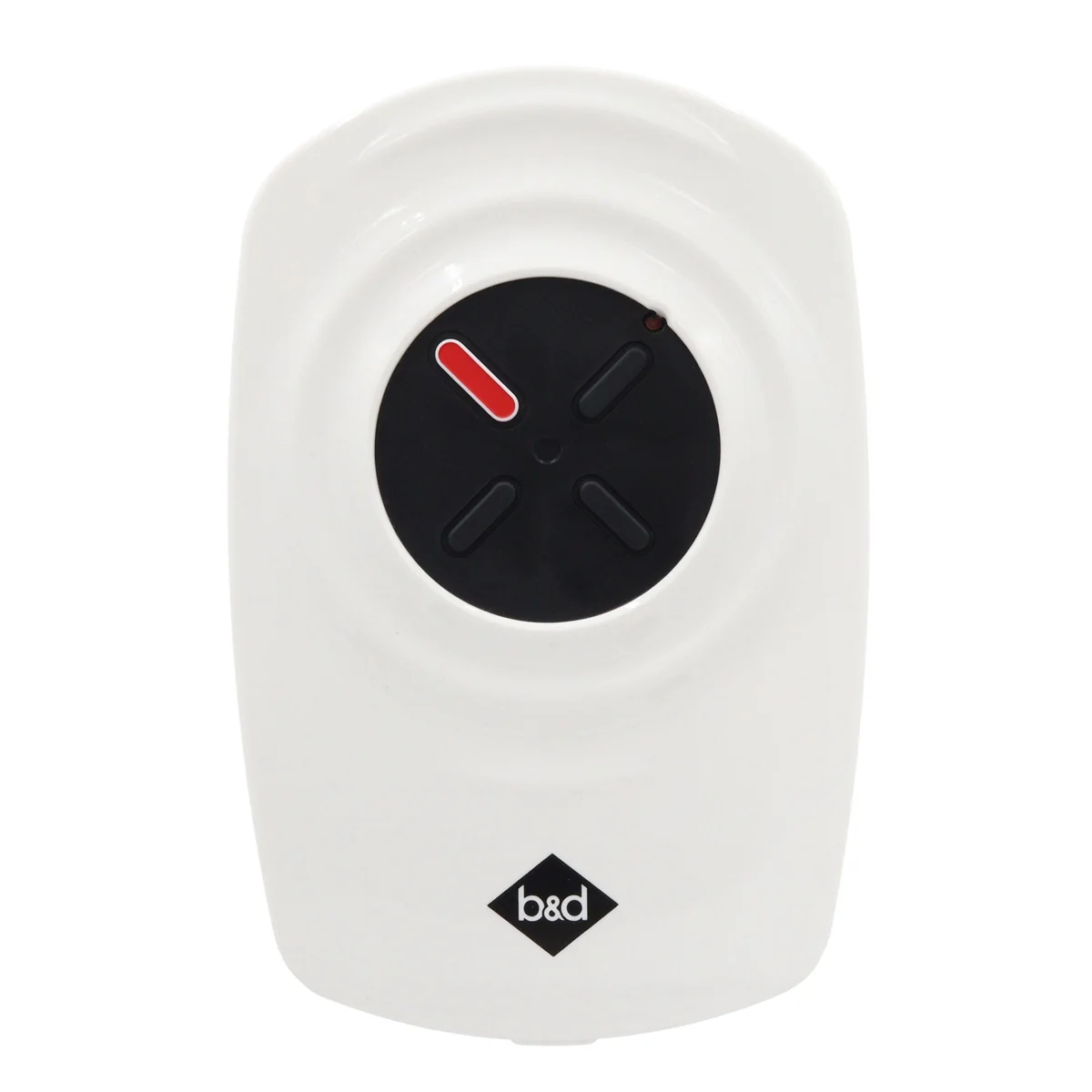

B&D WTB-8V1 Wireless Wall Controller
The B&D WTB-8V1 Wireless Wall Controller provides a convenient fixed control point for compatible B&D garage door and gate openers without requiring any control wiring between the wall button and the opener.
Featuring four programmable buttons, the WTB-8V1 can control up to four compatible garage doors, gates or other supported functions from a single wall-mounted controller.
Using B&D Tri-Tran multi-frequency rolling-code technology, it provides secure and reliable wireless operation while retaining the convenience of a permanently mounted wall control.
📡 Completely Wireless Operation
Unlike a conventional hardwired garage door wall button, the WTB-8V1 communicates wirelessly with the compatible opener.
This means there is no need to run control wiring through walls or ceilings between the wall controller and garage door opener.
Simply mount the controller in a suitable location and program the required buttons into the compatible opener or receiver.
This makes it ideal for:
- Existing garages
- Finished homes
- Retrofit installations
- Locations where running new wiring is difficult
- Additional control points
- Multi-door garages
🎛️ Four Programmable Buttons
The WTB-8V1 features four independently programmable buttons.
Each button can be programmed to a different compatible opener or receiver function.
For example:
- Button 1 – Main Garage Door
- Button 2 – Second Garage Door
- Button 3 – Automatic Gate
- Button 4 – Another Compatible Door or Function
This makes the WTB-8V1 particularly useful for properties with multiple automated entrances.
🚪 Control Up to Four Doors or Gates
One WTB-8V1 can control up to four compatible garage door or gate openers.
Rather than installing separate wall controls for each door, the four-button controller provides a convenient central control point.
Ideal applications include:
- Double garages
- Triple garages
- Garage and driveway gate combinations
- Workshops
- Multi-door properties
- Light commercial premises
- Properties with multiple compatible B&D openers
🔐 B&D Tri-Tran Technology
The WTB-8V1 uses B&D Tri-Tran multi-frequency radio technology.
Tri-Tran technology provides rolling-code security and multi-frequency transmission for reliable communication with compatible B&D openers and receivers.
Rather than repeatedly transmitting the same fixed code, the rolling-code system changes the transmitted code during operation.
This provides improved security compared with older fixed-code remote-control systems.
📶 Multi-Frequency Transmission
B&D Tri-Tran technology uses multiple frequencies to improve communication reliability.
This is particularly useful in environments where other wireless equipment may cause interference on individual frequencies.
The WTB-8V1 communicates with the compatible opener in the same way as a compatible B&D wireless transmitter, eliminating the need for a physical control connection.
🏠 Convenient Fixed Wall Control
The WTB-8V1 combines the convenience of a conventional wall button with the simplicity of wireless installation.
It can be mounted inside the garage or another suitable location to provide a permanent control point.
Typical locations include:
- Inside the garage
- Near the internal garage access door
- Workshop entrances
- Utility areas
- Convenient internal access points
The garage door or gate should always remain visible when operating the controller.
🔋 Battery Powered
The WTB-8V1 is powered by a replaceable CR2032 lithium coin battery.
Because the controller is battery powered, no external power supply or control wiring is required.
When the battery eventually reaches the end of its service life, it can be replaced without replacing the complete wall controller.
🔧 Easy Wall Mounting
The WTB-8V1 is designed specifically for wall mounting.
The controller can be installed at a convenient location using the supplied mounting hardware.
This provides a clean, permanent installation while maintaining the flexibility of wireless communication.
🧰 Simple Programming
Each button is programmed to the compatible opener or receiver using the appropriate B&D remote-learning procedure.
The controller essentially functions as a wall-mounted wireless transmitter.
Once programmed, pressing the corresponding button sends the command directly to the compatible opener.
Programming procedures can vary between opener models, so the instructions for the particular opener should be followed.
🚗 Ideal as an Additional Garage Control
The WTB-8V1 is an excellent way to add another control point to an existing compatible B&D garage door opener.
For example, if the opener’s original wall control is located at the rear of the garage, an additional WTB-8V1 can be installed near the internal house entrance without running additional wiring across the garage.
🏘️ Excellent for Multi-Door Properties
The four-button configuration makes the WTB-8V1 particularly useful for properties with multiple garage doors.
Instead of having several separate wall buttons installed beside each other, compatible openers can be programmed to individual buttons on a single controller.
It can also provide convenient combined control of a compatible garage door and automated gate.
🔄 Replacement for Earlier B&D Wall Controls
The WTB-8V1 can provide a replacement or additional wall-mounted transmitter for a range of compatible B&D Tri-Tran systems.
It is also compatible with systems that used a number of earlier B&D Tri-Tran transmitters, subject to opener and receiver compatibility.
This makes it a useful option when an older wireless wall control has been lost, damaged or requires replacement.
🧱 No Chasing Walls or Running Cables
One of the biggest advantages of the WTB-8V1 is the ability to install an additional wall controller without modifying existing walls.
Because the communication is completely wireless, there is generally no requirement to:
- Run new control cable
- Chase wiring into walls
- Route cable across the garage
- Connect directly to the opener’s wall-button terminals
This makes the controller particularly convenient for finished homes and retrofit installations.
Key Features
- Genuine B&D wireless wall controller
- Model: WTB-8V1
- Four programmable buttons
- Control up to four compatible doors or gates
- B&D Tri-Tran technology
- Multi-frequency transmission
- Rolling-code security
- Completely wireless operation
- No control wiring required
- Battery powered
- Replaceable CR2032 lithium battery
- Wall-mounted design
- Suitable for garage door openers
- Suitable for compatible gate openers and receivers
- Ideal for multiple garage doors
- Ideal for garage and gate combinations
- Excellent additional wall control
- Easy retrofit installation
- Suitable for compatible older B&D Tri-Tran systems
Specifications
- Manufacturer: B&D
- Model: WTB-8V1
- Product Type: Wireless Wall Controller / Wall Remote
- Number of Buttons: 4
- Number of Channels: 4
- Maximum Compatible Devices: Up to 4
- Radio Technology: B&D Tri-Tran
- Coding Type: Rolling Code
- Transmission: Multi-Frequency
- Nominal Radio Band: 433MHz
- Power Supply: Battery
- Battery Type: CR2032 Lithium Coin Battery
- Battery Replaceable: Yes
- Wall Mounted: Yes
- Hardwiring Required: No
- Application: Garage Door & Compatible Gate Automation
Compatibility
The B&D WTB-8V1 is designed for compatible B&D garage door openers and receiver systems using Tri-Tran technology.
It can be suitable for systems associated with compatible B&D transmitters including:
- B&D TB6
- B&D TB5V2
- B&D TB5V1
- Compatible B&D Tri-Tran transmitters
- Compatible B&D Tri-Tran wall controls
Compatible opener families can include selected models from the:
- Controll-A-Door range
- PanelPro range
- Prodigy range
- Advance range
- Diamond range
- Power Drive range
- Roll-A-Pro range
- Other compatible B&D Tri-Tran systems
Compatibility is determined by the receiver technology fitted to the opener rather than simply the appearance of the garage door or opener.
⚠️ Please Note
The WTB-8V1 is a wireless wall-mounted remote control and does not require control wiring between the wall controller and compatible opener.
It requires programming to the garage door opener or receiver before use.
The WTB-8V1 is not universally compatible with every B&D garage door opener ever manufactured. Please confirm your existing remote, opener model or receiver technology before ordering.
The garage door or gate should only be operated when it is clearly visible and when the path of the moving door or gate is clear of people, vehicles and other obstructions.
The controller contains a replaceable CR2032 lithium coin battery. Coin batteries can cause serious injury if swallowed and must be kept out of reach of children. The battery compartment should remain correctly secured at all times.
If you are unsure whether the WTB-8V1 is compatible with your B&D garage door opener, use our compatibility checker or contact our Technical Support team on 1300 733 066 before ordering.
