Description
The B&D Smart Phone Control Kit – Part No. 14835 is a genuine B&D smartphone connectivity package designed to add remote smartphone control and monitoring to compatible B&D garage door openers.
The kit includes the B&D Network Smart Hub together with an NTR-1V1 Network Transceiver, 240V power supply and installation hardware. The supplied NTR-1V1 connects one compatible opener to the Smart Hub, allowing the garage door to communicate with the B&D smartphone control platform.
Once installed and configured, the system allows you to monitor and control your garage door through the B&D smartphone app from home, work or while away from the property.
📱 Smartphone Control for Your Garage Door
The B&D Smart Phone Control Kit provides a convenient way to add connected functionality to a compatible B&D garage door opener.
Supported smart functionality can include:
- Remote garage door opening and closing
- Door status monitoring
- Push notifications
- Activity history
- Remote access while away from home
- Multiple opening modes
- Control alongside existing garage door remotes
The B&D system can also provide alerts if the door has been left open or is obstructed and allows users to review previous door activity.
🌐 B&D Network Smart Hub
The Network Smart Hub provides the central network connection for the smart control system.
The Smart Hub communicates with the NTR-1V1 Network Transceiver installed at the garage door opener, allowing commands and supported door status information to be exchanged between the opener and the B&D smartphone platform.
The Smart Hub must remain connected to power after setup for the smart control system to remain operational.
📡 NTR-1V1 Network Transceiver Included
The 14835 kit includes one NTR-1V1 Network Transceiver for connection to a compatible B&D opener.
B&D’s installation documentation identifies the NTR-1V1 transceiver arrangement as including:
- NTR-1V1 Network Transceiver
- 400mm VR12 Timing Harness
- Mounting screws
- Velcro mounting strip
The transceiver provides the communication interface between the garage door opener and Network Smart Hub.
🚪 Controls One Garage Door
The B&D Smart Phone Control Kit – 14835 is supplied with one NTR-1V1 Network Transceiver and is therefore configured to connect one compatible garage door opener.
If you have another compatible garage door that you would also like to control through the B&D smartphone system, an additional NTR-1V1 Network Transceiver can be purchased separately.
Click here to purchase an additional NTR-1V1 Network Transceiver for another compatible garage door.
If you are unsure which transceiver you require, contact our Technical Support team on 1300 733 066 for assistance.
🌎 Control Your Garage From Anywhere
Once the system is connected, the B&D smartphone platform allows you to interact with your garage door remotely through an internet-connected smartphone.
This can be particularly useful for:
- Checking whether the garage door was left open
- Opening the garage when you don’t have your remote
- Providing access to an authorised person
- Monitoring garage door activity
- Checking the status of the door while away
- Managing garage access remotely
Remote functionality requires a suitable internet connection at the property and an internet or mobile data connection on the smartphone.
👀 Monitor Door Status
Smartphone connectivity provides more than simply another way of operating the garage door.
The B&D system allows supported door status information to be monitored through the smartphone app.
This means you can check your garage door after leaving the property rather than wondering whether it was closed.
🔔 Notifications & Activity History
The B&D smartphone system supports notifications and activity monitoring for compatible installations.
Users can receive alerts relating to the garage door and review activity history showing when the connected door or gate was operated.
This can be particularly useful for homes where multiple people regularly use the garage.
🏠 Upgrade Compatible Existing B&D Openers
The 14835 kit provides a convenient way to add smartphone functionality to selected existing B&D garage door openers.
For compatible operators, the Smart Hub and NTR-1V1 can be added without replacing the complete garage door opener.
This makes the kit ideal for:
- Existing compatible B&D garage door openers
- Smart home upgrades
- Residential garage doors
- Replacement smart control systems
- Homes with multiple garage users
- Properties requiring remote garage access
🔄 Existing Remotes Continue to Operate
Installing the B&D Smart Phone Control Kit does not replace the normal remote control functionality of your garage door opener.
Existing compatible B&D handheld remotes and wall controls can continue to operate normally.
Smartphone control simply provides an additional method of operating and monitoring the garage door.
📶 Wi-Fi & Internet Connection Required
A suitable Wi-Fi and internet connection is required at the premises where the Smart Phone Control Kit is installed.
The Smart Hub must also remain connected to power.
If the internet connection becomes unavailable, remote smartphone functionality may be temporarily unavailable while the garage door opener can continue to operate through its normal local controls.
🛡️ Safety Beams for Smart-Controlled Openers
Smartphone control allows a garage door to be operated remotely when the user may not have direct line-of-sight of the door.
For this reason, appropriate obstruction detection and safety protection is particularly important on smart-controlled garage doors.
Compatible photoelectric safety beams monitor the garage door opening and allow the opener to detect an obstruction during automatic operation.
⚠️ Safety Beams Required for Smart Control
Appropriate safety beam protection is required for smart-controlled garage door applications where the door can be operated without direct line-of-sight.
For safety and compliance, compatible photoelectric safety beams should be installed and correctly commissioned before smartphone control is enabled.
➕ Add Another Garage Door
The 14835 kit includes one NTR-1V1 Network Transceiver and controls one compatible garage door as supplied.
To connect another compatible garage door to the Smart Hub, an additional NTR-1V1 Network Transceiver is required.
The separately available B&D NTR-1V1 Transceiver Kit is Part No. 14825 and includes the transceiver, 400mm timing harness and mounting components.
Click here to purchase an additional NTR-1V1 Network Transceiver.
Need help confirming compatibility? Contact our Technical Support team on 1300 733 066.
🔎 Network-Ready Openers
Compatibility is important with the first-generation 14835 system.
For some compatible B&D operators, the firmware label on the control board must indicate that the opener is network ready.
Published compatibility information states that the firmware version may have an N following the firmware number, such as F104N. Compatible lock-ready versions marked with an L may also support the system.
If you are unsure, contact our Technical Support team on 1300 733 066 with your opener model before ordering.
🧰 Genuine B&D Accessory
Part No. 14835 is the genuine first-generation B&D Smart Phone Control Kit.
B&D’s current product support documentation identifies:
- Product: B&D Smart Phone Kit First Gen
- Part Number: 14835
B&D currently lists security update support for this product through 4 March 2031.
📦 What’s Included

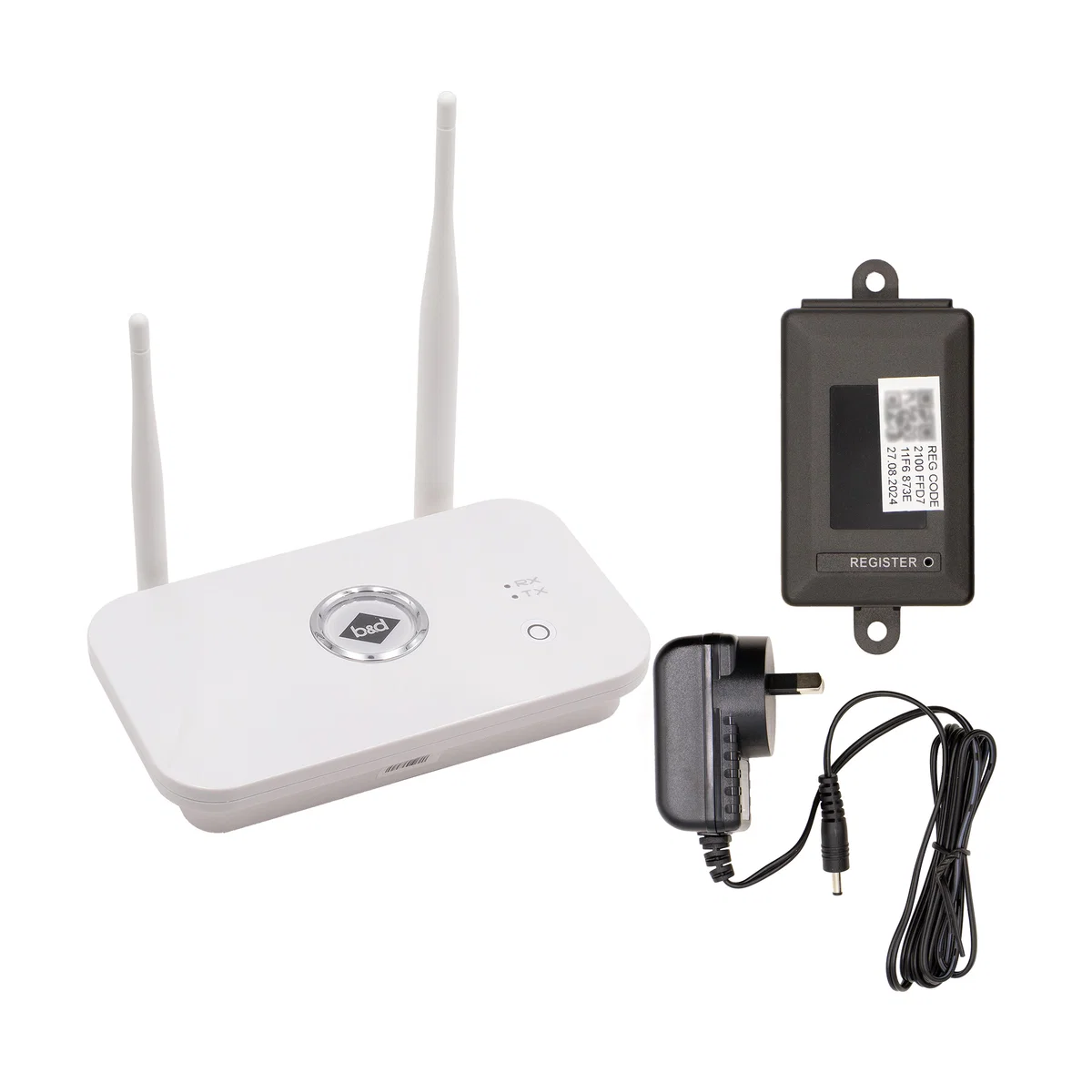

The B&D Smart Phone Control Kit – 14835 includes:
- 1 x B&D Network Smart Hub
- 1 x NTR-1V1 Network Transceiver
- 1 x 240V Power Supply
- 1 x Smart Hub Wall Bracket
- 1 x 400mm VR12 Timing Harness
- Smart Hub mounting hardware
- Transceiver mounting hardware
B&D’s original installation documentation confirms the Network Smart Hub 14835 and NTR-1V1 transceiver configuration.
Key Features
- Genuine B&D Smart Phone Control Kit
- B&D Part No. 14835
- First-generation B&D Smart Phone Kit
- Network Smart Hub included
- NTR-1V1 Network Transceiver included
- Controls one compatible garage door as supplied
- Additional NTR-1V1 transceiver available for another compatible door
- Remote smartphone garage door operation
- Remote door status monitoring
- Push notifications
- Activity history
- Existing compatible remotes continue to operate
- 240V Smart Hub power supply included
- Suitable for selected network-ready B&D openers
- Wi-Fi and internet connection required
- Safety beams required for appropriate smart-controlled installations
Specifications
- Manufacturer: B&D
- Product: Smart Phone Control Kit
- Product Generation: First Gen
- Part Number: 14835
- Network Smart Hub: Included
- Network Transceiver: NTR-1V1
- Number of Transceivers Included: 1
- Number of Doors Connected as Supplied: 1
- Additional Doors: Additional compatible transceiver required
- Additional NTR-1V1 Transceiver Part No.: 14825
- Smart Hub Power Supply: 240V
- Transceiver Harness: 400mm VR12 Timing Harness
- Smartphone Control: Yes
- Remote Status Monitoring: Yes
- Internet Connection Required: Yes
- Genuine B&D Accessory: Yes
Compatibility
The B&D Smart Phone Control Kit & NTR-1V1 – 14835 is designed for selected compatible first-generation/network-ready B&D garage door openers.
Published compatibility information includes:
- Roll-A-Pro – RDO-1V3
- Power Drive – RDO-1V4
- Advance – SDO-2V2
- Prodigy – SDO-2V3
- Controll-A-Door S – SDO-3V2
- PanelPro – SDO-4V1
Compatibility can depend on the production date and firmware/control board fitted to the opener.
The 14835 should not be confused with the newer B&D 86957 Smart Phone Control Kit used with newer compatible operator platforms.
⚠️ Please Note
The B&D Smart Phone Control Kit – Part No. 14835 includes one NTR-1V1 Network Transceiver and controls one compatible garage door as supplied.
For an additional compatible garage door, an additional NTR-1V1 Network Transceiver is required.
Click here to purchase an additional transceiver for another door.
For smart-controlled garage door installations, compatible photoelectric safety beams should be installed and correctly commissioned before remote smartphone operation is enabled.
If you are unsure whether the 14835 kit is compatible with your garage door opener, contact our Technical Support team on 1300 733 066 before ordering.
