Description

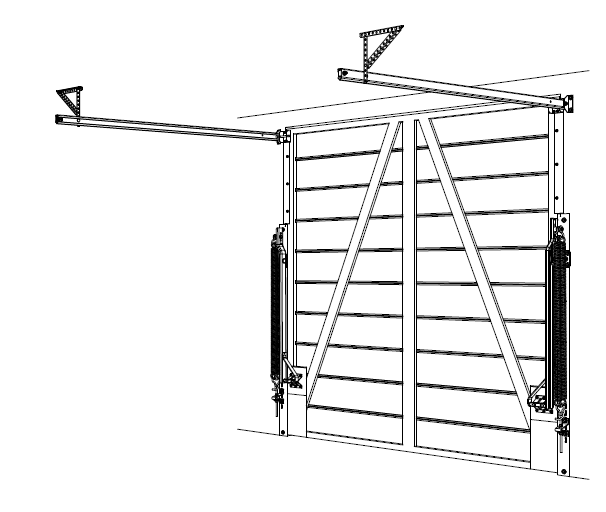

The Track Type TiltDor Fittings are a heavy-duty hardware system designed for the construction of single-panel tilt garage doors using horizontal tracks.
Unlike jamb-type tilt fittings, the track-type system guides the door through rollers running within horizontal tracks, providing greater stability as the door opens and allowing the door panel to retract further into the garage.
This makes track-type fittings particularly well suited to larger, heavier or custom-built tilt garage doors where controlled movement and stability are important. Tracked tilt-door systems also minimise the amount of the door that protrudes beyond the opening when fully open.
🚪 Designed for Single-Panel Tilt Doors
Track Type TiltDor Fittings are designed for traditional one-piece tilt garage doors.
Rather than dividing the door into multiple hinged sections, the complete door panel operates as a single rigid assembly, tilting outward before travelling upward and back along the horizontal tracks.
This system is ideal for custom garage doors where the entire face of the door is intended to remain as one continuous panel.
🛤️ Track-Guided Operation
A key feature of the system is the use of horizontal tracks positioned along each side of the garage.
Rollers connected to the upper section of the door travel through these tracks as the door opens and closes.
This provides:
- Controlled door movement
- Improved lateral stability
- Consistent opening geometry
- Support for larger door panels
- Reduced outward projection when fully open
- Positive guidance throughout the operating cycle
Track-type fittings are particularly useful for larger tilt doors because the horizontal tracks support and stabilise the door in its open position.
⚙️ Fixed Power Arm Configuration
The Delta Track Type TiltDor Fittings use a fixed power arm arrangement rather than an adjustable power arm.
The power arms connect the door panel to the main pivot mechanism and form an important part of the geometry that controls the movement of the door.
Because the arms are fixed, it is important that the correct fitting configuration is selected to suit the height, weight and construction of the finished door.
🌀 Spring Counterbalance System
The TiltDor system uses heavy-duty extension springs to counterbalance the weight of the garage door.
As the door closes, energy is stored within the springs. This stored energy then assists in lifting the door during the opening cycle.
A correctly selected and adjusted spring system significantly reduces the amount of physical force required to move the door.
Depending on the selected fitting configuration and door weight, the system may use either a single or double spring arrangement on each side.
⚖️ Correctly Balanced Door Operation
Correct counterbalance is essential for reliable tilt-door operation.
When properly configured, the spring system should allow the door to move smoothly throughout its travel without excessive force being required to either open or close it.
Correct balance also reduces unnecessary loading on:
- Pivot brackets
- Power arms
- Tracks
- Rollers
- Garage door operator
- Door frame
- Mounting structure
The spring configuration must therefore be selected according to the actual finished weight of the door.
🏗️ Ideal for Custom Garage Doors
Track Type TiltDor Fittings are particularly well suited to custom architectural garage doors where a one-piece door design is preferred.
Typical applications include:
- Timber clad tilt doors
- Aluminium framed tilt doors
- Composite clad doors
- Batten-style garage doors
- Castellated aluminium doors
- Architectural garage doors
- Custom façade-integrated garage doors
- Steel framed tilt doors
The fitting system allows the door manufacturer to create the door panel independently while using a proven mechanical arrangement to control its movement.
📐 Suitable for Different Door Sizes & Weights
Track-type tilt fittings can be configured for different door heights and finished door weights by selecting the appropriate spring and fitting arrangement.
Traditional track-type fitting systems use different configurations according to the finished door weight, with heavier doors requiring additional spring capacity.
The appropriate fitting should therefore be selected according to:
- Finished door height
- Finished door width
- Total door weight
- Door frame construction
- Cladding material
- Available headroom
- Available side room
- Manual or automatic operation
↔️ Reduced Forward Protrusion
A tilt garage door naturally swings outward during the opening cycle.
The track-type configuration allows the upper section of the door to travel rearward along the horizontal tracks as the door opens.
Once fully open, the majority of the door is positioned horizontally inside the garage rather than projecting significantly beyond the opening.
This provides a stable and compact open position while retaining the simplicity and appearance of a single-panel garage door.
📏 Low Headroom Requirements
Track-type tilt doors can operate with relatively limited headroom above the garage opening.
Comparable track-type tilt fitting systems specify approximately:
- 50mm minimum headroom for manually operated doors
- 100mm minimum headroom when an automatic garage door operator is installed
Actual installation requirements will depend on the door construction, fitting configuration and operator selected.
🛞 Heavy-Duty Track & Roller System
The door is guided by rollers operating within horizontal steel tracks.
Correct track positioning is essential to provide smooth movement and ensure the door remains properly aligned throughout its opening and closing cycle.
The tracks must be:
- Level
- Parallel
- Securely supported
- Correctly spaced
- Properly aligned with the door rollers
Poor track alignment can cause binding, excessive roller wear and increased operating forces.
🔩 Heavy-Duty Pivot Hardware
The system incorporates robust pivot brackets, shafts and associated hardware designed to support the movement of the complete one-piece door panel.
Because a tilt door moves as a single assembly, substantial forces can be transferred through the pivot system during operation.
The door frame and supporting structure must therefore provide suitable mounting points for the fittings.
⚡ Suitable for Automation
Track Type TiltDor Fittings can be used with a compatible automatic garage door operator.
When automating a tilt door, the operator and drive rail must be correctly configured for tilt-door operation and the door must already be correctly balanced before the operator is connected.
The garage door operator should only provide the force required to move the balanced door — it should not be used to compensate for incorrect spring tension or excessive door weight.
🔧 New Door Construction
These fittings are ideal for fabricators and garage door manufacturers constructing custom one-piece tilt doors.
The hardware system provides the mechanical components required to transform a correctly fabricated door panel into a functional tracked tilt garage door.
This makes the system particularly useful where a standard sectional or roller garage door is unsuitable for the architectural design of the building.
🏠 Residential Applications
Track Type TiltDor Fittings are suitable for a wide range of residential garage applications, particularly where the customer requires a custom architectural garage door.
They are commonly suited to:
- New homes
- Architectural residences
- Custom garage openings
- Renovations
- Carports
- Low-headroom garages
- Custom clad garage doors
Key Features
- Designed for single-panel tilt garage doors
- Track-type operating system
- Horizontal track-guided movement
- Fixed power arm configuration
- Spring counterbalanced operation
- Suitable for custom door construction
- Suitable for heavier architectural doors when correctly configured
- Stable open-door position
- Reduced forward projection when fully open
- Heavy-duty pivot hardware
- Suitable for manual operation
- Suitable for compatible automatic garage door operators
- Ideal for aluminium, timber, composite and architectural cladding
- Multiple fitting configurations available to suit different door weights and heights
Specifications
- Product: Track Type TiltDor Fittings
- Product Type: Tilt Garage Door Hardware
- Door Type: Single-Panel / One-Piece Tilt Door
- Operating Type: Track Guided
- Power Arm Type: Fixed / Non-Adjustable
- Counterbalance: Extension Spring
- Track Position: Horizontal
- Automation: Compatible with suitable tilt-door garage door operators
- Application: Residential / Custom Architectural Garage Doors
- Door Construction: Steel, Aluminium, Timber or Custom Clad
- Installation Type: Track Type Tilt Door
⚠️ Please Note
Track Type TiltDor Fittings use a fixed power arm configuration. Correct fitting and spring selection is therefore important and should be based on the dimensions, finished weight and construction of the garage door.
The finished weight of all framing, cladding, reinforcement and hardware must be considered when selecting the appropriate spring configuration.
Garage door springs are under significant tension and installation and adjustment should only be carried out by appropriately experienced garage door installers. B&D likewise specifies that its professional fitting instructions are intended for professional garage door installers.
If the door is to be automated, it must first operate smoothly and be correctly counterbalanced before the garage door operator is installed.
