Description
The Superlift RDO-7W is a weather-resistant roller door operator designed for residential roll-up and roller garage doors where the opener may be exposed to harsher environmental conditions than a conventional enclosed garage installation.
Featuring an IP34-rated housing, the RDO-7W provides increased protection against dust and splashing water, making it particularly suitable for carports, open-sided garages, sheds and other protected locations where moisture or weather exposure may be a consideration.
With capacity for spring-balanced roller doors up to 5.5 metres high and 15m², together with a 380N maximum lifting capacity, the RDO-7W combines compact side-mounted installation with electronic limits, rolling-code remote control and optional safety accessories.
🌦️ Weather-Resistant IP34 Design
The standout feature of the RDO-7W is its IP34-rated operator housing.
Compared with a conventional roller door operator intended primarily for a fully enclosed garage, the RDO-7W provides additional protection against environmental exposure.
The IP34 enclosure provides protection against:
- Solid objects greater than 2.5mm
- Water splashing against the enclosure
- Dust and debris encountered in typical garage environments
- Moisture associated with more exposed installations
This makes the RDO-7W particularly useful where the garage door operator is installed in a protected but less completely enclosed environment.
🏠 Ideal for Carports & Exposed Garages
The weather-resistant construction makes the RDO-7W an excellent choice for installations such as:
- Carports fitted with roller doors
- Open-sided garages
- Semi-enclosed garages
- Sheds
- Workshops
- Coastal residential garages
- Roller doors with increased exposure to moisture
- Residential installations where additional environmental protection is desirable
The operator should still be installed in accordance with the manufacturer’s requirements and should not be considered fully waterproof or suitable for unrestricted direct weather exposure.
🚪 Designed for Roller Garage Doors
The Superlift RDO-7W is specifically designed for spring-balanced roll-up / roller garage doors.
The operator mounts directly to the roller door axle and drives the door through the drum wheel, eliminating the overhead C-rail and trolley required by a sectional garage door operator.
This provides a compact installation while keeping the garage ceiling clear.
📐 Suitable for Doors up to 5.5m High
The RDO-7W provides substantial travel capacity for taller residential roller doors.
Published specifications nominate:
- Maximum door height: 5.5m
- Maximum door area: 15m²
- Maximum lifting capacity: 380N
This makes the operator suitable for a broad range of residential roller door applications, subject to the door being correctly spring balanced and mechanically sound.
💪 380N Maximum Lifting Capacity
The RDO-7W provides a maximum lifting capacity of 380N.
As with all roller door operators, this capacity assumes that the garage door is correctly counterbalanced by its springs.
The operator should not be used to compensate for:
- Broken or incorrectly tensioned springs
- Excessive door weight
- Damaged tracks
- Binding door curtains
- Damaged drum wheels
- Poor door alignment
The roller door should operate smoothly and freely by hand before automation is installed.
⚡ 24V Low-Voltage Operator System
The RDO-7W operates from a 220–240V AC mains supply through a 100VA transformer, providing a 24V AC output to the operator system.
This provides controlled low-voltage operation while the electronic control system manages the travel and operating functions of the garage door.
🎯 Adjustable Open & Close Limits
The RDO-7W provides adjustable opening and closing travel limits.
During installation, the required fully open and fully closed positions are set to suit the individual roller door.
Correct limit adjustment ensures the door stops at the appropriate position without unnecessarily over-driving the door at either end of its travel.
🛡️ Safety Obstruction Control
The RDO-7W incorporates electronic control of the garage door during operation and can be combined with additional safety equipment for enhanced protection.
The door must be correctly balanced and the safety functions should be tested after installation and as part of regular garage door servicing.
👁️ Optional IR Safety Beams
Compatible infrared safety beams can be connected to the RDO-7W to provide non-contact obstruction detection across the garage door opening.
Safety beams are particularly useful where:
- Automatic closing is enabled
- Children or pets may pass through the opening
- Vehicles regularly stop within the doorway
- Additional non-contact protection is required
The beams allow the control system to detect an interrupted beam before the garage door physically contacts the obstruction.
⏱️ Automatic Closing
The RDO-7W supports an automatic closing function when configured with appropriate safety accessories.
This allows the garage door to automatically close after being left open for a programmed period.
Appropriate safety equipment should be installed whenever automatic closing is used.
↕️ Half-Open Function
An optional half-open function is also available with the RDO-7W.
This can be useful where the roller door only needs to be partially opened for:
- Pedestrian access
- Ventilation
- Quick access to the garage
- Workshops and sheds
Rather than completing a full opening cycle, the door can stop at a predetermined intermediate position.
📡 433.92MHz Remote Control
The RDO-7W incorporates a 433.92MHz radio receiver for compatible remote controls.
The receiver can store up to 20 individual transmitters, providing sufficient capacity for most residential applications.
Additional compatible transmitters can be programmed where multiple family members, vehicles or authorised users require access.
🎛️ Wireless Wall Control
The standard RDO-7W package is commonly supplied with a wireless wall control in addition to the handheld remote controls.
This provides a convenient fixed operating point inside the garage without requiring control wiring to be run between the wall switch and operator.
🔑 Manual Release
The RDO-7W incorporates a manual release system allowing the roller door to be disconnected from the automatic operator when required.
This allows the garage door to be operated manually during:
- Power failures
- Maintenance
- Operator servicing
- Electrical faults
- Emergency situations
A correctly balanced roller door should remain manageable when the automatic operator is disengaged.
🌱 Low Standby Power Consumption
The RDO-7W has a standby power consumption of less than 1 watt.
Because a garage door operator spends the majority of its life waiting for an operating command, low standby consumption helps minimise unnecessary electricity usage between door cycles.
🌡️ Wide Operating Temperature Range
The RDO-7W is specified for operation across a temperature range of approximately -20°C to +55°C.
Combined with the IP34 enclosure, this makes the operator particularly well suited to Australian residential applications where garage temperatures and environmental conditions can vary significantly.
🔧 New & Replacement Installations
The Superlift RDO-7W is suitable for both new roller door automation and replacement operator installations.
Before fitting the operator, the roller door should be inspected to ensure that it:
- Moves freely by hand
- Is correctly spring balanced
- Does not bind in the tracks
- Has suitable drum wheel and axle construction
- Is structurally sound
- Is within the operator’s specified size and lifting capacity
Mechanical faults with the garage door should always be corrected before an automatic operator is installed.

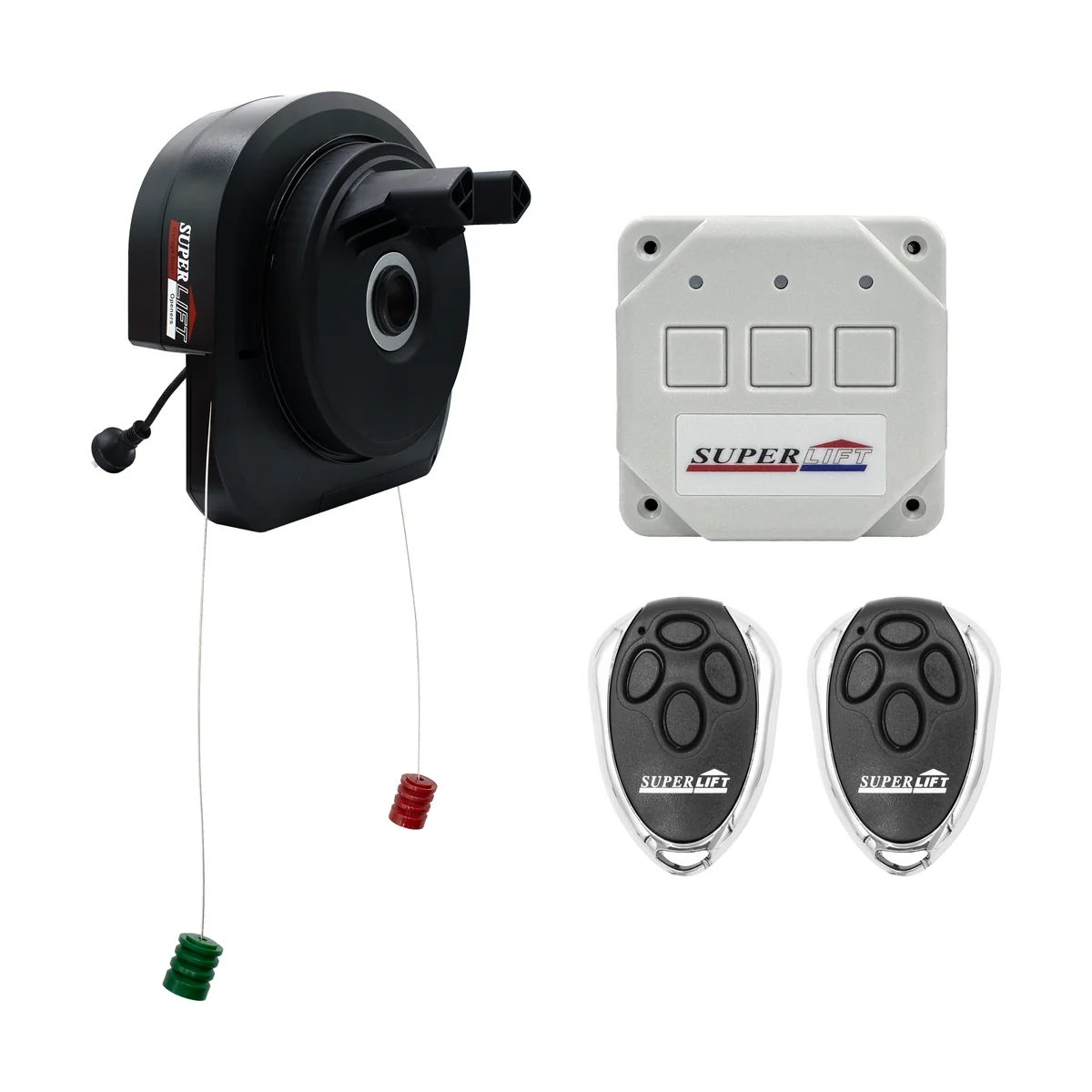

📦 What’s Included
A standard RDO-7W package is commonly supplied with:
- 1 x Superlift RDO-7W Weather-Resistant Roller Door Operator
- 2 x Handheld Remote Controls
- 1 x Wall Remote Control
Package contents can vary, so the components included with the individual product should be confirmed at the time of ordering.
Key Features
- Designed for residential roller garage doors
- Weather-resistant operator construction
- IP34-rated enclosure
- Suitable for more exposed garage environments
- Ideal for carports and semi-enclosed garages
- Suitable for doors up to 5.5m high
- Suitable for doors up to 15m²
- Maximum lifting capacity of 380N
- 220–240V AC mains input
- 24V low-voltage operator system
- Adjustable opening and closing limits
- 433.92MHz remote control
- Stores up to 20 transmitters
- Optional IR safety beams
- Automatic closing capability
- Optional half-open function
- Manual release
- Less than 1W standby consumption
- Operating temperature from -20°C to +55°C
Specifications
- Manufacturer: Superlift
- Model: RDO-7W
- Product Type: Weather-Resistant Roll Up / Roller Door Operator
- Door Type: Spring-Balanced Roller Door
- Input Voltage: 220–240V AC, 50/60Hz
- Output Voltage: 24V AC
- Transformer: 100VA
- Maximum Door Height: 5.5m
- Maximum Door Area: 15m²
- Maximum Lifting Capacity: 380N
- Receiver Frequency: 433.92MHz
- Receiver Capacity: Up to 20 Transmitters
- Standby Power: Less than 1W
- Operating Temperature: -20°C to +55°C
- Environmental Rating: IP34
- Manual Release: Yes
- Safety Beam Compatibility: Yes
- Automatic Closing: Supported with appropriate safety equipment
- Half-Open Function: Available
Compatibility
Designed for compatible spring-balanced residential roll-up and roller garage doors up to 5.5m high and 15m².
The RDO-7W is particularly suited to installations where additional protection from moisture and environmental exposure is required compared with a conventional indoor garage door operator.
⚠️ Please Note
The RDO-7W is rated IP34 and should be described as weather-resistant rather than completely waterproof. It provides protection against splashing water but should not be installed in a location subject to unrestricted water exposure or immersion.
Maximum door height, area and lifting capacity are application limits and do not guarantee suitability for every roller door. The garage door must be correctly spring balanced, structurally sound and operate freely by hand before installation.
If you are unsure whether the Superlift RDO-7W is suitable for your roller door or installation environment, contact our Technical Support team on 1300 733 066 before ordering.
