Description

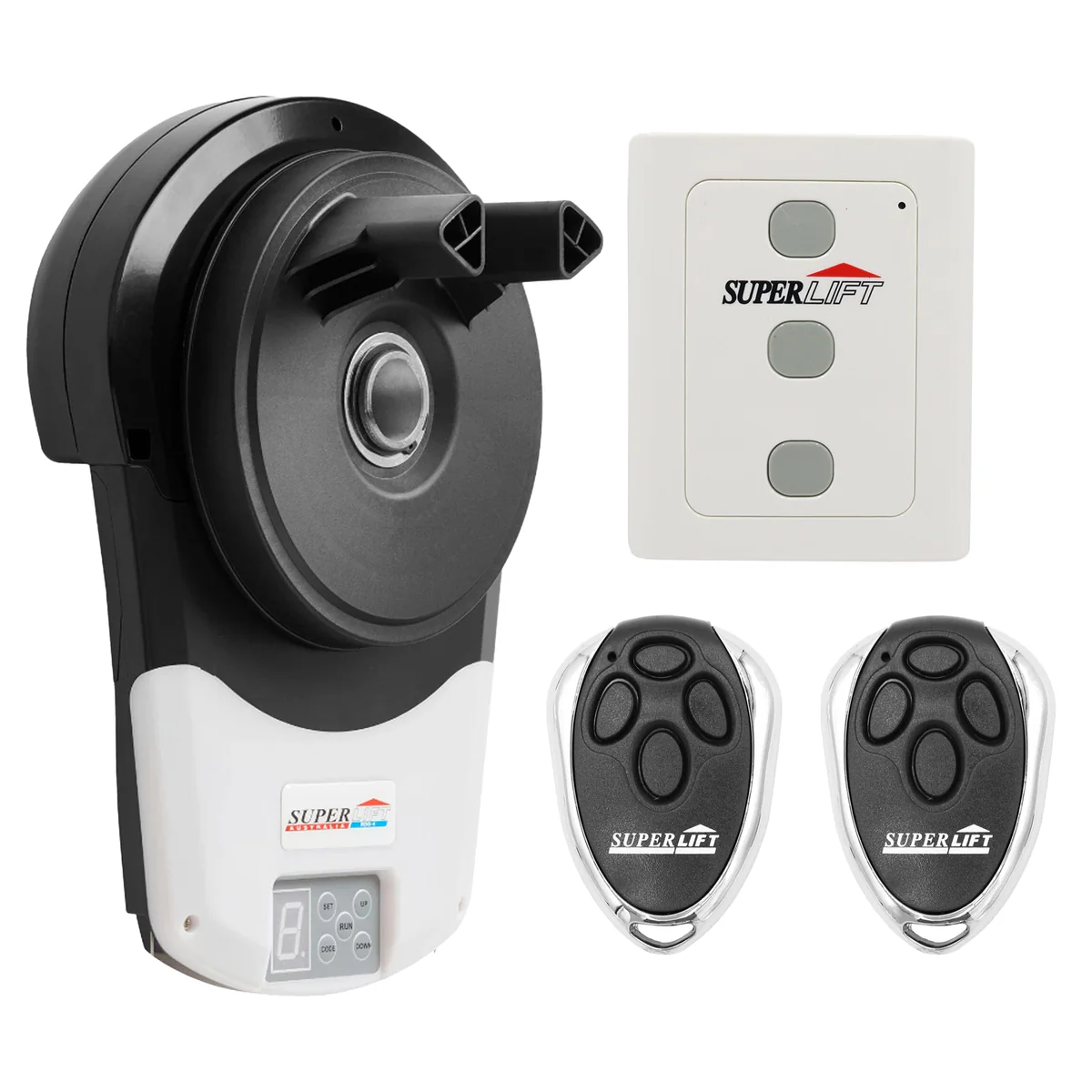

The Superlift RDO-4 is a powerful and reliable 24Vdc garage door operator designed specifically for residential roll-up and roller garage doors.
Featuring an 800N opening lifting force, electronically adjustable travel limits and safety obstruction control, the RDO-4 provides smooth and dependable automatic operation while maintaining a compact side-mounted design.
With a maximum recommended door area of up to 15m², the RDO-4 is well suited to a wide range of single and double-width residential roller doors.
🚪 Designed for Roller Garage Doors
Unlike overhead sectional door operators that use a separate C-rail and trolley, the Superlift RDO-4 mounts directly onto the roller door axle and drives the door through the drum wheel.
This provides a compact installation without requiring an opener rail across the garage ceiling.
The RDO-4 can be configured for installation on either the left or right-hand side of the roller door.
⚡ Powerful 24Vdc Motor
The RDO-4 uses a 24Vdc motor powered from a standard 240V AC mains supply.
The low-voltage DC motor provides strong and controlled operation while allowing the electronic control system to manage door travel, obstruction force and other operating functions.
Superlift specifies an opening lifting force of up to 800N.
💪 Up to 800N Lifting Force
With an electronically limited opening lifting force of 800N, the RDO-4 provides ample power for correctly balanced residential roller doors.
The opener is designed to move a correctly installed and properly spring-balanced garage door. It should not be used to compensate for a door that is excessively heavy, damaged, binding or poorly balanced.
📐 Suitable for Doors up to 15m²
Superlift specifies the RDO-4 for roller doors with a maximum door area of up to 15m², depending on the door configuration.
This makes it suitable for a broad range of residential roller doors, including many larger double-width installations.
Actual suitability will depend on factors including:
- Door width and height
- Finished door weight
- Spring balance
- Drum and axle configuration
- Condition of the door
- Available side room
🔇 Smooth & Quiet Operation
The 24Vdc drive system provides smooth operation with reduced operating noise, making the RDO-4 well suited to residential garages.
Soft start and soft stop operation helps reduce abrupt movement at the beginning and end of each cycle, reducing unnecessary shock and wear on the garage door system.
🎯 Electronic Travel Limits
The RDO-4 uses electronically adjustable travel limits rather than conventional mechanical limit switches.
During setup, the installer programs the required fully open and fully closed positions using the controls on the operator.
Once programmed, the opener automatically travels between these positions during normal operation.
🛡️ Electronic Safety Obstruction System
The RDO-4 incorporates an electronically adjustable obstruction force system.
During setup, the operator learns the characteristics of the garage door and allows the safety force sensitivity to be adjusted appropriately.
When correctly configured, the opener can respond to abnormal resistance encountered during operation. The installation manual specifies testing the closing safety system using a 40mm obstruction to confirm that the door stops and reverses appropriately.
📡 Built-In 433.92MHz Receiver
The RDO-4 incorporates a built-in radio receiver for compatible Superlift remote controls.
Superlift’s RDO-4 brochure specifies:
- 433.92MHz operating frequency
- Rolling-code technology
- More than 4.2 billion code combinations
- Storage for up to 20 transmitters
This allows additional compatible remotes to be programmed directly into the operator when required.
💡 LED Courtesy Light
An integrated LED courtesy light automatically illuminates when the garage door operator is activated.
This provides additional lighting when entering or leaving the garage at night without requiring a separate light to be switched on manually.
🔑 Easy Manual Release
The RDO-4 incorporates a simple manual disengagement system.
Separate release and engagement cords allow the roller door to be disconnected from or reconnected to the automatic operator when required.
This allows the garage door to be operated manually during:
- Power failures
- Maintenance
- Operator servicing
- Emergency situations
The door should be correctly balanced before relying on manual operation.
🔋 Battery Backup Compatible
An optional battery backup can be connected to the RDO-4, providing continued garage door operation during a mains power failure.
The RDO-4 control system includes dedicated battery backup connections, and Superlift lists battery backup as an available accessory for the operator.
This can be particularly useful where the roller door is the primary access point into the garage.
👁️ Safety Beam Compatible
Optional photoelectric safety beams can be connected to the RDO-4.
Safety beams provide an additional non-contact safety system across the garage door opening, allowing the opener to detect when the beam path has been interrupted.
Superlift specifically recommends that the automatic closing function not be enabled unless safety beams have been correctly installed and aligned.
⏱️ Optional Auto Close
The RDO-4 includes an adjustable automatic closing function.
When enabled, the opener can automatically close the garage door after a programmed period rather than requiring the user to press the remote again.
For safety, Superlift recommends using this feature only in conjunction with correctly installed photoelectric safety beams.
📱 Smart Control Upgrade Options
The RDO-4 can also be expanded with additional compatible access-control equipment.
Superlift lists optional accessories including:
- Bluetooth smartphone receiver
- Battery backup
- Wireless security keypads
- Universal receivers
- Photoelectric safety beams
This allows the basic operator to be configured according to the access requirements of the property.
🏠 Ideal for Residential Roller Doors
The Superlift RDO-4 is an excellent choice for automating compatible residential roller garage doors.
Its combination of 800N lifting force, electronic limits, electronic obstruction control, integrated receiver and optional battery backup provides the essential functionality required from a modern roller door opener.
Typical applications include:
- Single roller garage doors
- Double-width roller garage doors
- Residential garages
- Detached garages
- Sheds and workshops
- Replacement roller door opener installations
🔧 Replacement Operator Applications
The RDO-4 can also be used when replacing an existing compatible roller door operator.
Before replacement, the roller door should be checked to ensure that it:
- Moves freely by hand
- Is correctly spring balanced
- Does not bind in the tracks
- Has suitable axle and drum wheel construction
- Has adequate side room for the operator
- Is structurally suitable for automation
The RDO-4 manual specifies that a correctly balanced door should not rise or fall by more than approximately 100mm when released and should require no more than 150N (approximately 15kg) of manual effort to open or close.
📦 Optional Accessories
A range of accessories can be added to the RDO-4 system, including:
- Photoelectric safety beams
- Battery backup
- Additional remote controls
- Wireless wall controls
- Wireless keypad
- Universal receiver
- Compatible smart control equipment
Key Features
- Designed specifically for roller garage doors
- Side-mounted direct-drive installation
- 24Vdc motor
- 240V AC mains input
- Up to 800N opening lifting force
- Suitable for doors up to 15m²
- Electronic travel limits
- Electronic safety obstruction control
- Soft start and soft stop
- Built-in 433.92MHz receiver
- Rolling-code remote technology
- Integrated LED courtesy light
- Left or right-hand installation
- Manual release system
- Optional battery backup
- Optional photoelectric safety beams
- Optional automatic closing
- Smart control upgrade options available
Specifications
- Manufacturer: Superlift
- Model: RDO-4
- Product Type: Roll Up / Roller Door Operator
- Input Voltage: 240V AC
- Motor Type: 24V DC
- Opening Lifting Force: 800N
- Maximum Door Area: 15m²
- Opening Limit Travel: 3.5m
- Side Room: 40–90mm
- Safety Reversing System: Electronically Set
- Travel Limit System: Electronically Set
- Receiver Frequency: 433.92MHz
- Coding Type: Rolling Code
- Receiver Capacity: Up to 20 Transmitters
- Courtesy Light: LED
- Door Travel Speed: 100–150mm/sec
- Auto Close: Optional with Photoelectric Safety Beams
- Photoelectric Safety Beams: Optional
- Battery Backup: Optional
- Carton Dimensions: 460 × 310 × 220mm
- Shipping Weight: 8.1kg
Compatibility
Designed for compatible residential roll-up / roller garage doors.
Before ordering, confirm the door is within the required size and operating limits and that sufficient side room is available for installation.
The RDO-4 can be installed on either the left or right-hand side of a compatible roller door.
⚠️ Please Note
The maximum 15m² door area and 800N lifting force do not mean the operator can safely automate a poorly balanced or excessively heavy garage door.
The roller door must operate smoothly and freely by hand and be correctly spring balanced before installation.
If you are unsure whether the Superlift RDO-4 is suitable for your roller door, contact our Technical Support team on 1300 733 066 before ordering.
