Description

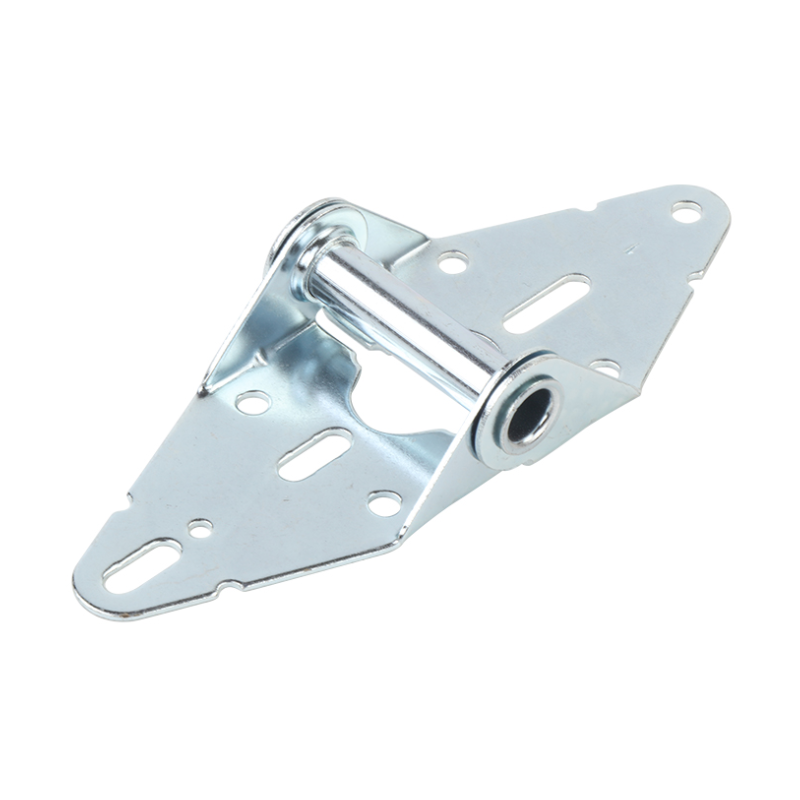

The Std Hinge #1 – 14Ga is a heavy-duty sectional overhead door hinge manufactured from 14-gauge steel for reliable panel articulation and roller support.
Designed for standard sectional garage and overhead door systems, the #1 hinge is commonly used between the bottom and second door sections and can also be used as a centre hinge between sections where roller offset is not required.
Its heavy-duty 14-gauge construction provides increased strength and durability for residential, commercial and custom sectional door applications.
🚪 Sectional Door Hinge
Sectional overhead doors are constructed from multiple horizontal panels that must pivot relative to one another as the door transitions from the vertical tracks into the horizontal tracks.
The #1 hinge connects adjoining door sections while allowing the panels to articulate smoothly as the door opens and closes.
🔩 Heavy-Duty 14-Gauge Steel
The hinge is manufactured from:
- 14-Gauge Steel
The heavier construction provides a strong and durable connection between adjoining sectional door panels.
14-gauge hinges are suitable for applications where greater strength and durability are required compared with lighter-duty hinge hardware.
1️⃣ #1 Hinge Position
The #1 designation identifies the hinge geometry and its intended position within a standard sectional door hinge arrangement.
A #1 hinge is commonly installed:
- Between the bottom and second door sections at the left-hand end
- Between the bottom and second door sections at the right-hand end
- At centre stile positions between adjoining door sections
Unlike higher-numbered end hinges, the #1 hinge provides the minimum roller offset required at the lower hinge position.
⚙️ Centre Hinge Applications
The #1 hinge can also be used as a centre hinge on sectional overhead doors.
At centre stile positions, the hinge connects the adjoining panels and allows them to pivot as the door moves through the curved track.
Centre hinges do not normally carry a track roller.
This makes the #1 hinge a commonly used hardware component throughout a sectional door assembly.
🛞 Standard Roller Compatibility
When installed as an end hinge, the roller carrier is designed for use with a standard sectional door roller.
Typical compatibility includes:
- 7/16″ roller stem
- Standard sectional overhead door rollers
- Ball-bearing rollers with compatible stem diameter
The roller runs inside the vertical and horizontal tracks while the hinge maintains the required relationship between the roller and door panel.
🔄 Smooth Panel Articulation
The hinge pivot allows adjoining door panels to change angle as the door travels through the curved section of the track.
Correct hinge operation helps provide:
- Smooth panel movement
- Consistent panel alignment
- Controlled movement through the track radius
- Reduced binding
- Correct sectional door operation
Hinges should move freely without excessive play, distortion or cracking.
🏗️ Suitable for Custom Sectional Doors
The Std Hinge #1 – 14Ga can be incorporated into custom sectional overhead door hardware systems.
Typical applications include:
- Residential sectional garage doors
- Custom sectional doors
- Aluminium-framed sectional doors
- Commercial sectional doors
- Overhead doors
- Replacement sectional door hardware
The complete hinge arrangement should be selected according to the door construction, track configuration and roller offset requirements.
🔧 Replacement Hinge
The #1 hinge is also suitable for replacing a worn or damaged hinge of the same type and geometry.
Sectional door hinges should be inspected for:
- Cracking
- Distortion
- Elongated mounting holes
- Excessive pivot wear
- Corrosion
- Loose mounting hardware
- Damaged roller carriers
- Abnormal movement
A damaged hinge should be replaced before continued operation causes additional damage to the door or track system.
🔢 Hinge Numbering
Numbered sectional door hinges are designed to position the rollers at progressively different offsets as they move higher up the door.
A typical numbered arrangement progresses through:
- #1 Hinge
- #2 Hinge
- #3 Hinge
- #4 Hinge
The required hinge number depends on its position on the door and the specific track and panel configuration.
The same hinge number should generally be used when replacing an existing end hinge unless the door hardware arrangement is being professionally redesigned.
🛠️ Installation
The hinge mounts directly to the sectional door panel or its reinforcing stile using appropriate door fasteners.
Correct installation is important to maintain:
- Panel alignment
- Roller alignment
- Correct hinge movement
- Correct track engagement
- Smooth door travel
Fasteners should be suitable for the door construction and securely tightened without damaging the door panel or stile.
⭐ Key Features
- Standard #1 sectional door hinge
- Heavy-duty 14-gauge steel construction
- Designed for sectional overhead doors
- Connects adjoining door sections
- Allows smooth panel articulation
- Suitable for #1 end-hinge positions
- Suitable for centre hinge positions
- Accepts compatible sectional door rollers
- Suitable for standard 7/16″ roller stems
- Suitable for residential applications
- Suitable for commercial applications
- Suitable for custom sectional doors
- Suitable for new door manufacture
- Suitable as a replacement hinge
- Durable sectional door hardware component

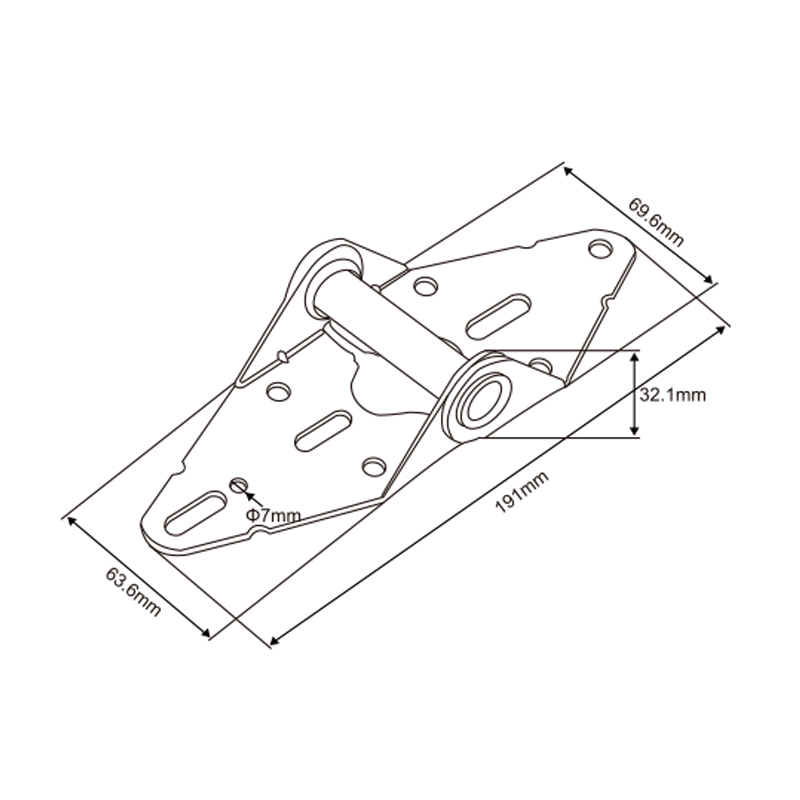

🔧 Specifications
- Product: Standard Hinge #1
- Product Type: Sectional Door Hinge
- Hinge Number: #1
- Material: Steel
- Material Thickness: 14 Gauge
- Application: Sectional Overhead Doors
- Typical Roller Stem Compatibility: 7/16″
- Installation Position: #1 End Hinge / Centre Hinge
- Roller Included: No
- Fasteners Included: Unless Otherwise Specified
🔗 Compatibility
Suitable for compatible sectional overhead door systems using standard numbered hinge hardware.
Typical applications include:
- Residential sectional garage doors
- Commercial sectional overhead doors
- Aluminium-framed sectional doors
- Custom sectional doors
- Standard sectional door track systems
- Compatible 7/16″ stem rollers
When replacing an existing end hinge, confirm the hinge number before ordering.
Different hinge numbers provide different roller offsets and should not be substituted without confirming the door’s track and hinge geometry.
⚠️ Please Note
This product is one Std Hinge #1 – 14Ga unless otherwise specified.
Rollers and mounting fasteners are not included unless specifically stated.
The #1 hinge is commonly used between the bottom and second door sections and at centre hinge positions throughout a sectional door.
Always confirm the existing hinge number and roller arrangement before replacing sectional door hardware.
Do not substitute a different numbered end hinge solely because it appears physically similar. The hinge number affects roller positioning and therefore the alignment of the door within the tracks.
Garage doors contain components operating under significant spring and cable tension. Do not loosen or remove bottom fixtures, lifting cables, spring assemblies or other tensioned components unless appropriately trained and equipped.
If you are unsure whether this hinge is suitable for your sectional door, contact our Technical Support team on 1300 733 066 for assistance.
