FAAC Foundation Box Stainless Steel – S800 / S800H – 490113

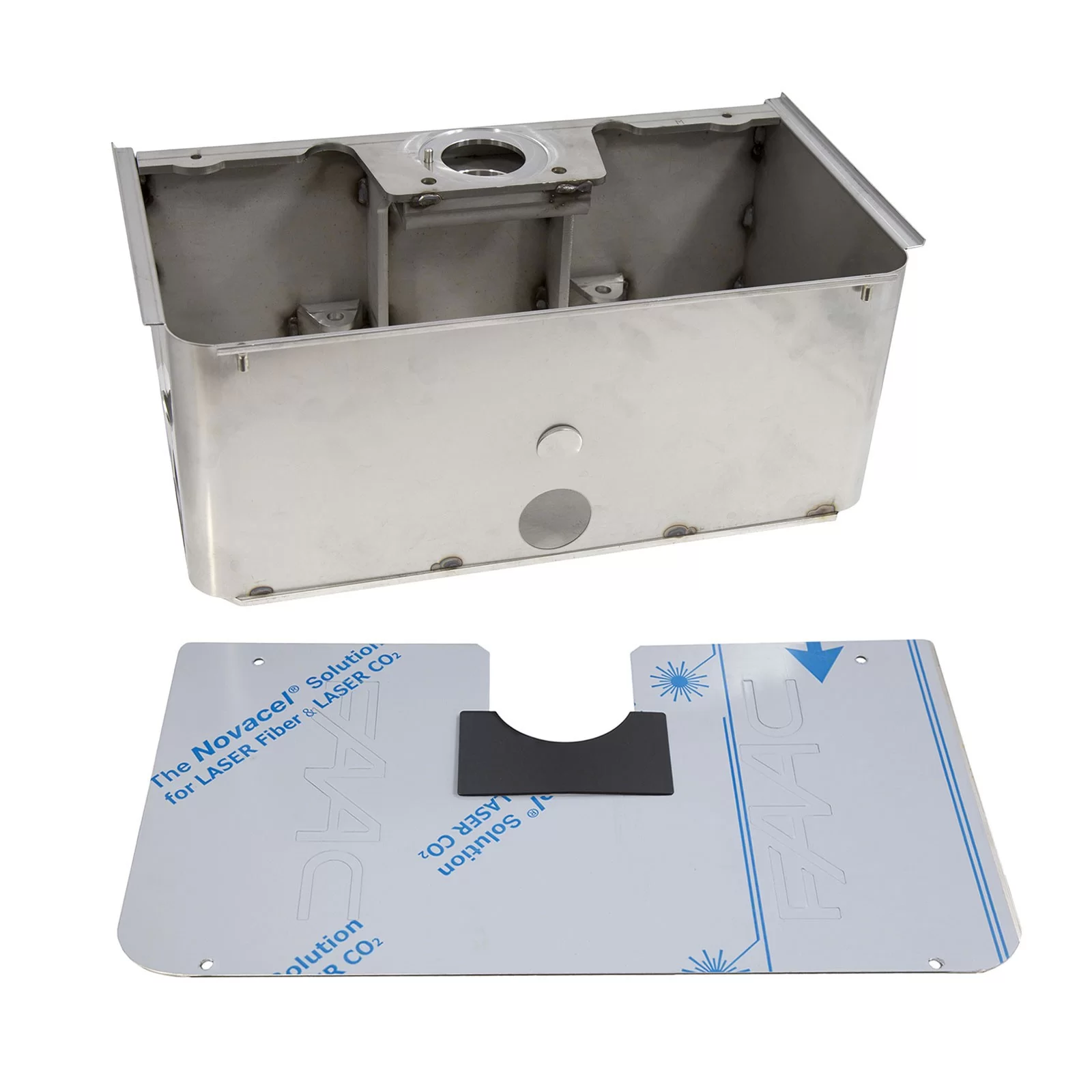

The FAAC Stainless Steel Foundation Box is the genuine underground mounting enclosure designed for FAAC S800 and S800H hydraulic swing gate operators.
Installed below ground level beneath the gate hinge, the foundation box provides the structural housing and mounting location for the underground operator while allowing the automation system to remain concealed beneath the finished surface.
FAAC Part Number: 490113. FAAC lists the 490113 as the dedicated Stainless Steel Foundation Box for both the S800 and S800H operator families.
🛡️ Stainless Steel Construction
The 490113 is the stainless steel version of the FAAC S800 foundation box, providing increased corrosion resistance for demanding underground installations.
It is particularly suited to applications where the foundation box may be exposed to moisture and other environmental conditions associated with below-ground installation.
FAAC offers two foundation box options:
- 490112 – Standard Foundation Box
- 490113 – Stainless Steel Foundation Box
🔧 Designed for Underground Operators
The foundation box is installed beneath the gate and provides the mounting enclosure for the FAAC underground hydraulic operator.
Once installed, the automation remains almost completely hidden below ground, maintaining the appearance of the gate while providing powered swing gate operation.
The removable top cover provides access to the operator for servicing and maintenance without requiring removal of the complete foundation box.
📐 Foundation Box Dimensions
FAAC specifies the S800/S800H foundation box dimensions as:
- Length: 507mm
- Width: 283mm
- Height: 200mm
These dimensions apply to the foundation box used with the S800 and S800H underground operator systems.
🚪 S800 & S800H Compatibility
The 490113 foundation box is compatible with both generations of FAAC’s S800 underground hydraulic automation platform.
FAAC currently lists the stainless steel foundation box with the S800H ENC range, including:
- S800H ENC CBAC 100°
- S800H ENC SBW 100°
- S800H ENC CBAC 180°
- S800H ENC SBW 180°
FAAC also lists the same 490113 foundation box with the 230V S800 ENC range.
🔩 Compatible Installation Components
The S800/S800H system can also be configured with genuine FAAC installation and release components including:
- 390035 – Hydraulic Release Device
- 390972 – Splined Joint Group Kit
- 490187 – S800 Welded Shoe Kit
- 71209101-10 – Release Lock with Customised Key
The required components depend on the operator and manual release configuration selected.
Key Features
- Genuine FAAC foundation box
- FAAC Part Number: 490113
- Stainless steel construction
- Designed for underground swing gate automation
- Compatible with FAAC S800 and S800H operators
- Provides structural housing for the underground operator
- Allows automation to remain concealed below ground
- Removable top access for servicing
- Suitable for new installations and replacement applications
- Corrosion-resistant alternative to the standard 490112 foundation box
Specifications
- Manufacturer: FAAC
- Part Number: 490113
- Product Type: Underground Operator Foundation Box
- Material: Stainless Steel
- Installation Type: Underground
- Length: 507mm
- Width: 283mm
- Height: 200mm
- Gate Type: Swing Gate
- Compatible Operator Families: FAAC S800 / S800H
FAAC’s current documentation continues to identify 490113 as the Stainless Steel Foundation Box for the S800H, while the same component is also listed for the S800 ENC range.
Compatibility
Compatible with:
- FAAC S800 ENC
- FAAC S800H ENC
- S800H ENC CBAC 100° – 108720
- S800H ENC SBW 100° – 108724
- S800H ENC CBAC 180° – 108722
- S800H ENC SBW 180° – 108725
- S800 ENC CBAC and SBW operator configurations
⚠️ Please Note
This listing is for one FAAC Stainless Steel Foundation Box – S800 / S800H – 490113.
The underground gate operator is not included.
Manual release components, splined joint components, gate shoe and other installation accessories are not included unless specifically stated.
The foundation box should be installed with suitable drainage provisions and correctly positioned during preparation of the gate foundation. FAAC provides a dedicated installation manual for the S800 foundation box.
