Delta Sliding Gate Racking Kit – 4m
The Delta Sliding Gate Racking Kit – 4m is a complete gear rack package designed for automatic sliding gate installations.
Each kit is conveniently supplied in one box containing 4 individual lengths of sliding gate racking together with the required fixing screws, providing approximately 4 metres of total rack for installation along the gate.
The rack transfers movement from the sliding gate operator’s drive pinion to the gate, allowing the motor to smoothly drive the gate through its opening and closing travel.
⚙️ Complete 4m Racking Kit

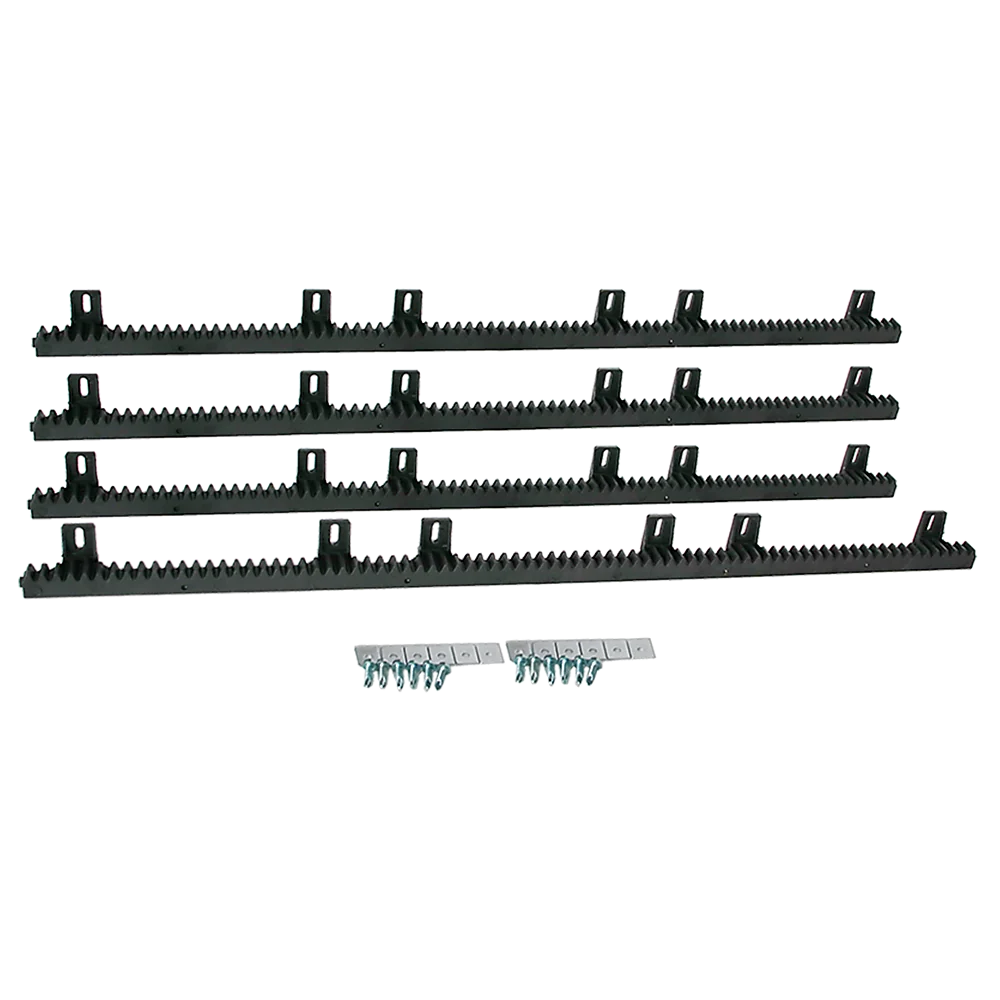

Each Delta kit contains 4 individual rack lengths, providing approximately 4 metres of total sliding gate rack.
Supplying the rack in individual sections makes installation, transport and adjustment considerably easier than using one continuous length.
Each section can be individually positioned and aligned with the gate operator’s drive pinion during installation.
📦 4 Lengths Per Box
Each box contains:
- 4 × Sliding Gate Rack Lengths
- Fixing Screws
This provides a convenient complete racking package for sliding gate installations requiring approximately 4 metres of rack.
For gates requiring additional rack length, additional kits or individual rack lengths can be used as required.
🔩 Fixing Screws Included
The required fixing screws are supplied with the kit, eliminating the need to source separate fasteners for a standard installation.
The rack is fixed directly to the sliding gate frame at the appropriate height relative to the gate operator’s drive pinion.
The gate construction must provide a suitable structural mounting surface for the rack and fixing screws.
🚪 Designed for Automatic Sliding Gates
The Delta Sliding Gate Racking Kit provides the mechanical connection between an automatic sliding gate operator and the gate itself.
As the operator’s drive pinion rotates, its teeth engage with the gear rack mounted along the gate.
This converts the rotational movement of the motor into horizontal gate movement.
The basic drive arrangement is:
Sliding Gate Operator → Drive Pinion → Gear Rack → Sliding Gate
🔗 Continuous Rack Installation
The individual rack sections are installed sequentially along the gate to create a continuous drive surface.
Correct alignment between each section is important to ensure the operator pinion can transition smoothly from one rack length to the next.
During installation, each rack section should be positioned so that:
- The gear teeth remain correctly aligned
- The joints between sections transition smoothly
- The rack remains parallel with the gate travel
- Correct clearance is maintained above the operator pinion
- The rack remains securely fixed to the gate
📐 Correct Rack & Pinion Clearance
The gear rack should not sit directly on the sliding gate operator’s drive pinion.
A small amount of clearance should be maintained between the rack and pinion throughout the complete gate travel.
This prevents the physical weight of the gate from being transferred through the rack onto the operator gearbox.
Correct clearance helps provide:
- Smooth gate movement
- Reduced operating noise
- Reduced rack wear
- Reduced pinion wear
- Reduced gearbox loading
- Reliable long-term operation
The rack alignment should be checked throughout the complete opening and closing travel before the installation is finalised.
🛠️ Adjustable During Installation
Using individual rack sections allows the installer to progressively position and align the rack along the gate.
This is particularly useful where minor variations exist in the gate frame or track.
Each section can be positioned relative to the motor pinion before its mounting screws are fully secured.
The complete rack should form a smooth and consistent drive path once installation is complete.
🏠 Residential Sliding Gates
The Delta 4m Racking Kit is ideal for residential sliding gate automation installations.
Typical applications include:
- Residential driveway gates
- Aluminium sliding gates
- Steel sliding gates
- Slat gates
- Batten-style gates
- Privacy gates
- Automatic driveway entrances
The required rack length depends on the overall gate travel rather than simply the clear driveway opening.
🏭 Commercial Sliding Gates
The kit can also be used for compatible commercial sliding gate installations where the selected rack and operator are suitable for the application.
Commercial applications can include:
- Factory entrances
- Warehouse gates
- Commercial driveways
- Workshop entrances
- Storage facilities
- Car parks
- Commercial vehicle entrances
The complete gate weight, operator capacity and rack suitability should always be considered when designing a commercial automation system.
📏 Selecting the Correct Rack Quantity
The amount of rack required depends on the total travel of the sliding gate.
The rack must remain engaged with the operator pinion throughout the complete opening and closing movement.
For this reason, the required rack length may be greater than the clear opening width of the driveway.
For example, a gate with a nominal opening close to 4 metres may require more than 4 metres of actual rack depending on the gate construction, motor position and required travel.
Measure the required rack length before ordering.
🔄 New & Replacement Installations
The Delta Sliding Gate Racking Kit can be used for both new sliding gate automation installations and compatible replacement applications.
When replacing existing rack, check:
- Existing rack profile
- Operator drive pinion
- Rack tooth pitch
- Gate mounting position
- Required rack length
- Existing rack height
- Gate operator position
The replacement rack must correctly match the drive pinion fitted to the sliding gate operator.
⚖️ Gate Alignment is Essential
The gear rack should not be used to compensate for a gate that does not travel correctly.
Before installing an automatic operator and rack, the sliding gate should:
- Move smoothly by hand
- Have correctly aligned wheels
- Have a straight and secure track
- Have correctly positioned guide rollers
- Remain stable throughout its travel
- Have suitable physical end stops
- Be free from excessive resistance
The rack transfers movement from the operator to the gate but should not support the physical weight of the gate.
🔧 Suitable for Multiple Operator Brands
The Delta Sliding Gate Racking Kit can be used with compatible sliding gate operators where the operator’s drive pinion matches the rack profile.
This can make the kit suitable for a variety of residential and commercial sliding gate automation installations.
Compatibility should always be confirmed against the drive pinion fitted to the selected gate operator before installation.
📦 What’s Included
Each Delta Sliding Gate Racking Kit includes:
- 4 × Sliding Gate Rack Lengths
- Fixing Screws
- Approximately 4m Total Rack Length
Everything is conveniently packaged together in one box for transport, storage and installation.
Key Features
- Delta sliding gate racking kit
- Approximately 4m total rack length
- 4 individual rack lengths per box
- Fixing screws included
- Designed for automatic sliding gates
- Transfers operator movement to the sliding gate
- Individual sections for easier installation and alignment
- Suitable for new gate automation installations
- Suitable for compatible replacement applications
- Can be used with compatible sliding gate operators
- Suitable for residential applications
- Suitable for compatible commercial applications
- Convenient complete boxed kit
Specifications
- Brand: Delta
- Product: Sliding Gate Racking Kit
- Product Type: Sliding Gate Gear Rack Kit
- Total Rack Length: Approximately 4m
- Quantity: 4 Rack Lengths
- Fixing Screws: Included
- Application: Automatic Sliding Gates
- Installation: Gate Mounted
- Function: Transfers Drive from Operator Pinion to Sliding Gate
- Suitable for New Installations: Yes
- Suitable for Replacement Applications: Yes, subject to compatibility
Compatibility
The Delta Sliding Gate Racking Kit is designed for compatible automatic sliding gate operators using the corresponding gear rack and drive pinion arrangement.
The rack can be suitable for a variety of sliding gate operators provided the rack profile correctly matches the operator’s drive pinion.
Before ordering for an existing installation, confirm:
- Operator make and model
- Drive pinion size and profile
- Existing rack type
- Required rack length
- Gate construction
- Rack mounting position
⚠️ Please Note
Each kit contains 4 individual lengths of sliding gate racking together with the fixing screws, providing approximately 4 metres of total rack.
The required rack length should be calculated from the actual gate travel and motor position rather than simply the driveway opening width.
The rack must be correctly aligned with the operator drive pinion throughout the entire gate travel.
The rack should not be installed so that the weight of the gate rests on the motor pinion. The sliding gate itself must be correctly supported by its wheels and track.
Additional rack may be required for gates requiring more than approximately 4 metres of driven travel.
If you are unsure whether the Delta Sliding Gate Racking Kit is suitable for your sliding gate operator, contact our Technical Support team on 1300 733 066 before ordering.
