Description

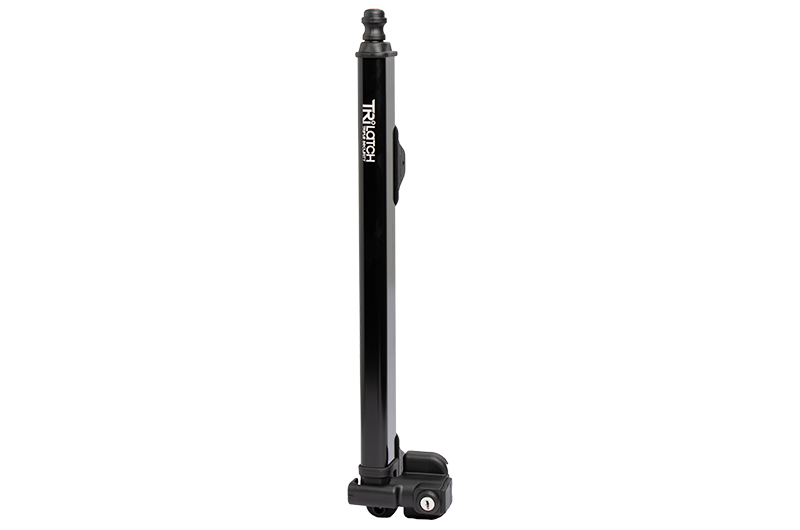

Safetech Magnetic TriLatch Key Lockable – SL-50TRI
The Safetech SL-50TRI TriLatch is a premium magnetic self-latching gate latch specifically designed to provide an enhanced level of child-resistant protection for swimming pool gates, children’s play areas and other controlled pedestrian access points.
Building on Safetech’s proven magnetic top-pull latch system, the TriLatch incorporates an additional safety button into the release mechanism.
To open the gate, the user must push and continuously hold the safety button while simultaneously lifting the top release knob.
This multi-action opening sequence makes the SL-50TRI considerably more difficult for small children to operate and helps prevent the latch being released using a broom handle, toy or other long object from below.
The SL-50TRI is also key lockable, horizontally and vertically adjustable, UV stabilised and manufactured from fibre-reinforced engineered polymer, treated aluminium and rust-resistant stainless-steel components for long-term outdoor use.
🏊 Specifically Designed for Pool Gates
Safetech specifically designed the SL-50TRI for swimming pool gates and children’s play areas.
The TriLatch combines magnetic self-latching operation with an enhanced child-resistant release mechanism to provide additional protection against unintended gate opening.
Safetech states that the TriLatch has been independently tested to Australian Standards.
👶 Enhanced Child-Resistant Design
The defining feature of the SL-50TRI is its enhanced push-hold-lift opening mechanism.
Rather than simply pulling the top knob to release the gate, two actions must be performed simultaneously.
The opening sequence is:
- Push the safety button in the centre of the release knob
- Continue holding the button down
- Lift the release knob while holding the button
- The magnet releases from the striker and the gate can be opened
This additional action provides another level of protection against small children operating the latch.
🔴 Push – Hold – Lift Operation
Safetech designed the TriLatch so the safety button and release knob must be operated together.
Push:
Press the safety button located in the centre of the top release knob.
Hold:
Continue holding the safety button down.
Lift:
While maintaining pressure on the safety button, lift the release knob to disengage the magnetic latch.
Requiring these actions to be performed together makes accidental or unauthorised operation considerably more difficult.
🧹 Helps Prevent Release Using Long Objects
A conventional elevated pool-gate latch may potentially be reached using a broom handle, garden tool, toy or another long object.
Safetech specifically developed the TriLatch to address this concern.
Simply pushing or lifting the release mechanism is not enough to open the latch.
The safety button must be pressed and held while the knob is simultaneously lifted, making it considerably more difficult to release the latch using a long object from below.
🧲 Magnetic Self-Latching System
The SL-50TRI incorporates Safetech’s magnetic self-latching mechanism.
As the gate returns to the closed position, the magnetic mechanism draws the latch into engagement with the striker.
This provides reliable automatic latching when the gate, hinges and latch are correctly installed and aligned.
🔝 Elevated Top-Pull Release
The TriLatch uses an elevated top-pull release arrangement suitable for compatible pool-gate applications.
The additional safety button is incorporated directly into the top release knob, retaining the familiar top-pull operation while adding the push-and-hold requirement.
🔑 Key Lockable
In addition to its enhanced child-resistant release mechanism, the SL-50TRI incorporates a key-operated lock.
This allows the gate latch to be positively locked when additional access control is required.
The combination of magnetic self-latching, push-hold-lift operation and key locking provides multiple levels of gate security.
🔐 Two Keys Supplied
Safetech specifies that the SL-50TRI is supplied with two keys.
This allows a spare key to be retained or provides access for a second authorised user.
↔️ Horizontal Adjustment
The SL-50TRI provides horizontal adjustment to assist with accurate alignment between the latch and striker.
Safetech specifies approximately 10mm of horizontal adjustment.
This allows the installer to compensate for minor variations in:
- Gate-to-post spacing
- Gate alignment
- Hinge positioning
- Gate construction
- Installation tolerances
↕️ Vertical Adjustment
The TriLatch also provides vertical adjustment.
Safetech specifies approximately 25mm of vertical adjustment, allowing the latch and striker positions to be fine-tuned after installation.
This adjustment is particularly useful for achieving accurate magnetic alignment and reliable latching.
📏 Flexible Gate Gap
Safetech specifies an ideal gate gap of approximately 20mm for the TriLatch.
The latch accommodates an approximate gate-gap range of:
- Minimum Gap: 12mm
- Ideal Gap: 20mm
- Maximum Gap: 38mm
This provides useful installation flexibility across a variety of gate and post configurations.
🎯 Alignment Pips for Easy Installation
Safetech incorporates alignment pips into the TriLatch to assist with correctly positioning the latch and striker.
These provide a clear visual reference during installation and help ensure the magnetic components are positioned correctly.
Accurate alignment is essential for consistent and reliable self-latching operation.
🛠️ Quick Installation
Safetech designed the TriLatch for straightforward installation.
The latch can be installed onto compatible aluminium, steel, timber and vinyl gates and fences using standard installation tools.
Horizontal and vertical adjustment allows the installer to fine-tune the latch position after mounting.
🧱 Fibre-Reinforced Polymer Construction
The SL-50TRI incorporates durable fibre-reinforced engineered polymer components.
The reinforced polymer provides strength while eliminating many of the corrosion issues associated with conventional unprotected steel gate hardware.
This makes the TriLatch particularly well suited to permanent outdoor gate installations.
🔩 Treated Aluminium Construction
Safetech also uses treated aluminium extrusions within the TriLatch construction.
The aluminium components are protected for increased resistance to outdoor environmental exposure and form part of the latch’s durable construction.
🌦️ Rust-Resistant Stainless-Steel Components
Rust-resistant stainless-steel components are incorporated throughout the latch system.
The SL-50TRI combines:
- Fibre-reinforced engineered polymer
- Treated aluminium extrusions
- Rust-resistant stainless-steel components
This provides a durable gate latch system designed for demanding external applications.
🛡️ E-Coated for Additional Protection
Safetech specifies E-coated components within the TriLatch construction for additional environmental protection.
This protective treatment helps the latch withstand prolonged exposure to outdoor conditions and contributes to its long service life.
☀️ UV-Stabilised Construction
The TriLatch is UV stabilised to withstand prolonged exposure to sunlight.
This is particularly important for pool-gate hardware that may remain permanently exposed to Australian weather conditions.
The UV-stabilised construction helps resist premature deterioration and fading.
🌧️ Built for Australian Conditions
The combination of UV-stabilised fibre-reinforced polymer, treated aluminium and rust-resistant stainless-steel components makes the SL-50TRI particularly suitable for Australian outdoor environments.
The latch is designed for long-term use on gates continually exposed to sun and weather.
🚸 Ideal for Children’s Play Areas
Safetech specifically recommends the TriLatch for children’s play areas as well as swimming pool gates.
The enhanced push-hold-lift mechanism provides an additional level of protection in environments where preventing young children from independently operating a gate is particularly important.
Typical applications include:
- Swimming pool gates
- Children’s play areas
- Childcare facilities
- Residential pool areas
- Playgrounds
- Controlled pedestrian gates
- Child-resistant access gates
🏠 Suitable for Multiple Gate Materials
The SL-50TRI can be installed on a variety of common gate and fence materials.
Suitable applications include:
- Aluminium gates
- Steel gates
- Timber gates
- Vinyl gates
- Pool gates
- Pedestrian gates
This makes the TriLatch suitable for both new gate installations and compatible replacement applications.
🔗 Ideal with Safetech Self-Closing Hinges
The SL-50TRI can be combined with compatible Safetech self-closing hinges to create a complete self-closing and self-latching gate system.
Suitable hinge types may include compatible:
- TopKLIK adjustable-tension hinges
- AlfaHinge fixed-tension hinges
- AlfaWide fixed-tension hinges
- CoilKLIK self-aligning adjustable hinges
- MegaKLIK heavy-duty adjustable hinges
The correct hinge model should be selected according to the gate weight, dimensions, construction and required closing performance.
🆚 SL-50TRI vs SL-50
Both products use Safetech’s magnetic top-pull latch platform, but the SL-50TRI adds an additional child-resistant release action.
SL-50TRI:
- Magnetic self-latching
- Key lockable
- Enhanced push-hold-lift release
- Safety button incorporated into top knob
- Specifically designed for pool gates and children’s play areas
- Horizontal and vertical adjustment
- Two keys supplied
SL-50:
- Magnetic self-latching
- Key lockable
- Conventional top-pull release
- Designed for pool-gate applications
- Horizontal and vertical adjustment
- Two keys supplied
The SL-50TRI is the preferred option where the additional push-hold-lift child-resistant release mechanism is desired.
📐 Approximate Dimensions
Safetech lists the TriLatch at approximately:
- Height: 543mm
- Width: 50mm
- Depth: 118mm
- Weight: Approximately 0.84kg
The tall vertical design allows the release mechanism to be positioned appropriately for compatible pool-gate installations.
📦 What’s Included
A standard Safetech SL-50TRI set includes the components required for a typical gate installation.
Typically supplied with:
- 1 × Safetech SL-50TRI Magnetic TriLatch
- Magnetic striker assembly
- 2 × Keys
- Mounting hardware
- Mounting screws
Package contents may be subject to manufacturer revision.
Key Features
- Genuine Safetech Hardware product
- Model SL-50TRI
- Magnetic TriLatch gate latch
- Enhanced child-resistant design
- Push-hold-lift opening sequence
- Centre safety release button
- Magnetic self-latching mechanism
- Key lockable
- Two keys supplied
- Specifically designed for pool gates
- Specifically designed for children’s play areas
- Independently tested to Australian Standards
- Approximately 10mm horizontal adjustment
- Approximately 25mm vertical adjustment
- Ideal gate gap approximately 20mm
- Gate-gap range approximately 12–38mm
- Alignment pips for easier installation
- Fibre-reinforced engineered polymer construction
- Treated aluminium components
- E-coated for additional protection
- Rust-resistant stainless-steel components
- UV-stabilised construction
- Corrosion-resistant design
- Black finish
- Suitable for aluminium gates
- Suitable for steel gates
- Suitable for timber gates
- Suitable for vinyl gates
- Designed for outdoor use
Specifications
- Manufacturer: Safetech Hardware
- Model: SL-50TRI
- Product Type: Magnetic TriLatch Gate Latch
- Latching Type: Magnetic Self-Latching
- Release Type: Push, Hold & Lift
- Safety Button: Yes
- Locking: Key Lockable
- Keys Supplied: 2
- Horizontal Adjustment: Approximately 10mm
- Vertical Adjustment: Approximately 25mm
- Ideal Gate Gap: Approximately 20mm
- Gate Gap Range: Approximately 12–38mm
- Approximate Height: 543mm
- Approximate Width: 50mm
- Approximate Depth: 118mm
- Approximate Weight: 0.84kg
- Materials: Engineered Polymer, Treated Aluminium & Rust-Resistant Stainless Steel
- E-Coated Components: Yes
- UV Stabilised: Yes
- Colour: Black
- Application: Aluminium, Steel, Timber, Vinyl & Pool Gates
Compatibility
The Safetech SL-50TRI is designed for compatible pedestrian and pool swing gates.
Suitable gate materials include:
- Aluminium
- Steel
- Timber
- Vinyl
Typical applications include:
- Swimming pool gates
- Children’s play areas
- Residential pool gates
- Childcare facilities
- Playgrounds
- Child-resistant pedestrian gates
- Controlled access gates
- Self-closing safety gates
For a complete self-closing gate system, the SL-50TRI should be combined with correctly selected self-closing hinges suitable for the gate’s dimensions, weight and construction.
⚠️ Please Note
The SL-50TRI requires the safety button to be pressed and continuously held while the top release knob is lifted.
Simply lifting the knob without pressing and holding the safety button will not correctly release the latch.
Safetech specifically designed the TriLatch for children’s play areas and pool gates and states that it has been independently tested to Australian Standards.
Correct installation remains essential.
Where the SL-50TRI is used as part of a swimming-pool barrier, the complete gate, latch, hinges, fence and surrounding barrier must comply with all applicable Australian Standards and local pool-safety requirements.
Compliance depends on the complete barrier installation and not the latch alone.
Correct magnetic striker alignment is essential for reliable self-latching operation. After installation, repeatedly test the gate to confirm that it reliably self-closes and the TriLatch securely engages.
The ideal gate gap is approximately 20mm, with Safetech specifying an approximate allowable range of 12–38mm.
If you are unsure whether the Safetech SL-50TRI is suitable for your gate, contact our Technical Support team on 1300 733 066 before ordering.
