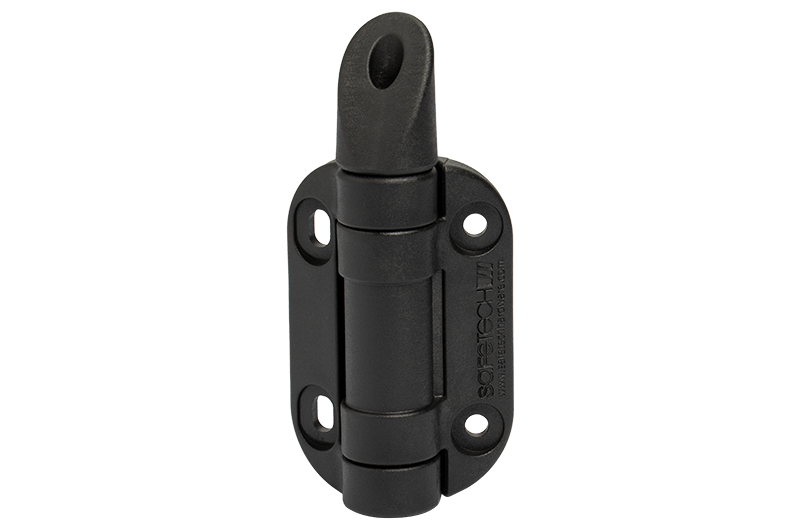

Safetech Adjustable Tension Hinge With Legs – TopKLIK – SHG-90L
The Safetech TopKLIK SHG-90L is a premium adjustable-tension self-closing gate hinge featuring a two-leg mounting design for additional fixing support.
Designed for pedestrian, access and pool gates, the SHG-90L combines Safetech’s patented adjustable tension system with a strong glass-fibre reinforced polymer body, rust-resistant stainless-steel pins and springs, vertical adjustment and four selectable tension levels.
With a maximum holding capacity of 70kg and a self-closing capacity of 45kg under Safetech’s standard test conditions, the SHG-90L provides a versatile self-closing hinge solution for aluminium, steel and timber gate installations.
🔄 Adjustable Self-Closing Tension
The TopKLIK SHG-90L allows the closing force of the gate to be adjusted after installation.
Instead of relying on a permanently fixed spring force, the installer can progressively increase the self-closing tension to achieve reliable gate closing and latching.
This allows the hinge operation to be fine-tuned for the individual gate installation.
🔊 Patented TopKLIK Adjustment System
Safetech’s patented tension adjustment system uses a simple supplied Allen key to adjust the hinge.
Turning the adjustment mechanism clockwise increases the spring tension.
As the tension increases, the hinge produces a defined click, allowing the installer to monitor how much tension has been applied.
This provides a simple and repeatable method of setting the closing force.
⚙️ Four Adjustable Tension Levels
The SHG-90L provides up to four tension adjustments per hinge.
Safetech recommends increasing the tension one click per hinge at a time and checking the gate operation after each adjustment.
Where possible, approximately equal tension should be maintained between the upper and lower hinges.
This allows the closing force to be progressively increased without unnecessarily over-tensioning the gate.
🔑 Simple Allen-Key Adjustment
The supplied adjustment tool provides straightforward control over the self-closing tension.
To increase tension:
- Insert the supplied adjustment tool
- Turn the adjustment clockwise
- Increase one click at a time
- Adjust each hinge progressively
- Test the gate after each adjustment
The tool can also be used to release the hinge tension when required.
This allows future adjustments to be carried out without removing the gate or repositioning the hinges.
🦵 Two-Leg Mounting Design
The defining feature of the SHG-90L is its two-leg mounting arrangement.
The additional mounting legs provide extra fixing points against the gate post, creating a secure mounting arrangement for compatible gate installations.
This distinguishes the SHG-90L from the standard SHG-90 TopKLIK, which uses a no-leg mounting configuration.
🆚 SHG-90L vs SHG-90
Safetech offers the TopKLIK in two primary mounting configurations.
SHG-90L:
- Two-leg mounting design
- Adjustable self-closing tension
- Four tension levels
- Vertical adjustment
- 70kg maximum holding capacity
- 45kg maximum closing capacity
SHG-90:
- No-leg mounting design
- Adjustable self-closing tension
- Four tension levels
- Vertical adjustment
- 70kg maximum holding capacity
- 45kg maximum closing capacity
The correct model should be selected according to the gate construction and required mounting arrangement.
💪 70kg Maximum Holding Capacity
Safetech specifies a maximum holding weight of 70kg for the SHG-90L hinge pair under its standard test conditions.
Holding capacity refers to the gate weight the hinge pair is capable of supporting.
Gate width and height also affect the leverage placed on the hinges and must be considered when selecting suitable gate hardware.
🚪 45kg Self-Closing Capacity
Safetech specifies a maximum self-closing gate weight of 45kg for the SHG-90L under its standard test conditions.
The holding and closing capacities are different specifications.
For the SHG-90L:
- Maximum Holding Weight: 70kg
- Maximum Closing Weight: 45kg
Where reliable automatic self-closing operation is required, the 45kg closing capacity is the important rating when determining suitability.
↕️ Vertical Adjustment
In addition to adjustable spring tension, the SHG-90L provides vertical adjustment.
This allows the installer to fine-tune the position of the gate relative to the hinge post, latch and surrounding fence.
Correct gate alignment is particularly important for self-closing installations because the gate must consistently return to the correct position for the latch to engage.
🧱 Glass-Fibre Reinforced Polymer
The TopKLIK hinge body is manufactured from glass-fibre reinforced engineered polymer for additional strength.
The reinforced polymer construction provides a strong and durable gate hinge while eliminating the corrosion issues associated with conventional unprotected steel hinge bodies.
Safetech also engineers its TopKLIK hinges for smooth, bind-free operation.
☀️ UV-Stabilised Construction
The TopKLIK polymer is UV stabilised to resist fading and deterioration caused by prolonged exposure to sunlight.
This makes the SHG-90L particularly suitable for outdoor gate installations exposed to Australian weather conditions.
🔩 Rust-Resistant Stainless-Steel Components
Safetech combines the reinforced polymer hinge body with rust-resistant stainless-steel pins and springs.
Construction includes:
- Glass-fibre reinforced engineered polymer
- Rust-resistant stainless-steel pins
- Rust-resistant stainless-steel springs
This provides a durable and corrosion-resistant hinge system designed for external gate applications.
🌦️ Designed for Outdoor Gates
The combination of UV-stabilised polymer and corrosion-resistant stainless-steel components makes the TopKLIK particularly well suited to outdoor pedestrian gates.
Its rust-resistant construction helps eliminate many of the corrosion problems associated with conventional steel self-closing hinges.
🛢️ No Lubrication Required
The TopKLIK hinge system is engineered for bind-free operation without the regular lubrication associated with many conventional gate hinges.
This helps reduce ongoing maintenance and avoids the need to regularly apply grease or oil around the hinge assembly.
🏊 Suitable for Pool Gate Applications
Safetech lists the SHG-90L TopKLIK for compatible pool-gate applications.
The adjustable self-closing mechanism allows the gate’s closing force to be fine-tuned so the gate reliably returns to the closed position and engages a suitable self-latching gate latch.
For pool-gate installations, Safetech specifies that the distance between the tops of the hinges must be at least 900mm.
Where this spacing cannot be achieved, the supplied hinge safety cone must be fitted to the bottom hinge.
The complete gate installation must still comply with all applicable pool-barrier requirements.
🛡️ Hinge Safety Cone
Safetech supplies a safety cone for applicable pool-gate installations.
Where the tops of the hinges are positioned less than 900mm apart, the safety cone must be installed on the bottom hinge.
The cone helps reduce the possibility of the lower hinge being used as a foothold by a child attempting to climb the gate.
🔗 Ideal with Self-Latching Gate Hardware
The SHG-90L can be combined with a compatible self-latching gate latch to create a reliable self-closing gate system.
When the gate is released, the spring-loaded hinges return the gate towards its closed position so the latch can engage.
The adjustable tension allows the installer to achieve reliable closing without applying unnecessary spring force.
🚪 Suitable for Multiple Gate Materials
The TopKLIK SHG-90L is suitable for compatible:
- Aluminium gates
- Steel gates
- Timber gates
- Pedestrian gates
- Garden gates
- Side access gates
- Pool gates
- Residential fence gates
- Commercial pedestrian gates
🔧 Easy Future Adjustment
One of the major advantages of the TopKLIK system is that the gate’s closing tension can be adjusted after installation.
If the gate operation changes over time, the tension can be fine-tuned using the supplied adjustment tool without replacing or removing the hinges.
This makes the SHG-90L particularly practical for self-closing gates where reliable closing performance needs to be maintained.
📦 Supplied as a Pair
The SHG-90L is supplied as a pair of adjustable-tension hinges for one gate.
A typical set includes:
- 1 × Upper SHG-90L TopKLIK Hinge
- 1 × Lower SHG-90L TopKLIK Hinge
- Tension adjustment tool
- Safety cone for applicable pool-gate installations
- Fixing hardware
- Hinge covers
- Installation instructions
Package contents may be subject to manufacturer revision.
Key Features
- Genuine Safetech Hardware product
- TopKLIK range
- Model SHG-90L
- Adjustable-tension self-closing gate hinges
- Two-leg mounting design
- Patented Safetech tension adjustment system
- Four adjustable tension levels
- Audible click during tension adjustment
- Supplied adjustment tool
- Adjustable after installation
- 70kg maximum holding capacity
- 45kg maximum self-closing capacity
- Vertical adjustment
- Glass-fibre reinforced engineered polymer
- UV-stabilised construction
- Rust-resistant stainless-steel pins
- Rust-resistant stainless-steel springs
- Corrosion-resistant construction
- Engineered for bind-free operation
- No lubrication required
- Black finish
- Suitable for metal gates
- Suitable for timber gates
- Suitable for pedestrian gates
- Suitable for compatible pool-gate applications
- Designed for outdoor use
Specifications
- Manufacturer: Safetech Hardware
- Product Range: TopKLIK
- Model: SHG-90L
- Product Type: Adjustable-Tension Self-Closing Gate Hinges
- Quantity: Pair
- Tension Type: Adjustable
- Tension Levels: 4
- Maximum Holding Weight: 70kg
- Maximum Closing Weight: 45kg
- Adjustment: Vertical & Self-Closing Tension
- Mounting Configuration: Two Legs
- Number of Legs: 2
- Body Material: Glass-Fibre Reinforced Engineered Polymer
- Pins: Rust-Resistant Stainless Steel
- Springs: Rust-Resistant Stainless Steel
- UV Stabilised: Yes
- Lubrication Required: No
- Colour: Black
- Application: Metal, Timber & Compatible Pool Gates
- Automated Gate Use: No
Compatibility
The Safetech TopKLIK SHG-90L is designed for compatible non-automated pedestrian and swing gates.
Suitable applications include:
- Aluminium gates
- Steel gates
- Timber gates
- Pedestrian gates
- Garden gates
- Side access gates
- Self-closing gates
- Compatible pool gates
The SHG-90L is particularly suitable where adjustable closing force and a two-leg mounting arrangement are required.
For installations requiring a compact no-leg mounting configuration, consider the Safetech TopKLIK SHG-90.
For substantially larger or heavier gates, an appropriate Safetech MegaKLIK heavy-duty hinge should be considered.
⚠️ Please Note
Safetech specifies a maximum holding weight of 70kg and a maximum closing weight of 45kg for the SHG-90L.
These ratings are based on a standard test gate measuring approximately 900mm wide x 1200mm high.
Gates exceeding these dimensions can place additional leverage on the hinges and may reduce their effective holding and self-closing capacity.
The 70kg holding capacity should not be confused with the 45kg closing capacity. For a self-closing installation, the gate must remain within the appropriate closing capacity.
When adjusting the hinges, Safetech recommends increasing the tension one click per hinge at a time and checking the gate after each adjustment.
A maximum of four tension clicks per hinge is permitted.
Where possible, aim for an equal number of tension clicks on the upper and lower hinges.
For pool gates, Safetech specifies a minimum distance of 900mm between the tops of the hinges. If this cannot be achieved, the supplied safety cone must be installed on the bottom hinge.
The gate must be capable of reliably self-closing from the required open positions.
Safetech specifies that these hinges are designed for non-automated gates. Use for other purposes may affect performance.
The complete gate, hinge and latch installation must comply with all applicable regulations where used as part of a pool or safety barrier.
If you are unsure whether the Safetech TopKLIK SHG-90L is suitable for your gate, contact our Technical Support team on 1300 733 066 before ordering.
