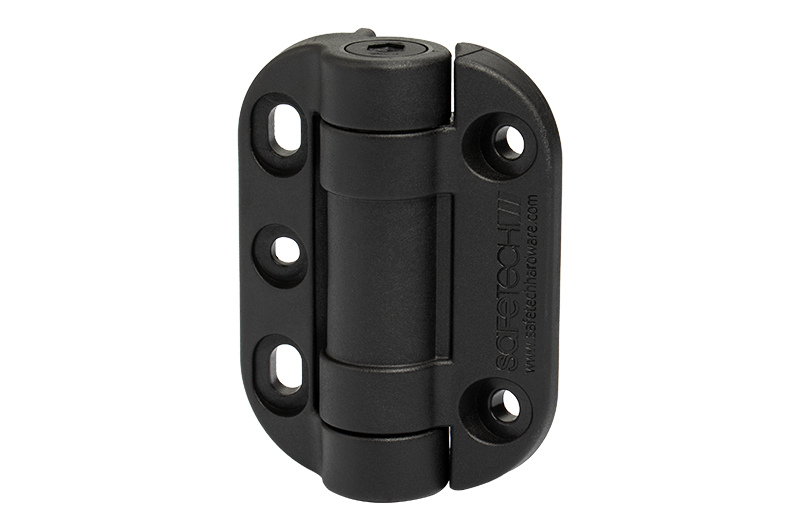

Safetech Adjustable Tension Hinge – TopKLIK – SHG-90
The Safetech TopKLIK SHG-90 is a premium adjustable-tension self-closing gate hinge designed for pedestrian, access and pool gates requiring reliable automatic closing with the ability to fine-tune the closing force after installation.
Featuring Safetech’s patented tension adjustment system, the SHG-90 allows the self-closing force to be increased through four defined tension levels using the supplied adjustment tool.
Manufactured from glass-fibre reinforced engineered polymer with rust-resistant stainless-steel pins and springs, the TopKLIK combines excellent corrosion resistance with a substantial maximum holding capacity of 70kg and closing capacity of 45kg.
The SHG-90 is Safetech’s standard no-leg TopKLIK model, providing a compact mounting arrangement suitable for a wide range of metal and timber pedestrian gates.
🔄 Adjustable Self-Closing Tension
One of the major advantages of the TopKLIK SHG-90 is its adjustable self-closing spring tension.
Instead of relying on a permanently fixed spring force, the installer can increase the closing tension after the hinges have been installed.
This allows the gate’s closing action to be fine-tuned to suit the individual installation.
🔊 Patented KLIK Adjustment System
Safetech’s patented tension adjustment system provides four defined tension levels.
As the supplied adjustment tool is turned clockwise, the mechanism produces a distinct click as the tension increases.
This allows the installer to accurately keep track of the amount of spring tension applied to each hinge.
The tension should be increased one click per hinge at a time, checking the gate operation after each adjustment.
⚙️ Four Tension Levels
Each SHG-90 hinge provides up to four tension adjustments.
This allows the closing force to be increased progressively rather than applying excessive spring tension immediately.
For best operation, Safetech recommends aiming for approximately equal tension settings between the upper and lower hinges where possible.
The gate should be tested after each adjustment.
🔑 Simple Adjustment Tool
The TopKLIK is supplied with the adjustment tool required to alter the hinge tension.
To increase tension:
- Insert the adjustment tool
- Turn clockwise
- Increase one click at a time
- Adjust each hinge progressively
- Test gate closing after each adjustment
The reverse end of the adjustment tool can be used to release the tension and return the mechanism towards its neutral position.
The adjustment mechanism is designed to operate clockwise when increasing tension.
💪 70kg Maximum Holding Capacity
Safetech specifies a maximum holding weight of 70kg for the SHG-90 hinge pair under its standard test conditions.
Holding capacity refers to the gate weight the hinge pair is capable of supporting.
Gate width and height also affect the leverage placed on the hinge system and must be considered when selecting suitable gate hardware.
🚪 45kg Self-Closing Capacity
Safetech specifies a closing weight of up to 45kg for the SHG-90 under its standard test conditions.
Holding capacity and closing capacity are different specifications.
For the SHG-90:
- Maximum Holding Weight: 70kg
- Maximum Closing Weight: 45kg
Where automatic self-closing operation is required, the 45kg closing capacity is the important rating when determining suitability.
↕️ Vertical Adjustment
In addition to adjustable spring tension, the SHG-90 provides vertical adjustment.
This assists the installer with correctly positioning the gate relative to the post, latch and surrounding fence.
Correct gate alignment is particularly important for self-closing installations because the gate must consistently return to the correct position for the latch to engage.
🚫 No-Leg Mounting Design
The SHG-90 is the standard no-leg version of Safetech’s TopKLIK hinge.
Its compact mounting arrangement makes it suitable for gate installations where additional support legs are not required or where available mounting space is limited.
For applications requiring Safetech’s two-leg mounting configuration, the SHG-90L TopKLIK should be selected instead.
🆚 SHG-90 vs SHG-90L
Safetech offers two primary versions of the TopKLIK adjustable-tension hinge.
SHG-90:
- Standard no-leg design
- Adjustable self-closing tension
- Four tension levels
- Vertical adjustment
- 70kg maximum holding capacity
- 45kg maximum closing capacity
SHG-90L:
- Two-leg mounting design
- Adjustable self-closing tension
- Four tension levels
- Vertical adjustment
- 70kg maximum holding capacity
- 45kg maximum closing capacity
The correct model should be selected according to the required mounting arrangement and gate construction.
🧱 Glass-Fibre Reinforced Polymer
The TopKLIK hinge body is manufactured from glass-fibre reinforced engineered polymer for additional strength.
This construction provides a strong gate hinge while avoiding the corrosion problems associated with conventional unprotected steel hinge bodies.
Safetech also engineers the hinge for smooth, bind-free operation.
☀️ UV-Stabilised Construction
The TopKLIK polymer is UV stabilised to resist fading and deterioration caused by prolonged exposure to sunlight.
This makes the SHG-90 particularly suitable for outdoor gate installations exposed to Australian weather conditions.
🔩 Rust-Resistant Stainless-Steel Components
Safetech combines the reinforced polymer hinge body with rust-resistant stainless-steel pins and springs.
This provides a durable hinge system designed specifically for external gate applications.
Construction includes:
- Glass-fibre reinforced engineered polymer
- Rust-resistant stainless-steel pins
- Rust-resistant stainless-steel springs
🌦️ Designed for Outdoor Gates
The combination of UV-stabilised polymer and corrosion-resistant stainless-steel components makes the TopKLIK particularly well suited to outdoor pedestrian gates.
Safetech’s rust-resistant construction also eliminates many of the corrosion problems associated with conventional steel self-closing hinges.
🛢️ No Lubrication Required
The TopKLIK hinge system is designed for smooth operation without conventional hinge lubrication.
This reduces ongoing maintenance and avoids the need to regularly apply grease or oil to the gate hinges.
🏊 Suitable for Pool Gate Applications
Safetech lists the SHG-90 TopKLIK for compatible pool-gate applications.
The adjustable self-closing mechanism allows the gate’s closing force to be set so the gate reliably returns to the closed position and engages a suitable self-latching pool gate latch.
For pool-gate installations, Safetech specifies that the distance between the tops of the hinges must be at least 900mm.
Where this spacing cannot be achieved, the supplied hinge safety cone must be installed on the bottom hinge.
The complete gate installation must still comply with all applicable pool-barrier regulations and requirements.
🛡️ Hinge Safety Cone
For pool-gate installations where the tops of the hinges are positioned less than 900mm apart, Safetech specifies that the supplied safety cone must be fitted to the bottom hinge.
The safety cone is designed to reduce the possibility of the lower hinge being used as a foothold by a child attempting to climb the gate.
Correct installation is particularly important where the TopKLIK forms part of a regulated pool barrier.
🔗 Ideal with Self-Latching Gate Hardware
The SHG-90 can be combined with a compatible self-latching gate latch to create a reliable self-closing gate system.
When the gate is released, the spring-loaded hinges return the gate towards its closed position so the latch can engage.
The adjustable tension allows the closing force to be fine-tuned to achieve reliable latching without applying excessive spring force.
🚪 Suitable for Multiple Gate Materials
The TopKLIK SHG-90 is suitable for compatible:
- Aluminium gates
- Steel gates
- Timber gates
- Pedestrian gates
- Garden gates
- Side access gates
- Pool gates
- Residential fence gates
- Commercial pedestrian gates
🔧 Easy Future Adjustment
A major advantage of the TopKLIK system is that the gate’s closing tension can be adjusted after installation.
If gate operation changes over time, the tension can be fine-tuned using the supplied adjustment tool without replacing the hinge.
This makes the TopKLIK particularly practical for self-closing gates where reliable closing performance needs to be maintained.
📦 Supplied as a Pair
The SHG-90 is supplied as a pair of adjustable-tension hinges for one gate.
A standard installation consists of:
- 1 × Upper SHG-90 TopKLIK Hinge
- 1 × Lower SHG-90 TopKLIK Hinge
- Tension Adjustment Tool
- Safety Cone / Cap for applicable pool-gate installations
- Associated covers and components as supplied by Safetech
Package contents may be subject to manufacturer revision.
Key Features
- Genuine Safetech Hardware product
- TopKLIK range
- Model SHG-90
- Adjustable-tension self-closing gate hinge
- Patented Safetech tension adjustment system
- Four adjustable tension levels
- Audible click during tension adjustment
- Supplied adjustment tool
- Tension can be increased after installation
- Tension can be released using adjustment tool
- 70kg maximum holding capacity
- 45kg maximum closing capacity
- Vertical adjustment
- Standard no-leg mounting design
- Glass-fibre reinforced engineered polymer
- UV-stabilised construction
- Rust-resistant stainless-steel pins
- Rust-resistant stainless-steel springs
- Rust-resistant construction
- Engineered for bind-free operation
- No lubrication required
- Black finish
- Suitable for metal gates
- Suitable for timber gates
- Suitable for pedestrian gates
- Suitable for compatible pool-gate applications
- Designed for outdoor use
Specifications
- Manufacturer: Safetech Hardware
- Product Range: TopKLIK
- Model: SHG-90
- Product Type: Adjustable-Tension Self-Closing Gate Hinges
- Quantity: Pair
- Tension Type: Adjustable
- Tension Levels: 4
- Maximum Holding Weight: 70kg
- Maximum Closing Weight: 45kg
- Adjustment: Vertical & Self-Closing Tension
- Mounting Configuration: Standard / No Legs
- Number of Legs: None
- Body Material: Glass-Fibre Reinforced Engineered Polymer
- Pins: Rust-Resistant Stainless Steel
- Springs: Rust-Resistant Stainless Steel
- UV Stabilised: Yes
- Lubrication Required: No
- Colour: Black
- Application: Metal, Timber & Compatible Pool Gates
- Automated Gate Use: No
Compatibility
The Safetech TopKLIK SHG-90 is designed for compatible non-automated pedestrian and swing gates.
Suitable applications include:
- Aluminium gates
- Steel gates
- Timber gates
- Pedestrian gates
- Garden gates
- Side access gates
- Self-closing gates
- Compatible pool gates
The SHG-90 is particularly suitable where adjustable closing force is required.
For applications requiring a two-leg mounting arrangement, consider the Safetech TopKLIK SHG-90L.
For substantially larger or heavier gates, a suitable heavy-duty Safetech MegaKLIK hinge may be required.
⚠️ Please Note
Safetech specifies a maximum holding weight of 70kg and a maximum closing weight of 45kg for the SHG-90.
These ratings are based on a standard test gate measuring approximately 900mm wide x 1200mm high.
Gates exceeding these dimensions can place additional leverage on the hinges and may reduce their effective holding and self-closing capacity.
The 70kg holding capacity should not be confused with the 45kg closing capacity. For a self-closing installation, the gate must remain within the appropriate closing capacity.
When adjusting the hinges, Safetech recommends increasing the tension one click per hinge at a time and checking the gate after each adjustment. A maximum of four tension clicks per hinge is permitted.
When used on a pool gate, the gate must be capable of self-closing from any required open position.
For pool gates, Safetech specifies a minimum 900mm distance between the tops of the hinges. If this cannot be achieved, the supplied safety cone must be installed on the bottom hinge.
The SHG-90 is designed for non-automated gates. Use on automated gates may affect hinge performance.
The complete gate, hinge and latch installation must comply with all applicable regulations where used as part of a pool or safety barrier.
If you are unsure whether the Safetech TopKLIK SHG-90 is suitable for your gate, contact our Technical Support team on 1300 733 066 before ordering.
