Description
The BEA LZR®-BA is a dedicated mounting bracket designed for flexible installation of compatible BEA LZR laser scanners.
Designed specifically for the LZR range, the bracket provides an alternative mounting solution where the standard sensor mounting position is unsuitable, allowing compatible LZR scanners to be installed from a ceiling, pole or suitable supporting structure.
The LZR-BA is particularly useful for industrial door, automatic gate, barrier and building automation applications where the laser scanner needs to be positioned away from a conventional wall-mounted location.
🔧 Dedicated LZR Mounting Bracket
The LZR-BA has been specifically designed for compatible sensors within the BEA LZR laser scanner range.
Rather than using a generic fabricated bracket, the LZR-BA provides a purpose-designed mounting solution that correctly supports the LZR sensor.
This makes it suitable for professional installations where accurate sensor positioning is important for reliable detection performance.
🏗️ Ceiling Mounting
The LZR-BA allows compatible LZR scanners to be installed from a suitable ceiling or overhead structure.
Ceiling mounting can be particularly useful where:
- No suitable wall is available
- The scanner needs to be positioned above the detection area
- Structural columns are unsuitable
- The required detection geometry benefits from overhead positioning
- The sensor needs to be located away from moving equipment
The final sensor position and detection field must be configured according to the requirements of the particular LZR model and application.
📍 Pole Mounting
The LZR-BA can also be used for pole-mounted installations.
Pole mounting provides considerable flexibility when there is no suitable building structure at the required scanner position.
Typical applications can include:
- Automatic gates
- Boom gates
- Industrial entrances
- Warehouse areas
- Vehicle access points
- Building automation
- Security detection areas
A suitable rigid mounting structure should be used to prevent unwanted sensor movement.
🚪 Ideal for Industrial Door Installations
When used with the compatible LZR-I100 or LZR-I110, the LZR-BA provides additional installation flexibility around industrial doors.
The scanner can be positioned according to the geometry of the doorway and required detection field rather than being limited to a conventional wall-mounted position.
This can be particularly useful for:
- Sectional overhead doors
- Industrial sliding doors
- Warehouse entrances
- Loading areas
- Large vehicle entrances
- Commercial automatic doors
🚧 Automatic Gate & Barrier Applications
The LZR-BA can also be used with compatible LZR scanners designed for gate and barrier applications.
This allows the scanner to be mounted to a suitable pole or supporting structure around the entrance.
Potential applications include:
- Automatic gates
- Boom gates
- Automatic barriers
- Commercial vehicle entrances
- Car parks
- Industrial access points
Correct sensor positioning remains critical to ensure the required detection area is covered.
🎯 Flexible Sensor Positioning
One of the main advantages of the LZR-BA is the additional flexibility it provides when determining the physical location of the laser scanner.
The bracket can help position the sensor where it has the appropriate view of the required detection area.
This is particularly important for laser scanner applications because sensor position and orientation directly influence the available detection field.
🧱 Alternative to Direct Wall Mounting
Not every installation provides a suitable wall at the required sensor location.
The LZR-BA provides an alternative mounting method where direct mounting to the building structure is impractical.
This can be useful where:
- The nearest wall is too far away
- The wall is outside the required detection position
- Structural equipment obstructs the scanner
- The scanner needs to be suspended
- A dedicated mounting pole is preferred
- The required detection area cannot be achieved from the wall
🛡️ Stable Scanner Installation
A laser scanner requires a stable mounting position to maintain consistent detection performance.
Movement of the scanner after commissioning can alter the relationship between the sensor and its programmed detection area.
The LZR-BA provides a dedicated mounting solution designed specifically for compatible LZR scanners.
The supporting ceiling, pole or structure should also be sufficiently rigid to prevent unwanted movement or vibration.
🔄 Left or Right Installation
The LZR-BA installation arrangement allows flexibility in the orientation of the sensor according to the installation requirements.
This makes it easier to adapt the mounting arrangement to the available structure and required detection direction.
The final sensor orientation should always be checked during commissioning.
📐 Accurate Alignment
Correct alignment of an LZR laser scanner is essential for reliable detection.
The LZR-BA allows the scanner to be positioned according to the required installation geometry before the sensor’s detection fields are commissioned.
Once installed, the scanner should be:
- Correctly aligned
- Securely fastened
- Configured for the required detection field
- Tested throughout the complete detection area
🏭 Professional Installation Accessory
The LZR-BA is particularly useful for professional industrial and commercial installations where the scanner cannot simply be attached directly to a nearby wall.
Typical installations can include:
- Warehouses
- Factories
- Distribution centres
- Commercial buildings
- Car parks
- Loading facilities
- Industrial entrances
- Automated access points
🔩 Purpose-Designed BEA Accessory
The LZR-BA is an original BEA accessory designed specifically for compatible products within the LZR range.
Using the dedicated mounting accessory helps provide a clean and professional installation while maintaining the intended positioning of the sensor.
🔗 Broad LZR Compatibility
The LZR-BA is compatible with multiple BEA LZR laser scanners.
Compatible models include:
- LZR-I100
- LZR-I110
- LZR-H100
- LZR-P110
- LZR-P220
- LZR-S600
This allows the same bracket accessory to be used across several industrial door, automatic door, barrier and building automation applications.
🚪 LZR-I100 / I110 Compatibility
The LZR-BA is directly compatible with the BEA LZR-I100 and LZR-I110 safety laser scanners.
These scanners are designed for industrial door safety and presence detection applications.
The LZR-BA provides an alternative mounting solution where ceiling or pole mounting is preferable to the standard sensor mounting arrangement.
🚧 LZR-H100 Compatibility
The bracket is also compatible with the LZR-H100 laser scanner.
The LZR-H100 is designed for automatic barrier and gate applications.
Using the LZR-BA allows the H100 to be positioned on a suitable mounting structure according to the geometry of the vehicle detection area.
🚶 LZR-P110 Compatibility
The LZR-BA can be used with the LZR-P110 safety sensor for automatic door applications.
This provides additional mounting flexibility where the scanner needs to be positioned away from a conventional direct-mounted location.
🔄 LZR-P220 Compatibility
The LZR-P220 is also listed by BEA as compatible with the LZR-BA.
The P220 is designed for safety applications around revolving doors.
The bracket provides another installation option where the physical structure of the doorway requires an alternative scanner position.
🏢 LZR-S600 Compatibility
The LZR-BA is also compatible with the BEA LZR-S600 laser scanner used for building automation and security applications.
This further extends the bracket’s usefulness beyond automatic doors and gates.
🛠️ Suitable for New & Retrofit Installations
The LZR-BA can be used for both new installations and upgrades to existing systems.
For retrofit projects, the bracket can be particularly useful where the existing building structure does not provide an appropriate direct mounting position for the new laser scanner.
A dedicated pole or overhead structure can instead be used to position the sensor correctly.
⭐ Key Features
- Genuine BEA mounting accessory
- Designed specifically for the LZR laser scanner range
- Model LZR-BA
- Also referenced as LBA in selected BEA documentation
- Suitable for ceiling mounting
- Suitable for pole mounting
- Provides flexible LZR scanner positioning
- Alternative to conventional direct mounting
- Suitable for industrial applications
- Suitable for automatic door applications
- Suitable for automatic gate applications
- Suitable for barrier applications
- Suitable for building automation applications
- Ideal where no suitable wall mounting position is available
- Helps provide stable sensor installation
- Suitable for new installations
- Suitable for retrofit installations
- Compatible with LZR-I100
- Compatible with LZR-I110
- Compatible with LZR-H100
- Compatible with LZR-P110
- Compatible with LZR-P220
- Compatible with LZR-S600
🔧 Specifications
- Manufacturer: BEA

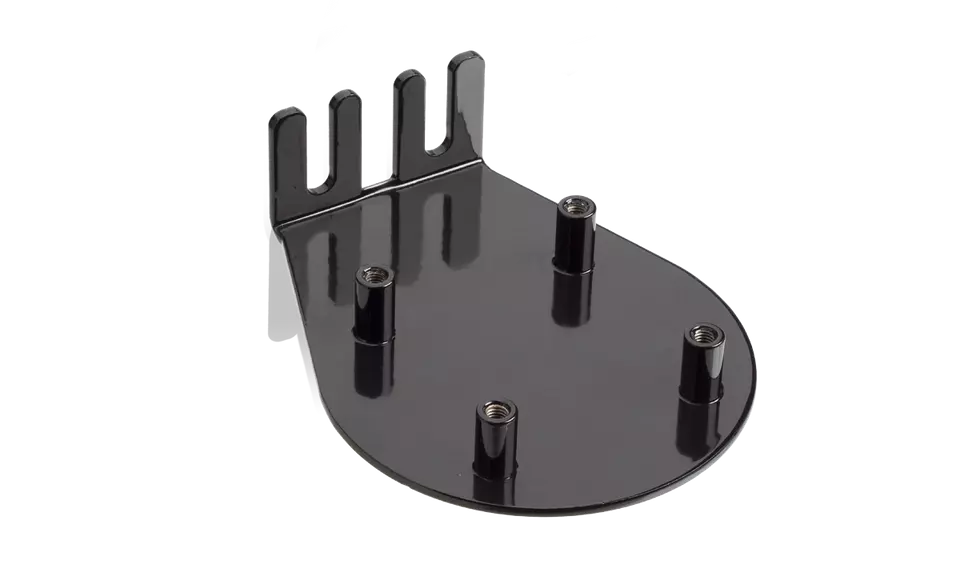

- Product: LZR®-BA
- Product Type: LZR Laser Scanner Mounting Bracket
- Alternative Reference: LBA
- Application: LZR Scanner Mounting
- Ceiling Mounting: Yes
- Pole Mounting: Yes
- Industrial Door Applications: Yes
- Automatic Gate Applications: Yes, with Compatible LZR Sensor
- Automatic Barrier Applications: Yes, with Compatible LZR Sensor
- Automatic Door Applications: Yes, with Compatible LZR Sensor
- Building Automation Applications: Yes, with Compatible LZR Sensor
- Sensor Included: No
🔗 Compatibility
The BEA LZR-BA is compatible with selected sensors throughout the BEA LZR range, including:
- BEA LZR-I100
- BEA LZR-I110
- BEA LZR-H100
- BEA LZR-P110
- BEA LZR-P220
- BEA LZR-S600
For the BEA LZR-I100 / I110 industrial door safety scanners, the LZR-BA provides an additional mounting option where the sensor needs to be installed from a ceiling, pole or suitable supporting structure.
⚠️ Please Note
The LZR-BA is a mounting bracket only.
The BEA LZR laser scanner is not included unless specifically stated as part of a bundle.
The bracket should be fixed to a suitable rigid structure capable of securely supporting the sensor.
Movement or vibration of the mounting structure can affect the position of the laser scanner and therefore the programmed detection field.
After installation or adjustment of the mounting bracket, the connected LZR scanner should be correctly aligned, commissioned and tested.
Always confirm compatibility with the specific LZR sensor being installed.
Installation should be completed in accordance with the BEA mounting instructions and the installation requirements of the connected LZR laser scanner.
