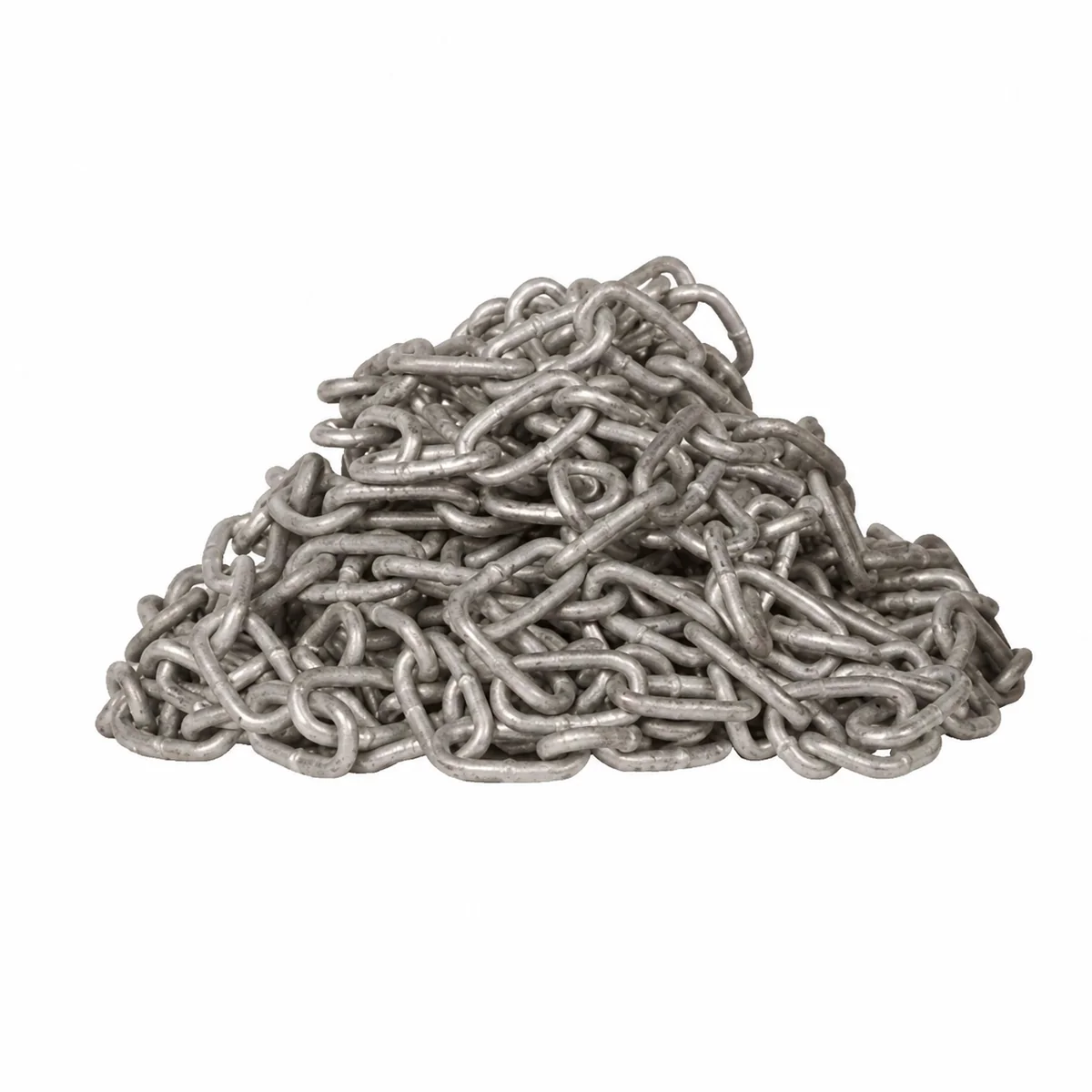

ATA Manual Hauling Chain 8.25m – 62624
The ATA Manual Hauling Chain – 62624 is a genuine Automatic Technology commercial door accessory supplied in an 8.25 metre length for compatible ATA commercial and industrial door operator manual hauling systems.
The hauling chain provides a convenient means of manually operating a compatible commercial door operator when manual operation is required, allowing the operator’s hand-chain mechanism to be operated safely from ground level.
Designed for commercial and industrial door installations, the generous 8.25m chain length makes it suitable for operators mounted at greater heights where sufficient hanging chain length is required for convenient manual access.
⛓️ 8.25 Metre Hauling Chain
Part number 62624 is supplied as an 8.25 metre continuous length of manual hauling chain.
The extended length makes it particularly useful for commercial and industrial door installations where the operator is mounted well above floor level.
The appropriate chain length should be selected according to:
- Operator mounting height
- Door height
- Required ground-level access
- Manual hauling mechanism
- Installation configuration
✋ Manual Door Operation
The hauling chain forms part of the manual operation system on compatible ATA commercial door operators.
When manual operation is required, the chain allows the operator’s manual hauling mechanism to be operated from ground level.
This can provide an important means of operating the door during situations such as:
- Power failures
- Electrical faults
- Operator servicing
- Maintenance
- Emergency operation
- Commissioning and testing
🏭 Commercial & Industrial Applications
The ATA 62624 hauling chain is intended for compatible commercial and industrial door automation systems.
Typical applications can include:
- Commercial sectional doors
- Industrial sectional doors
- Commercial roller doors
- Industrial roller shutters
- Warehouse doors
- Factory entrances
- Workshop doors
- Loading areas
- Commercial vehicle entrances
- Storage facilities
Compatibility depends on the manual hauling mechanism fitted to the individual operator.
📏 Suitable for Taller Door Installations
Commercial door operators are frequently mounted several metres above floor level.
The 8.25m chain length provides additional reach for taller installations, allowing the manual hauling chain to return to an accessible operating height.
The required chain length will depend on the operator mounting height and the way the chain is routed through the manual hauling mechanism.
⚙️ Designed for Manual Hauling Systems
The hauling chain works with the operator’s compatible manual hand-chain mechanism.
When the chain is pulled, it operates the manual hauling assembly, allowing the operator and door to be moved without relying on the electric motor.
The exact manual operation procedure depends on the connected commercial operator and should always follow the manufacturer’s instructions.
🔧 Replacement or New Installation
The ATA 62624 Manual Hauling Chain can be used as part of a compatible new commercial operator installation or as a replacement for an existing hauling chain.
When replacing an existing chain, confirm:
- Operator model
- Existing manual hauling mechanism
- Required chain length
- Operator mounting height
- Existing chain type
before ordering.
⚖️ Correct Door Balance is Essential
A manual hauling system is intended to operate a correctly balanced and mechanically sound door.
Before manually operating a commercial door, the door should:
- Be correctly spring balanced
- Move freely within its tracks or guides
- Have mechanically sound hardware
- Be free from obstructions
- Remain within the operator’s rated application
Excessive manual operating force may indicate a problem with the door, springs, guides, tracks or operator and should be investigated before continued operation.
🛠️ Ground-Level Manual Access
One of the primary advantages of a hanging manual chain system is the ability to operate a high-mounted commercial operator without accessing the motor assembly itself.
This is particularly useful on:
- Tall warehouse doors
- High-clearance sectional doors
- Industrial roller shutters
- Factory entrances
- Commercial vehicle doors
Correct chain length allows the manual controls to remain accessible while the operator is mounted safely above the door opening.
🔩 Commercial Door Accessory
The 62624 hauling chain is intended as a component of the complete manual operation system.
It should be installed and routed correctly through the compatible hauling mechanism to ensure reliable operation.
The chain should also be positioned so that it does not interfere with:
- Door movement
- Vehicles
- Pedestrians
- Stored equipment
- Other door hardware
📦 What’s Included
This product includes:
- 1 × ATA Manual Hauling Chain
- Length: 8.25m
- Part Number: 62624
The commercial door operator, manual hauling mechanism and other operator components are not included unless specifically stated.
Key Features
- Genuine ATA / Automatic Technology accessory
- Part Number 62624
- 8.25 metre chain length
- Designed for compatible manual hauling systems
- Provides ground-level manual operator access
- Suitable for taller commercial door installations
- Suitable for commercial and industrial applications
- Can be used for new or replacement installations
- Designed for compatible ATA commercial door operators
- Supplied as one continuous 8.25m length
Specifications
- Manufacturer: ATA / Automatic Technology
- Part Number: 62624
- Product: Manual Hauling Chain
- Product Type: Commercial Door Operator Accessory
- Length: 8.25m
- Quantity: 1 Length
- Operation: Manual
- Application: Commercial & Industrial Door Automation
- Installation: Compatible Manual Hauling Mechanism
Compatibility
The ATA Manual Hauling Chain 8.25m – 62624 is designed for compatible ATA commercial and industrial door operator manual hauling systems.
Compatibility should be confirmed against the exact operator and manual hauling mechanism before ordering.
The required hauling chain length should also be determined from the operator mounting height and installation configuration.
⚠️ Please Note
This listing is for one 8.25 metre length of ATA Manual Hauling Chain – Part Number 62624.
The operator and manual hauling mechanism are not included unless specifically stated.
The 8.25m measurement refers to the supplied chain length. The resulting hanging height will depend on how the chain is installed and routed through the manual hauling mechanism.
Manual hauling equipment should only be used on a correctly balanced and mechanically sound commercial door.
If you are unsure whether the ATA 62624 hauling chain is suitable for your commercial door operator or whether 8.25m is the correct length for your installation, contact our Technical Support team on 1300 733 066 before ordering.
