Description
The Grifco LR-Drive is a powerful light-commercial roller door operator designed for larger spring-balanced roller doors, wind-locked doors and commercial roller grilles where a conventional residential opener may not provide sufficient capacity.
With a powerful 1300N maximum pull force, 45Nm torque and capacity for standard spring-balanced roller doors up to 28m² and 270kg, the LR-Drive bridges the gap between residential roller door openers and Grifco’s larger industrial operator range.
Its slimline direct-drive design requires as little as 45mm of sideroom, while an included battery backup, Security+ 2.0 radio system and myQ compatibility provide the features expected from a modern commercial access system.
💪 Powerful 1300N Performance
The LR-Drive uses a high-torque 24Vdc motor and gearbox producing:
- Maximum pull force: 1300N
- Normal torque: 45Nm
- Motor power: 150W
- Maximum door weight: 270kg
- Maximum door area: 28m²
- Maximum door height: 5.5m
- Maximum lift under spring tension: 20kg
This provides substantial capacity for oversized residential and light-commercial roller doors while retaining the convenience of a compact direct-mounted operator.
🏭 Designed for Light Commercial Applications
The LR-Drive has been specifically developed for applications that sit between conventional residential garage doors and larger industrial roller shutters.
Typical applications include:
- Commercial roller doors
- Large residential roller doors
- Shopfront roller grilles
- Storage facilities
- Workshops
- Warehouses
- Commercial garages
- Small industrial buildings
- Wind-locked roller doors
- High-clearance roller doors
Grifco specifically identifies large and wind-locked roller doors and shopfront roller grilles as key applications for the LR-Drive.
🚪 Up to 28m² Door Capacity
The LR-Drive is rated for correctly spring-balanced commercial steel roller doors up to 28m², with a maximum door height of 5.5m and maximum door mass of 270kg.
The roller door must be correctly balanced and in good mechanical condition for these ratings to apply.
🌬️ Suitable for Wind-Locked Roller Doors
One of the key advantages of the LR-Drive is its suitability for compatible wind-locked roller doors.
Wind-lock systems are commonly used on larger roller doors to provide additional curtain retention and resistance to wind pressure, but they can also increase the operating load placed on the opener.
The LR-Drive’s high-torque motor and gearbox have been designed with these applications in mind. Grifco specifically promotes the current LR-Drive for large wind-locked roller doors.
⚡ Fast Opening Speed
The LR-Drive combines its high lifting capacity with relatively fast operation.
Grifco specifies that the operator can open a 2.4m high roller door in approximately 21 seconds.
Faster door movement can be particularly beneficial in commercial environments where vehicles and personnel regularly move through the opening.
📏 Ultra-Slim 45mm Sideroom Requirement
Despite its substantial lifting capacity, the LR-Drive has an extremely slim operator profile.
Only 45mm minimum clearance is required between the edge of the door curtain and the edge of the mounting bracket, subject to the individual drum and door configuration.
This makes the LR-Drive particularly useful for installations where available sideroom is limited.
🔋 Battery Backup Included
Battery backup is supplied as standard with the LR-Drive.
The detachable Battery Backup Unit allows the operator to continue functioning during a mains power failure, providing valuable access for commercial premises where the roller door may be a primary vehicle or pedestrian entry point.
The battery module can be positioned according to the available installation space.
🔌 230–240V Mains Supply
The LR-Drive connects to a standard 230–240V AC 50Hz mains power supply while using a 24Vdc operator system.
This makes it particularly convenient for light-commercial installations where three-phase power may not be available.
📡 Security+ 2.0 Remote Technology
The LR-Drive is compatible with Grifco Security+ 2.0 transmitters.
The operator uses multiple radio frequencies:
- 433.30MHz
- 433.92MHz
- 434.54MHz
The onboard receiver can store up to 64 handheld transmitters, providing substantial capacity for commercial sites with multiple authorised users.
🎛️ Dedicated Commercial Control Inputs
Unlike a conventional residential roller door operator, the LR-Drive incorporates dedicated commercial control inputs.
This makes it suitable for integration with external control equipment and applications requiring dedicated opening and closing commands.
Grifco specifically highlights dedicated open and close inputs as a feature for shopfront grilles and commercial access applications.
Depending on the installation, the system can be integrated with compatible:
- Push buttons
- Key switches
- Access control systems
- Remote receivers
- Safety devices
- Other commercial activation equipment
📱 myQ Smart Connectivity Compatible
The LR-Drive is compatible with Grifco myQ connectivity when the required additional equipment and safety devices are installed.
A connected myQ installation can provide features such as:
- Remote door operation
- Door status monitoring
- Real-time notifications
- Scheduled closing
- Remote access management
The appropriate Grifco myQ Gateway and required monitored safety equipment are additional components.
👁️ Monitored Safety Beam Compatible
The LR-Drive can be integrated with compatible monitored entrapment-protection systems.
Grifco lists both the GPS15 Reflective Monitored Safety Beams and 774ANZ Monitored Safety Beams among the compatible accessories for the LR-Drive.
Safety beams provide non-contact detection across the doorway and are particularly important for remotely activated and automatically closing commercial doors.
🔑 Manual Release
The LR-Drive incorporates a manual release system allowing the operator to be disengaged from the roller door when required.
This allows manual operation during:
- Maintenance
- Operator servicing
- Electrical faults
- Battery depletion
- Emergency situations
The roller door must remain correctly spring balanced so it can be safely operated when disconnected from the automatic operator.
↔️ Left or Right-Hand Installation
The LR-Drive can be installed on either side of a compatible roller door.
This provides greater flexibility when dealing with different building layouts, available power locations and sideroom restrictions. The installation manual provides dedicated procedures for left- and right-hand mounting.
🔄 Up to 50 Cycles Per Day
The LR-Drive is designed for light-commercial usage with a maximum specified operating frequency of 50 cycles per day.
This makes it suitable for premises with regular daily access requirements without moving into the larger industrial high-cycle operator category.
For doors operating substantially more frequently, a dedicated Grifco industrial operator should be considered.
🌡️ Wide Operating Temperature Range
The LR-Drive is specified for operation between approximately -20°C and +50°C.
This provides a broad operating range suitable for typical Australian commercial and residential environments.
🏗️ Compact Direct-Mounted Design
Unlike an industrial roller shutter operator that may require an external chain-and-sprocket reduction system, the LR-Drive is designed as a directly coupled roller door operator.
This provides a compact installation particularly suited to conventional spring-balanced roller door construction.
The operator measures approximately:
- Height: 470mm
- Width: 280mm
- Depth: 95mm
- Depth with Battery Backup mounted behind operator: 150mm
🔧 Designed for Spring-Balanced Doors
The LR-Drive is specifically designed for correctly spring-balanced, vertically moving, single-piece roller doors.
Before automation, the door should:
- Operate smoothly by hand
- Be correctly spring balanced
- Have a maximum manual lifting requirement of 20kg
- Travel freely within its guides
- Have a suitable axle and drum arrangement
- Be structurally sound
- Remain within the operator’s size and weight limits
The LR-Drive should not be used to compensate for broken springs or a poorly balanced roller door.
🛒 Ideal for Shopfront Roller Grilles
Grifco also specifically recommends the LR-Drive for shopfront roller grilles.
The combination of compact installation, dedicated open/close control terminals, remote-control capability and optional access-control integration makes it particularly useful for commercial shopfront applications.

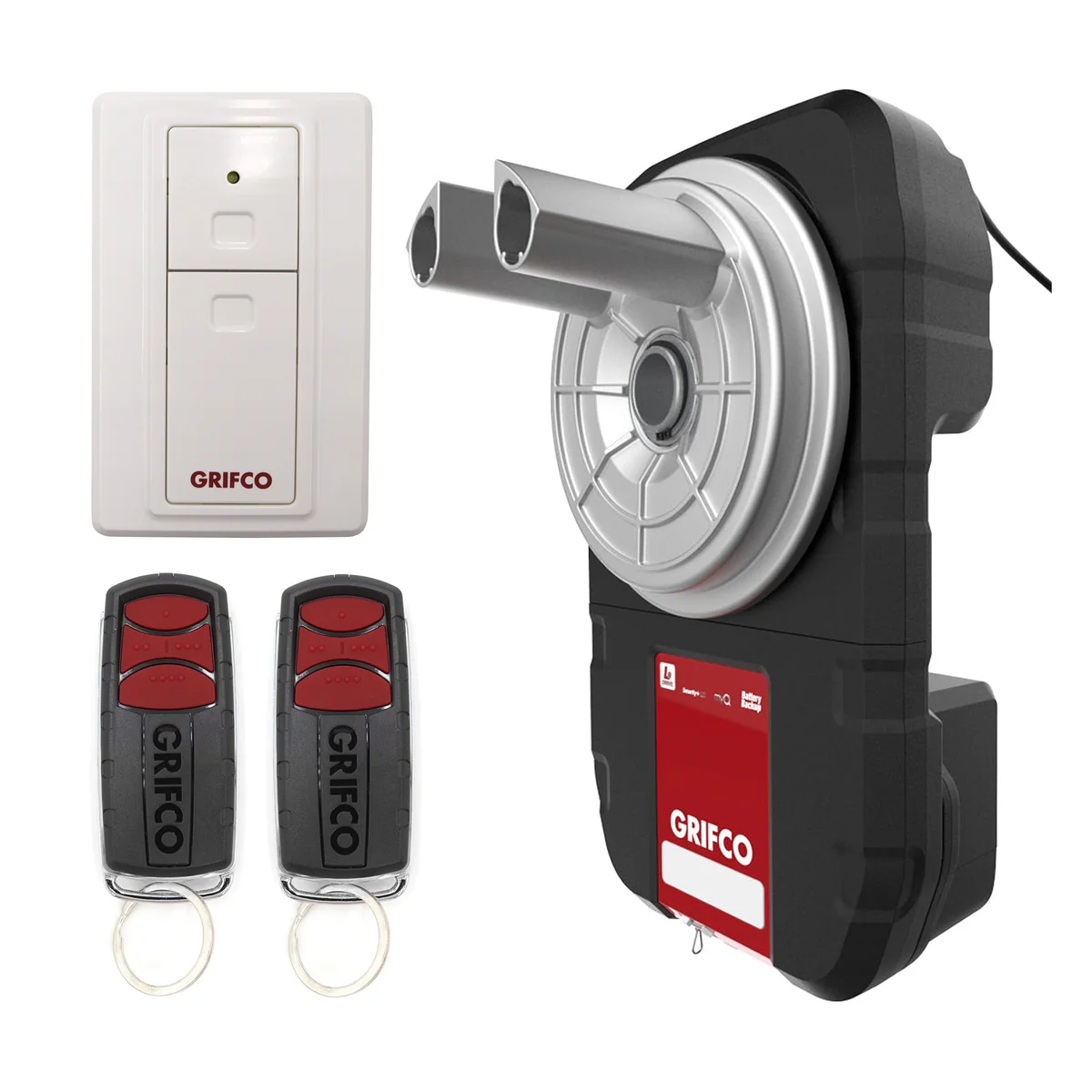

📦 What’s Included
The standard Grifco LR-Drive package includes:
- 1 × Grifco GLD-RDO LR-Drive Operator
- 1 × Battery Backup Unit
- 2 × E960G 4-Channel Keyring Transmitters
- 1 × E138G Wireless Wall Control
- Mounting hardware
Key Features
- Genuine Grifco light-commercial operator
- Model GLD-RDO
- Powerful 1300N maximum pull force
- 45Nm normal torque
- 150W motor
- 24Vdc operator system
- 230–240V AC mains supply
- Maximum door area up to 28m²
- Maximum door weight up to 270kg
- Maximum door height up to 5.5m
- Designed for spring-balanced roller doors
- Suitable for compatible wind-locked roller doors
- Suitable for shopfront roller grilles
- Opens a 2.4m high door in approximately 21 seconds
- Only 45mm minimum sideroom requirement
- Up to 50 cycles per day
- Battery Backup included
- Security+ 2.0 compatible
- Up to 64 handheld transmitters
- Dedicated commercial open/close inputs
- myQ compatible
- Monitored safety beam compatible
- Left or right-hand installation
- Manual release
- 2-year warranty
Specifications
- Manufacturer: Grifco
- Model: GLD-RDO
- Product Name: LR-Drive
- Product Type: Light Commercial Roll Up / Roller Door Operator
- Main Power Supply: 230–240V AC, 50Hz
- Operating Voltage: 24Vdc
- Motor Power: 150W / 0.15kW
- Maximum Pull Force: 1300N
- Normal Torque: 45Nm
- Maximum Door Area: 28m²
- Maximum Door Weight: 270kg
- Maximum Door Height: 5.5m
- Maximum Lift Under Spring Tension: 20kg
- Maximum Daily Cycles: 50
- Opening Time: Approx. 21 seconds for a 2.4m-high door
- Minimum Sideroom: 45mm
- Operator Height: 470mm
- Operator Width: 280mm
- Operator Depth: Approx. 95mm
- Depth with BBU: Approx. 150mm
- Operating Temperature: -20°C to +50°C
- Hand Transmitter Capacity: 64
- Radio Frequencies: 433.30 / 433.92 / 434.54MHz
- Battery Backup: Included
- myQ Compatibility: Yes
- Safety Beam Compatibility: Yes
- Compliance: AS/NZS 60335.1 and AS/NZS 60335.2.103
Compatibility
The Grifco LR-Drive is designed for compatible spring-balanced light-commercial roller doors and roller grilles.
It is particularly suitable where a conventional residential roller door operator does not provide sufficient capacity but a full industrial chain-drive operator is unnecessary.
Final suitability should consider:
- Door width and height
- Finished door weight
- Door curtain construction
- Spring balance
- Wind-lock configuration
- Axle and drum arrangement
- Available sideroom
- Daily operating frequency
- Required access controls
- Required safety equipment
⚠️ Please Note
The 28m², 270kg and 5.5m ratings are maximum application limits and assume a correctly spring-balanced, mechanically sound roller door. Grifco specifies that the manual lifting requirement of the correctly balanced door must not exceed 20kg.
The LR-Drive is rated for up to 50 operating cycles per day. Applications with substantially higher operating frequencies may require a dedicated industrial operator.
Grifco’s current product information promotes the LR-Drive for large and wind-locked doors; however, wind-locked door configuration can materially affect operating load, so suitability should be confirmed for the specific door.
If you are unsure whether the Grifco LR-Drive is suitable for your roller door, contact our Technical Support team on 1300 733 066 before ordering.
