FAAC Foundation Plate – B680H – 490139

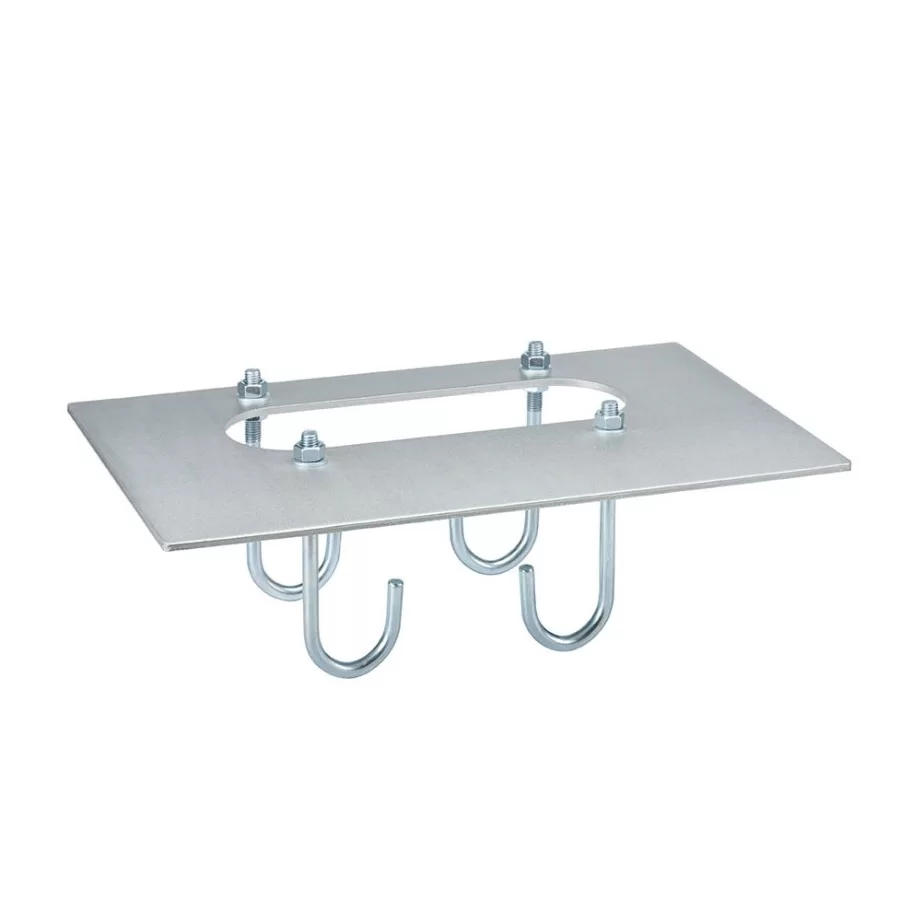

The FAAC B680H Foundation Plate is the genuine mounting plate designed specifically for securing the FAAC B680H Hybrid Barrier Operator to a prepared concrete foundation.
Installed during the foundation works, the plate provides the correct mounting points and alignment for the B680H barrier assembly.
FAAC Part Number: 490139
🔧 Purpose-Built for the B680H
The 490139 foundation plate is designed specifically for installation of the FAAC B680H barrier.
The plate is positioned and secured within the prepared concrete foundation, providing a stable mounting base onto which the B680H operator is installed.
FAAC includes the 490139 Foundation Plate as a required component in its typical B680H installation configuration.
📐 Foundation Plate Dimensions
FAAC’s B680H installation drawing specifies an overall foundation plate size of approximately:
- Width: 470mm
- Height: 260mm
- Centre opening: 216 × 135mm
The centre opening provides space for the required electrical and control cabling to enter the barrier installation.
🏗️ Installation
The foundation plate should be installed into a suitable concrete foundation before installation of the B680H operator.
Correct positioning of the plate is important to ensure the barrier is securely anchored and correctly aligned once installed.
Provision should also be made for power, safety and control cabling during preparation of the foundation.
Key Features
- Genuine FAAC foundation plate
- FAAC Part Number: 490139
- Designed specifically for the B680H
- Provides secure mounting for the barrier operator
- Installed into a prepared concrete foundation
- Provides correct B680H mounting points
- Centre opening for cable entry
- Suitable for new B680H installations
Specifications
- Manufacturer: FAAC
- Part Number: 490139
- Product Type: Barrier Foundation Plate
- Application: Automatic Barrier Mounting
- Compatibility: FAAC B680H
- Overall Width: Approximately 470mm
- Overall Height: Approximately 260mm
- Centre Opening: Approximately 216 × 135mm
- EAN: 8055195010145
Compatibility
Designed for:
- FAAC B680H Hybrid Barrier Operator – 104680
- FAAC B680H Hybrid Barrier Kit
FAAC lists the 490139 as the foundation plate for the B680H across its current barrier documentation.
⚠️ Please Note
This listing is for one FAAC B680H Foundation Plate – 490139.
The B680H operator, external cabinet, boom, pocket and balancing spring and other barrier accessories are not included.
The foundation plate should be correctly positioned during preparation of the concrete foundation, with suitable provision made for the electrical and control cabling required for the installation.
