Delta Flatpanel Smooth Colorbond PanelDor

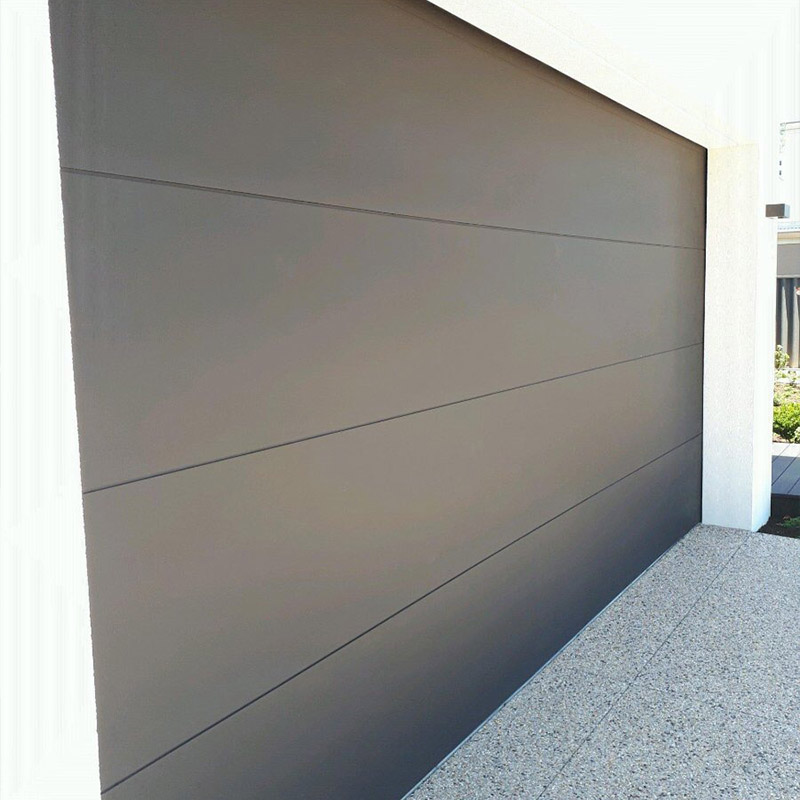

The Flatpanel utilises durable Colorbond® steel to achieve a continuous flat simple look. Using the wide range of Colorbond steel pre painted colours & finishes.

Door Data

  • Door Height *

    Min: 1800Max: 3660

  • Door Width *

    Min: 2000Max: 6500

  • Lifting System *

  • Taper Type *

    Fixed tapers incorporate the slope into the bottom panel. The height difference between left and right cannot exceed 65mm. Hinged tapers incorporate the slope into an additional panel. The minimum side of a fixed taper is 100mm

  • LH Door Height *

    Min: 1800Max: 3660

  • RH Door Height *

    Min: 1800Max: 3660

Product total

Options total

Grand total

SKU: N/A Category:

Description

DESCRIPTION:

The Flatpanel PanelDor is manufactured from our standard 38mm frame (powder coated black as standard), comprised of purpose-designed extruded aluminium rails & extruded aluminium stiles. Colorbond® sheets feature a folded edge and are face fixed with industrial adhesive.

SPECIFICATIONS:

  • Type: Sectional Overhead Door
  • Tech Description: The PanelDor garage door is made up of a number of rigid sections that are hinged together and move vertically in the opening, then horizontally along the ceiling, guided by tracks and counterbalanced with springs.
  • Model: DFP
  • Description: Extruded Aluminium Frame With Face Fixed Colorbond Sheet
  • Construction: 6063-T5 Extruded Aluminium
  • Frame Finish: Powder Coat Satin Black (Std) or Alternate Powder Coat Colour (Optional)
  • Panelling Options: Colorbond®, Colorbond® Matt, Colorbond® Metallic & Colorbond® Ultra
  • Designs: Flat
  • Windows: Yes – Acrylic Windows
  • Max Height: 3660mm
  • Max Width: 8000mm
