Description

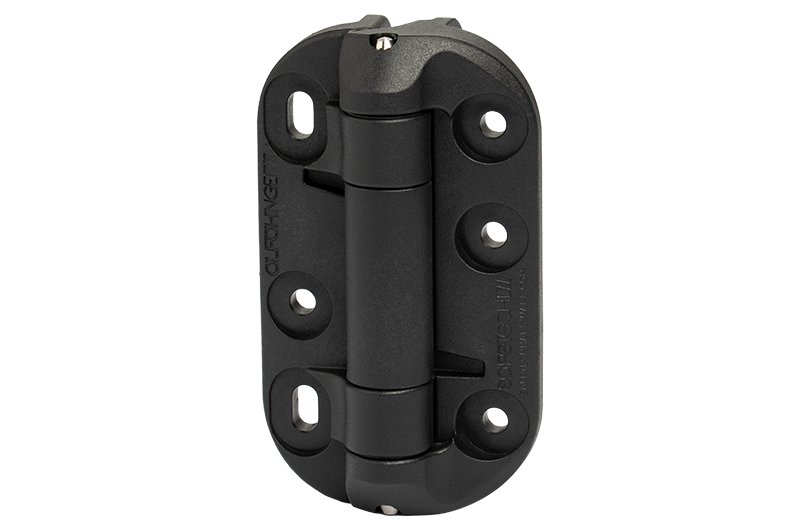

Safetech Fixed Tension Hinge – AlfaMax – SHF-110L-MAX
The Safetech AlfaMax SHF-110L-MAX is a high-strength fixed-tension self-closing gate hinge designed for pedestrian gates requiring reliable closing performance without the need for adjustable spring tension.
Featuring a reinforced two-leg mounting design, 12 fixing points per hinge and durable fibre-reinforced polymer construction, the AlfaMax provides increased strength and mounting security while maintaining a clean, slimline appearance.
Supplied as a pair, the SHF-110L-MAX is suitable for compatible metal and timber pedestrian gates.
🚪 Fixed Self-Closing Tension
The SHF-110L-MAX incorporates a factory-set fixed spring tension that automatically returns the gate towards the closed position after it has been opened.
Unlike an adjustable-tension hinge, there is no spring-tension adjustment required during installation.
This makes the AlfaMax particularly suitable where a simple and reliable self-closing hinge solution is required.
💪 AlfaMax High-Strength Design
The AlfaMax range was developed by Safetech to provide greater strength than its standard gate hinge range while retaining a slimline and economical design.
Additional material within the hinge construction provides increased strength for compatible gate applications.
The result is a compact polymer hinge designed for installers who require greater capacity without moving to a substantially larger heavy-duty hinge system.
🔩 12 Fixing Points Per Hinge
Each AlfaMax hinge incorporates 12 fixing points.
The increased number of fixing locations provides a secure connection between the hinge, gate and post.
This is particularly useful when attaching the hinges to:
- Aluminium gate frames
- Steel gate frames
- Timber gates
- Steel posts
- Aluminium posts
- Timber posts
The mounting structure must be sufficiently strong to support the gate and repeated self-closing loads.
🦵 Two-Leg Mounting Design
The SHF-110L-MAX uses a two-leg mounting arrangement.
These support legs provide additional fixing points against the post and contribute to the increased mounting strength of the AlfaMax design.
Correct fixing of both the hinge body and support legs is important to achieve the intended performance.
⚖️ 35kg Holding Capacity
Safetech specifies a maximum holding weight of 35kg for the SHF-110L-MAX under its standard test conditions.
Holding capacity refers to the gate weight the hinge pair is designed to support.
Gate width and height can significantly affect the load placed on the hinges, so gate weight should not be considered independently from the overall gate dimensions.
🔄 26kg Self-Closing Capacity
Safetech specifies a closing weight of up to 26kg for the SHF-110L-MAX under its standard test conditions.
The closing weight is particularly important when selecting a fixed-tension hinge.
While the hinge pair may support a heavier gate, the self-closing spring must still have sufficient force to reliably return the gate to the closed position.
For this reason:
- Maximum Holding Weight: 35kg
- Maximum Closing Weight: 26kg
These are two different specifications and should not be confused.
↕️ Vertical Adjustment
The AlfaMax SHF-110L-MAX provides vertical adjustment to assist with correct gate positioning during installation.
This allows the installer to fine-tune the vertical alignment of the gate to achieve the appropriate position relative to the latch and surrounding fence.
Correct gate alignment is particularly important for reliable self-closing and latching performance.
🧱 Fibre-Reinforced Polymer Construction
The AlfaMax hinge body is manufactured from durable fibre-reinforced engineered polymer.
This provides a strong hinge body without the corrosion issues commonly associated with conventional unprotected steel gate hinges.
The polymer construction also provides a clean appearance that complements modern aluminium and steel gate systems.
🔩 Stainless-Steel Components
Safetech combines the engineered polymer hinge body with rust-resistant stainless-steel components.
These include stainless-steel:
- Fasteners
- Hinge pins
- Spring components
This combination makes the AlfaMax well suited to outdoor pedestrian gate installations.
🌦️ Corrosion Resistant
The combination of fibre-reinforced polymer and stainless-steel components provides excellent corrosion resistance for external gate installations.
This makes the SHF-110L-MAX particularly useful where conventional steel hinges may eventually experience rust or deterioration.
🚪 Ideal for Pedestrian Gates
The SHF-110L-MAX is designed for compatible non-automated pedestrian and swing gates.
Typical applications include:
- Side access gates
- Garden gates
- Residential pedestrian gates
- Fence gates
- Commercial pedestrian gates
- Self-closing access gates
- Aluminium gates
- Steel gates
- Timber gates
🏠 Excellent for Aluminium Gate Systems
The black polymer AlfaMax hinge is particularly well suited to modern aluminium pedestrian gates and fencing systems.
Its two-leg mounting arrangement provides multiple fixing locations while the black finish complements commonly used powder-coated gate frames and posts.
🔗 Ideal with Self-Latching Gate Hardware
The fixed self-closing action makes the SHF-110L-MAX particularly useful when combined with a suitable self-latching gate latch.
When the gate is released, the hinge spring returns the gate towards the closed position so the compatible latch can engage.
Correct gate alignment, hinge installation and latch positioning are essential for reliable operation.
🔧 Low-Maintenance Design
The AlfaMax uses corrosion-resistant polymer and stainless-steel components to provide a durable outdoor hinge system with minimal ongoing maintenance requirements.
As with all gate hardware, the complete installation should still be periodically inspected to ensure:
- Fixings remain secure
- Gate alignment remains correct
- The gate closes freely
- The latch operates correctly
- The gate has not dropped
- The hinge components remain undamaged
📦 Supplied as a Pair
The Safetech SHF-110L-MAX is supplied as a pair of hinges for one gate.
A standard installation consists of:
- 1 × Upper AlfaMax Fixed-Tension Hinge
- 1 × Lower AlfaMax Fixed-Tension Hinge
Both hinges work together to support the gate and provide the required self-closing action.
📦 What’s Included
- 1 × Pair Safetech AlfaMax SHF-110L-MAX Fixed-Tension Hinges
- Associated hinge components
- Fixing hardware as supplied by Safetech
Package contents may be subject to manufacturer revision.
Key Features
- Genuine Safetech Hardware product
- AlfaMax range
- Model SHF-110L-MAX
- Fixed-tension self-closing design
- Factory-set closing tension
- Supplied as a pair
- 35kg maximum holding capacity
- 26kg maximum closing capacity
- 12 fixing points per hinge
- Two-leg mounting design
- Vertical adjustment
- Fibre-reinforced engineered polymer construction
- Rust-resistant stainless-steel fasteners
- Rust-resistant stainless-steel hinge pins
- Rust-resistant stainless-steel springs
- Corrosion-resistant construction
- Slimline design
- Black finish
- Suitable for metal gates
- Suitable for timber gates
- Designed for non-automated pedestrian gates
Specifications
- Manufacturer: Safetech Hardware
- Product Range: AlfaMax
- Model: SHF-110L-MAX
- Product Type: Fixed-Tension Self-Closing Gate Hinges
- Quantity: Pair
- Tension Type: Fixed / Factory Set
- Maximum Holding Weight: 35kg
- Maximum Closing Weight: 26kg
- Adjustment: Vertical
- Fixing Points: 12 Per Hinge
- Number of Legs: 2
- Body Material: Fibre-Reinforced Engineered Polymer
- Fasteners: Rust-Resistant Stainless Steel
- Pins: Rust-Resistant Stainless Steel
- Springs: Rust-Resistant Stainless Steel
- Colour: Black
- Application: Metal & Timber Pedestrian Gates
- Automated Gate Use: No
Compatibility
The Safetech AlfaMax SHF-110L-MAX is designed for compatible non-automated swing and pedestrian gates.
Suitable gate materials include:
- Aluminium
- Steel
- Timber
It is particularly suitable where the installation requires:
- Automatic self-closing action
- Fixed closing tension
- Increased hinge strength
- Multiple secure fixing points
- Vertical gate adjustment
- Corrosion-resistant outdoor hardware
Gate dimensions, gate weight and installation geometry must remain suitable for the hinge capacity.
⚠️ Please Note
Safetech specifies a maximum holding weight of 35kg and a maximum closing weight of 26kg for the SHF-110L-MAX.
These ratings are based on a standard test gate measuring approximately 900mm wide x 1200mm high.
Gates exceeding these dimensions can place substantially greater leverage on the hinges and may reduce their effective holding and self-closing capacity.
The 35kg holding capacity should not be confused with the 26kg self-closing capacity. For a self-closing installation, the gate must remain within the appropriate closing capacity.
The SHF-110L-MAX has fixed factory-set closing tension. If adjustable closing tension is required, an appropriate Safetech adjustable-tension hinge should be selected instead.
Safetech specifies that these hinges are designed for non-automated gates. They should not be used as the primary hinge system for an automated swing gate.
The gate and supporting posts must be structurally suitable for the hinge loads and all fixing points should be securely installed.
If you are unsure whether the Safetech AlfaMax SHF-110L-MAX is suitable for your gate, contact our Technical Support team on 1300 733 066 before ordering.
