Description
The Delta Composite PanelDor is a premium custom-manufactured sectional overhead garage door combining a purpose-designed extruded aluminium frame with face-fixed Delta Composite aluminium sheeting.
Manufactured around our 38mm aluminium door frame, the PanelDor uses 6063-T5 extruded aluminium rails and stiles to create a strong yet lightweight structural framework. The external composite aluminium face is bonded directly to the frame using industrial adhesive, producing a clean architectural appearance without exposed face fixings.
Available with our standard 10mm shadowline design or an optional butt-joint finish, the Delta Composite PanelDor is ideal for contemporary residential and architectural applications where a clean, modern garage door appearance is required.
🏗️ Purpose-Designed 38mm Aluminium Frame
At the heart of the Delta Composite PanelDor is our purpose-designed 38mm aluminium frame.
Rather than relying on the external cladding to provide the primary structural support, each door panel is constructed around a rigid framework manufactured from:
- 6063-T5 extruded aluminium
- Purpose-designed horizontal rails
- Purpose-designed vertical stiles
- Internal structural supports
- Precision assembled panel sections
The aluminium construction provides an excellent combination of strength, rigidity and reduced weight compared with many traditional framed door constructions.
⬛ Satin Black Frame as Standard
The aluminium frame is powder coated Satin Black as standard, providing a durable and attractive finish to the internal structure of the garage door.
When viewed from inside the garage, the black framework creates a clean and contemporary appearance that complements the external architectural finish of the door.
Alternative powder coat colours are also available as an optional upgrade where the internal frame needs to coordinate with a particular architectural or colour scheme.
🧱 Delta Composite Aluminium Face
The external face of the PanelDor is finished using Delta Composite aluminium sheet.
Composite aluminium provides a smooth, consistent architectural surface while keeping the overall door construction relatively lightweight.
The composite material is face-fixed to the aluminium framework using industrial adhesive, eliminating the need for exposed mechanical fixings across the external face of the door.
The result is a clean and uninterrupted appearance ideally suited to modern homes.
✨ Clean Face-Fixed Construction
One of the defining characteristics of the Delta Composite PanelDor is its clean face-fixed construction.
The composite aluminium sheets are bonded directly to the extruded aluminium framework using industrial adhesive.
This construction method provides:
- No exposed screws across the door face
- Clean architectural lines
- Smooth external surfaces
- Consistent panel alignment
- Contemporary appearance
- Strong adhesion between the cladding and frame
The result is a garage door designed to complement modern architectural façades rather than simply appearing as a traditional garage door.

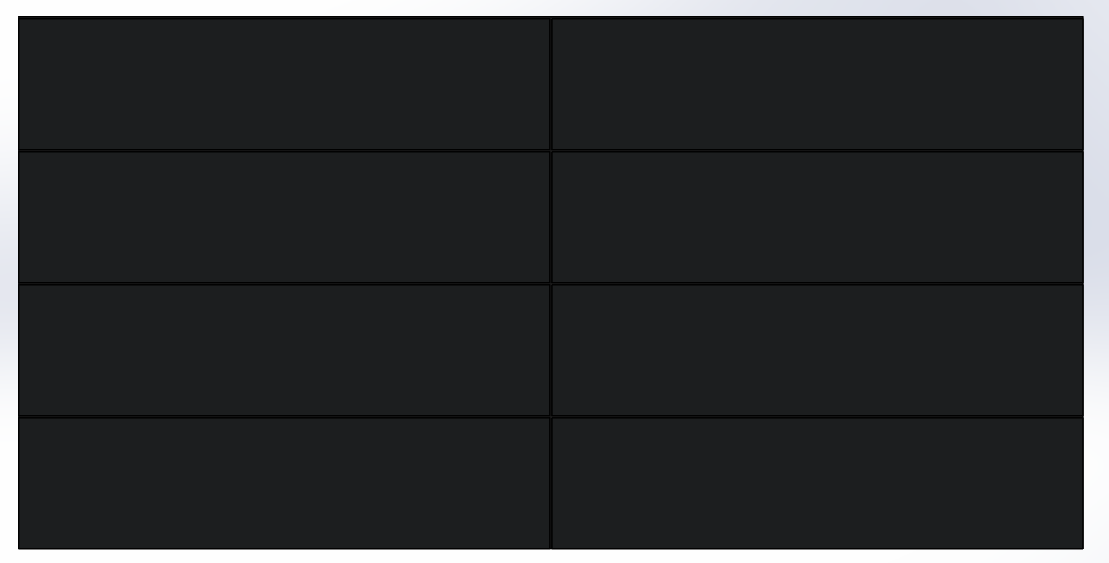

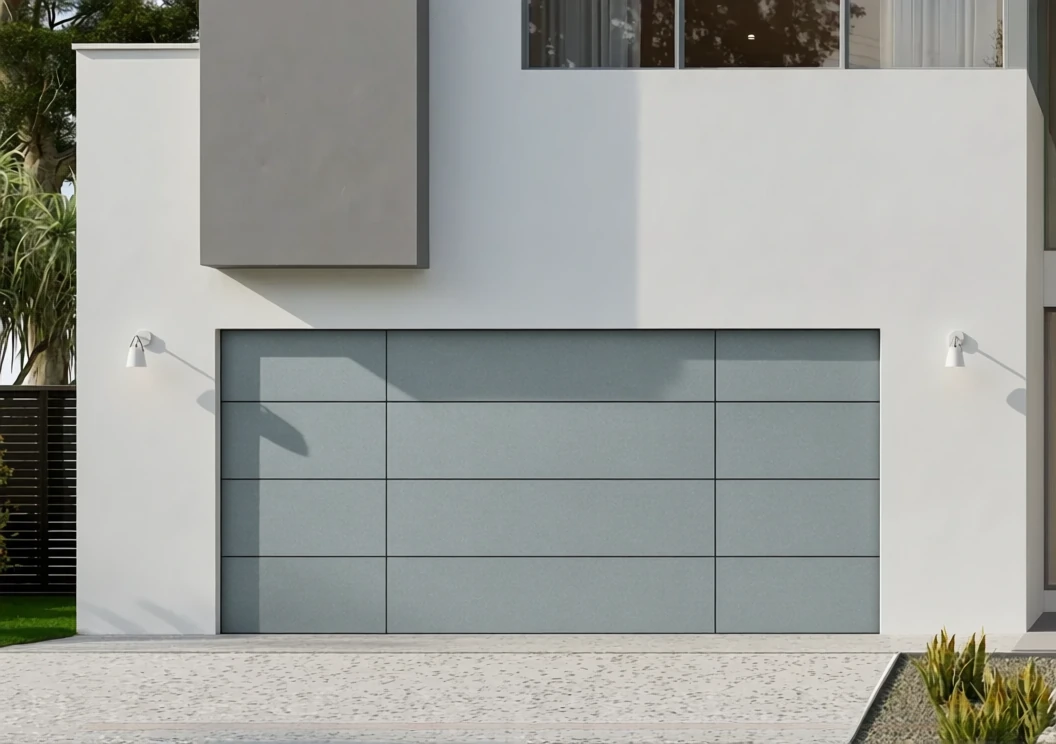

📐 10mm Shadowlines as Standard
The standard Delta Composite PanelDor features 10mm shadowlines between the composite sections.
These deliberate recessed lines create definition across the face of the door and form part of the overall architectural design.
The shadowlines provide a crisp, contemporary appearance while visually separating the individual sections of the garage door.
This design works particularly well with modern façades featuring strong horizontal or vertical architectural lines.
▫️ Optional Butt-Joint Design
For applications where an even more minimal appearance is preferred, the Delta Composite PanelDor can be manufactured with an optional butt-joint design.
Rather than using the standard 10mm shadowline, the composite sections are positioned to create a tighter visual transition between adjoining surfaces.
This allows the appearance of the garage door to be tailored to suit the architectural design of the property.
🚪 Sectional Overhead Operation
The Delta Composite PanelDor operates as a sectional overhead garage door.
The door is manufactured from a number of rigid horizontal sections that are hinged together.
When opening, the sections travel vertically through the garage opening before transitioning through the curved tracks and travelling horizontally along the ceiling.
This provides efficient use of space while allowing the door to remain close to the garage opening during operation.
⚖️ Spring Counterbalanced Operation
The weight of the PanelDor is counterbalanced using a correctly engineered spring system.
The springs offset the weight of the garage door, allowing the door to move smoothly through its opening and closing cycle.
A correctly balanced door requires relatively little force to operate, whether the door is being moved manually or by an automatic garage door opener.
The spring system is selected according to the dimensions, construction and finished weight of the individual door.
🔩 Heavy-Duty Track & Hardware System
The PanelDor is supported and guided by a purpose-designed sectional garage door track and hardware system.
The door sections travel through the vertical and horizontal tracks on garage door wheels, maintaining alignment throughout operation.
The complete hardware system is selected according to the size, weight and installation requirements of the individual door.
This provides smooth and reliable movement even on larger custom-manufactured PanelDor installations.
📏 Custom Manufactured to Suit the Opening
Every Delta Composite PanelDor is manufactured specifically for the individual project.
Rather than being limited to a small range of predetermined standard sizes, the door can be configured according to the dimensions and requirements of the garage opening.
The Composite PanelDor can be manufactured up to:
- Maximum Width: 8000mm
- Maximum Height: 3660mm
Final availability depends on the individual door dimensions, construction, site conditions and engineering requirements.
🏡 Designed for Modern Architecture
The clean external face and aluminium construction make the Delta Composite PanelDor particularly well suited to contemporary residential architecture.
It is an excellent choice for:
- Modern residential homes
- Architectural residences
- Custom-built homes
- Luxury residential developments
- Wide double and triple garages
- Contemporary façades
- Projects requiring clean architectural lines
- Custom garage door applications
The garage door can become an intentional part of the façade rather than simply a functional opening.
🪟 Optional Acrylic Windows
Acrylic window sections can be incorporated into the PanelDor design where natural light or additional architectural detail is required.
Window positioning can be configured according to the design of the individual garage door.
This provides additional flexibility when coordinating the garage door with windows, doors and other elements of the building façade.
🎨 Custom Design Flexibility
Because the Delta Composite PanelDor is manufactured around an aluminium framework, there is considerable flexibility in how the finished door can be configured.
Depending on the individual project, options can include:
- Standard 10mm shadowlines
- Optional butt-joint design
- Satin Black internal frame
- Alternative powder coat frame colours
- Acrylic window sections
- Custom door dimensions
- Different architectural layouts
This makes the PanelDor particularly suitable for projects where the garage door needs to complement a specific architectural design.
📐 Large Door Capability
With available sizes up to 8000mm wide and 3660mm high, the Delta Composite PanelDor can accommodate considerably larger openings than a typical residential sectional garage door.
This makes the system particularly suitable for:
- Wide double garages
- Triple garage openings
- Large residential garages
- High-clearance garage openings
- Custom architectural projects
Larger doors require careful consideration of structural reinforcement, spring selection, track configuration and automatic operator requirements.
⚙️ Automatic Garage Door Operation
The Delta Composite PanelDor can be automated using an appropriately selected sectional garage door operator.
The automatic opener should be selected according to the finished size, weight and operating characteristics of the individual door.
For larger PanelDor installations, a higher-capacity operator may be required to provide appropriate performance and reliability.
Correct door balance remains essential regardless of the power of the automatic opener.
🛠️ Custom Manufactured by Delta
The Delta Composite PanelDor is manufactured as a complete custom garage door system rather than simply applying composite material to a conventional garage door.
The extruded aluminium frame, internal structural layout, composite face and hardware configuration are selected and assembled specifically for the finished door.
This provides greater flexibility when designing garage doors for projects where standard mass-produced door styles or dimensions are unsuitable.
Key Features
- Delta Composite PanelDor
- Custom-manufactured sectional overhead garage door
- Purpose-designed 38mm aluminium frame
- 6063-T5 extruded aluminium construction
- Extruded aluminium rails and stiles
- Satin Black powder coated frame as standard
- Alternative powder coat frame colours available
- Delta Composite aluminium sheet external face
- Composite face bonded using industrial adhesive
- Clean external appearance without exposed face fixings
- 10mm shadowline design as standard
- Optional butt-joint design
- Optional acrylic windows
- Spring counterbalanced operation
- Sectional overhead track system
- Suitable for automatic operation
- Custom manufactured to suit the project
- Maximum width up to 8000mm
- Maximum height up to 3660mm
- Ideal for contemporary architectural applications
Specifications
- Manufacturer: Delta
- Product: Composite PanelDor
- Model: DALU
- Door Type: Sectional Overhead Door
- Frame Thickness: 38mm
- Frame Construction: Extruded Aluminium
- Aluminium Grade: 6063-T5
- Frame Components: Purpose-Designed Extruded Aluminium Rails & Stiles
- Standard Frame Finish: Satin Black Powder Coat
- Optional Frame Finish: Alternative Powder Coat Colours
- External Panelling: Delta Composite Sheet
- Panelling Attachment: Industrial Adhesive
- Standard Design: 10mm Shadowlines
- Optional Design: Butt Joint
- Window Option: Acrylic Windows
- Maximum Width: 8000mm
- Maximum Height: 3660mm
- Operation: Sectional Overhead
- Counterbalance: Spring Counterbalanced
- Automatic Operation: Compatible with Appropriately Selected Garage Door Operator
Construction
The Delta Composite PanelDor is constructed from a series of rigid horizontal door sections.
Each section incorporates a purpose-designed 38mm frame manufactured from 6063-T5 extruded aluminium rails and stiles.
Delta Composite aluminium sheet is then bonded to the external face of the frame using industrial adhesive, creating the finished architectural surface.
The individual sections are hinged together and travel vertically within the garage opening before transitioning horizontally into the overhead tracks.
This construction combines the appearance of a clean architectural façade with the practical operation of a sectional overhead garage door.
⚠️ Please Note
The Delta Composite PanelDor is custom manufactured for each individual project.
Maximum dimensions of 8000mm wide and 3660mm high are subject to the individual door design, finished weight, structural requirements, installation conditions and available headroom.
The appropriate frame configuration, internal reinforcement, spring system, track configuration and automatic operator will be determined according to the individual door.
Colours and finishes displayed electronically may vary from the finished product.
Optional windows, alternative powder coat colours, butt-joint construction, automation and other custom features may attract additional charges.
Final specifications should be confirmed at the time of quotation and site assessment.
