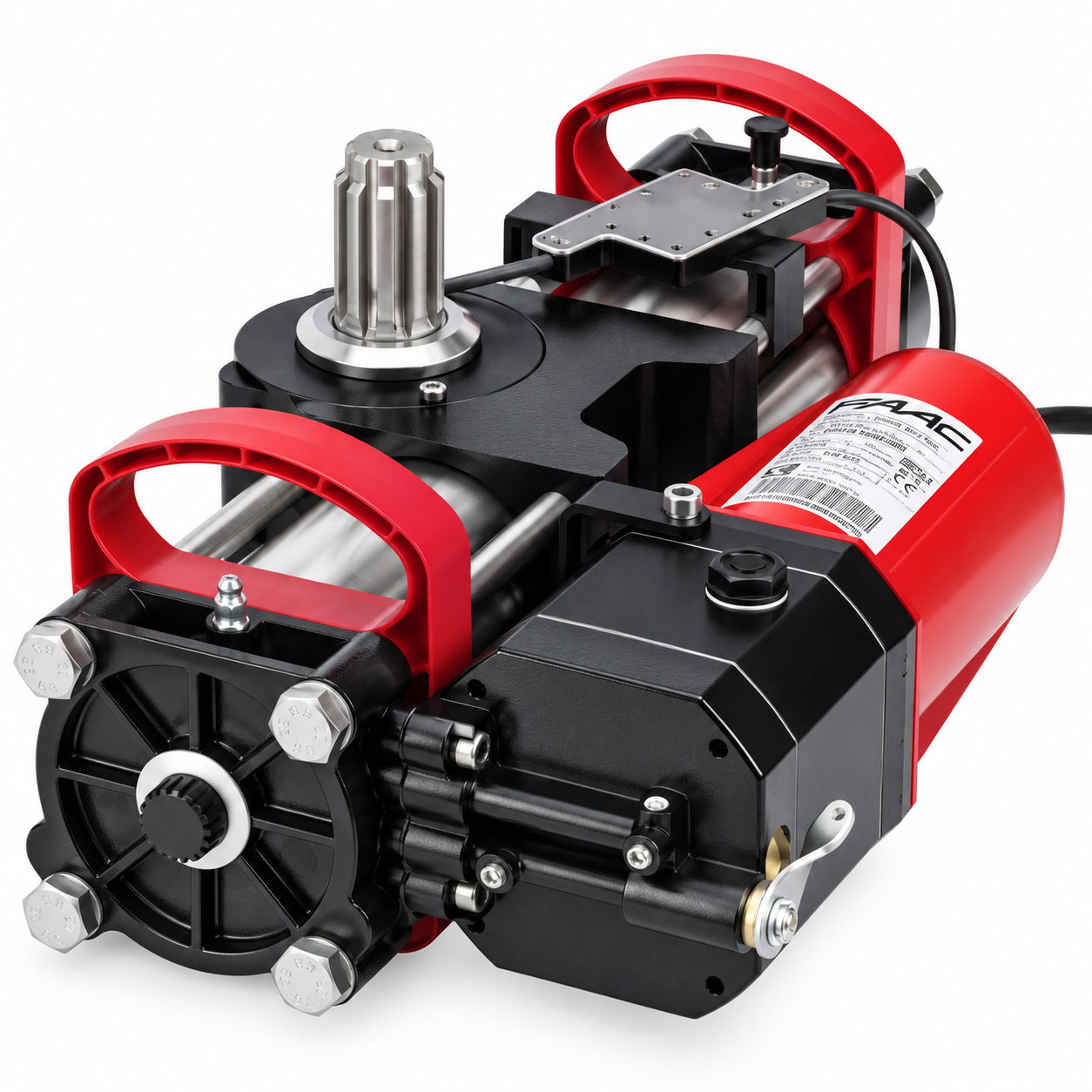

FAAC S800H ENC 24V 180° Underground Hydraulic Operator – 108722
The FAAC S800H ENC is a premium 24V underground hydraulic swing gate operator designed for demanding residential, strata and light-commercial gate automation applications.
Combining FAAC hydraulic technology with a 24Vdc motor, the S800H ENC provides powerful, smooth and reliable operation while remaining concealed beneath the gate.
Part number 108722 is the S800H ENC CBAC 180° version, featuring an integrated absolute magnetic encoder, hydraulic locking in both opening and closing, continuous-duty operation and an opening angle of up to approximately 187°.
FAAC Part Number: 108722
💧 24V Hydraulic Underground Operator
The S800H ENC combines two of FAAC’s key gate automation technologies: hydraulic drive and a 24Vdc electric motor.
This hybrid arrangement provides the strength and durability of hydraulic automation together with the control capabilities available from a modern 24V system.
The operator is particularly well suited to high-frequency gate applications where smooth movement and long-term reliability are important.
↔️ 180° Opening Version
The 108722 is the 180° version of the S800H ENC.
FAAC specifies a maximum opening angle of approximately 187°, providing substantially greater gate travel than the standard 100° version.
This makes it particularly useful for entrances where the gate needs to open significantly further than a conventional 90–110° swing.
🔒 CBAC Hydraulic Locking
Part number 108722 is the CBAC version of the S800H ENC.
CBAC provides hydraulic locking in both:
- Gate open position
- Gate closed position
This allows the hydraulic system to resist movement of the gate when the operator is stopped.
The CBAC 180° version is designed for gate leaves up to 2 metres long.
🧲 Absolute Magnetic Encoder
The S800H ENC incorporates an absolute magnetic encoder with FAAC BUS 2easy technology.
The encoder provides precise gate position information to the compatible control system and supports functions including:
- Electronic anti-crushing protection
- Obstacle detection
- Reverse on obstacle
- Accurate gate position monitoring
- Controlled deceleration
The BUS 2easy encoder uses a simple two-wire non-polarised connection.
Because the encoder is absolute, it retains the gate leaf position even following a power interruption.
💪 Gates Up to 800kg
The S800H ENC is engineered for substantial swing gates.
For the 108722 CBAC 180° version, FAAC specifies:
- Maximum gate leaf weight: 800kg
- Maximum gate leaf length: 2m
- Continuous-duty operation
Actual operator suitability depends on the complete gate installation, including gate construction, hinges, wind loading and operating geometry.
♾️ Continuous-Duty Operation
The S800H ENC is rated by FAAC for continuous use.
Its combination of hydraulic drive technology and a 24Vdc motor makes it particularly suitable for installations with higher operating frequencies.
Applications can include:
- Residential driveways
- Apartment and strata entrances
- Shared residential gates
- Commercial entrances
- High-frequency access gates
- Architectural gate installations
🛑 Integrated Positive Stops
The S800H ENC incorporates FAAC’s patented adjustable positive stops.
These allow the opening and closing stop positions to be set directly within the operator, potentially eliminating the need to install separate mechanical gate stops on the ground.
This is particularly useful for underground installations where maintaining a clean entrance appearance is important.
🔋 Battery Backup Capability
The 24Vdc drive system allows battery backup operation when used with compatible FAAC control equipment and batteries.
This allows the gate automation system to continue operating during a mains power failure.
Battery backup equipment is separate and depends on the control system selected for the installation.
⚡ Powerful 24Vdc Motor
The S800H ENC uses a 24Vdc brushed electric motor with a maximum power rating of 60W.
Depending on the control board used, FAAC specifies:
- Maximum torque with E024S: 500Nm
- Maximum torque with E124S: 600Nm
- Maximum angular speed with E024S: 5.5°/second
- Maximum angular speed with E124S: 8.2°/second
This allows the operator’s performance to be matched with the appropriate FAAC control system.
🌧️ IP67 Underground Protection
The S800H ENC is specifically engineered for underground gate automation and carries an IP67 protection rating.
The operator is designed for installation inside a suitable FAAC S800 foundation box beneath the gate hinge.
Correct foundation box installation and drainage are essential for reliable long-term operation.
🔓 Manual Hydraulic Release
The S800H ENC supports a hydraulic manual release system, allowing the gate to be manually operated when required.
FAAC’s hydraulic release arrangement can be configured for operation from inside or outside the property using a coded key.
The applicable hydraulic release components are separate accessories and should be selected according to the installation.
🏗️ Concealed Underground Installation
Installing the operator beneath the gate provides an extremely discreet finished appearance.
This makes the S800H ENC particularly suitable for:
- Architectural gates
- Decorative steel gates
- Premium residential entrances
- Heritage-style gates
- Commercial entrances
- Applications where visible linear or articulated gate operators are undesirable
📦 Operator Supplied
This listing includes:
- 1 × FAAC S800H ENC CBAC 180° 24V Hydraulic Operator
- Integrated BUS 2easy Absolute Magnetic Encoder
- Release and Adjustment Key
FAAC Part Number: 108722
Foundation box, electronic control equipment and other installation accessories are separate unless specifically stated as included.
Key Features
- Genuine FAAC underground hydraulic operator
- FAAC Part Number: 108722
- S800H ENC CBAC 180° version
- 24Vdc hydraulic drive
- Maximum opening angle approximately 187°
- Integrated absolute magnetic encoder
- BUS 2easy encoder connection
- Hydraulic locking in opening and closing
- Maximum gate leaf weight up to 800kg
- Maximum gate leaf length up to 2m
- Continuous-duty operation
- Integrated adjustable positive stops
- Electronic obstacle detection with compatible control equipment
- Anti-crushing functionality
- Electronic deceleration
- Battery backup compatible
- Up to 600Nm maximum torque with E124S
- IP67 protection
- FAAC HP hydraulic oil
- Concealed underground installation
- Suitable for residential, strata and light-commercial applications
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Model: S800H ENC
- Version: CBAC 180°
- Part Number: 108722
- Operator Type: Underground Hydraulic Swing Gate Operator
- Motor Voltage: 24Vdc
- Motor Type: Brushed DC
- Maximum Power: 60W
- Maximum Gate Leaf Weight: 800kg
- Maximum Gate Leaf Length: 2m
- Maximum Opening Angle: 187°
- Maximum Torque with E024S: 500Nm
- Maximum Torque with E124S: 600Nm
- Maximum Angular Speed with E024S: 5.5°/sec
- Maximum Angular Speed with E124S: 8.2°/sec
- Use Frequency: Continuous
- Hydraulic Lock: Opening & Closing
- FAAC Locking Type: CBAC
- Encoder: Absolute Magnetic Encoder
- Encoder Communication: BUS 2easy
- Deceleration: Electronic
- Protection Rating: IP67
- Operating Temperature: -20°C to +55°C
- Hydraulic Oil: FAAC HP Oil
- Operator Weight: Approx. 15kg
- Operator Dimensions: Approx. 450 × 220 × 160mm
- Electronic Control Equipment: Not Included
Compatibility
Designed for use with compatible FAAC S800H ENC installation components and 24V control equipment.
Compatible control options include:
- FAAC E024S
- FAAC E124S
Suitable for:
- Single swing gate systems
- Double swing gate systems
- Residential entrances
- Strata and apartment entrances
- Light-commercial entrances
- High-frequency swing gates
- Gate leaves up to 2m
- Gate leaves up to 800kg
- Applications requiring up to approximately 187° opening
🔄 S800H ENC Model Comparison
The S800H ENC range includes several different configurations.
108720:
- S800H ENC CBAC 100°
- Hydraulic locking
- Gate leaves up to 2m
108722:
- S800H ENC CBAC 180°
- Hydraulic locking
- Gate leaves up to 2m
- This product
108724:
- S800H ENC SBW 100°
- No hydraulic locking
- Gate leaves up to 4m
108725:
- S800H ENC SBW 180°
- No hydraulic locking
- Gate leaves up to 4m
Selecting the correct CBAC or SBW version is important when matching the operator to the gate leaf length and locking requirements.
⚠️ Please Note
This listing is for FAAC part number 108722, the S800H ENC CBAC 180° 24V underground hydraulic operator.
Although commonly described as the 180° model, FAAC specifies a maximum opening angle of approximately 187° when installed within the required geometry.
This is the CBAC version with hydraulic locking in both opening and closing.
The maximum gate leaf length for this CBAC version is 2 metres. The 4 metre maximum leaf length associated with the S800H ENC range applies to the non-locking SBW versions and should not be applied to part number 108722.
The foundation box, electronic control board, receiver, transmitters, photocells, hydraulic release system, battery backup equipment and other installation accessories are separate unless specifically stated as included.
Correct foundation preparation and drainage are essential when installing an underground gate operator.
Maximum gate dimensions are manufacturer limits and do not automatically mean every gate within those dimensions is suitable. Gate construction, wind loading, hinge condition, operating geometry and frequency of use must also be considered.
If you are unsure whether the FAAC S800H ENC 108722 is suitable for your gate, contact our Technical Support team on 1300 733 066.
