Description

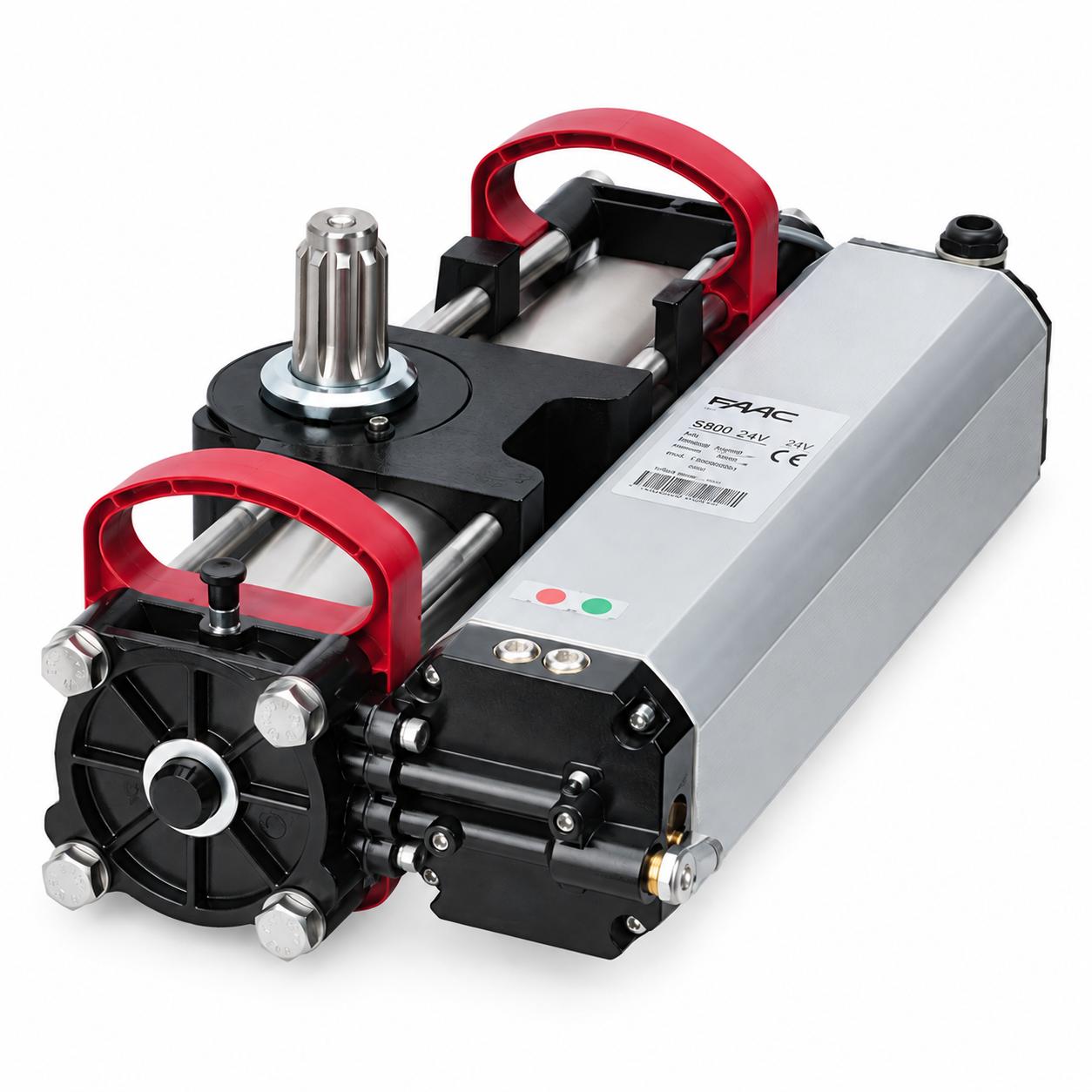

FAAC S800 240V 110° Underground Hydraulic Operator – 1088002
The FAAC S800 is a heavy-duty underground hydraulic swing gate operator designed for installations where reliability, strength and a discreet appearance are required.
Installed beneath the gate at the hinge point, the S800 keeps the automation largely hidden from view while providing the durability and smooth operation associated with FAAC hydraulic technology.
Part number 1088002 is the S800 CBAC 100° 230V model, featuring hydraulic locking in both the open and closed positions and designed for individual gate leaves up to 2 metres long and 800kg.
FAAC Part Number: 1088002
🚪 Discreet Underground Gate Automation
The S800 is installed below ground beneath the gate hinge, making it an excellent choice where visible gate motors would detract from the appearance of the entrance.
This makes the S800 particularly suitable for:
- Architectural gates
- Decorative steel gates
- Residential entrances
- Commercial properties
- Premium gate installations
- Installations where above-ground operators are undesirable
Only the gate and foundation box cover remain visible around the automation area.
💧 Proven Hydraulic Technology
Unlike conventional electromechanical underground operators, the S800 uses FAAC’s hydraulic drive technology.
Hydraulic operation provides smooth and powerful gate movement while offering excellent durability for demanding swing gate applications.
The 1088002 is designed for residential and light-commercial installations with an operating frequency of up to 45 cycles per hour.
🔒 CBAC Hydraulic Locking
Part number 1088002 is the CBAC version of the S800.
CBAC provides hydraulic locking in both the open and closed positions.
For gate leaves within the specified application limits, this allows the hydraulic system to hold the gate securely without relying solely on a separate external locking device.
↔️ Up to 110° Gate Opening
The S800 1088002 is FAAC’s CBAC 100° model, designed for standard-opening underground swing gate applications.
The integrated drive arrangement allows approximately 110° of gate movement when installed within the specified mounting geometry.
For installations requiring significantly greater opening angles, FAAC also manufactures a separate 180° version of the S800.
💪 Gates Up to 800kg
The S800 is engineered for substantial swing gates.
For the 1088002 CBAC version, FAAC specifies:
- Maximum gate leaf weight: 800kg
- Maximum gate leaf length: 2 metres
- Minimum applicable leaf length: approximately 0.7 metres
Actual suitability depends on the gate design, hinge arrangement, wind loading and installation geometry.
🛑 Integrated Mechanical Stops
The S800 incorporates positive mechanical stops within the operator.
This can eliminate the need for separate opening and closing ground stops where the installation has been correctly configured to use the operator’s integrated stops.
The internal stop arrangement also helps produce a cleaner finished installation around the gate entrance.
🔧 Adjustable Hydraulic Force
The hydraulic system incorporates bypass valve adjustment, allowing the operator force to be configured during commissioning.
This allows the installer to correctly set the hydraulic drive characteristics for the particular gate installation.
All safety devices and force settings must be configured in accordance with the applicable gate automation standards and installation requirements.
🌧️ IP67 Underground Protection
As an underground operator, the S800 is specifically designed for installation within a suitable FAAC foundation box.
The operator carries an IP67 protection rating and is designed to operate in ambient temperatures from -20°C to +55°C.
Correct foundation box installation and drainage remain essential for reliable long-term underground operation.
⚡ 230–240V Operation
The 1088002 uses a 230V single-phase asynchronous electric motor.
FAAC specifies:
- Supply: 220–240V AC, 50/60Hz
- Motor: Single-phase asynchronous
- Maximum absorbed power: 220W
- Maximum angular speed: 7.8°/second
The electronic control unit is not incorporated into the operator and must be provided separately as part of the automation system.
🔓 Manual Release Options
Manual release equipment is available for the S800, allowing the gate to be manually operated when required.
The hydraulic release device and associated release lock are separate accessories and should be selected according to the required installation configuration.
🏗️ Foundation Box Required
The S800 operator is designed to be installed inside a dedicated underground foundation box positioned beneath the gate.
The foundation box is a separate component and provides the structural mounting point and protection required for the underground operator.
Standard and stainless-steel foundation box options are available depending on the installation requirements.
📦 Operator Supplied
This listing is for:
- 1 × FAAC S800 CBAC 100° 230V Hydraulic Underground Operator – 1088002
The foundation box, control board, receiver, remotes, photocells, release system and other installation accessories are separate unless specifically included as part of a package.
Key Features
- Genuine FAAC underground swing gate operator
- FAAC Part Number: 1088002
- S800 CBAC 100° model
- Approximately 110° standard-opening application
- 230–240V hydraulic operator
- Underground installation
- Hydraulic drive technology
- Hydraulic locking in opening and closing
- Maximum gate leaf weight up to 800kg
- Maximum gate leaf length up to 2m
- Up to 45 cycles per hour
- Integrated positive mechanical stops
- Adjustable hydraulic bypass valves
- IP67 operator protection
- Suitable for residential and light-commercial gates
- Discreet installation beneath the gate
- FAAC HP hydraulic oil
- Separate foundation box and control system
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Model: S800
- Version: CBAC 100°
- Part Number: 1088002
- Operator Type: Underground Hydraulic Swing Gate Operator
- Supply Voltage: 220–240V AC
- Frequency: 50/60Hz
- Motor Type: Single-Phase Asynchronous
- Maximum Power: 220W
- Maximum Gate Leaf Weight: 800kg
- Maximum Gate Leaf Length: 2m
- Minimum Gate Leaf Length: Approx. 0.7m
- Maximum Angular Speed: 7.8°/second
- Use Frequency: Up to 45 cycles/hour
- Hydraulic Locking: Opening & Closing
- FAAC Locking Type: CBAC
- FAAC Opening Version: 100°
- Application Opening: Approx. 110°
- Protection Rating: IP67
- Operating Temperature: -20°C to +55°C
- Hydraulic Oil: FAAC HP Oil
- Operator Dimensions: Approx. 380 × 220 × 160mm
- Operator Weight: Approx. 16kg
- Electronic Control Equipment: Not Included
Compatibility
Designed for:
- Swing gates
- Underground gate automation
- Individual gate leaves up to 2m
- Gate leaves up to 800kg
- Residential applications
- Light-commercial applications
Suitable for use with compatible FAAC S800 foundation boxes, control equipment and installation accessories.
⚠️ Please Note
This listing is for FAAC part number 1088002, the S800 CBAC 100° 230V underground hydraulic operator.
This version does not include the integrated absolute magnetic encoder supplied with the S800 ENC models.
Do not confuse 1088002 with:
- 108800 – S800 ENC CBAC 100° with encoder
- 1088012 – S800 CBAC 180°
- 1088022 – S800 SBW 100°
- 1088032 – S800 SBW 180°
The foundation box, electronic control unit, hydraulic/manual release system, radio receiver, transmitters and safety devices are separate unless specifically included in a package.
Correct foundation preparation and drainage are essential for any underground gate operator. The foundation box must be installed in accordance with FAAC requirements to prevent standing water and ensure correct gate alignment.
Maximum gate dimensions are manufacturer limits and do not automatically mean every gate within those dimensions is suitable. Gate construction, wind loading, hinge condition and installation geometry must also be considered.
230–240V electrical connections must be completed by an appropriately qualified person.
If you are unsure whether the FAAC S800 1088002 is suitable for your gate, contact our Technical Support team on 1300 733 066.
