Description

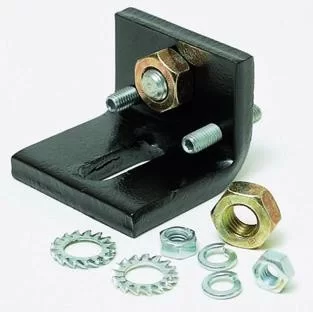

Internal Opening Stop for FAAC 770 Underground Operators
The FAAC Internal Mechanical Opening Stop (722121) is a genuine component designed for use with FAAC 770 underground swing gate operators. It provides a fixed mechanical stop within the operator assembly to define the maximum opening position of the gate.
This component is used where a physical stop is required to control the open limit and prevent over-travel of the gate leaf.
Function and Operation
The internal opening stop is installed within the operator mechanism and acts as a mechanical limit point during the opening cycle.
When the gate reaches the set open position, the operator arm contacts the stop, preventing further movement. This ensures consistent positioning and reduces reliance on electronic limits alone.
The use of a mechanical stop is important in applications where precise stopping is required or where additional protection is needed to prevent excessive force on hinges or mounting points.
Key Features
Mechanical Open Limit Control
Provides a fixed physical stop to define the maximum opening position of the gate.
Operator Protection
Reduces stress on the operator by preventing over-travel beyond the intended limit.
Consistent Positioning
Ensures repeatable open positions regardless of environmental or load variations.
Genuine FAAC Component
Manufactured to suit FAAC 770 operator assemblies for correct fit and operation.
Applications
Suitable for use in:
- FAAC 770 underground swing gate operators
- Installations requiring a defined mechanical open limit
- Systems where external ground stops are not used
Compatibility
Designed specifically for:
- FAAC 770 underground operators
Part number: 722121
Compatibility should be confirmed against the existing installation before purchase.
Installation Notes
Installation should be carried out by a qualified technician.
Before installation:
- Ensure the operator is correctly positioned within the foundation box
- Confirm gate alignment and hinge geometry
During installation:
- Install the stop within the operator assembly as per FAAC guidelines
- Set the correct open position before securing the stop
After installation:
- Cycle the gate to confirm correct stopping position
- Verify that no excessive force is applied at the stop point
Technical Overview
- Component type: Internal mechanical stop
- Function: Open limit positioning
- Installation location: Inside operator assembly
- Application: Underground swing gate operators
Compatibility Notes (Important)
- Genuine FAAC replacement part
- Designed for FAAC 770 systems only
- Not suitable as a universal mechanical stop
- Incorrect positioning may affect gate operation or cause excessive load on the operator
