Description
Replacement Control Board for FAAC Automation Systems

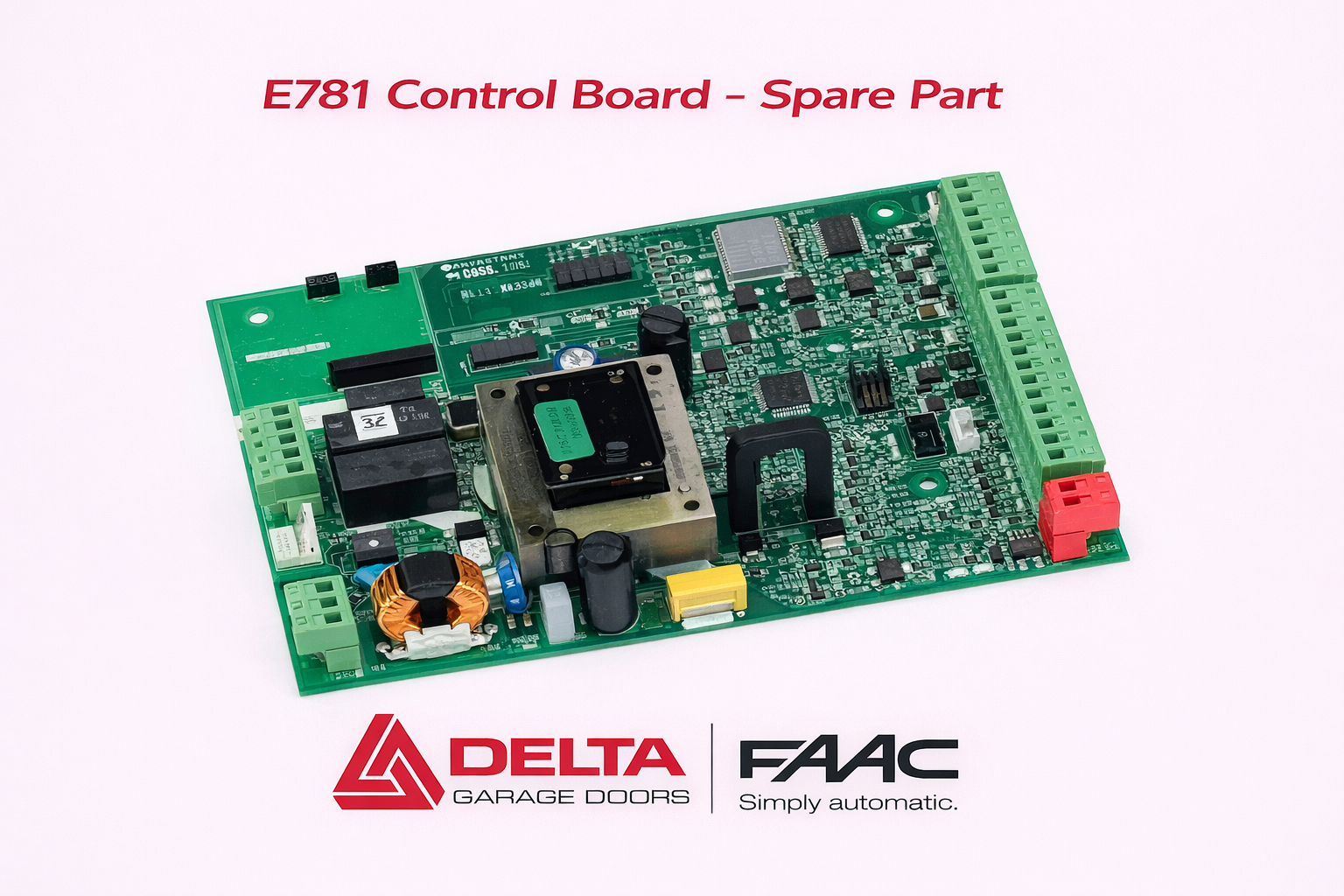

The FAAC E781 control board (63003478) is a genuine FAAC electronic control unit designed for use in compatible automation systems. It manages motor operation, safety inputs, limit control, and accessory functions within the system.
This board is commonly used in FAAC sliding gate and industrial door applications where reliable control and consistent performance are required.
Function and Operation
The E781 control board acts as the central control unit of the automation system. It processes input signals and controls the motor output based on programmed parameters.
Core functions include:
- Motor direction control (open and close)
- Input management for safety devices such as photocells and edges
- Limit switch or encoder input processing
- Control of start, stop, and partial opening commands
- Output control for accessories such as lights, locks, and alarms
The board continuously monitors connected devices and responds according to configured logic and safety requirements.
Key Features
Electronic Motor Control
Provides controlled operation of the motor with adjustable parameters for opening and closing cycles.
Safety Input Management
Supports connection of safety devices including photocells, stop inputs, and other protection systems.
Configurable Operation
Allows adjustment of operating parameters such as timing, logic modes, and response behaviour depending on the installation.
Accessory Integration
Supports external devices including flashing lights, electric locks, and auxiliary outputs.
Diagnostic Capability
Includes status indication and fault detection to assist with setup and troubleshooting.
Applications
Suitable for use in:
- Sliding gate automation systems
- Industrial and commercial door operators
- FAAC systems requiring E781 control logic
Compatibility
The FAAC E781 control board is designed for use with specific FAAC automation systems.
Compatibility should always be confirmed against the existing board model and system configuration before replacement.
Part number: 63003478
Installation Notes
Installation should be carried out by a qualified technician.
Before replacing the board:
- Disconnect power to the system
- Confirm wiring layout and terminal connections
- Transfer or reconfigure parameters as required
After installation, the system should be tested to ensure correct operation of motor direction, limits, and all safety devices.
Technical Overview
- Control board type: Electronic control unit
- Application: Gate and door automation
- Inputs: Safety devices, command inputs, limit/encoder signals
- Outputs: Motor control, accessory outputs
- Configuration: Parameter-based setup via onboard interface
Compatibility Notes (Important)
- Genuine FAAC replacement part
- Must match the original control board model
- Not a universal control board
- Incorrect installation or configuration may result in system malfunction
