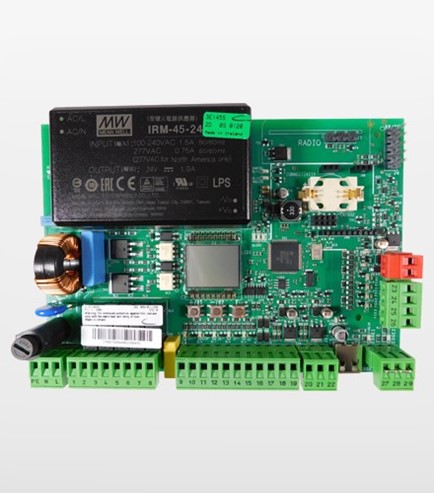

FAAC E145S Control Board – 240Vac

FAAC E145S Bus Advanced Control Board – 240Vac
– Advanced control board programmed via LCD display/ compatible with all 240 Vac swing motors
– Can also be used for Sliding Gearmotors or combination of Sliding/Swing
– Switching power supply 90V – 260 Vac
– Significant reduction in energy consumbtion (up to 50%)
– Patented Sleep-Mode that reduces energy when not used (up to 90%)
– Motor pilot relay redundancy (5x relay’s that share load if one relay should fail)
– SAFEzone with obstacle detection and accuracy when used with the SAFEcoder (Absolute Encoder)
– The SAFEcoder eliminates the need to use physical ground stops
– 10+ function logics / Programmed deceleration via percentage of travel
– Bus connector for Bus Safety-beams and traditional beams
– Omnidec receiver that can store 1,600 transmitters
– USB Interface that allows you to backup the transmitter codes and board configuration
– 2 Electric lock outputs / Limit Switch inputs / programable inputs/output

$498.00

SKU: 790076 Category: Tag: Brand:

Description

TECHNICAL SPECIFICATIONS
Model: E145S
Power supply voltage: Power switching 90V~ to 260V~ 50(60) Hz
Max. power: 4W Stand by, <2W with sleep function (programmable through Simply Connect)
Motor max power: 800 W
Max. accessories load: 500 mA 24V – 500 mA BUS 2easy
Max. electric lock load: FAAC Lock (12V~ – 24V ) – non FAAC 24V – 500 mA
Programming: LCD display and buttons, via Simply Connect connectivity devices
Status signalling: LCD Display and LED
Terminal board inputs: Open, Open pedestrian gate, Stop (closed), BUS 2easy, Opening safeties, Closing safeties, Power + Earth, Opening and closing limit switches, Safety edge input on opening, Safety edge input on closing
Terminal board outputs: Flashing light, Motors, Accessories power 24V , 2 programmable OUTPUT (default:power indicator light and fails-safe), 2 electric locks
Rapid connector: XF 433/868 module for OmniDEC decoding, connector for DECODER/MINIDEC/RP, USB-A and Simply Connect XMBX (GSM) or XWBL (WiFi/LAN) connectivity modules
Protection Fuses: 1 (10A)
Operating ambient temperature: -20°C ÷ +55°C
Note: The electronic board E145S can control one or more swing operators, a sliding gear motor, or a mixture of swing-sliding systems.
