Description
Technical Specifications

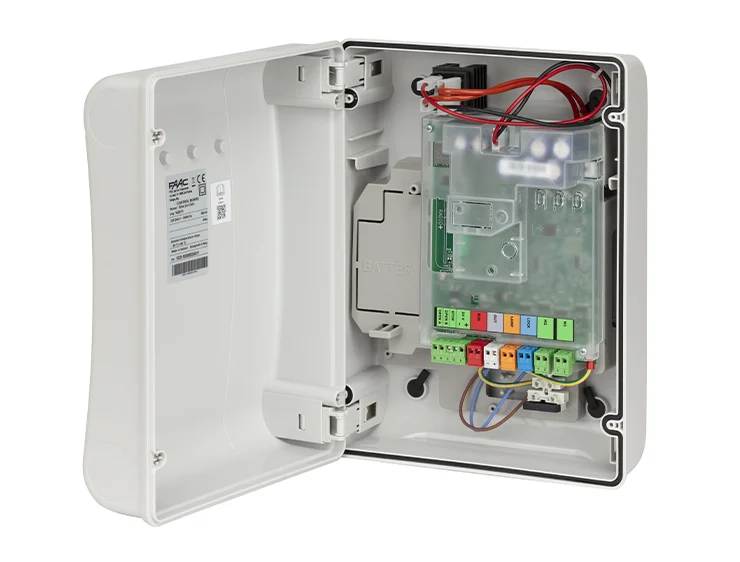

Model: E034
Power supply voltage: 220-240V~ 50/60 Hz
Max. power: 350 W
Motor max power: 170 W x 2
Max. accessories load: 500 mA – 300 mA BUS 2easy
Programming: Programming via buttons
Operating logic: A, E, AP, EP, A1, B, C
Programmable functions: (*) Logic (A, E, AP, EP, A1, B, C)*, Speed (high/slow), pause time, 2nd leaf closing delay
Work time (time-out): 5 minutes (fixed)
Pause time: Varies according to learning (max. 10 min.)
Terminal board inputs: Open A, Open B, Stop, BUS (I/O)
Terminal board outputs: Motors, Flashing lights, Accessories power, electric lock, Contact service light (90 sec fix)
Rapid connector: Power supply, XF 433 or XF 868 Module
Integrated radio coding: XF FDS/ XF, DS, SLH, RC, LC (max 250 canali)
Protection Fuses: F1 = self-resetting – F2 = T2A-250V~
Operating ambient temperature: -20°C ÷ +65°C
* Motor models (392 C, S418, 413, 415, 770N, S2500I)
