Description
The FAAC Cyclo – C720 Kit provides a premium 24Vdc automation package for residential sliding gates, combining the compact FAAC C720 sliding gate operator with 4 metres of strengthened nylon racking, a compatible FAAC radio receiver and two remote transmitters.
Designed for sliding gates weighing up to 400kg, the C720 combines fast 18m/min gate movement with FAAC’s patented Cyclo reduction technology, providing an efficient, compact and exceptionally smooth sliding gate automation system.
With the E720 electronic control board integrated directly into the operator, along with an absolute encoder, magnetic limit switches and advanced electronic safety functions, the Cyclo – C720 Kit provides a sophisticated solution for residential sliding driveway gates.

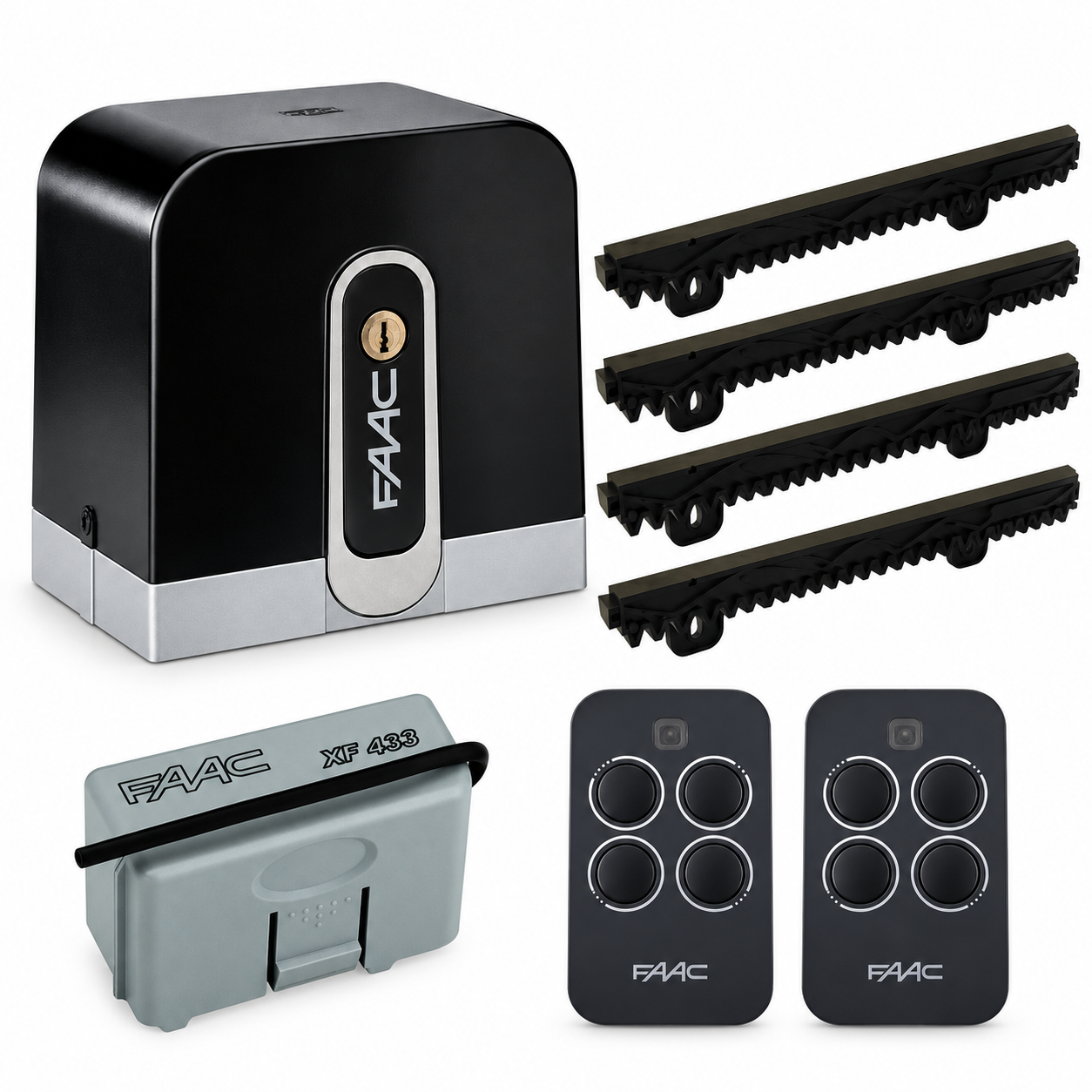

📦 Complete FAAC Cyclo – C720 Kit
This kit includes the essential components required to automate a compatible residential sliding gate.
Included in the package:
- 1 x FAAC C720 24Vdc Sliding Gate Operator
- 1 x FAAC Foundation Plate
- 4 x 1m Strengthened Nylon Racking
- 1 x Compatible FAAC Receiver
- 2 x Compatible FAAC Transmitters
With four 1-metre sections of strengthened nylon rack included, the kit provides 4 metres of drive rack ready for installation onto the sliding gate.
⚙️ FAAC C720 24Vdc Sliding Gate Operator
At the centre of the Cyclo Kit is the FAAC C720, a compact 24Vdc electromechanical sliding gate operator incorporating FAAC’s patented Cyclo reduction system.
Unlike a conventional sliding gate operator using a traditional multi-stage reduction gearbox, the C720 uses FAAC’s distinctive Cyclo transmission technology to provide a compact, efficient and robust drive system.
The FAAC C720 provides:
- 24Vdc motor
- Maximum gate weight of 400kg
- Gate speed up to 18m/min
- Patented Cyclo reduction technology
- Integrated E720 electronic control board
- Absolute encoder
- Magnetic limit switches
- Electronic anti-crushing protection
- Opening and closing slowdown
- Partial opening functionality
- Manual release system
- Self-locking operation
- IP44 protection
🌀 Patented FAAC Cyclo Technology
One of the defining features of the FAAC C720 is its patented Cyclo reduction system.
The Cyclo transmission provides the substantial speed reduction required between the electric motor and the gate drive pinion using an innovative reduction mechanism rather than a conventional multi-stage gearbox.
This provides several advantages for sliding gate automation, including:
- Compact operator dimensions
- High mechanical efficiency
- Reduced internal components
- Smooth power transmission
- Excellent reliability
- Reduced mechanical wear
- Quiet operation
The result is a compact sliding gate operator capable of providing fast and controlled movement while maintaining the durability expected from a FAAC automation system.
💪 Suitable for Sliding Gates up to 400kg
The FAAC C720 is designed to automate correctly installed residential sliding gates weighing up to 400kg.
This makes it well suited to many residential driveway gates including:
- Aluminium sliding gates
- Steel sliding gates
- Slatted sliding gates
- Picket gates
- Open-style sliding gates
- Custom fabricated sliding gates
- Residential driveway entrances
Gate weight alone should not be used to determine operator suitability.
The gate must roll freely throughout its entire travel and the track, wheels and guide system must be correctly installed and maintained.
🚀 Fast 18 Metres per Minute Gate Speed
The C720 provides a gate travel speed of up to 18 metres per minute, making it considerably faster than many conventional residential sliding gate operators.
At approximately 300mm per second, this provides quick vehicle access and reduces the amount of time the driveway entrance remains open.
For example, a gate travelling approximately 4 metres can complete the main travel portion in approximately 13 seconds, excluding programmed slowdown and other control functions.
Actual opening time will depend on:
- Gate travel distance
- Programmed slowdown
- Control settings
- Gate condition
- Installation configuration
⚡ 24Vdc Motor Technology
The FAAC C720 uses a low-voltage 24Vdc motor controlled by the integrated E720 electronic control board.
The 24V platform allows sophisticated electronic management of the operator’s movement and safety functions.
Advantages include:
- Precise electronic motor control
- Electronic force management
- Smooth acceleration and deceleration
- Accurate slowdown control
- Encoder-based position monitoring
- Electronic obstacle detection
- High-frequency residential operation
- Compatibility with advanced FAAC accessories
The motor and electronic control system work together to provide smooth and controlled gate movement.
🧠 Integrated E720 Control Board
The FAAC C720 incorporates the E720 electronic control board directly inside the operator housing.
This provides a compact installation without requiring a separate external control enclosure for a standard automation system.
The E720 provides extensive programming options for configuring the gate according to the requirements of the installation.
Available functions include:
- Automatic operation
- Semi-automatic operation
- Adjustable operating force
- Partial opening
- Pedestrian access
- Opening slowdown
- Closing slowdown
- Safety device management
- Photocell inputs
- Radio receiver integration
- Automatic closing
- Programmable operating logic
This allows the C720 to be configured for a wide range of residential access requirements.
🎯 Absolute Encoder Technology
The C720 incorporates an absolute encoder to accurately monitor the position and movement of the sliding gate.
Unlike a basic timing-based control system, the encoder provides the electronic control board with detailed information about gate movement.
This allows the system to accurately manage:
- Gate position
- Movement direction
- Operating speed
- Slowdown positions
- Obstacle detection
- Safety response
Encoder feedback contributes to the smooth and precise operation that distinguishes the C720 from simpler sliding gate automation systems.
🛡️ Electronic Anti-Crushing Protection
The combination of the 24Vdc motor, E720 control board and absolute encoder provides electronic anti-crushing functionality.
The control system continuously monitors the movement and load of the gate during operation.
If unexpected resistance or an obstruction is detected, the system can respond according to the programmed safety settings.
Electronic obstacle detection should be used together with correctly installed external safety devices where required.
The sliding gate itself must also operate freely so excessive mechanical resistance does not interfere with the electronic safety system.
🧲 Magnetic Limit Switches
The FAAC C720 uses magnetic limit switches to determine the fully open and fully closed positions of the sliding gate.
Magnets positioned along the gate rack activate the operator’s limit switch system as the gate approaches each end of travel.
Magnetic limit switching provides reliable position detection without requiring mechanical limit switch levers to physically contact the gate.
Correct positioning of the limit magnets is essential during installation and commissioning.
🦷 4 Metres of Strengthened Nylon Racking
The Cyclo – C720 Kit includes four 1-metre lengths of strengthened nylon gate rack, providing a total of 4 metres of racking.
The rack mounts along the sliding gate and engages with the operator’s drive pinion.
As the operator rotates the pinion, the rack converts this rotational movement into linear movement of the sliding gate.
The strengthened nylon construction provides:
- Quiet operation
- Smooth pinion engagement
- Corrosion resistance
- Reduced operating noise
- Suitable strength for compatible residential sliding gates
- Simple modular installation
Additional compatible rack can be added where the gate installation requires more than the included 4 metres.
📡 FAAC Receiver Included
The Cyclo – C720 Kit includes a compatible FAAC radio receiver.
The receiver interfaces with the integrated E720 control system and receives coded commands from compatible FAAC transmitters.
This allows the gate to be conveniently controlled from a vehicle or other suitable location using the supplied remote transmitters.
Additional compatible transmitters can be programmed to the system where more users require access.
🎛️ Two FAAC Transmitters Included
Two compatible FAAC remote transmitters are supplied with the kit.
This provides remote gate access for two users or vehicles immediately after the automation system has been installed, programmed and commissioned.
Additional compatible transmitters can be added separately for:
- Additional vehicles
- Family members
- Employees
- Property managers
- Authorised users
- Spare remote controls
🚶 Partial Opening / Pedestrian Access
The integrated E720 control system provides partial opening functionality.
Rather than opening the sliding gate through its entire travel, a partial opening command can move the gate only the required distance to provide pedestrian access.
This is particularly useful where the driveway gate is also regularly used as the pedestrian entrance to the property.
The partial opening distance can be configured during system programming.
🔄 Smooth Opening & Closing Slowdown
The C720’s electronic control system and encoder allow the gate to slow down as it approaches the end of its opening and closing travel.
Rather than travelling at full speed directly into the final stopping position, the operator progressively reduces gate speed.
This provides smoother operation while helping reduce mechanical shock on:
- Gate wheels
- Gate rack
- Drive pinion
- Gate frame
- Guide rollers
- Mechanical stops
- Operator mounting system
The combination of fast main travel and controlled slowdown provides both efficient access and refined gate movement.
🔒 Self-Locking Operation
The FAAC C720 incorporates a self-locking drive system.
When the operator is stationary, the transmission mechanically resists movement of the sliding gate.
This means an additional electric gate lock is generally not required for normal compatible residential sliding gate installations.
Additional locking may still be appropriate where the property has specific security requirements.
🔑 Manual Release System
The C720 incorporates a protected manual release mechanism.
If mains power is unavailable or the automation requires servicing, the drive can be manually disengaged to allow the sliding gate to be moved by hand.
Once normal operation is available again, the operator can be re-engaged.
The gate must remain capable of smooth manual movement throughout its entire travel.
🧱 Foundation Plate Included
The Cyclo – C720 Kit includes the correct foundation plate for mounting the operator.
The foundation plate provides the secure mounting interface between the C720 and the concrete foundation.
Correct foundation plate positioning is critical to ensure:
- Correct operator height
- Correct pinion-to-rack engagement
- Proper gate alignment
- Secure operator mounting
- Sufficient adjustment during installation
The concrete foundation and mounting arrangement must be capable of supporting the forces generated during gate operation.
🌧️ Designed for Outdoor Installation
The FAAC C720 is designed specifically for external sliding gate automation.
The operator features an IP44 protection rating and is designed to operate across a wide range of environmental conditions.
Correct installation is still important to prevent water accumulation around the operator and protect electrical connections and incoming power cabling.
🏡 Premium Residential Sliding Gate Automation
The FAAC Cyclo – C720 Kit is particularly well suited to residential installations where fast operation, compact dimensions and sophisticated electronic control are desired.
Typical applications include:
- Residential driveway gates
- Aluminium sliding gates
- Steel sliding gates
- Slatted sliding gates
- Architectural driveway gates
- Existing manual gate upgrades
- New automated gate installations
- Higher-use residential entrances
The combination of fast 18m/min travel, 24Vdc motor technology, absolute encoder feedback and FAAC’s Cyclo transmission provides a premium residential sliding gate automation solution.
🛠️ Gate Condition Is Important
A sliding gate operator should never be used to compensate for a poorly operating gate.
Before automation is installed, the sliding gate should:
- Roll freely throughout its entire travel
- Have correctly aligned wheels
- Have a straight and correctly installed track
- Have correctly positioned guide rollers
- Have no excessive lateral movement
- Have suitable physical end stops
- Be structurally sound
- Be free from excessive mechanical resistance
A correctly installed sliding gate should be capable of being moved manually without excessive force.
Excessive rolling resistance increases the load placed on the operator and can interfere with electronic obstacle detection.
⭐ Key Features
- Genuine FAAC Cyclo sliding gate automation package
- FAAC C720 24Vdc sliding gate operator
- Patented FAAC Cyclo reduction technology
- Suitable for sliding gates up to 400kg
- Fast gate speed up to 18m/min
- 24Vdc motor technology
- Integrated FAAC E720 control board
- Absolute encoder
- Electronic anti-crushing protection
- Electronic force management
- Magnetic opening and closing limit switches
- Opening and closing slowdown
- Partial opening / pedestrian access capability
- Automatic closing capability
- Self-locking drive system
- Manual release system
- Compact operator design
- Foundation plate included
- 4 x 1m strengthened nylon racking included
- 4 metres total racking
- Compatible FAAC receiver included
- 2 x compatible FAAC transmitters included
- IP44 protection
- Designed for premium residential sliding gate automation
🔧 Specifications
- Manufacturer: FAAC
- Model: C720
- Operator Type: Electromechanical Sliding Gate Operator
- Application: Residential Sliding Gates
- Motor Voltage: 24Vdc
- Reduction System: FAAC Cyclo
- Maximum Gate Weight: 400kg
- Maximum Gate Speed: 18m/min
- Maximum Pinion Torque: 18Nm
- Drive Pinion: Z28 Module 4
- Limit Switch Type: Magnetic
- Encoder: Absolute Encoder
- Control Board: Integrated E720
- Electronic Force Management: Yes
- Anti-Crushing Protection: Yes
- Opening / Closing Slowdown: Yes
- Partial Opening: Yes
- Manual Release: Yes
- Self-Locking: Yes
- Protection Rating: IP44
- Operating Temperature: -20°C to +55°C
- Operator Weight: Approximately 8kg
- Foundation Plate: Included
- Gate Rack: 4 x 1m Strengthened Nylon Rack
- Total Included Rack: 4m
- Radio Receiver: Included
- Remote Transmitters: 2 Included
🔗 Compatibility
The FAAC Cyclo – C720 Kit is designed for compatible residential sliding gates weighing up to 400kg.
The included strengthened nylon racking must be correctly installed and aligned with the C720 drive pinion.
Additional compatible rack will be required where the gate installation requires more than the included 4 metres.
The gate must roll freely, be correctly guided and be structurally suitable for automation before installation.
Compatible FAAC Safety Beams and additional access control accessories can be added separately where required.
⚠️ Please Note
This bundle includes:
- 1 x FAAC C720 Sliding Gate Operator
- 1 x Foundation Plate
- 4 x 1m Strengthened Nylon Racking
- 1 x Receiver
- 2 x Transmitters
Safety Beams, flashing lights, key switches and other access or safety accessories are not included unless separately specified.
The 400kg rating is the maximum gate weight specified for the FAAC C720. Gate condition, rolling resistance, installation quality, usage requirements and environmental conditions must also be considered when selecting an operator.
The included 4 metres of racking may not be sufficient for every installation. Measure the required rack length before installation and order additional compatible rack where necessary.
The gate must have suitable physical end stops and must roll smoothly throughout its entire travel before automation is installed.
For safety and correct operation, the system should be installed and commissioned in accordance with FAAC installation instructions and applicable Australian requirements.
