Description
FAAC B614 24Vdc Barrier Kit
The FAAC B614 24Vdc Barrier Kit provides a complete automatic boom gate solution for residential, commercial and controlled vehicle access applications.
Built around the FAAC B614 24Vdc Barrier Operator, this composite kit combines the barrier operator with the boom arm and associated installation components required to create a complete barrier system.
Simply select the required boom configuration and the appropriate components can be supplied together as one complete package.
The B614 features a powerful 24V motor, integrated encoder, continuous-duty operation and the sophisticated FAAC E614 electronic control board, providing fast, smooth and highly configurable vehicle access control.
🚧 Complete FAAC B614 Barrier System
Rather than purchasing the barrier operator and individual boom components separately, this kit brings together the main components required for a complete B614 installation.
The kit is built around the genuine FAAC B614 barrier operator and includes the appropriate boom and associated hardware for the selected configuration.
Ideal for:
- Residential complexes
- Apartment buildings
- Strata properties
- Commercial car parks
- Office buildings
- Business premises
- Private roads
- Staff parking areas
- Controlled vehicle entrances
- Light industrial properties
📏 Select Your Required Boom Length
The B614 is a modular barrier system, allowing the boom and balancing components to be configured according to the required entrance width.
Select the required boom configuration when ordering and the kit will be supplied with the appropriate components for that setup.
Available configurations include boom lengths up to 6 metres.
The exact boom construction, balancing spring and associated hardware supplied will depend on the selected boom configuration.
⚡ FAAC B614 24Vdc Barrier Operator
At the heart of the kit is the FAAC B614 24Vdc electromechanical barrier operator.
FAAC specifies:
- Incoming power supply: 220–240V AC, 50/60Hz
- Electric motor: 24V DC brushed
- Maximum power: 165W
- Maximum torque: 300Nm
- Use frequency: Continuous
- Integrated electronic control: FAAC E614
- Encoder: Integrated incremental encoder
The low-voltage drive system provides precise electronic control over the movement of the barrier while supporting high-frequency vehicle access applications.
🏎️ Fast Barrier Operation
The B614 is designed to minimise waiting time at vehicle entrances.
With an appropriate 3 metre boom configuration, the B614 can complete an 80° opening movement in less than 2 seconds.
This makes it particularly suitable for busy entrances where fast vehicle access is important.
Operating speed varies according to:
- Boom length
- Boom configuration
- Accessories fitted to the boom
- Balancing arrangement
- Electronic programming
Longer boom configurations will operate differently from shorter boom arrangements and must be correctly balanced.
♾️ Continuous-Duty Operation
The FAAC B614 is designed for continuous-duty operation.
This makes it particularly well suited to frequently operated entrances such as:
- Apartment car parks
- Shared residential entrances
- Commercial car parks
- Staff parking areas
- Business premises
- High-use private entrances
🧠 Integrated E614 Control Board
The B614 incorporates the FAAC E614 electronic control board directly inside the barrier cabinet.
The E614 provides extensive control over the operation and behaviour of the barrier system.
Functions include:
- Programmable operating logic
- Automatic closing
- Adjustable pause time
- Opening and closing speed adjustment
- Electronic force adjustment
- Controlled acceleration
- Controlled deceleration
- Obstacle detection
- Safety device management
- Partial operating functions
- Service cycle counter
- Maintenance request programming
- Pre-flashing
- Programmable outputs
- Traffic light control
- Boom lighting control
- Battery operation
- Primary/Secondary barrier operation
Programming is performed through the onboard interface within the barrier cabinet.
🎯 Integrated Encoder
The B614 motor incorporates an incremental encoder which continuously provides movement feedback to the E614 electronic control system.
Encoder feedback assists with:
- Barrier position monitoring
- Electronic obstacle detection
- Anti-crushing functionality
- Motor force management
- Speed management
- Controlled acceleration
- Controlled deceleration
- Automatic reversal when an obstacle is detected
Appropriate external safety devices should still be incorporated into the complete barrier installation.

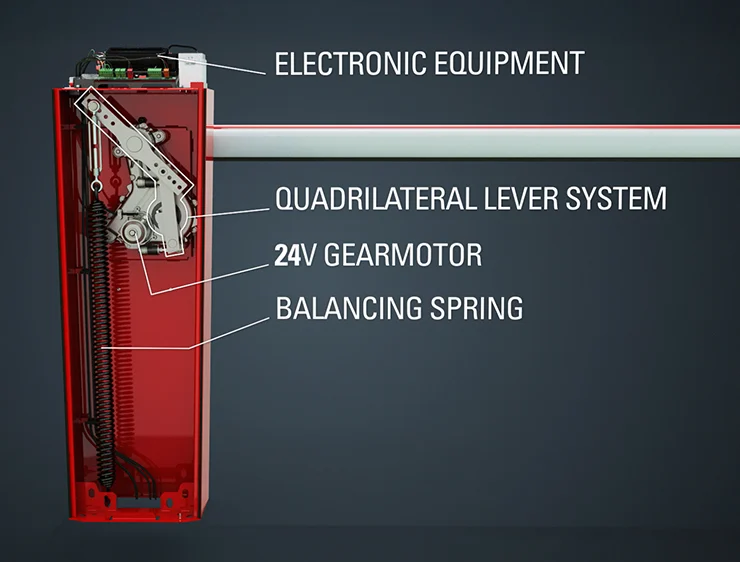

⚙️ Correctly Balanced for the Boom
Correct counterbalancing is critical to the operation of an automatic barrier.
The B614 uses a spring balancing system to counteract the weight of the boom arm.
The required spring configuration depends on:
- Boom length
- Boom type
- Boom accessories
- LED lighting
- Skirts or additional accessories
- End supports or other equipment
The appropriate balancing components are therefore selected according to the boom configuration chosen for the kit.
Correct balancing reduces unnecessary load on the motor and transmission while providing smooth and reliable barrier movement.
🔄 Left or Right-Hand Installation
The FAAC B614 can be configured for either left-hand or right-hand boom operation.
This allows the barrier to be adapted to the layout of the driveway or vehicle entrance.
The barrier is configured during installation according to the required boom direction.
🔋 Optional Battery Backup
Optional battery backup can be added to the B614 system.
When appropriate FAAC battery equipment is installed, the barrier can continue to provide limited operation during a mains power failure.
Battery operation can be managed through the E614 electronic control system.
Battery backup is optional unless specifically selected or stated as included.
📡 Remote Control & Access Control
The B614 can be integrated with a wide range of access control systems.
Depending on the equipment selected, the barrier can be operated using:
- FAAC remote transmitters
- Keypads
- Key switches
- Intercom systems
- Card readers
- Vehicle access control systems
- Number plate recognition systems
- GSM access systems
- Wired access control inputs
- Vehicle loop detectors
This allows the same B614 platform to be configured for anything from a private driveway through to a controlled commercial car park.
🔗 BUS 2easy Safety Accessories
The E614 supports compatible FAAC BUS 2easy safety devices.
BUS 2easy provides simplified two-wire communication between the control board and compatible FAAC accessories.
Suitable safety equipment can include:
- Photocells
- Vehicle presence detection
- Safety loops
- Additional control devices
- Other appropriate barrier safety systems
The required safety equipment depends on the layout and operation of the individual installation.
🚦 Optional Traffic Light
An optional red and green traffic light can be incorporated into the B614 system.
This can provide drivers with a clear indication of when they may proceed through the barrier.
Traffic light control is particularly useful for:
- Commercial car parks
- One-way entrances
- Shared vehicle access
- Controlled entry and exit points
- High-traffic installations

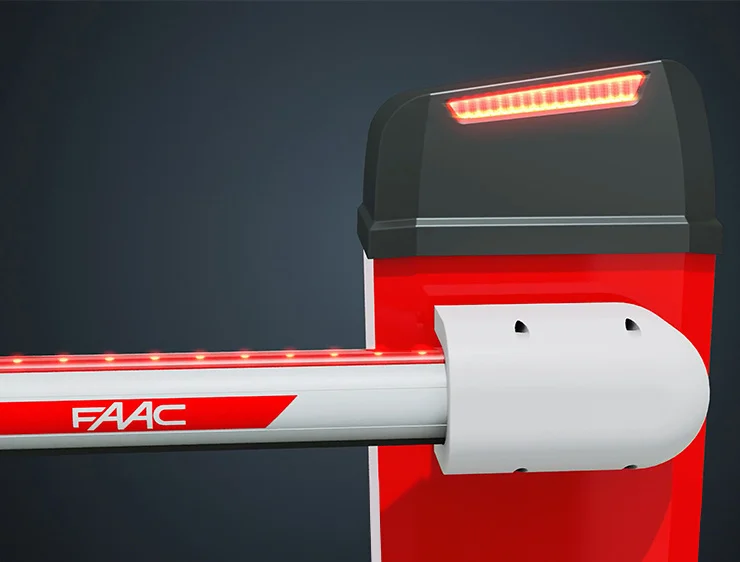

💡 Optional Boom Lighting
Compatible B614 boom configurations can also incorporate LED lighting.
Boom lighting can significantly improve the visibility of the barrier during:
- Night operation
- Poor weather
- Underground car park operation
- Low-light conditions
Reflective markings can also be fitted to further improve boom visibility.
🔁 Dual Barrier Operation
For particularly wide entrances, two B614 barriers can be installed opposite each other.
The E614 supports Primary/Secondary operation, allowing two appropriately configured barriers to operate together.
This provides a solution for entrances where a single long boom is unsuitable or where two opposing barriers are preferred.
🔑 Manual Release
The B614 incorporates a manual release system allowing the barrier mechanism to be disengaged when required.
This allows the boom to be manually operated during:
- Power failures
- System faults
- Servicing
- Maintenance
- Emergency situations
Optional battery backup can also be added where continued automatic operation during a power failure is required.
🏗️ Robust Outdoor Construction
The FAAC B614 uses a heavy-duty steel cabinet designed for external vehicle access installations.
The cabinet incorporates corrosion protection and a durable powder-coated finish.
FAAC specifies:
- Operating temperature: -20°C to +55°C
- Barrier protection rating: IP44
- E614 control equipment protection: IP55
- Barrier operator weight: approximately 40kg
Correct foundation preparation, drainage, electrical installation and earthing are essential for reliable long-term operation.
📦 What’s Included
The FAAC B614 Barrier Kit is configured according to the selected boom length.
The complete kit includes the core components required to assemble the barrier system, including:
- 1 × FAAC B614 24Vdc Barrier Operator
- FAAC E614 Electronic Control Board
- Appropriate Barrier Boom Arm
- Appropriate Boom Mounting Components
- Appropriate Balancing Spring Configuration
- Required Boom Installation Hardware
- Manual Release System
The exact boom, spring and associated components supplied will depend on the selected boom configuration.
Additional access control and safety equipment can be added separately according to the requirements of the installation.
Key Features
- Complete FAAC B614 barrier kit
- Genuine FAAC B614 24Vdc barrier operator
- Boom and required installation accessories included
- Configurable boom lengths up to 6m
- Correct balancing components supplied for selected configuration
- 24V electromechanical operation
- 165W maximum power
- 300Nm maximum torque
- Fast barrier operation
- Continuous-duty operation
- Integrated FAAC E614 control board
- Integrated incremental encoder
- Electronic obstacle detection
- Anti-crushing functionality
- Adjustable opening and closing speed
- Electronic force adjustment
- Controlled acceleration and deceleration
- Left or right-hand installation
- BUS 2easy compatibility
- FAAC radio receiver compatibility
- Optional battery backup
- Optional boom LED lighting
- Optional traffic light control
- Primary/Secondary operation
- Suitable for residential and commercial vehicle access
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Model: B614
- Product Type: Complete Automatic Barrier Kit
- Application: Residential / Commercial Vehicle Access
- Incoming Power Supply: 220–240V AC, 50/60Hz
- Electric Motor: 24V DC Brushed
- Maximum Power: 165W
- Maximum Torque: 300Nm
- Boom Configuration: Selected When Ordering
- Available Boom Lengths: Up to 6m
- Opening Time: Less than 2 seconds at 80° with appropriate 3m boom
- Use Frequency: Continuous
- Encoder: Incremental, Integrated in Motor
- Deceleration: Electronic + Mechanical
- Electronic Control Board: FAAC E614
- Speed Adjustment: Electronic
- Force Adjustment: Electronic
- BUS 2easy: Yes
- Left / Right Configuration: Yes
- Radio Receiver: Optional
- Battery Backup: Optional
- Operating Temperature: -20°C to +55°C
- Barrier Protection Rating: IP44
- Control Equipment Protection Rating: IP55
- Barrier Operator Weight: Approx. 40kg
Compatibility
The FAAC B614 Barrier Kit can be integrated with appropriate:
- FAAC radio receivers
- FAAC remote transmitters
- FAAC BUS 2easy photocells
- Conventional photocells
- Vehicle loop detectors
- Safety loops
- Boom LED lighting
- Traffic light systems
- Boom supports
- Key switches
- Keypads
- Intercom systems
- Card readers
- GSM access systems
- Number plate recognition systems
- Wired access control equipment
- Optional battery backup equipment
🆚 Operator Only or Complete Kit?
FAAC B614 24Vdc Barrier Operator – 104614:
- Barrier operator only
- E614 electronic control included
- Boom not included
- Balancing spring not included
- Boom mounting components not included
- Designed for customers selecting their own B614 components
FAAC B614 24Vdc Barrier Kit:
- Complete configurable barrier package
- B614 operator included
- E614 electronic control included
- Boom arm included
- Required boom mounting components included
- Appropriate balancing components included
- Supplied according to selected boom configuration
- Available in configurations up to 6m
- This product
For customers installing a complete new barrier system, the B614 Barrier Kit provides the easiest way to ensure the major mechanical components are correctly matched.
⚠️ Please Note
This product is a configurable composite kit based around the FAAC B614 24Vdc Barrier Operator.
The exact components supplied depend on the boom length and configuration selected when ordering.
Boom length has a significant effect on the required balancing spring and installation hardware. The appropriate components will be supplied according to the selected configuration.
Operating speed varies according to boom length, accessories, balancing and electronic programming. The quoted opening time of less than 2 seconds relates to an appropriate 3 metre boom configuration.
Radio receivers, remote transmitters, photocells, loop detectors, access control equipment, battery backup and other optional accessories are not included unless specifically selected or stated.
Automatic barriers are designed primarily for controlling vehicle access. Appropriate safety devices must be selected and installed according to the layout and operation of the complete system.
If you are unsure which FAAC B614 configuration or additional safety equipment is required for your installation, contact our Technical Support team on 1300 733 066.
