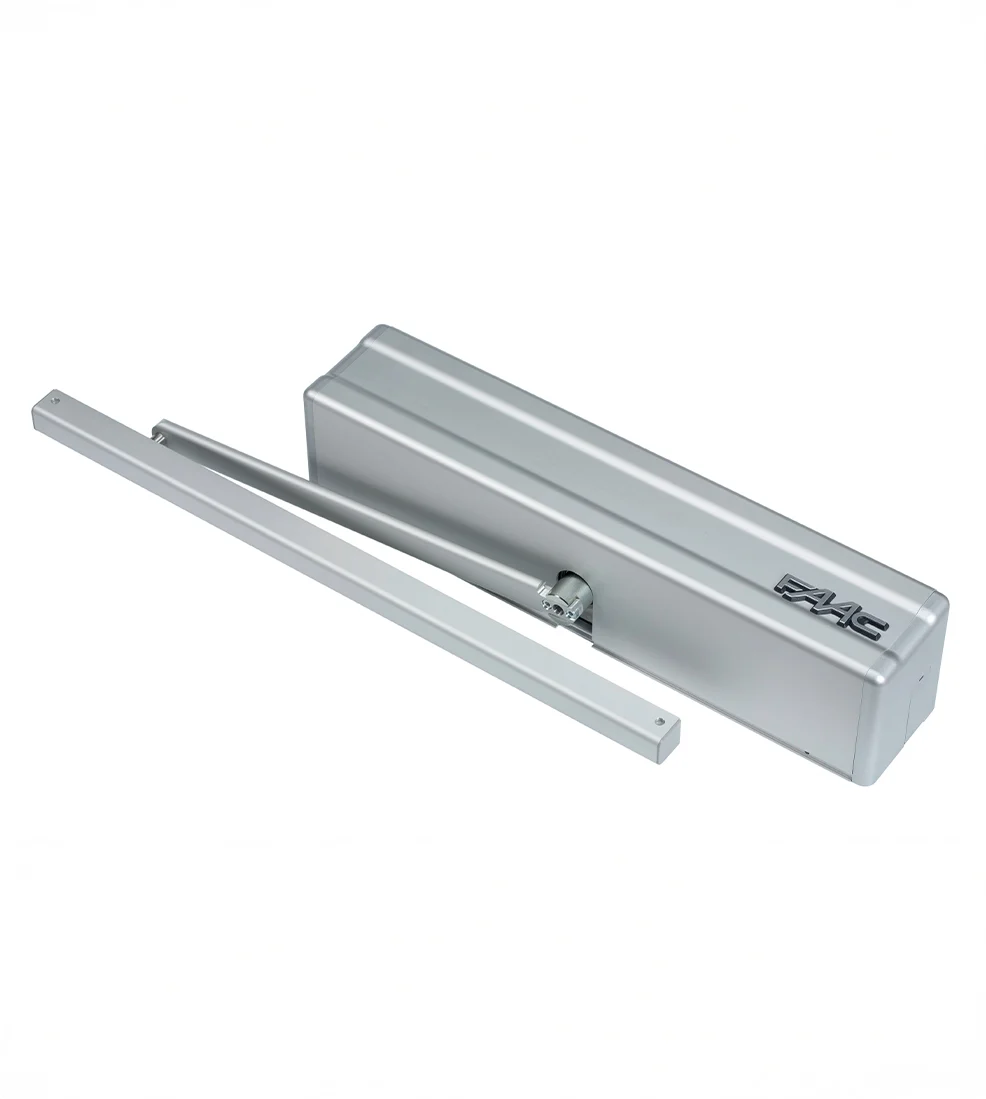

🚪 FAAC 950N2 Swing Door Operator
The FAAC 950N2 Swing Door Operator is a premium commercial automatic door system designed to provide smooth, quiet, and reliable operation in demanding environments. Combining intelligent electronic control with robust mechanical construction, the 950N2 is ideal for hospitals, offices, retail centres, schools, hotels, airports, aged care facilities and public buildings where dependable automatic access is essential.
Suitable for both new installations and retrofit applications, the operator delivers precise door movement, advanced safety features and continuous-duty performance for high-traffic pedestrian entrances.
⚙️ Continuous Commercial Performance
The FAAC 950N2 has been engineered for continuous commercial operation with a 100% duty cycle.
It features a powerful 24V DC electromechanical motor with integrated encoder technology, providing:
- Smooth and quiet door movement
- Reliable operation throughout the day
- Reduced mechanical wear
- Precise electronic positioning
- Long service life
Perfect for busy commercial entrances with constant pedestrian traffic.
🧠 Intelligent Electronic Control
The advanced microprocessor control system manages every aspect of the operator’s performance.
Features include:
- Adjustable opening speed
- Adjustable closing speed
- Adjustable hold-open time
- Partial opening function
- Soft start and soft stop
- Self-diagnostic monitoring
- Encoder position control
- Multiple programmable operating modes
The intelligent controller ensures consistent operation while allowing installers to customise the door to suit individual applications.
🛡️ Advanced Safety Features
Safety is built into every movement of the FAAC 950N2.
The integrated encoder continuously monitors the door and detects unexpected resistance, allowing the operator to respond quickly to obstructions.
Safety functions include:
- Intelligent obstacle detection
- Automatic obstruction response
- Encoder monitoring
- Safety sensor compatibility
- Low energy operation
- Programmable safety logic
These features help provide safe operation in busy commercial environments.
🔇 Smooth & Quiet Operation
The FAAC 950N2 has been designed to operate with exceptionally smooth acceleration and deceleration.
Benefits include:
- Reduced operating noise
- Improved user comfort
- Less stress on hinges
- Longer component life
- Premium entrance appearance
Its quiet performance makes it particularly suitable for hospitals, consulting rooms, libraries and office buildings.
🔧 Flexible Installation Options
The operator is suitable for a wide variety of door configurations.
Compatible with:
- Push or pull installations
- Left or right hand doors
- Internal entrances
- Protected external entrances
- Single swing doors
- Double swing door systems
Multiple arm configurations are available to suit different installation requirements and architectural layouts.
💪 Heavy Duty Door Automation
Despite its compact design, the FAAC 950N2 is capable of automating large commercial doors.
Depending on the selected arm configuration it can automate:
- Doors up to 367kg with an articulated arm
- Doors up to 286kg with a sliding arm
- Door widths up to 1400mm
This makes it suitable for a broad range of commercial entrance applications.
🔋 Manual Operation During Power Failure
If mains power is interrupted, the FAAC 950N2 allows the door to continue operating manually.
Benefits include:
- Easy manual opening
- Safe manual closing
- Continued building access
- Protection of internal components
Ideal for buildings where uninterrupted access is important.
🏗️ Built for Long-Term Reliability
Every component has been designed for dependable commercial performance.
Construction features include:
- Heavy-duty aluminium housing
- Precision gearbox
- Commercial-grade components
- Compact modern design
- Low maintenance operation
The durable construction ensures years of reliable service even in demanding environments.
📋 Technical Specifications
- Power Supply: 220–240V AC
- Motor: 24V DC Electromechanical
- Duty Cycle: 100%
- Maximum Door Width: 1400mm
- Maximum Door Weight:
- 367kg (Articulated Arm)
- 286kg (Sliding Arm)
- Opening Angle: Up to 125°
- Operating Temperature: -20°C to +55°C
- Protection Rating: IP23
- Housing Finish: Silver Anodised Aluminium
⭐ Key Features
- Premium commercial swing door operator
- Quiet 24V DC motor with integrated encoder
- Continuous-duty commercial operation
- Intelligent microprocessor control
- Smooth soft-start and soft-stop movement
- Advanced obstacle detection
- Adjustable operating parameters
- Partial opening function
- Single or double door compatibility
- Push or pull installation
- Manual operation during power failure
- Modern anodised aluminium housing
