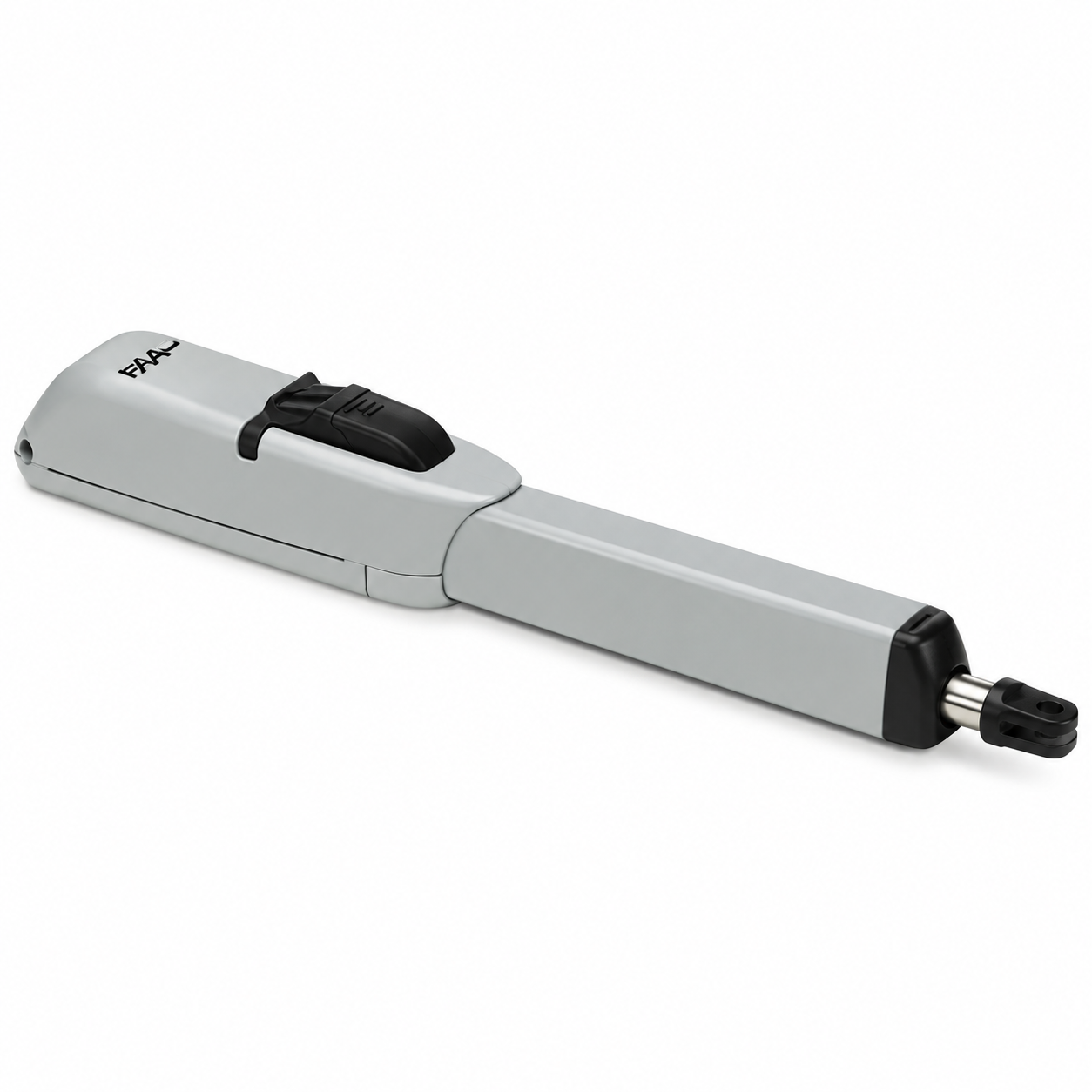

FAAC 415 L 24V Swing Gate Operator – 1044171
The FAAC 415 L 24V is a long-stroke electromechanical swing gate operator designed for larger residential and light-commercial gates requiring additional operator travel.
Featuring a 400mm rod stroke, powerful 2800N maximum thrust and continuous-duty 24V operation, the 415 L provides smooth and reliable automation for individual swing gate leaves up to 3 metres long, or up to 4 metres when fitted with an electric lock.
The extended 400mm stroke also makes the 415 L particularly useful where gate geometry, large pillars or increased hinge offsets require additional operator travel.
FAAC Part Number: 1044171
⚙️ 24Vdc Electromechanical Drive
The FAAC 415 L uses a brushed 24Vdc motor combined with a linear electromechanical drive system.
The operator provides:
- Maximum power: 70W
- Maximum expressed force: 2800N
- Maximum rod speed: 16mm/sec
- Rod travel: 400mm
- Continuous-duty operation
The 24V platform also allows advanced movement control, obstacle detection and optional battery backup when paired with compatible FAAC control equipment.
↔️ 400mm Long-Stroke Design
The 415 L is the long-stroke version of the FAAC 415.
Its 400mm rod travel provides an additional 100mm of movement compared with the standard 300mm FAAC 415.
This extended travel can be particularly useful for:
- Larger swing gates
- Wide gate pillars
- Increased hinge offsets
- Deeper operator mounting positions
- Installations requiring extended mounting geometry
🚪 Gate Leaves Up to 4 Metres
FAAC specifies the 415 L 24V for:
- Gate leaves up to 3m without an electric lock
- Gate leaves up to 4m when fitted with an electric lock
For gate leaves exceeding 3 metres, an electric lock is required to ensure secure gate leaf locking.
Actual operator suitability also depends on gate construction, weight, hinge condition, wind loading and installation geometry.
💪 2800N Maximum Force
The 415 L 24V provides up to 2800N of maximum expressed force.
This allows the compact linear operator to automate substantial swing gates while retaining controlled electromechanical movement.
Operating force and safety parameters are managed through the compatible electronic control system.
♾️ Continuous-Duty 24V Operation
FAAC rates the 24V version of the 415 for continuous use.
This makes the 415 L 24V suitable for applications including:
- Residential driveways
- Shared residential entrances
- Strata properties
- Apartment entrances
- Light-commercial properties
- Frequently operated swing gates
🧠 Virtual Encoder & Obstacle Detection
When used with compatible FAAC 24V control equipment, the 415 L can utilise virtual encoder functionality for electronic gate movement monitoring.
The control system can provide functions including:
- Electronic anti-crushing protection
- Obstacle detection
- Reverse on obstacle
- Controlled acceleration and deceleration
- Soft gate movement
An optional absolute encoder is also available for compatible system configurations where enhanced position monitoring is required.
🔋 Optional Battery Backup
The 24Vdc system allows an optional emergency battery backup to be incorporated into the automation system.
When installed with compatible FAAC control equipment and batteries, the gate can continue operating during a mains power failure.
Battery backup equipment is separate from the individual operator.
🔒 Self-Locking Drive
The electromechanical drive provides self-locking operation for gate leaves up to 3 metres long.
For gate leaves exceeding 3 metres and up to the maximum 4 metre leaf length, FAAC requires an electric lock to ensure secure gate leaf locking.
🔓 Key-Operated Manual Release
The FAAC 415 L incorporates a key-protected manual release mechanism.
This allows the drive to be disengaged so the gate can be manually operated when required during servicing or in the event of a system or power failure.
📐 Up to 110° Gate Opening
The FAAC 415 L provides a maximum gate leaf opening angle of approximately 110° when installed within the required mounting geometry.
Correct front and rear mounting dimensions are essential to achieve the required travel and ensure the operator works within its intended mechanical range.
🌦️ Outdoor Gate Automation
The 415 L is designed for external gate automation and carries an IP54 protection rating.
FAAC specifies an operating ambient temperature range from -20°C to +55°C.
The horizontal cable exit also allows the operator to be positioned relatively close to ground level where required by the installation.
📦 Operator Supplied
This listing includes:
- 1 × FAAC 415 L 24V Electromechanical Swing Gate Operator
- Installation Accessories
- Manual Release Key
FAAC Part Number: 1044171
Electronic control equipment, receiver, remotes, photocells, electric lock and battery backup equipment are separate unless specifically included as part of a package.
Key Features
- Genuine FAAC swing gate operator
- FAAC Part Number: 1044171
- Long-stroke 415 L version
- 24Vdc brushed motor
- 70W maximum power
- 2800N maximum expressed force
- 400mm rod travel
- 16mm/sec maximum rod speed
- Maximum gate leaf length of 3m without electric lock
- Maximum gate leaf length of 4m with electric lock
- Maximum opening angle approximately 110°
- Continuous-duty operation
- Virtual encoder functionality with compatible controls
- Electronic obstacle detection
- Anti-crushing functionality
- Optional absolute encoder available
- Optional battery backup capability
- Key-operated manual release
- IP54 protection
- Suitable for residential and light-commercial applications
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Model: 415 L 24V
- Part Number: 1044171
- Product Type: Linear Electromechanical Swing Gate Operator
- Motor: Brushed 24Vdc
- Maximum Power: 70W
- Maximum Expressed Force: 2800N
- Maximum Rod Speed: 16mm/sec
- Rod Travel: 400mm
- Maximum Gate Opening Angle: 110°
- Maximum Leaf Without Electric Lock: 3m
- Maximum Leaf With Electric Lock: 4m
- Use Frequency: Continuous
- Operating Temperature: -20°C to +55°C
- Protection Rating: IP54
- Operator Weight: Approx. 8kg
- Dimensions: Approx. 942 × 101 × 148mm
- Rear Attachment: Welded / Screwed
- Front Attachment: Welded
- Electronic Control Equipment: Not Included
- EAN: 8055195013566
Compatibility
Designed for compatible FAAC 24V swing gate automation systems.
Suitable for:
- Single swing gates
- Double swing gates
- Residential driveways
- Strata and shared residential gates
- Light-commercial entrances
- Gate leaves up to 3m without electric lock
- Gate leaves up to 4m with electric lock
- Installations requiring a 400mm long-stroke operator
Compatible FAAC control equipment, safety devices and accessories should be selected according to the complete gate automation system.
🔄 415 24V vs 415 L 24V
FAAC 415 24V – 1044151:
- 300mm rod stroke
- Maximum leaf 2.5m without electric lock
- Maximum leaf 3m with electric lock
- Approx. 7.8kg
FAAC 415 L 24V – 1044171:
- 400mm rod stroke
- Maximum leaf 3m without electric lock
- Maximum leaf 4m with electric lock
- Approx. 8kg
The 415 L is therefore the appropriate version where additional operator travel or greater gate leaf length is required.
⚠️ Please Note
This listing is for FAAC part number 1044171, the 415 L 24V long-stroke swing gate operator.
This is the 400mm stroke version and should not be confused with the standard FAAC 415 24V 1044151, which has a 300mm stroke.
For gate leaves exceeding 3 metres, FAAC requires an electric lock. The maximum specified gate leaf length with an electric lock is 4 metres.
The electronic control board, enclosure, radio receiver, transmitters, photocells, electric lock, battery backup and other system accessories are separate unless specifically included as part of a package.
Maximum gate dimensions are manufacturer limits and do not automatically mean every gate within those dimensions is suitable. Gate construction, weight, wind loading, hinge condition and installation geometry must also be considered.
If you are unsure whether the FAAC 415 L 24V 1044171 is suitable for your gate, contact our Technical Support team on 1300 733 066.
