Description
The FAAC 415 24Vdc Swing Gate Operator Bundle provides a flexible way to build a complete FAAC swing gate automation system, allowing you to select the components required for your particular installation.
Start by choosing either one operator for a single swing gate or two operators for a pair of swing gates, then configure your system with your preferred compatible control board, receiver, remote controls, safety beams and optional battery backup.
At the heart of the bundle is the genuine FAAC 415 24V electromechanical linear operator, a proven swing gate operator offering powerful 2800N maximum thrust, continuous-use capability and smooth 24Vdc operation. FAAC offers the standard 415 24V for gate leaves up to 2.5m without an electric lock, or up to 3m when an appropriate electric lock is fitted.

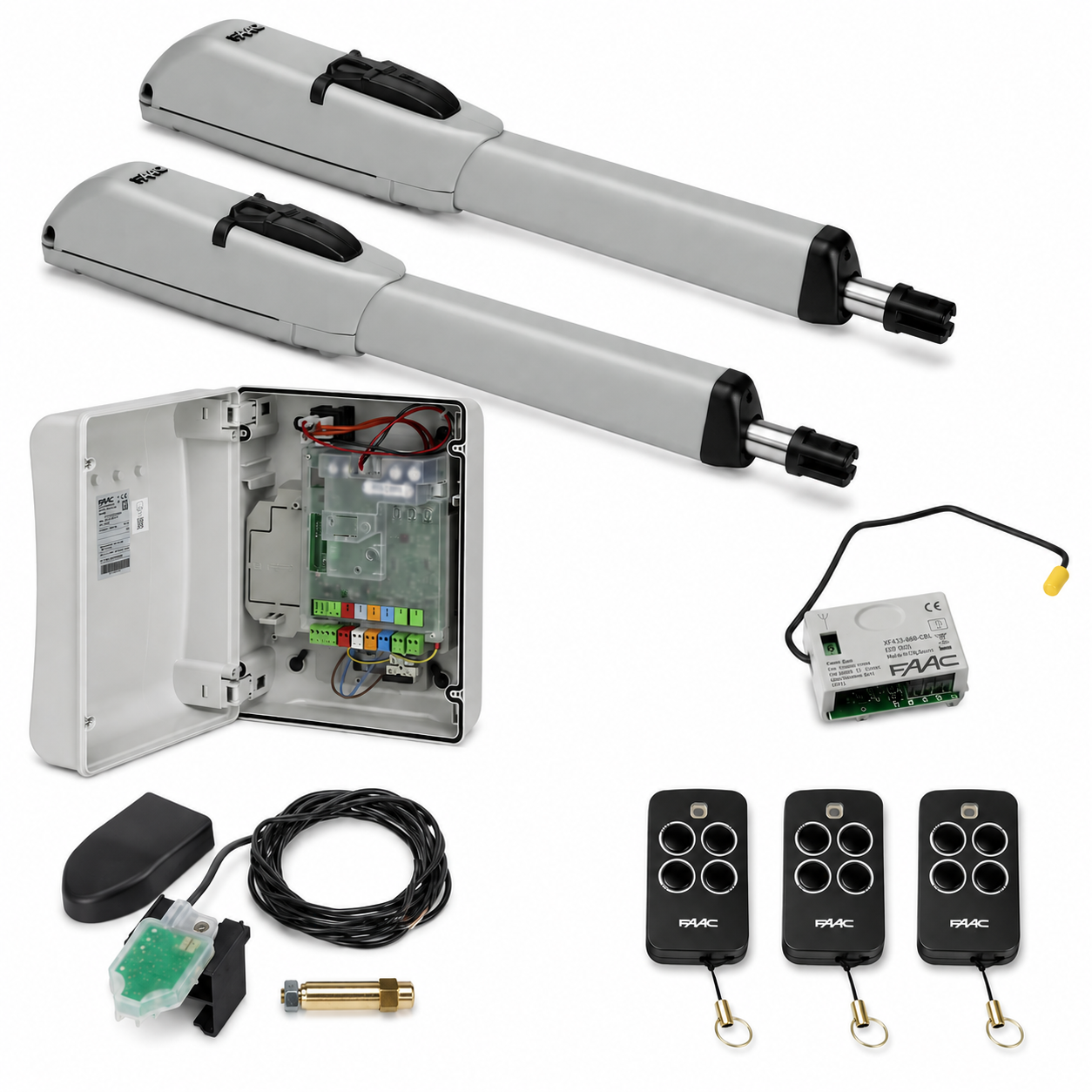

📦 Build Your Complete FAAC 415 System
Rather than purchasing the individual automation components separately, this bundle allows you to configure a complete system to suit your gate.
Available selections include:
- 1 or 2 FAAC 415 24Vdc Operators
- Compatible FAAC Control Board
- Compatible Radio Receiver
- Remote Controls
- Safety Beams
- Battery Backup
This makes the bundle suitable for both single and double swing gate installations and allows the control and accessory package to be configured according to the requirements of the property.
🚪 Choose 1 or 2 Operators
Select the number of FAAC 415 operators according to your gate configuration.
For a single swing gate, select:
- 1 x FAAC 415 24Vdc Operator
For a pair of swing gates, select:
- 2 x FAAC 415 24Vdc Operators
Compatible FAAC 24V control boards can manage either single or double swing gate configurations, allowing the system to be programmed appropriately for the number of operators installed.
⚙️ FAAC 415 24Vdc Electromechanical Operator
The FAAC 415 is an electromechanical linear swing gate operator that uses a worm-screw drive system to move the gate leaf.
Its slim in-axis design allows the operator to be installed neatly between the gate leaf and post while providing powerful and controlled movement.
The standard 415 24V provides:
- 24Vdc motor
- 2800N maximum expressed force
- 300mm rod travel
- Up to 110° maximum opening angle
- Continuous-use rating
- IP54 protection
- Manual release system
- Self-locking operation within the specified gate dimensions
FAAC specifically describes the 24V version as suitable for continuous use.
💪 Powerful 2800N Maximum Force
Despite its compact linear design, the FAAC 415 24V develops up to 2800N of maximum expressed force.
This provides strong and reliable gate movement while the compatible electronic control board manages operating force, slowdown and safety functions.
The gate must still be correctly installed, aligned and moving freely before automation is fitted. Gate size alone should not be used to determine operator suitability, particularly with solid gates exposed to significant wind loads.
📏 Suitable for Gate Leaves up to 3 Metres
The standard FAAC 415 24V has a 300mm stroke and is specified for swing gate leaves up to:
- 2.5m without an electric lock
- 3m with an appropriate electric lock
FAAC also produces the longer 415 L 24V with a 400mm stroke for larger gate leaves, but the standard 415 and 415 L should not be treated as interchangeable when determining installation geometry.
🔒 Self-Locking Operation
The FAAC 415 uses a non-reversing electromechanical drive arrangement that mechanically holds the gate when the motor is not operating.
For the standard 415 24V, FAAC identifies the operator as self-locking on gate leaves up to 2.5m. An electric lock is required when using the operator on longer leaves up to its 3m maximum application.
An electric lock can also be beneficial in applications exposed to high wind loads or where additional closed-gate security is desired.
🧠 Select Your FAAC Control Board
The bundle allows the appropriate compatible FAAC control board to be selected according to the functionality required from the gate automation system.
FAAC identifies the E024S and E124S as compatible electronic control units for the 415 24V.
Depending on the selected board, available functions can include:
- Single or double swing gate operation
- Automatic closing
- Pedestrian opening
- Adjustable operating forces
- Opening and closing slowdown
- Safety beam management
- Electric lock control
- Accessory inputs
- Radio receiver integration
- Battery backup support
This allows the same 415 operator platform to be configured for anything from a straightforward residential swing gate through to a more comprehensive access control system.
📡 Select Your Receiver
Choose a compatible FAAC receiver according to the remote control system you wish to use.
The receiver plugs into or connects with the selected compatible FAAC control board and receives commands from the coded remote controls.
FAAC’s example 415 24V installation uses an XF receiver connected to the compatible control board.
Selecting the appropriate receiver is important because the receiver technology determines which remote control system can be used with the automation.
🎛️ Add Your Remote Controls
Select the quantity and type of compatible FAAC remote controls required for your installation.
Additional remotes can be useful for:
- Multiple vehicles
- Family members
- Property managers
- Additional authorised users
- Spare transmitters
Depending on the receiver and control configuration, individual remote buttons can also be assigned to different functions such as full gate opening or pedestrian access.
🚶 Pedestrian Opening
A compatible FAAC control system can provide a pedestrian opening function for double swing gate installations.
Instead of opening both gate leaves, the pedestrian command can operate only the required leaf to provide convenient pedestrian access.
FAAC specifically identifies pedestrian opening as one of the functions available through compatible electronic control panels used with the 415.
This is particularly useful where the driveway gate is also regularly used as the property’s pedestrian entrance.
👁️ Add Safety Beams
The bundle allows compatible FAAC Safety Beams to be selected as part of the automation system.
Photoelectric safety beams create an infrared detection path across the gate opening. When a vehicle, person or other obstruction interrupts the beam, the control board can respond according to the programmed safety function.
Depending on the selected control board and photocell system, safety beams can be configured to protect:
- Closing movement
- Opening movement
- Opening and closing movement
- Specific areas around the gate’s travel
FAAC’s own example installation for the 415 24V incorporates a pair of XP20B D BUS photocells.
🚌 FAAC BUS 2easy Safety Technology
Where a compatible BUS 2easy control board and safety beam system are selected, FAAC’s BUS technology can simplify the connection of safety devices.
BUS 2easy accessories use a two-wire communication system, allowing compatible photocells and other safety equipment to communicate directly with the control board.
This can simplify installation while also providing greater flexibility when multiple safety devices are required.
🔋 Add Battery Backup
One of the major advantages of selecting the 24V version of the FAAC 415 is the availability of battery backup with compatible control equipment.
The optional battery system allows the automation to retain operation during a mains power failure, subject to battery condition, system configuration and operating demand.
FAAC specifically lists the XBAT 24 emergency battery kit as an accessory for the 415 24V system.
Battery backup can be particularly useful where:
- The automated gate is the property’s primary vehicle entrance
- There is no convenient alternative access
- Power failures are common
- Continued automated access is important during an outage
⚡ 24Vdc Motor Technology
The FAAC 415 24V uses a brushed 24Vdc electric motor with a maximum power rating of 70W.
The low-voltage motor system allows the compatible electronic control board to provide more sophisticated movement and safety management than a basic mains-powered operator arrangement.
The 24V platform also provides the foundation for optional emergency battery operation.
🛡️ Electronic Anti-Crush Protection
When paired with the appropriate FAAC 24V control system, the 415 can provide electronic anti-crushing protection.
FAAC identifies the 24V system as using an electronic control unit with anti-crushing functionality and a virtual encoder capable of reversing movement when an obstacle is detected.
This electronic monitoring works alongside correctly installed external safety devices such as photoelectric beams.
🔄 Smooth Gate Movement
The 415 is designed to provide controlled gate movement, and compatible FAAC control equipment can provide slowdown functionality near the end of travel.
FAAC notes that the optional slowdown function provides smoother gate motion and can help preserve the mechanical structure of the gate.
This can be particularly beneficial on larger or heavier fabricated swing gates where abrupt stopping can place unnecessary stress on hinges, brackets and gate frames.
🔑 Manual Release for Power Failure
Each FAAC 415 operator incorporates a key-operated manual release system.
If the automation cannot operate because of a power failure, equipment fault or maintenance requirement, the operator can be manually released so that the gate leaf can be moved by hand.
FAAC supplies the individual 415 operator with its installation accessories and release key.
🌧️ Designed for Outdoor Gate Automation
The FAAC 415 24V is designed specifically for external swing gate automation.
FAAC specifies:
- IP54 protection
- Operating temperature from -20°C to +55°C
- Horizontal cable exit for low mounting positions
The horizontal cable arrangement is particularly useful where the operator needs to be mounted relatively close to ground level.
🏡 Residential & Light Commercial Applications
The 415 24V is suitable for a wide variety of swing gate installations.
Typical applications include:
- Residential driveway gates
- Single swing gates
- Double swing gates
- Steel gates
- Aluminium gates
- Open-style gates
- Residential access systems
- Suitable light-commercial entrances
FAAC classifies the 415 24V for residential and light-commercial applications and specifies continuous-use capability for the 24V model.
📐 Installation Geometry Is Important
Linear swing gate operators rely heavily on the relationship between the gate hinge, mounting brackets and operator attachment points.
The maximum gate leaf dimensions alone do not guarantee that the 415 will fit a particular gate.
Before installation, consideration should be given to:
- Gate hinge position
- Gate post dimensions
- Required opening angle
- Rear bracket position
- Front attachment position
- Gate leaf construction
- Available operator clearance
- Mechanical gate stops
The mounting geometry specified by FAAC should be followed when determining operator position.
🧱 Mounting Brackets
FAAC supplies the 415 with the required operator installation accessories.
FAAC specifies a rear attachment that can be welded or screwed into position, while the front attachment is designed to be welded to the gate.
The mounting points must be sufficiently strong to withstand the forces generated during gate operation.
🏗️ Gate Construction & Wind Loading
The maximum leaf length specification should not be considered independently of the gate’s construction.
A large solid or clad swing gate can experience substantial wind loading, potentially placing significantly greater forces on the operator and mounting points than an open-style gate of the same dimensions.
Operator selection should therefore consider:
- Gate leaf length
- Gate weight
- Percentage of solid infill
- Wind exposure
- Hinge condition
- Gate frame rigidity
- Required opening angle
- Installation geometry
For large solid gates or unusually exposed installations, professional assessment is recommended before selecting the automation system.
📦 Bundle Options
Configure your FAAC 415 24Vdc Swing Gate Operator Bundle with your preferred combination of:
- 1 or 2 FAAC 415 24Vdc Operators
- Compatible FAAC Control Board
- Compatible FAAC Receiver
- FAAC Remote Controls
- Compatible Safety Beams
- Battery Backup
Simply select the required options above to build the automation package that best suits your gate installation.
Key Features
- Genuine FAAC 415 24Vdc automation
- Configurable complete swing gate operator bundle
- Select 1 or 2 operators
- Suitable for single or double swing gates
- 24Vdc electromechanical drive
- 2800N maximum expressed force
- 300mm operator stroke
- Up to 110° gate opening angle
- Continuous-use capability
- Self-locking up to 2.5m gate leaves
- Up to 3m gate leaf with appropriate electric lock
- Selectable compatible control board
- Selectable radio receiver
- Selectable remote controls
- Optional safety beams
- Optional battery backup
- Electronic anti-crush capability with compatible control equipment
- Pedestrian opening capability
- Automatic closing capability
- Manual key release
- IP54 protection
- Suitable for residential and appropriate light-commercial applications
Specifications
- Manufacturer: FAAC
- Model: 415 24V
- Operator Part Number: 1044151
- Operator Type: Linear Electromechanical Swing Gate Operator
- Motor Voltage: 24Vdc
- Maximum Power: 70W
- Maximum Expressed Force: 2800N
- Maximum Rod Speed: 16mm/s
- Rod Travel: 300mm
- Maximum Opening Angle: 110°
- Maximum Leaf Width Without Electric Lock: 2.5m
- Maximum Leaf Width With Electric Lock: 3m
- Duty: Continuous Use
- Protection Rating: IP54
- Operating Temperature: -20°C to +55°C
- Operator Weight: 7.8kg
- Operator Dimensions: 836 x 101 x 147mm
- Manual Release: Yes
- Battery Backup: Optional with compatible control equipment
- Control Board: Bundle Selection
- Receiver: Bundle Selection
- Remotes: Bundle Selection
- Safety Beams: Bundle Selection
- Number of Operators: 1 or 2
This is a configurable bundle. Please select the required number of operators, control board, receiver, remote controls, Safety Beams and Battery Backup options before adding the product to your cart.
One operator is required for a single swing gate and two operators are required for a double swing gate.
The standard FAAC 415 24V is self-locking on gate leaves up to 2.5m. For leaves over 2.5m and up to the 3m maximum, FAAC requires an appropriate electric lock.
Gate dimensions are only one factor in operator selection. Gate weight, construction, wind loading, hinge position and installation geometry must also be considered.
If you are unsure which operator quantity, control board, receiver, safety equipment or accessories are required for your gate, contact our Technical Support team on 1300 733 066 for assistance.
