Description

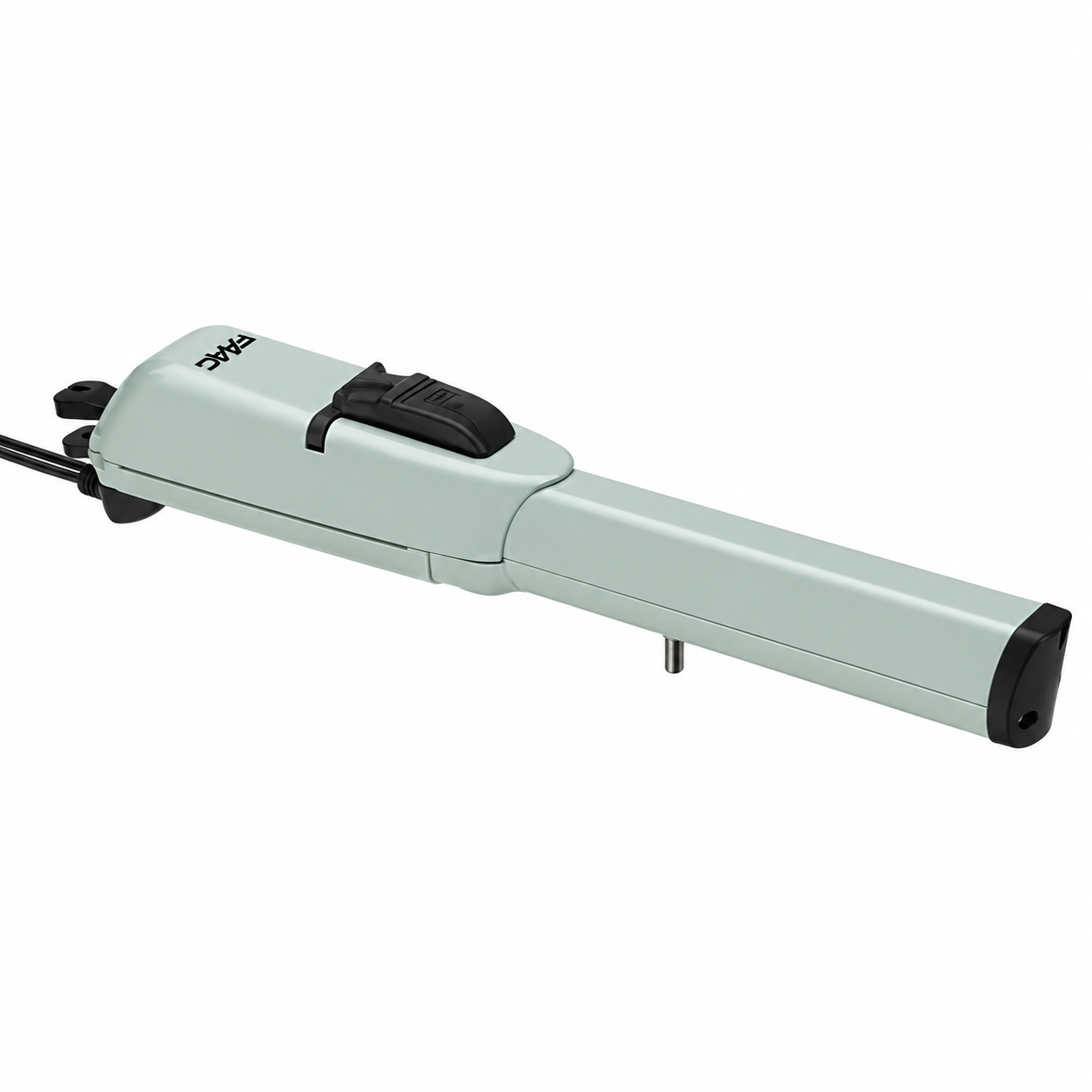

FAAC 413 24Vdc Swing Gate Opener – 1044131
The FAAC 413 24Vdc is a reliable linear electromechanical swing gate operator designed for residential and light-commercial gate automation.
Using FAAC’s proven worm screw drive system, the 413 provides strong, controlled linear movement in a compact operator body. The 24Vdc motor allows intensive operation and, when paired with a compatible FAAC control system, provides electronic obstacle detection and the option of battery backup operation.
Suitable for individual swing gate leaves up to 2.5 metres long, depending on the gate and installation conditions.
FAAC Part Number: 1044131
⚙️ 24Vdc Electromechanical Drive
The FAAC 413 uses a linear worm screw drive system to convert motor rotation into the push-and-pull movement required to operate a swing gate.
The 24Vdc motor provides:
- 70W motor power
- 250 daN maximum thrust
- 300mm working travel
- Approximately 1.6cm/sec rod speed
- Continuous-duty operation at 20°C
This makes the 413 24V suitable for applications requiring more frequent operation than the equivalent 230V version.
🚪 Gates Up to 2.5 Metres
FAAC specifies the 413 24V for individual gate leaves between approximately 0.8 and 2.5 metres long.
The operator is self-locking on gate leaves up to 1.8 metres.
For gate leaves longer than 1.8 metres, FAAC requires an electric lock to ensure secure leaf locking.
Actual suitability also depends on gate weight, construction, hinge condition, wind loading and installation geometry.
🛑 Integrated Mechanical Stops
The FAAC 413 is supplied with built-in mechanical opening and closing travel stops.
These can be adjusted during installation to establish the required operator travel without necessarily requiring separate external ground stops.
With the internal mechanical stops installed, the normal operator travel is 300mm.
🧠 Virtual Encoder & Obstacle Detection
When operated with the appropriate FAAC 24V control equipment, the system provides virtual encoder functionality and electronic anti-crushing protection.
The control system monitors the operator during movement and can reverse the gate when an obstacle is detected.
This provides improved movement control and safety compared with a basic fixed-force operator system.
🔋 Optional Battery Backup
The 24Vdc platform allows a compatible emergency battery backup system to be incorporated into the gate automation system.
When installed with suitable FAAC control equipment and batteries, the gate can continue to operate during a mains power failure.
Battery backup equipment is optional and is not included with the individual operator.
🔒 Self-Locking Operation
The FAAC 413 uses a non-reversing electromechanical drive system.
When the motor is stopped, the drive mechanism mechanically resists movement of the gate.
FAAC specifies self-locking operation for gate leaves up to 1.8 metres.
For longer gate leaves, an electric lock is required.
🔓 Manual Release
A key-operated manual release system allows the operator to be disengaged when manual gate movement is required.
This allows the gate to be operated manually during servicing, system faults or extended power interruptions where battery backup is unavailable.
🏠 Residential & Light-Commercial Applications
The 413 24V is suitable for applications including:
- Residential driveways
- Townhouses
- Small strata properties
- Light-commercial entrances
- Single swing gates
- Double swing gate systems
Its compact linear design makes it particularly useful where a straightforward post-mounted swing gate operator is required.
🌦️ Designed for Outdoor Installation
The FAAC 413 is designed for external swing gate installations and carries an IP54 protection rating.
FAAC specifies an operating temperature range from -20°C to +55°C.
As with any swing gate operator, correct installation, cable protection and mounting geometry are essential for reliable long-term operation.
📦 Operator Only
This listing includes:
- 1 × FAAC 413 24Vdc Swing Gate Operator – 1044131
The control board, enclosure, receiver, remotes, photocells, electric lock, battery backup system and other accessories are separate unless specifically included as part of a package.
Key Features
- Genuine FAAC swing gate operator
- FAAC Part Number: 1044131
- 24Vdc electromechanical motor
- Linear worm screw drive
- Suitable for gate leaves up to 2.5m
- Self-locking up to 1.8m gate leaves
- Continuous-duty 24V operation
- 70W motor
- Up to 250 daN maximum thrust
- 300mm standard travel
- Approximately 1.6cm/sec rod speed
- Integrated opening mechanical stop
- Integrated closing mechanical stop
- Virtual encoder functionality with compatible control equipment
- Electronic obstacle detection with compatible control equipment
- Optional battery backup capability
- Key-operated manual release
- IP54 protection
- Suitable for residential and light-commercial applications
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Model: 413 24V
- Part Number: 1044131
- Operator Type: Linear Electromechanical Swing Gate Operator
- Motor Voltage: 24Vdc
- Motor Power: 70W
- Absorbed Current: 3A
- Maximum Thrust: 250 daN
- Rated Thrust: 170 daN
- Standard Travel: 300mm
- Maximum Travel Without Internal Mechanical Stops: 350mm
- Rod Speed: 1.6cm/sec
- Maximum Gate Leaf Length: 2.5m
- Recommended Leaf Range: 0.8–2.5m
- Self-Locking: Up to 1.8m
- Electric Lock Required: Gate leaves over 1.8m
- Duty: Continuous at 20°C
- Approximate Cycles/Hour at 20°C: 100
- Operating Temperature: -20°C to +55°C
- Operator Weight: Approx. 6.5kg
- Protection Rating: IP54
- Limit Switches: No
- Mechanical Opening Stop: Yes
- Mechanical Closing Stop: Yes
Compatibility
Designed for use as part of a compatible FAAC 24V swing gate automation system.
Suitable for:
- Single swing gate installations
- Double swing gate installations
- Residential gates
- Light-commercial gates
- Gate leaves up to 2.5m
Compatible control equipment, safety devices and accessories must be selected according to the complete gate automation system.
🔄 413 24V vs 413 LS 24V
The standard 413 24V and 413 LS 24V should not be confused.
FAAC 413 24V:
- Part Number: 1044131
- Integrated mechanical opening and closing stops
- No opening or closing limit switches
FAAC 413 LS 24V:
- Part Number: 1044141
- Integrated mechanical opening and closing stops
- Opening and closing limit switches
Choose the LS version where dedicated travel limit switches are required.
⚠️ Please Note
This listing is for one FAAC 413 24Vdc operator, part number 1044131.
This is the standard 24V version without opening and closing limit switches.
A compatible external control board is required to operate the motor and is not included unless specifically stated as part of a kit.
For gate leaves longer than 1.8 metres, FAAC specifies that an electric lock must be installed to ensure gate leaf locking.
Maximum gate length is a manufacturer limit and does not automatically mean every gate up to 2.5 metres is suitable. Gate construction, weight, wind loading, hinge condition and mounting geometry must be considered when selecting an operator.
Safety devices should be selected and installed according to the requirements of the complete automated gate system.
If you are unsure whether the FAAC 413 24Vdc is suitable for your gate, contact our Technical Support team on 1300 733 066.
