Description

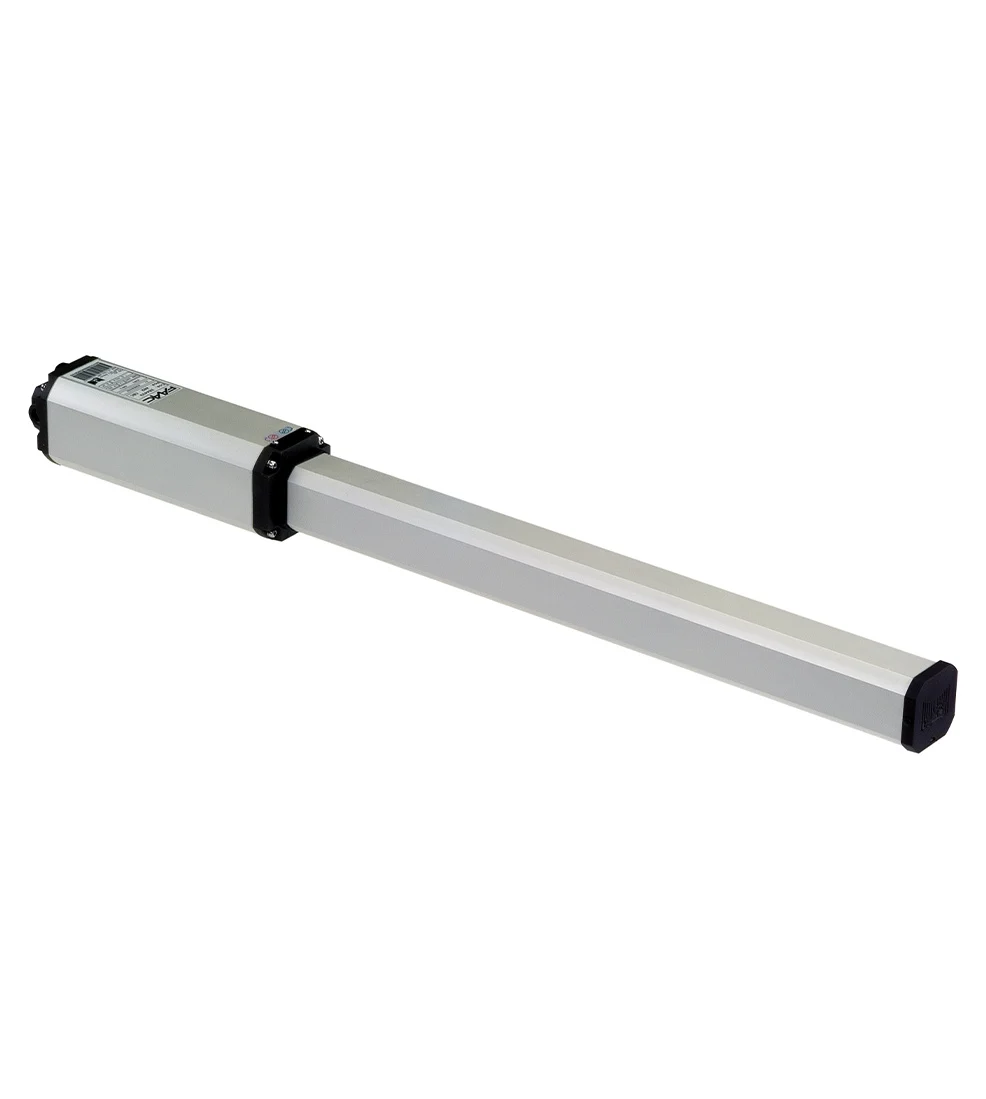

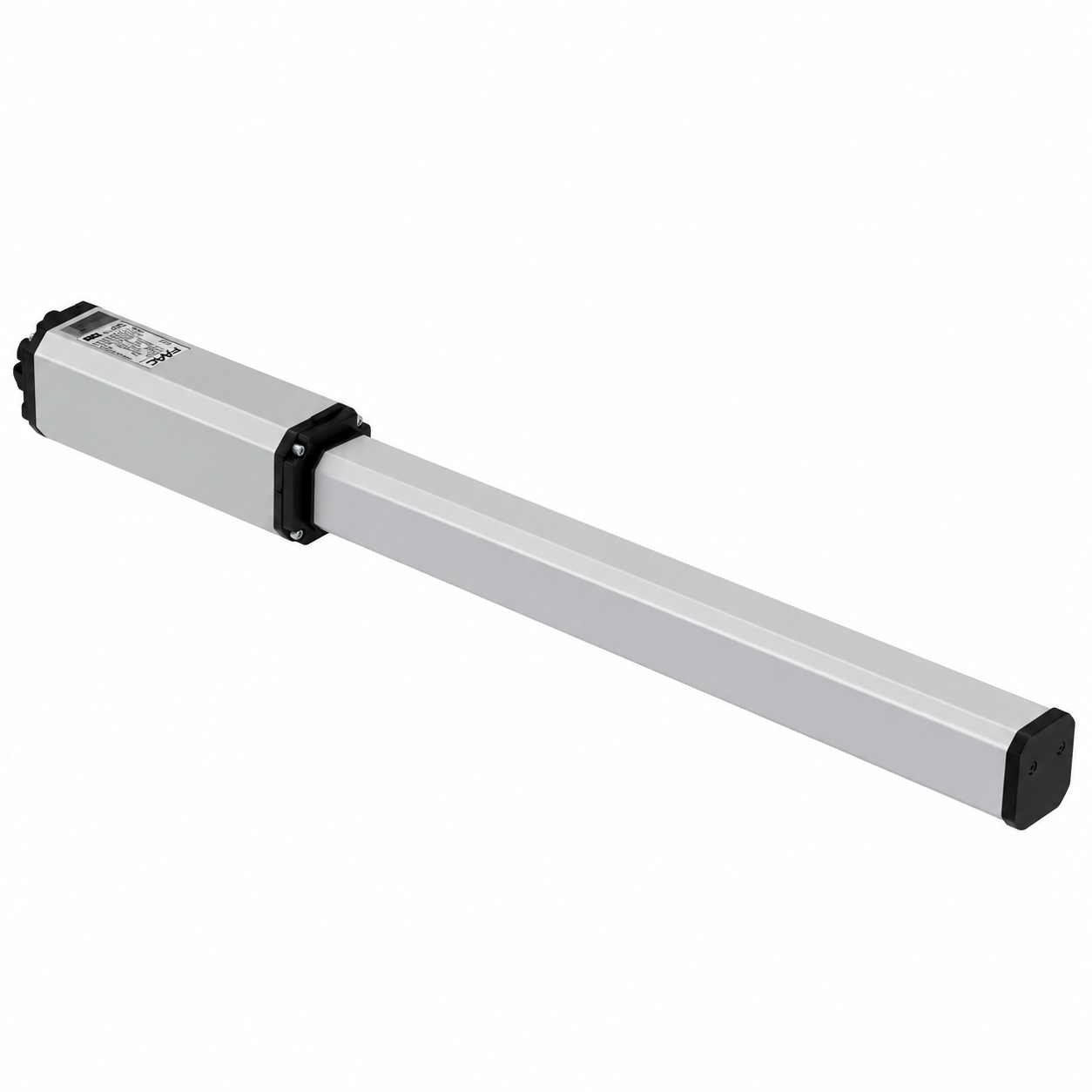

FAAC 402 CBC Hydraulic Swing Gate Opener – 104468
The FAAC 402 CBC is a compact 230V hydraulic swing gate operator designed for residential gate automation where smooth movement, proven hydraulic reliability and a compact operator body are required.
Part number 104468 is the CBC version of the FAAC 402, featuring hydraulic locking in the closed position, a 1 L/min hydraulic pump and adjustable hydraulic bypass protection.
Designed for individual swing gate leaves up to 1.8 metres long, the 402 CBC is particularly suited to residential installations where available mounting space is limited.
FAAC Part Number: 104468
💧 FAAC Hydraulic Technology

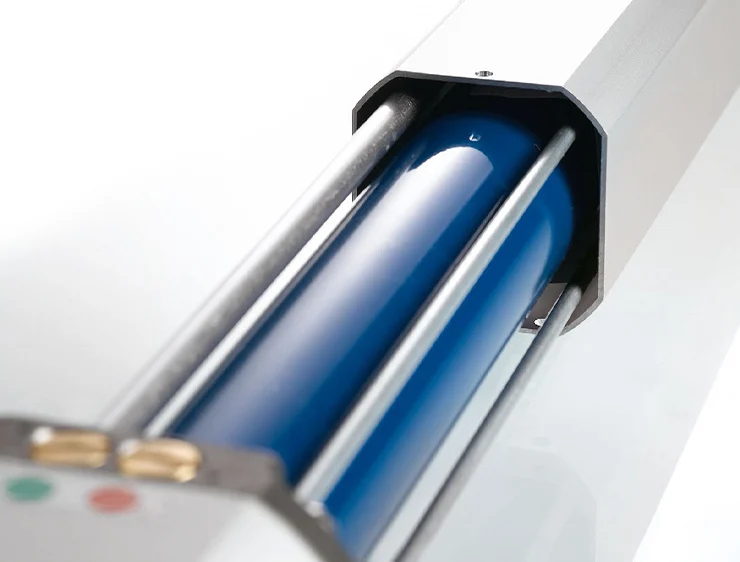

The FAAC 402 uses an integrated hydraulic system consisting of an electric pump and hydraulic piston to move the gate.
Hydraulic technology provides smooth and quiet movement while continuously lubricating the internal hydraulic components during operation.
The 402 CBC incorporates:
- Hydraulic pump and piston drive
- Adjustable hydraulic bypass valves
- Hydraulic locking in closing
- Manual hydraulic release
- FAAC HP hydraulic oil
🔒 CBC Hydraulic Locking
Part number 104468 is the CBC version of the FAAC 402.
The CBC configuration provides hydraulic locking when the gate is in the closed position.
This allows the operator itself to maintain the closed gate position without requiring an electric lock within the specified 1.8 metre leaf application.
This should not be confused with the reversible SB or SBS versions, which have different locking requirements and gate leaf capacities.
⚙️ 1 L/min Hydraulic Pump
The 402 CBC uses a 1 L/min hydraulic pump.
FAAC specifies:
- Pump flow rate: 1 L/min
- Rod extension speed: 13mm/sec
- Maximum traction and thrust: 500 daN
This provides smooth and controlled movement while retaining the strong operating force associated with FAAC hydraulic automation.
💪 Up to 500 daN Force
The FAAC 402 CBC provides adjustable traction and thrust up to approximately 500 daN, equivalent to approximately 5000N.
The hydraulic bypass valves allow the maximum force transmitted to the gate to be limited during installation.
This hydraulic bypass system forms an important part of the operator’s anti-crushing protection.
🚪 Gate Leaves Up to 1.8 Metres
FAAC specifies the 402 CBC for individual swing gate leaves approximately:
- Minimum leaf length: 0.9m
- Maximum leaf length: 1.8m
The compact dimensions of the operator make it particularly useful where mounting space is restricted.
Actual suitability also depends on gate construction, weight, wind loading, hinge condition and mounting geometry.
↔️ 240mm Effective Stroke
The FAAC 402 has an effective hydraulic piston stroke of 240mm.
Correct front and rear mounting geometry is essential to ensure the operator remains within its intended stroke throughout the complete opening and closing movement.
📐 Up to 110° Opening
FAAC specifies a maximum gate leaf opening angle of approximately 110°.
The actual achievable opening angle depends on the gate hinge position and the front and rear operator mounting dimensions.

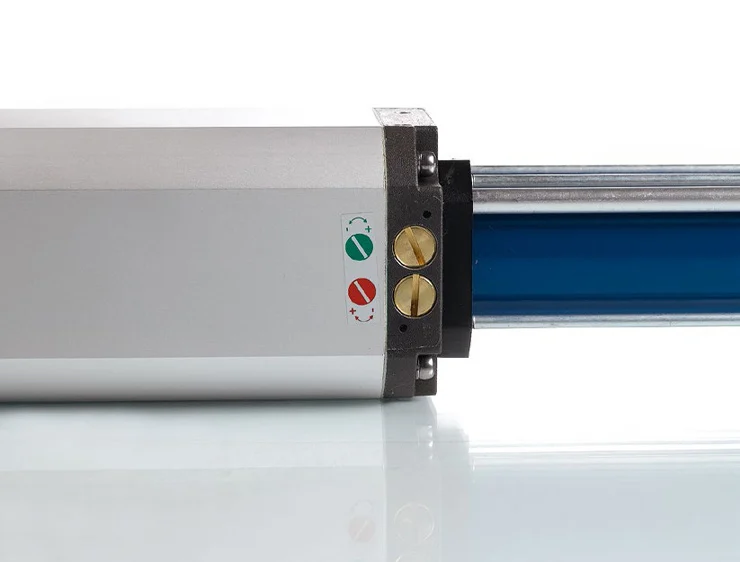

🔧 Hydraulic Anti-Crush Protection
The 402 incorporates adjustable hydraulic bypass valves that limit the force transmitted to the gate.
This allows the installer to adjust the hydraulic operating force according to the requirements of the gate and complete automation system.
Appropriate external safety devices must still be installed according to the requirements of the application.
🔓 Manual Hydraulic Release
The FAAC 402 incorporates a manual hydraulic release mechanism.
If the gate needs to be operated manually, the hydraulic drive can be released using the applicable triangular release key.
Once released, the gate leaf can be manually opened or closed.
🔁 55 Cycles Per Hour
FAAC rates the 402 CBC for up to approximately 55 operating cycles per hour.
This makes the operator well suited to applications including:
- Residential driveways
- Shared residential entrances
- Strata properties
- Small apartment entrances
- Light-duty shared access gates
⚡ 230V Hydraulic Operator
The FAAC 402 CBC uses a single-phase asynchronous 230V motor.
FAAC specifies:
- Power supply: 220–240V AC, 50/60Hz
- Motor type: Single-phase asynchronous
- Maximum power: 220W
- Current: Approximately 1A
- Motor speed: Approximately 1400rpm
- Motor winding thermal protection: 120°C
External electronic control equipment is required to operate the motor.
🌦️ Compact Outdoor Construction
The 402 is specifically designed for outdoor swing gate automation.
Its compact body makes it particularly useful where installation space is restricted, while its anti-corrosion cover provides protection for external applications.
FAAC specifies:
- Protection rating: IP55
- Operating temperature: -20°C to +55°C
- Hydraulic oil: FAAC HP Oil
- Operator weight: Approximately 6.5kg
🧠 Optional Encoder
An optional encoder can be incorporated into compatible FAAC 402 installations.
When paired with compatible FAAC electronic control equipment, the encoder can provide enhanced monitoring of gate movement and obstacle detection.
The encoder is not included with the individual 104468 operator.
📦 What’s Included
This listing includes:
- 1 × FAAC 402 CBC Hydraulic Swing Gate Operator – 104468
FAAC Part Number: 104468
Electronic control equipment, radio receiver, transmitters, photocells, optional encoder and other system accessories are separate unless specifically stated as included.
Key Features
- Genuine FAAC hydraulic swing gate operator
- FAAC Part Number: 104468
- Model: 402 CBC
- 230V hydraulic operation
- Compact operator design
- Hydraulic locking in closing
- 1 L/min hydraulic pump
- 13mm/sec rod extension speed
- Up to 500 daN maximum traction and thrust
- 240mm effective stroke
- Maximum opening angle approximately 110°
- Gate leaves from approximately 0.9–1.8m
- Up to 55 cycles per hour
- Adjustable hydraulic bypass valves
- Hydraulic anti-crushing protection
- Manual hydraulic release
- Optional encoder capability
- Anti-corrosion external cover
- IP55 protection
- FAAC HP hydraulic oil
- Suitable for residential swing gates
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Model: 402 CBC
- Part Number: 104468
- Product Type: Hydraulic Swing Gate Operator
- Power Supply: 220–240V AC, 50/60Hz
- Motor Type: Single-Phase Asynchronous
- Maximum Power: 220W
- Current: Approx. 1A
- Motor Speed: Approx. 1400rpm
- Pump Flow Rate: 1 L/min
- Maximum Traction / Thrust: 500 daN
- Rod Extension Speed: 13mm/sec
- Effective Stroke: 240mm
- Maximum Opening Angle: 110°
- Minimum Gate Leaf Length: Approx. 0.9m
- Maximum Gate Leaf Length: 1.8m
- Hydraulic Locking: Closing
- Use Frequency: 55 cycles/hour
- Motor Thermal Protection: 120°C
- Operating Temperature: -20°C to +55°C
- Protection Rating: IP55
- Hydraulic Oil: FAAC HP Oil
- Operator Weight: Approx. 6.5kg
- Dimensions: Approx. 959 × 85 × 61mm
- Electronic Control Equipment: Not Included
Compatibility
Suitable for compatible FAAC 230V swing gate automation systems.
Typical applications include:
- Single swing gates
- Double swing gates
- Residential driveway gates
- Shared residential entrances
- Compact swing gate installations
- Individual gate leaves from approximately 0.9–1.8m
Compatible control equipment, mounting hardware and safety devices should be selected according to the complete gate automation system.
🔄 FAAC 402 CBC vs 402 SBS
FAAC 402 CBC – 104468:
- 1 L/min hydraulic pump
- 13mm/sec rod speed
- Maximum force 500 daN
- Hydraulic locking in closing
- Maximum leaf length 1.8m
- 55 cycles/hour
- This product
FAAC 402 SBS – 104474:
- 0.75 L/min hydraulic pump
- 10mm/sec rod speed
- Maximum force 690 daN
- Reversible / non-locking configuration
- Maximum leaf length 3m
- Slower, higher-force version for larger leaves
The two versions should not be confused when selecting an operator, as their locking characteristics, speed, force and maximum gate leaf lengths differ.
⚠️ Please Note
This listing is for FAAC part number 104468, the FAAC 402 CBC hydraulic swing gate operator.
The CBC version provides hydraulic locking in the closed position and is specified for individual gate leaves up to 1.8 metres long.
This model uses a 1 L/min hydraulic pump with a rod extension speed of approximately 13mm/sec and maximum traction/thrust of approximately 500 daN.
The electronic control board is not integrated into the operator and must be selected separately.
Electronic control equipment, radio receiver, transmitters, photocells, optional encoder and other system accessories are separate unless specifically stated as included.
Maximum gate dimensions are manufacturer limits and do not automatically mean every gate within those dimensions is suitable. Gate construction, weight, wind loading, hinge condition, mounting geometry and operating frequency must also be considered.
If you are unsure whether the FAAC 402 CBC 104468 is suitable for your gate, contact our Technical Support team on 1300 733 066.
