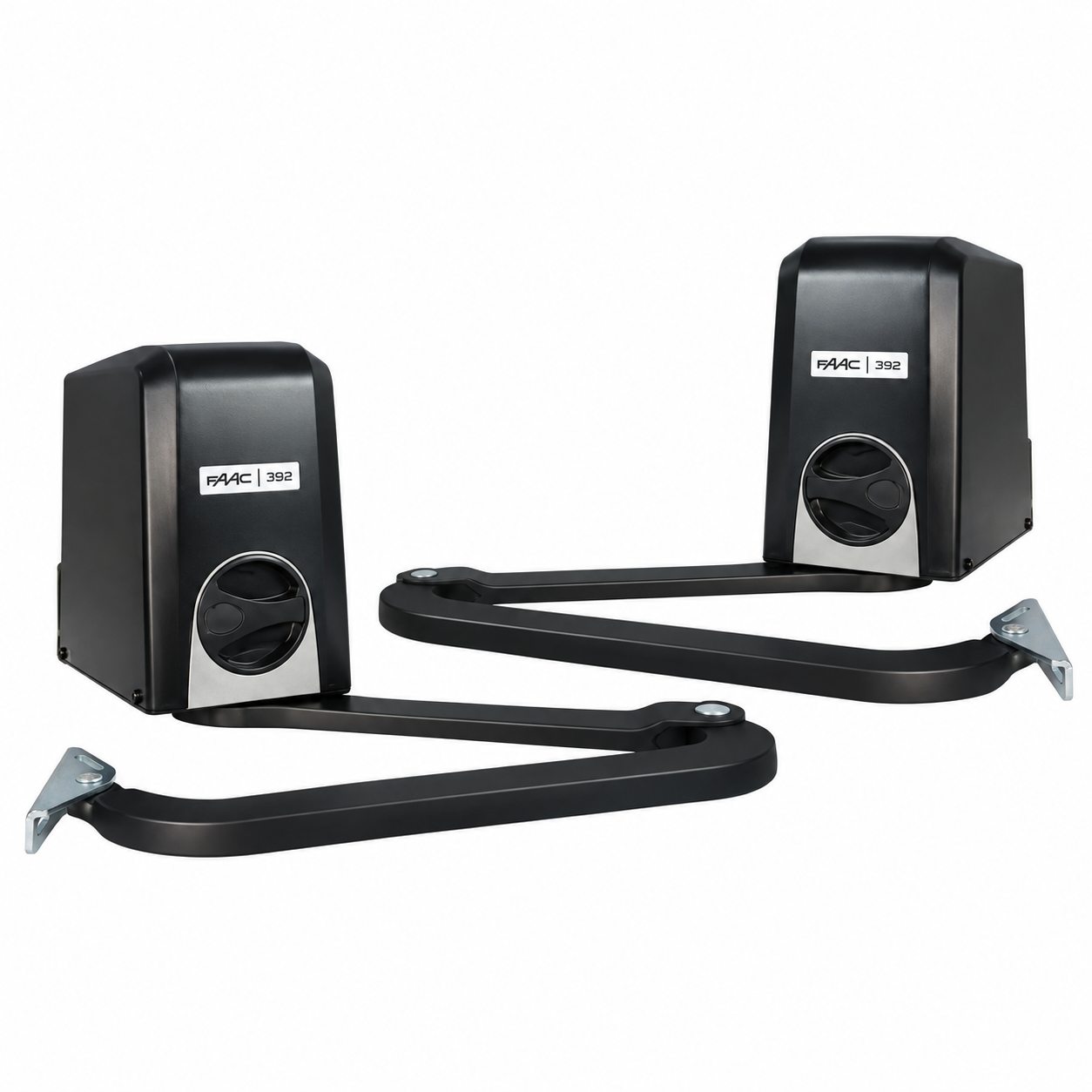

FAAC ENERGY Start Kit 392 24V – 1045853
The FAAC ENERGY Start Kit 392 is a complete 24V articulated-arm automation package designed for double swing gates.
Featuring two FAAC 392 articulated operators and an integrated E034 electronic control board, the ENERGY Kit provides a compact and flexible solution for residential and light-commercial swing gate automation.
The articulated-arm design makes the FAAC 392 particularly well suited to gates with large pillars, deep hinge offsets or mounting arrangements where a conventional linear operator may not be suitable.
FAAC Part Number: 1045853
📦 Complete Double Gate Operator Kit
The ENERGY Start Kit 392 is designed as the core automation package for a double swing gate.
The kit includes:
- 1 × FAAC 392 C 24V Operator
- 1 × Integrated E034 Electronic Control Board
- 1 × Articulated Arm for 392 C
- 1 × FAAC 392 24V Companion Operator
- 1 × Articulated Arm for 392 Companion Operator
The E034 control board is integrated within the 392 C operator and controls both gate operators.
⚙️ 24V Articulated Gate Automation
Both operators use brushed 24Vdc motors combined with articulated-arm drive systems.
FAAC specifies:
- Maximum torque: 300Nm
- Maximum angular speed: 8.5°/sec
- Maximum opening angle: 120°
- Continuous-duty operation
- Operating temperature: -20°C to +65°C
The 24V system allows advanced movement control, obstacle detection and optional emergency power functionality through the E034 control system.
🚪 Gate Leaves Up to 2.5 Metres
The ENERGY 392 system is designed for individual swing gate leaves between approximately 0.5 and 2.5 metres long.
FAAC specifies:
- Maximum leaf length without electric lock: 2m
- Maximum leaf length with electric lock: 2.5m
For gate leaves exceeding 2 metres, an electric lock is required.
Actual suitability also depends on gate weight, construction, wind loading, hinge condition and installation geometry.
🏗️ Ideal for Large Gate Pillars
One of the major advantages of the FAAC 392 is its articulated-arm design.
Unlike a conventional linear actuator, the articulated arm can accommodate substantial distances between the gate hinge and the operator mounting surface.
This makes the system particularly useful for:
- Large masonry pillars
- Brick columns
- Wide steel posts
- Deep hinge offsets
- Architectural entrance gates
- Installations unsuitable for conventional linear operators
Correct FAAC mounting geometry must still be maintained.
🧠 Integrated E034 Control Board
The 392 C operator supplied in the ENERGY Kit incorporates the FAAC E034 electronic control board.
The E034 provides central control for both operators and offers features including:
- Integrated programming display
- Two programming levels
- Electronic obstacle detection
- Anti-crushing functionality
- Opening and closing slowdown
- BUS 2easy accessory connection
- FAAC Simply Connect compatibility
- FAAC FDS compatibility
- Optional low-consumption mode
- Optional emergency battery operation
- Alternative energy source compatibility
The control board is housed directly within the 392 C operator, eliminating the need for a separate external control board enclosure in a standard installation.
🌱 GREENtech Compatible
The E034 platform supports FAAC’s GREENtech energy-saving system.
When fitted with the optional XLC low-consumption module, standby consumption can be reduced to approximately 0.5W, or approximately 2W when Simply Connect is active.
The system can also support alternative energy sources such as solar power when configured with the appropriate equipment.
The XLC module and solar equipment are not included with the ENERGY Kit.
📡 BUS 2easy Technology
The E034 supports FAAC BUS 2easy accessories.
Compatible BUS devices can be connected using a simple two-wire non-polarised connection, simplifying wiring between the control system and supported safety accessories.
📲 Simply Connect Compatible
The E034 is compatible with FAAC Simply Connect.
When fitted with the appropriate Simply Connect module, the system provides additional configuration, diagnostics and connectivity functionality.
The Simply Connect module is optional and not included with the standard ENERGY Kit.
🛑 Electronic Obstacle Detection
The 24V control system provides electronic monitoring of the operators during gate movement.
When correctly installed and configured, the E034 can provide:
- Electronic anti-crushing protection
- Obstacle detection
- Reverse on obstacle
- Controlled acceleration
- Controlled deceleration
- Opening slowdown
- Closing slowdown
Appropriate safety devices must still be selected according to the requirements of the complete gate installation.
↔️ Up to 120° Gate Opening
The FAAC 392 provides a maximum gate leaf opening angle of approximately 120° when installed within the required mounting geometry.
This makes the articulated system particularly flexible for entrances requiring greater opening travel than a conventional 90° swing gate.
♾️ Continuous-Duty Operation
FAAC rates the 392 24V platform for continuous use.
This makes the ENERGY Kit suitable for applications including:
- Residential driveways
- Shared residential entrances
- Strata properties
- Apartment entrances
- Light-commercial entrances
- Frequently operated swing gates
🔓 Manual Release
Both 392 operators incorporate manual release functionality, allowing the gate leaves to be disengaged and operated manually when required.
FAAC also offers an optional external lever release kit for installations where an alternative manual release arrangement is required.
🔋 Optional Emergency Battery Backup
The E034 supports the FAAC XBAT 24 emergency battery system.
When correctly configured, battery backup can allow the gate automation system to continue operating during a mains power failure.
The XBAT system and batteries are separate accessories and are not included with the standard ENERGY Kit.
Key Features
- Genuine FAAC double swing gate automation kit
- FAAC Part Number: 1045853
- ENERGY Start Kit 392 24V
- 2 × FAAC 392 articulated swing gate operators
- 1 × 392 C primary operator
- 1 × 392 companion operator
- Articulated arms included
- Integrated E034 electronic control board
- 24Vdc brushed motors
- Maximum torque of 300Nm
- Maximum angular speed of 8.5°/sec
- Maximum opening angle of 120°
- Maximum individual gate leaf length of 2.5m with electric lock
- Continuous-duty operation
- Electronic obstacle detection
- Anti-crushing functionality
- Opening and closing slowdown
- BUS 2easy compatible
- Simply Connect compatible
- FDS compatible
- GREENtech compatible
- Optional low-consumption mode
- Optional battery backup
- Solar power compatible with appropriate equipment
- Ideal for large pillars and deep hinge offsets
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Product: ENERGY Start Kit 392
- Part Number: 1045853
- Application: Double Swing Gates
- Operator Type: Articulated Electromechanical
- Motor: Brushed 24Vdc
- Number of Operators: 2
- Primary Operator: FAAC 392 C
- Companion Operator: FAAC 392
- Electronic Control Board: E034
- Control Board Location: Integrated in 392 C
- Maximum Torque: 300Nm
- Maximum Angular Speed: 8.5°/sec
- Maximum Opening Angle: 120°
- Maximum Leaf Length Without Electric Lock: 2m
- Maximum Leaf Length With Electric Lock: 2.5m
- Use Frequency: Continuous
- Operating Temperature: -20°C to +65°C
- Operator Protection Rating: IP44
- 392 C Operator Weight: Approx. 11.7kg
- 392 Companion Operator Weight: Approx. 9kg
- Operator Dimensions: 183 × 256 × 304mm
- BUS 2easy: Yes
- Simply Connect: Compatible
- FDS: Compatible
Compatibility
Designed as the core automation package for compatible double swing gate installations.
Suitable for:
- Double swing gates
- Residential driveways
- Shared residential entrances
- Strata properties
- Apartment entrances
- Light-commercial entrances
- Gates with large pillars
- Gates with deep hinge offsets
- Individual gate leaves up to 2m without electric lock
- Individual gate leaves up to 2.5m with electric lock
⚠️ Please Note
This listing is for FAAC part number 1045853, the ENERGY Start Kit 392 24V for double swing gates.
FAAC’s current catalogue specifies the kit as containing one 392 C operator with integrated electronic control board and articulated arm, together with one 392 companion operator and articulated arm.
The 392 C is the primary operator and contains the E034 electronic control board. The second 392 operator does not contain its own control board and is controlled by the E034 in the 392 C.
For gate leaves exceeding 2 metres and up to the maximum 2.5 metre leaf length, an electric lock is required.
Radio receiver, transmitters, photocells, flashing light, electric lock, battery backup and other installation accessories are not included unless specifically stated as part of the supplied package.
Maximum gate dimensions are manufacturer limits and do not automatically mean every gate within those dimensions is suitable. Gate construction, weight, wind loading, hinge condition and installation geometry must also be considered.
If you are unsure whether the FAAC ENERGY Kit 392 1045853 is suitable for your gate, contact our Technical Support team on 1300 733 066.
