Description

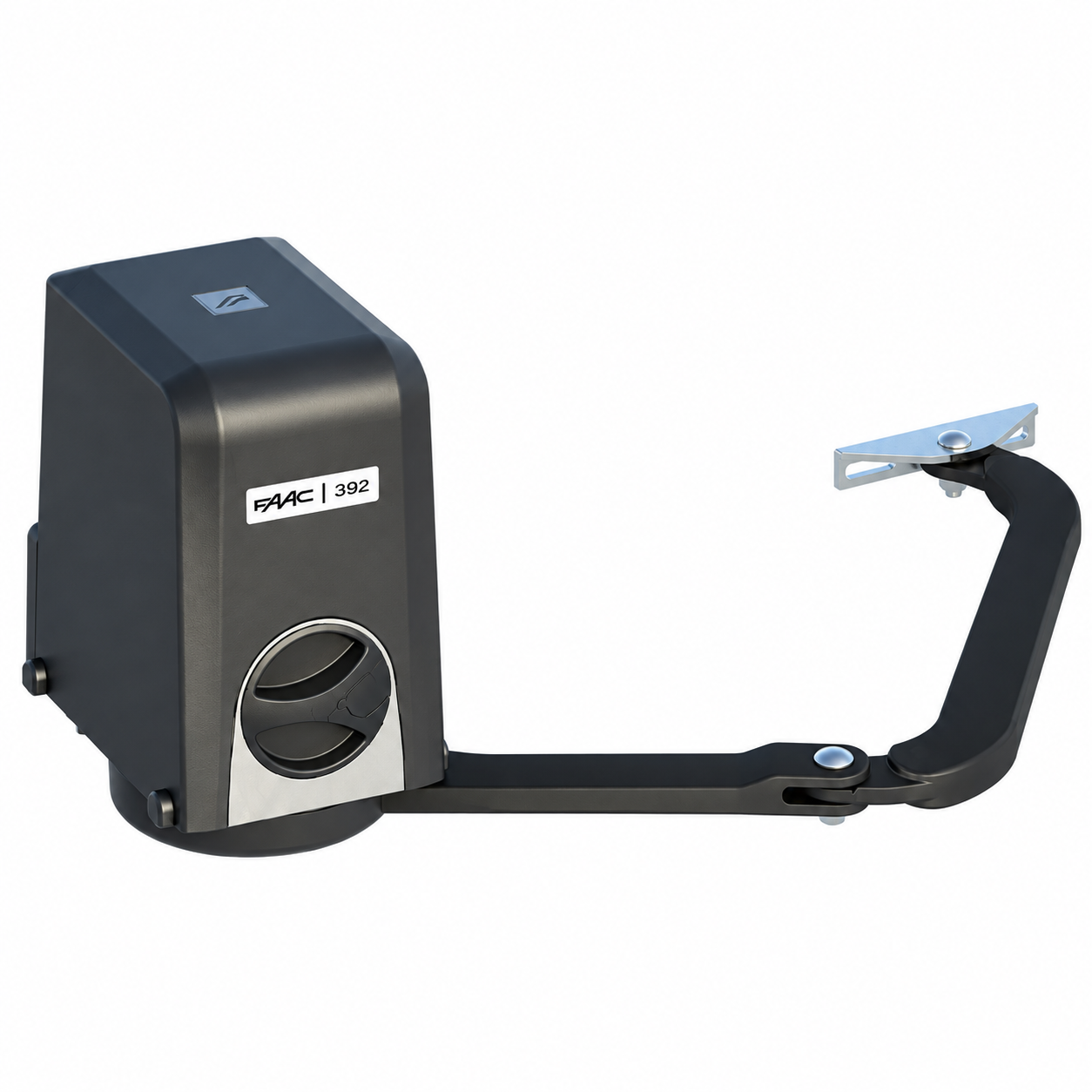

FAAC 392 C 24V Articulated Swing Gate Operator – 104583
The FAAC 392 C is a premium 24V electromechanical articulated-arm swing gate operator designed for residential and light-commercial gate automation.
Its articulated arm provides excellent installation flexibility, making the 392 C particularly well suited to swing gates with large pillars, deep hinge offsets or mounting arrangements where a conventional linear operator may not be suitable.
Part number 104583 is the 392 C version, supplied with the integrated FAAC E034 electronic control board and articulated arm.
FAAC Part Number: 104583
⚙️ 24V Articulated Gate Operator
The FAAC 392 C uses a brushed 24Vdc motor combined with a robust articulated-arm drive system.
The articulated arm transfers rotational movement from the operator to the gate while accommodating a wide range of hinge and mounting positions.
This makes the 392 C particularly useful for:
- Large gate pillars
- Deep hinge offsets
- Gates mounted toward the rear of a pillar
- Installations unsuitable for conventional linear operators
- Residential swing gates
- Shared and light-commercial entrances
🧠 Integrated E034 Control Board
The 104583 is the 392 C version and includes FAAC’s E034 electronic control board within the operator housing.
The E034 can control either one or two 24V swing gate operators and provides advanced system programming and diagnostics.
Features include:
- Integrated display and programming buttons
- Single or double gate configuration
- Opening and closing slowdown
- BUS 2easy accessory connection
- Electronic obstacle detection
- FAAC FDS compatibility
- Simply Connect compatibility
- Programmable operating parameters
For a double swing gate installation, one 392 C can control an additional FAAC 392 operator.
🚪 Gate Leaves Up to 2.5 Metres
FAAC specifies the 392 C for individual swing gate leaves up to:
- 2m without an electric lock
- 2.5m with an electric lock
The operator is self-locking for applicable gate leaves up to 2 metres.
An electric lock is required when operating longer leaves up to the maximum 2.5 metre specification.
Actual suitability also depends on gate weight, construction, wind loading, hinge condition and mounting geometry.
↔️ Up to 120° Gate Opening
The articulated drive system allows a maximum gate leaf opening angle of approximately 120° when installed within the required geometry.
This provides greater potential opening travel than many conventional linear swing gate operators.
The articulated arm also provides considerable flexibility when positioning the operator on large or unusual gate pillars.
💪 Up to 300Nm Maximum Torque
The FAAC 392 C provides up to 300Nm maximum torque.
Combined with the articulated arm, this provides strong and controlled movement for compatible swing gates while maintaining smooth operation throughout the opening and closing cycle.
♾️ Continuous-Duty Operation
FAAC rates the current 392 C for continuous use.
This makes the 24V platform suitable for applications requiring regular gate operation, including:
- Residential driveways
- Shared residential entrances
- Strata properties
- Apartment entrances
- Light-commercial properties
- Frequently operated swing gates
🛑 Electronic Obstacle Detection
The E034 control board provides electronic monitoring of the operator during gate movement.
This allows the automation system to provide anti-crushing and obstacle detection functionality when correctly configured as part of the complete gate system.
Appropriate safety devices must still be installed according to the requirements of the application.
🐢 Controlled Slowdown
The integrated E034 control system provides slowdown functionality toward the end of the opening and closing cycles.
This helps produce smoother gate movement and reduces abrupt stopping at the end of travel.
📡 BUS 2easy Technology
The integrated E034 board supports FAAC BUS 2easy technology.
Compatible BUS devices can be connected using a simple two-wire non-polarised connection, reducing the amount of field wiring required for supported accessories.
Compatible devices include applicable FAAC BUS photocells and other supported BUS 2easy accessories.
📲 Simply Connect Compatible
The E034 control board supports FAAC Simply Connect connectivity.
When fitted with the appropriate Simply Connect module and configured correctly, this provides additional system programming, diagnostics and connectivity options.
The Simply Connect module is separate unless specifically included.
🔋 24V Platform
The 392 C uses a 24Vdc brushed motor controlled by the integrated E034 electronics.
Mains power is supplied to the 392 C, with the internal electronics providing the required power and control for the 24V motor.
FAAC specifies:
- Input supply: 220–240V AC, 50/60Hz
- Motor: Brushed 24Vdc
- Maximum torque: 300Nm
- Maximum angular speed: 8.5°/sec
🔓 Manual Release
A manual release system allows the operator to be disengaged when manual gate movement is required.
This allows the gate to be operated manually during servicing or if the automation system cannot operate normally.
🏗️ Ideal for Large Gate Pillars
One of the main advantages of an articulated-arm operator is its ability to accommodate gate geometry that can be difficult for a linear actuator.
The 392 C is particularly useful where the gate hinge is significantly offset from the operator mounting surface.
This can make it an excellent choice for gates mounted on:
- Large masonry pillars
- Brick columns
- Wide steel posts
- Deep gate posts
- Architectural entrance columns
Correct mounting dimensions must still be maintained according to the FAAC installation instructions.
📦 What’s Included
Part number 104583 is the FAAC 392 C operator and includes:
- 1 × FAAC 392 C 24V Electromechanical Operator
- 1 × Integrated FAAC E034 Electronic Control Board
- 1 × Articulated Arm
- Manual Release System
FAAC Part Number: 104583
Radio receiver, transmitters, photocells and other installation accessories are separate unless specifically included as part of a package.
Key Features
- Genuine FAAC swing gate operator
- FAAC Part Number: 104583
- FAAC 392 C model
- 24Vdc brushed motor
- Articulated-arm drive
- Integrated E034 electronic control board
- Maximum torque of 300Nm
- Maximum angular speed of 8.5°/sec
- Maximum opening angle of 120°
- Gate leaves up to 2m without electric lock
- Gate leaves up to 2.5m with electric lock
- Continuous-duty operation
- Self-locking drive
- Electronic obstacle detection
- Opening and closing slowdown
- BUS 2easy technology
- FAAC FDS compatible
- Simply Connect compatible
- Manual release
- Ideal for large pillars and deep hinge offsets
- IP44 protection
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Model: 392 C
- Part Number: 104583
- Product Type: Articulated Swing Gate Operator
- Input Supply: 220–240V AC, 50/60Hz
- Electric Motor: Brushed 24Vdc
- Maximum Torque: 300Nm
- Maximum Angular Speed: 8.5°/sec
- Maximum Opening Angle: 120°
- Maximum Leaf Without Electric Lock: 2m
- Maximum Leaf With Electric Lock: 2.5m
- Use Frequency: Continuous
- Protection Rating: IP44
- Operating Temperature: -20°C to +65°C
- Operator Weight: Approx. 11.7kg
- Dimensions: 183 × 256 × 304mm
- Electronic Control Board: Integrated E034
- Articulated Arm: Included
- Simply Connect Compatible: Yes
- BUS 2easy Compatible: Yes
Compatibility
Suitable for:
- Single swing gate installations
- Double swing gate installations
- Residential driveways
- Shared residential entrances
- Strata properties
- Light-commercial gates
- Gates with large pillars
- Gates with deep hinge offsets
- Individual gate leaves up to 2m without electric lock
- Individual gate leaves up to 2.5m with electric lock
For a double swing gate system, the typical configuration uses:
- 1 × FAAC 392 C – 104583
- 1 × FAAC 392 – 104584
The integrated E034 control board within the 392 C can control both operators.
🔄 392 C vs 392
FAAC 392 C – 104583:
- 24V articulated operator
- Integrated E034 electronic control board
- Articulated arm included
- Used as the primary operator/control unit
FAAC 392 – 104584:
- 24V articulated operator
- No integrated electronic control board
- Articulated arm included
- Typically used as the second operator in a double gate system
For a single swing gate installation, only the 392 C is required.
For a double swing gate installation, one 392 C and one 392 are typically used.
⚠️ Please Note
This listing is for FAAC part number 104583, the FAAC 392 C 24V articulated swing gate operator with integrated E034 electronic control board.
Do not confuse 104583 with FAAC part number 104584. The 104584 is the companion 392 operator without the integrated E034 control board.
For gate leaves exceeding 2 metres and up to the maximum 2.5 metre leaf length, an electric lock is required.
The radio receiver, transmitters, photocells, electric lock, Simply Connect module and other system accessories are separate unless specifically included as part of a package.
Maximum gate dimensions are manufacturer limits and do not automatically mean every gate within those dimensions is suitable. Gate construction, weight, wind loading, hinge condition and installation geometry must also be considered.
The articulated arm provides excellent flexibility for large pillars and deep hinge offsets; however, the required FAAC installation dimensions must still be maintained.
If you are unsure whether the FAAC 392 C 104583 is suitable for your gate, contact our Technical Support team on 1300 733 066.
