Description
Build an e-Loop Vehicle Detection Kit to suit your automatic gate, boom gate or access control installation.
This configurable kit allows you to select the e-Loop vehicle detector best suited to your application, choose the required e-Trans transceiver, and optionally add E-TX remote controls or an E-KP wireless keypad to create a complete wireless vehicle detection and access control system.
Whether you are automating a residential driveway, commercial entrance, industrial gate or shared access system, the e-Loop platform provides a flexible alternative to traditional inductive ground loops without the extensive saw cutting, loop wire and associated installation work.
Simply select your e-Loop, select your transceiver and add any optional access control accessories required for the installation.
🛒 Build Your e-Loop Kit
Configure the system to suit your installation by selecting:
1. Select Your e-Loop
Choose the vehicle detector best suited to the application.
Available options can include:
- e-Loop Commercial
- e-Loop Light Industrial
- e-Loop In-Ground
- e-Loop Mini
- e-Loop Micro
- e-Loop Post Mount
2. Select Your e-Trans Transceiver
For compatible wireless e-Loop detectors, select the transceiver capacity and functionality required for the installation.
Available options can include:
- e-Trans 20
- e-Trans 50
- e-Trans 100
- e-Trans 200
3. Add Optional E-TX Remotes
Add compatible E-TX 4-button remote controls where handheld gate operation is also required.
Select the quantity required for the installation.
4. Add an Optional E-KP Keypad
Add an E-KP wireless keypad where PIN-code access is required.
This allows the same compatible e-Trans system to combine vehicle detection, remote controls and keypad access.
🚗 Select the Right e-Loop
Different entrances require different types of vehicle detection.
The e-Loop range provides several detector designs covering applications from domestic driveway gates through to high-traffic commercial and industrial entrances.
Choosing the appropriate detector allows the system to be matched to:
- Vehicle traffic levels
- Installation environment
- Required mounting method
- Surface conditions
- Residential or commercial use
- Exit or presence detection requirements
- Visual appearance
- Available installation locations
🏭 e-Loop Commercial
The e-Loop Commercial is designed for demanding commercial and industrial vehicle detection applications.
Its heavy-duty construction makes it suitable for installations such as:
- Factories
- Warehouses
- Industrial facilities
- Commercial entrances
- Business parks
- High-use automatic gates
- Commercial boom gates
The Commercial model is available for applications requiring Exit or Presence detection and provides automatic calibration and encrypted wireless communication.
It is the appropriate choice where a rugged detector is required for demanding vehicle traffic.
🏗️ e-Loop Light Industrial
The e-Loop Light Industrial is designed for busy light-industrial applications where greater durability is required than a typical residential detector.
Applications can include:
- Loading bays
- Factory entrances
- Service yards
- Logistics facilities
- Workshops
- Commercial driveways
- Light-industrial automatic gates
It provides a balance between rugged construction and straightforward wireless installation.
🕳️ e-Loop In-Ground
The e-Loop In-Ground provides a discreet flush-mounted vehicle detection solution.
Rather than having the detector mounted prominently on the driveway surface, the unit is installed into the surface so that it sits flush with the surrounding area.
This makes it particularly suitable for:
- Premium residential driveways
- Commercial entrances
- Architectural properties
- Heavy vehicle areas
- Locations where appearance is important
The In-Ground model provides the functionality of a heavy-duty wireless detector in a low-profile installation.
🏠 e-Loop Mini
The e-Loop Mini is designed for residential vehicle detection applications.
Its compact wireless design provides straightforward vehicle detection for everyday residential gate automation.
Typical applications include:
- Residential sliding gates
- Residential swing gates
- Shared driveways
- Townhouse entrances
- Low-traffic automatic gates
The Mini provides a convenient solution where a compact surface-mounted detector is preferred.
🔹 e-Loop Micro
The e-Loop Micro is the smallest detector within the wireless e-Loop range and is designed primarily for domestic gate automation.
Its compact form factor makes it particularly suitable for:
- Residential driveways
- Private automatic gates
- Low-traffic entrances
- Cost-effective vehicle free-exit systems
The Micro uses magnetic vehicle detection and provides a simple method of adding automatic vehicle detection to a residential gate.
📍 e-Loop Post Mount
The e-Loop Post Mount provides vehicle detection without requiring the detector to be installed in or on the driveway surface.
Instead, the detector is mounted to a suitable post or structure beside the vehicle path.
This makes it particularly useful where:
- The driveway cannot be drilled
- Underground services are present
- The driveway surface must remain untouched
- A roadside detector is preferred
- The installation needs to be easily accessible
The Post Mount platform combines magnetic and radar sensing for vehicle detection.
📡 Select Your e-Trans
Wireless e-Loop detectors communicate with the gate automation system through a compatible e-Trans transceiver.
The e-Trans receives the wireless signal from the detector and provides the appropriate output to the connected gate, barrier or access control system.
Different e-Trans models provide different:
- e-Loop capacities
- Remote-control capacities
- Number of output channels
- Power requirements
- Programming capabilities
- Diagnostic features
This allows the transceiver to be selected according to the size and complexity of the installation.

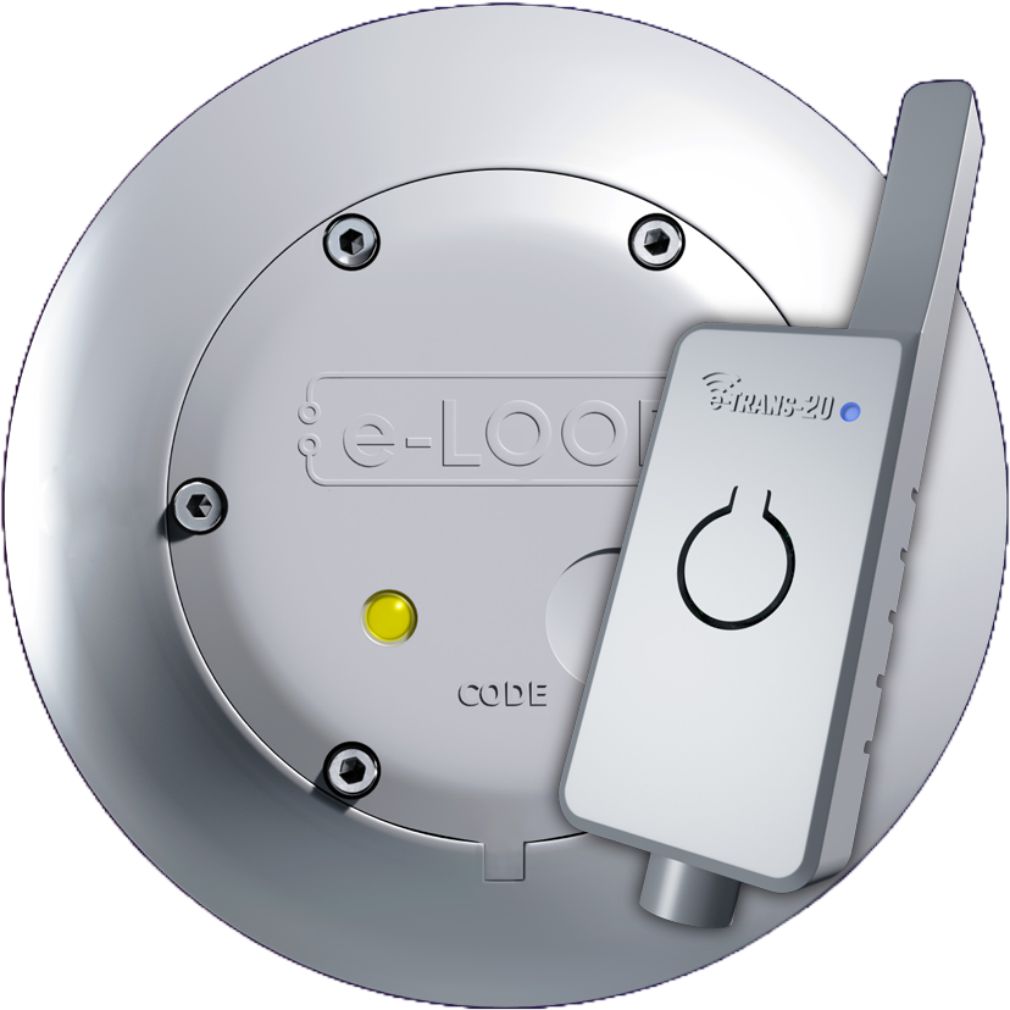

📡 e-Trans 20
The e-Trans 20 is the entry-level transceiver designed primarily for low-demand and domestic gate systems.
It supports:
- Up to 2 e-Loops
- Up to 20 E-TX remotes
- 1 output channel
The e-Trans 20 is particularly suited to smaller residential installations where only basic gate activation is required.
📡 e-Trans 50
The e-Trans 50 provides increased capacity for residential and small-to-medium commercial installations.
It supports:
- Up to 4 e-Loops
- Up to 50 E-TX remotes
- 1 output channel
The e-Trans 50 is a versatile choice for installations requiring multiple detectors or a larger number of remote controls.
📡 e-Trans 100
The e-Trans 100 provides greater system capacity and two output channels for more advanced installations.
It supports:
- Up to 4 e-Loops
- Up to 100 E-TX remotes
- 2 output channels
- Sequence Mode capability
The dual-channel design provides additional flexibility for installations requiring more than one control function.
🖥️ e-Trans 200
The e-Trans 200 is designed for medium-to-large access control systems requiring advanced programming and device management.
It supports:
- Up to 4 e-Loops
- Up to 200 E-TX remotes
- 2 output channels
- LCD programming interface
- Sequence Mode
- Advanced programming and diagnostics
- RS-485 capability
The e-Trans 200 is particularly suitable for:
- Apartment complexes
- Commercial properties
- Industrial facilities
- Shared entrances
- Multi-user access systems
🎮 Optional E-TX Remote Controls
E-TX remote controls can be added to the kit where conventional handheld gate operation is also required.
The E-TX is a compact 4-button programmable remote designed to operate with the e-Trans range.
Adding remotes allows the same e-Trans installation to provide both:
- Automatic vehicle detection through the e-Loop
- Manual gate operation through E-TX remotes
This can eliminate the need to install a separate remote-control receiver for compatible applications.
Select the required E-TX quantity when configuring your kit.
🔢 Optional E-KP Wireless Keypad
An E-KP wireless keypad can also be added where PIN-code access is required.
The E-KP communicates with a compatible e-Trans system and can provide access for users who do not require their own handheld remote.
The E-KP is particularly useful for:
- Residential properties
- Staff access
- Apartment complexes
- Gated communities
- Commercial properties
- Shared entrances
- Contractors and authorised visitors
The current E-KP platform supports multiple PIN codes and control channels, providing a flexible wireless access solution.
🚪 Build a Complete Gate Access System
Combining e-Loop vehicle detection with E-TX remotes and an E-KP keypad allows several access methods to be incorporated into one compatible system.
For example:
- E-KP keypad for controlled entry
- E-TX remotes for regular users
- e-Loop detector for automatic vehicle exit
This creates a convenient complete access solution for residential, commercial and industrial automatic gates.
🚗 Automatic Free Exit
One of the most popular e-Loop applications is automatic vehicle free exit.
A typical system operates as follows:
- A vehicle approaches the exit.
- The e-Loop detects the vehicle.
- The wireless detector sends a signal to the e-Trans.
- The e-Trans activates its programmed output.
- The gate controller receives the opening command.
- The automatic gate opens.
The driver can leave the property without pressing a remote control or entering a keypad code.
🅿️ Presence Detection
Selected e-Loop models are also available for vehicle presence applications.
Presence detection can be used as part of applications such as:
- Gate hold-open control
- Boom gate control
- Vehicle presence monitoring
- Parking systems
- Commercial vehicle detection
- Access control logic
The exact functionality depends on the selected e-Loop, transceiver and automation controller.
Vehicle detection should not be used as a substitute for required pedestrian or entrapment safety devices.
✂️ No Traditional Inductive Loop Required
Wireless e-Loop systems provide an alternative to conventional inductive vehicle loops.
Traditional inductive loops can require:
- Saw cutting the driveway
- Installing loop wire
- Sealing the saw cuts
- Running cable back to the gate controller
- Installing a separate loop detector module
Wireless e-Loop detectors can significantly simplify the installation process by transmitting vehicle detection information wirelessly to the e-Trans.
🛠️ Ideal for Existing Driveways
Wireless e-Loop systems are particularly useful when vehicle detection needs to be added to an existing automatic gate.
Applications can include driveways finished with:
- Concrete
- Asphalt
- Pavers
- Decorative surfaces
- Existing landscaping
The exact installation method depends on the selected e-Loop model.
🏡 Residential Applications
Configure the kit for residential installations such as:
- Sliding driveway gates
- Swing driveway gates
- Acreage properties
- Shared residential driveways
- Townhouses
- Private entrances
- Automatic free-exit systems
For smaller domestic systems, the Micro, Mini and e-Trans 20 can provide compact and straightforward solutions depending on the application.
🏢 Commercial Applications
For larger installations, the kit can be configured using higher-capacity detectors and transceivers.
Applications include:
- Commercial gates
- Business parks
- Apartment complexes
- Commercial car parks
- Warehouses
- Staff entrances
- Industrial facilities
- Boom gates
- Automatic barriers
The Commercial and Light Industrial detectors together with higher-capacity e-Trans models provide options for more demanding sites.
📈 Expandable System
A major advantage of selecting the appropriate e-Trans is the ability to expand the system.
Depending on the selected transceiver, additional compatible devices can be added later.
This may include:
- Additional e-Loops
- Additional E-TX remotes
- E-KP keypad access
- Other compatible e-Loop accessories
Selecting a larger-capacity transceiver can therefore be beneficial where future expansion is anticipated.
🔌 Transceiver Power Requirements
Power requirements vary according to the selected e-Trans.
The e-Trans 20 and e-Trans 50 are DC-powered transceivers.
The higher-capacity e-Trans 100 and e-Trans 200 support compatible AC or DC power supplies within their specified voltage ranges.
Always confirm the accessory power available from the gate controller before selecting the transceiver.
Where an e-Trans 20 or e-Trans 50 needs to be installed on a system providing only AC accessory power, a compatible AC-DC converter may be required.
📦 Your Kit Configuration
The exact contents supplied depend on the options selected when ordering.
Your configured kit can include:
- 1 × Selected e-Loop Vehicle Detector
- 1 × Selected e-Trans Transceiver where required
- Selected Quantity × E-TX 4-Button Remote Controls
- Optional E-KP Wireless Keypad
Only the components selected through the product configurator are supplied.
⭐ Key Features
- Build your own e-Loop vehicle detection kit
- Select the e-Loop detector
- Select the e-Trans transceiver
- Optional E-TX remote controls
- Optional E-KP wireless keypad
- Residential vehicle detection options
- Commercial vehicle detection options
- Industrial vehicle detection options
- Automatic free-exit applications
- Vehicle presence applications with compatible detectors
- Wireless vehicle detection options
- Wired vehicle detection option
- Multiple transceiver capacities
- Up to 200 E-TX remotes with compatible e-Trans
- Up to 4 e-Loops with compatible higher-capacity e-Trans
- Single and dual-channel transceiver options
- Combine vehicle detection and access control
- Suitable for sliding gates
- Suitable for swing gates
- Suitable for boom gates
- Suitable for automatic barriers
- Suitable for residential installations
- Suitable for commercial installations
- Suitable for industrial installations
- Expandable e-Loop ecosystem
🔗 Compatibility
The configurable e-Loop Kit can be built using compatible products from the current e-Loop ecosystem.
Vehicle detector options can include:
- e-Loop Commercial
- e-Loop Light Industrial
- e-Loop In-Ground
- e-Loop Mini
- e-Loop Micro
- e-Loop Post Mount
- e-Loop Wired
Transceiver options can include:
- e-Trans 20 – up to 2 e-Loops / 20 E-TX remotes
- e-Trans 50 – up to 4 e-Loops / 50 E-TX remotes
- e-Trans 100 – up to 4 e-Loops / 100 E-TX remotes
- e-Trans 200 – up to 4 e-Loops / 200 E-TX remotes
Optional access control accessories can include:
- E-TX 4-button remote controls
- E-KP wireless keypad
Compatibility with the automatic gate, boom gate or access control system depends on the selected components and available controller inputs.
⚠️ Please Note
The exact products supplied are determined by the options selected when configuring the kit.
Wireless e-Loop models require a compatible e-Trans transceiver to communicate with the gate automation system.
The e-Loop Wired operates differently from the wireless models and is designed for direct wired integration, so a separate e-Trans is generally not required for the detector itself.
Different e-Trans models have different device capacities, output channels and power requirements.
The e-Trans 20 supports up to 2 e-Loops and 20 E-TX remotes.
The e-Trans 50 supports up to 4 e-Loops and 50 E-TX remotes.
The e-Trans 100 supports up to 4 e-Loops and 100 E-TX remotes.
The e-Trans 200 supports up to 4 e-Loops and 200 E-TX remotes.
Select the transceiver according to the number of detectors, number of users, required outputs and power available from the automation controller.
Vehicle detection equipment should not be relied upon as the sole personal safety system for an automatic gate or barrier.
Always confirm the selected e-Loop operating mode and transceiver compatibility before ordering.
Installation and commissioning should be completed in accordance with the instructions for the selected e-Loop, e-Trans and connected automation system.
