Description

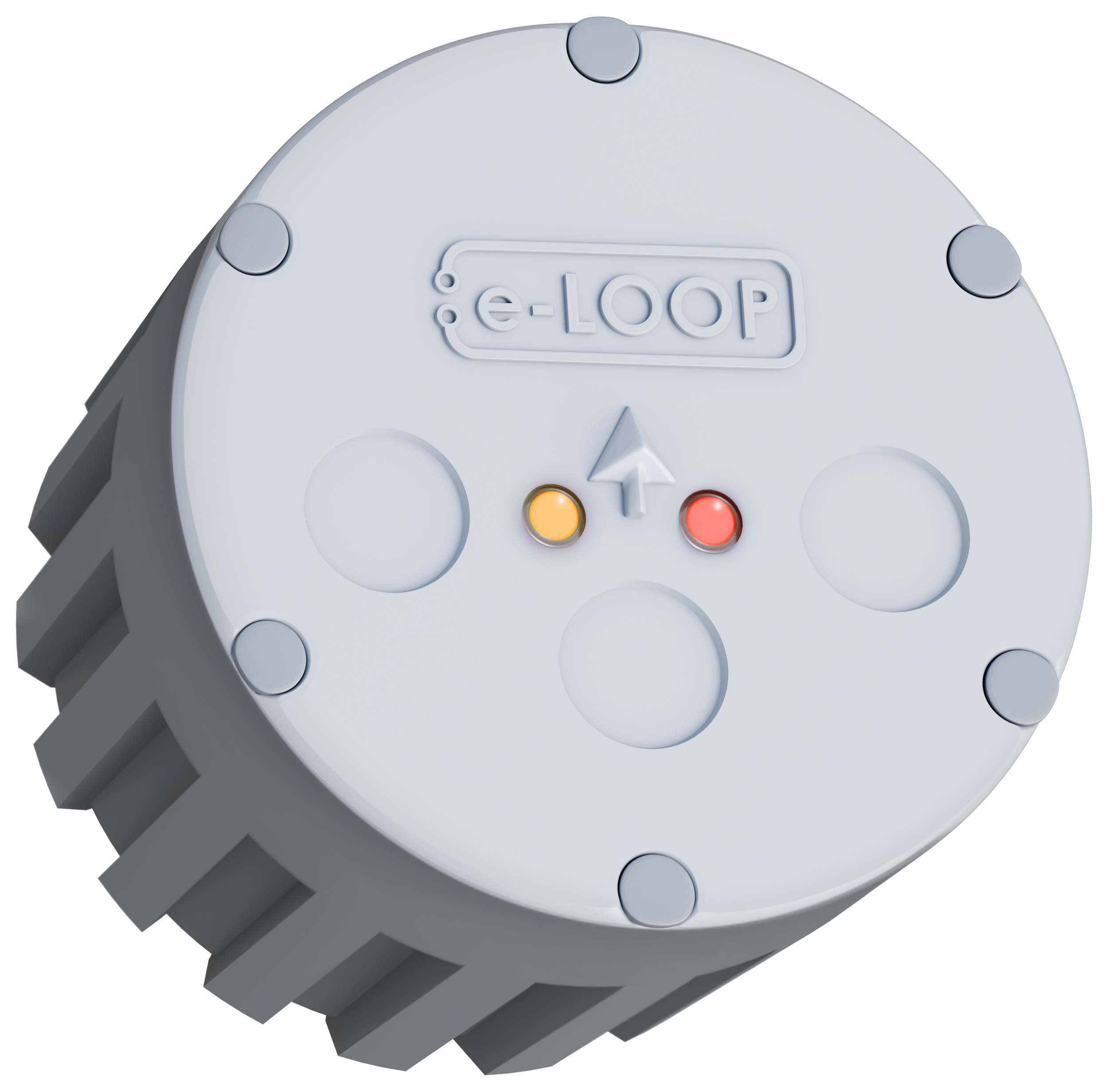

The e-Loop In Ground V4 is a discreet wireless vehicle detection system designed for automatic gates, boom gates and access control applications where a clean, flush-mounted installation is preferred.
Installed directly into the driveway or roadway surface, the e-Loop In Ground sits flush with the surrounding surface while providing wireless vehicle detection without the large saw-cut loop and extensive cabling required by a traditional inductive ground loop.
Built on the latest e-Loop V4 platform, the In Ground model combines advanced vehicle detection, Exit and Presence operating modes, automatic calibration, secure encrypted wireless communication, smartphone-based configuration and long battery life in a compact concealed installation.
It is particularly well suited to premium residential properties, commercial developments and other installations where reliable vehicle detection is required without a large visible surface-mounted detector.
🚗 Wireless In-Ground Vehicle Detection
The e-Loop In Ground V4 detects vehicles and wirelessly communicates with a compatible e-Trans receiver connected to the gate operator, boom gate or access control system.
The receiver converts the wireless detection signal into the appropriate control input for the connected automation system.
This allows the e-Loop to perform many of the functions traditionally handled by a wired inductive ground loop without requiring a large loop cable to be installed beneath the driveway.
Typical applications include:
- Automatic gate exit activation
- Vehicle presence detection
- Holding an automatic gate open
- Boom gate activation
- Commercial access control
- Residential driveway gates
- Premium property entrances
- Commercial developments
- Car park entrances
- Automatic barriers
🕳️ Flush In-Ground Installation
The defining feature of the e-Loop In Ground is its discreet flush-mounted design.
Rather than sitting above the driveway surface, the detector is recessed into a purpose-drilled opening so that the top of the detector sits flush or slightly above the finished surface.
Once installed, only the top of the compact detector remains visible.
This provides a clean and professional appearance that is particularly suitable for:
- Architectural driveways
- Premium residential properties
- Decorative driveway surfaces
- Commercial developments
- High-end automatic gate installations
- Sites where surface-mounted equipment is undesirable
✨ Clean & Unobtrusive Appearance
The compact in-ground installation allows vehicle detection to be incorporated into the driveway without a large surface-mounted detector.
This makes the e-Loop In Ground particularly attractive where the appearance of the entrance is important.
The flush design also reduces physical obstruction within the vehicle path and provides a neat finished installation.
For high-end automatic gate projects, the In Ground model provides vehicle detection without detracting from the appearance of the driveway or entrance.
🛠️ No Traditional Inductive Loop Required
Although the e-Loop In Ground requires a small opening to be drilled into the driveway for the detector itself, it eliminates the large saw-cut loop normally required for traditional inductive vehicle detection.
A conventional inductive loop typically requires a large rectangular groove to be cut into the driveway, loop cable installed around the complete detection area and wiring returned to the gate controller.
The e-Loop significantly simplifies this process.
There is no requirement to:
- Saw-cut a large rectangular induction loop
- Install conventional loop wire
- Run loop cable back to the gate operator
- Trench across the driveway
- Install a separate loop detector module
- Repair extensive saw cuts after installation
Only the compact detector mounting location needs to be prepared.
⚡ Simplified Installation
The compact In Ground detector is designed to be installed into a drilled opening in the driveway surface.
The detector is secured so that its upper surface remains flush or slightly above the surrounding driveway.
The basic installation process involves:
- Selecting the correct vehicle detection location
- Preparing the required mounting hole
- Pairing the e-Loop with the compatible e-Trans receiver
- Installing the detector flush with the driveway surface
- Configuring the required operating mode
- Calibrating the detector
- Testing vehicle detection and gate operation
This provides a substantially simpler installation than a traditional wired inductive loop.
🚪 Exit Mode
Exit Mode allows the e-Loop In Ground V4 to operate as an automatic vehicle exit detector.
When a vehicle approaches the detector from inside the property, the e-Loop detects the vehicle and wirelessly sends an activation signal to the compatible e-Trans receiver.
The receiver can then activate the gate operator’s opening input.
This allows vehicles to leave automatically without requiring the driver to:
- Use a remote control
- Enter a keypad code
- Present an access credential
- Press an exit button
- Contact security personnel
Exit Mode is ideal for properties where entry is controlled but vehicles are permitted to leave automatically.
🅿️ Presence Mode
The e-Loop In Ground V4 also supports Presence Mode.
Presence Mode allows the system to maintain a detection signal while a vehicle remains within the monitored detection area.
This can be useful for applications such as:
- Holding an automatic gate open
- Holding a boom gate open
- Vehicle presence monitoring
- Commercial access control
- Preventing automatic closure while a vehicle remains detected
The exact response depends on the e-Loop configuration, compatible e-Trans receiver and the inputs and programming available on the connected gate or access control system.
Presence detection should form part of a correctly designed automation system and should not be treated as a substitute for required personal safety devices.
🧲 Advanced Vehicle Detection
The e-Loop In Ground uses advanced sensing technology to detect vehicles within the required detection area.
Rather than relying on a large wire loop embedded throughout the driveway, the compact detector monitors changes associated with a vehicle entering its detection zone.
The latest V4 platform incorporates enhanced vehicle sensing technology designed to improve detection performance and long-term reliability.
🔄 Intelligent Auto-Calibration
The e-Loop V4 platform incorporates intelligent automatic calibration.
Once correctly installed, the detector establishes its normal operating environment and calibrates its detection system accordingly.
This helps simplify commissioning and reduces the amount of manual adjustment normally associated with conventional vehicle detection systems.
If the detector is relocated or installation conditions change significantly, the system should be recalibrated.
📱 Smartphone Configuration
The V4 platform introduces smartphone-based setup, configuration and diagnostics.
Compatible e-Loop V4 equipment can be commissioned and managed using the e-Connect App.
This provides installers with convenient access to system settings and diagnostic information directly from a compatible smartphone.
Smartphone functionality can assist with:
- Initial commissioning
- Detector configuration
- System diagnostics
- Installation setup
- Device management
- Firmware management
This makes ongoing setup and servicing more convenient, particularly on commercial or multi-device installations.
🔄 Over-the-Air Firmware Updates
The e-Loop V4 platform supports over-the-air firmware updates.
This allows compatible firmware improvements to be deployed without physically replacing the vehicle detector or connecting specialised programming equipment.
The update capability helps keep the V4 platform current as system enhancements become available.
🔐 128-Bit Encrypted Communication
The e-Loop V4 platform incorporates secure 128-bit encrypted wireless communication.
This protects communication between compatible e-Loop system components and helps prevent unauthorised interference with the wireless detection signal.
The V4 platform also incorporates replay attack protection for additional communication security.
These features are particularly useful where the vehicle detector forms part of a residential, commercial or industrial access control system.
📡 Wireless Connection to Gate Automation
The roadway detector communicates wirelessly with a compatible e-Trans receiver installed near the gate operator, boom gate or access control equipment.
This means there is no requirement to install a detection signal cable between the in-ground detector and the gate controller.
The wireless design provides greater flexibility for:
- Wide driveways
- Existing gate installations
- Finished driveway surfaces
- Commercial entrances
- Premium residential properties
- Retrofit automation projects
Actual wireless performance depends on site conditions, receiver location, surrounding structures, electrical interference and other environmental factors.
🔋 Up to 10 Years Battery Life in Exit Mode
The e-Loop In Ground V4 is designed for long-term battery-powered operation.
In Exit Mode, battery life can be up to approximately 10 years under suitable operating conditions.
Presence Mode requires more frequent vehicle monitoring and can therefore reduce battery life, with up to approximately 4 years specified depending on operating conditions.
Actual battery life depends on factors including:
- Operating mode
- Number of daily activations
- Detection duration
- Environmental conditions
- Wireless conditions
- System configuration
Battery operation means no electrical power cable needs to be installed to the roadway detector.
🔧 Top-Access Battery Servicing
The in-ground design allows the detector to remain accessible from the top after installation.
This means the complete driveway installation does not need to be excavated when battery servicing is eventually required.
The accessible design provides the clean appearance of a recessed detector while still allowing future maintenance.
🌧️ Designed for Driveway Installation
The e-Loop In Ground is designed specifically for installation within driveway and roadway environments.
The recessed design protects the main detector body below the surface while maintaining a compact top profile.
Correct installation is important to ensure reliable long-term operation.
The detector should be installed in a suitable, well-drained location and positioned according to the manufacturer’s installation requirements.
🚧 Excellent for Premium Retrofit Installations
The e-Loop In Ground is particularly useful when adding vehicle detection to an existing automatic gate while maintaining a clean driveway appearance.
Retrofitting a traditional inductive loop can require substantial cutting and cabling across an existing driveway.
The e-Loop instead requires only a compact mounting location for the detector.
This makes it particularly useful for:
- Existing automated gates
- Finished concrete driveways
- Architectural driveways
- Commercial developments
- High-end residential entrances
- Existing boom gates
- Retrofit free-exit systems
🏡 Premium Residential Applications
The discreet design makes the e-Loop In Ground particularly suitable for premium residential gate automation.
The detector can provide automatic vehicle exit or presence detection without requiring a large visible surface-mounted device.
Typical residential applications include:
- Automatic driveway gates
- Sliding gates
- Swing gates
- Gated residential properties
- Large private driveways
- Architectural entrances
- Shared residential access
🏢 Commercial Applications
The In Ground model is also suitable for commercial developments where reliable vehicle detection is required while maintaining a clean finished appearance.
Applications can include:
- Commercial automatic gates
- Office developments
- Car park entrances
- Automatic barriers
- Business premises
- Shared access roads
- Staff entrances
- Controlled vehicle exits
🚦 Gate & Boom Gate Integration
The e-Loop In Ground can be integrated with compatible gate and barrier systems through an appropriate e-Trans receiver.
Applications can include:
- Sliding gate operators
- Swing gate operators
- Boom gates
- Automatic barriers
- Residential access control
- Commercial access control
- Vehicle free-exit systems
- Vehicle presence systems
The e-Trans receiver provides the interface between the wireless detector and the connected automation controller.
This allows the e-Loop system to be used with many different gate automation brands where a suitable control input is available.
⭐ Key Features
- Wireless in-ground vehicle detection
- Latest e-Loop V4 platform
- Model ELOOIG-V4.0
- Flush-mounted installation
- Clean and discreet appearance
- Ideal for premium residential and commercial properties
- Alternative to traditional wired inductive loops
- No large rectangular induction loop required
- No conventional loop wire required
- No signal cable across the driveway
- Exit Mode
- Presence Mode
- Enhanced vehicle detection technology
- Intelligent automatic calibration
- Smartphone configuration
- Smartphone diagnostics
- Over-the-air firmware updates
- 128-bit encrypted wireless communication
- Replay attack protection
- Up to 10 years battery life in Exit Mode
- Up to approximately 4 years battery life in Presence Mode
- Battery-powered roadway detector
- Top-access servicing
- Wireless connection to compatible e-Trans receiver
- Suitable for automatic gates
- Suitable for boom gates
- Suitable for access control systems
- Excellent for retrofit installations
- Minimal visual impact
- Designed for long-term outdoor installation
🔧 Specifications
- Manufacturer: AES Global
- Product: e-Loop In Ground
- Model: ELOOIG-V4.0
- Version: V4.0
- Product Type: Wireless In-Ground Vehicle Detector
- Application: Residential / Commercial Vehicle Detection
- Installation: Recessed / Flush In-Ground
- Operating Modes: Exit Mode & Presence Mode
- Communication: Wireless
- Security: 128-Bit Encryption
- Replay Attack Protection: Yes
- Enhanced Vehicle Detection: Yes
- Automatic Calibration: Yes
- Smartphone Configuration: Yes
- Smartphone Diagnostics: Yes
- Over-the-Air Firmware Updates: Yes
- Sensor Power: Battery
- Battery Life in Exit Mode: Up to Approximately 10 Years
- Battery Life in Presence Mode: Up to Approximately 4 Years
- Battery Access: Top Access
- Compatible Receiver: e-Trans V4 Series
- Gate Operator Connection: Via Compatible e-Trans Receiver
- Suitable for Automatic Gates: Yes
- Suitable for Boom Gates: Yes
- Suitable for Access Control: Yes
🔗 Compatibility
The e-Loop In Ground V4 can be integrated with compatible automatic gate, boom gate, barrier and access control systems through an appropriate e-Trans receiver.
Typical applications include:
- Sliding gate operators
- Swing gate operators
- Boom gates
- Automatic barriers
- Residential gate automation
- Commercial gate automation
- Vehicle free-exit systems
- Vehicle presence detection
Compatibility primarily depends on the connected automation controller having the appropriate control input for the required function.
For an automatic free-exit application, the gate controller should have a suitable opening input and be configured with the appropriate operating logic.
⚠️ Please Note
The e-Loop In Ground V4 requires a compatible e-Trans receiver to interface with the gate operator, boom gate or access control system.
Confirm whether the receiver is included with the selected product or needs to be purchased separately.
Unlike a surface-mounted e-Loop, the In Ground model requires a suitable hole to be prepared in the driveway so the detector can be recessed into the surface.
The detector should be installed flush or slightly above the finished driveway surface and in a suitable well-drained location in accordance with the manufacturer’s instructions.
The stated battery life is dependent on operating mode, activation frequency, detection duration, environmental conditions and system configuration.
Presence detection should not be relied upon as the sole personal safety system for an automated gate or barrier.
Wireless performance can vary according to receiver location, surrounding structures, electrical interference and site conditions.
The correct detector position, operating mode and control connection should be selected according to the requirements of the individual automatic gate, barrier or access control installation.
