Description

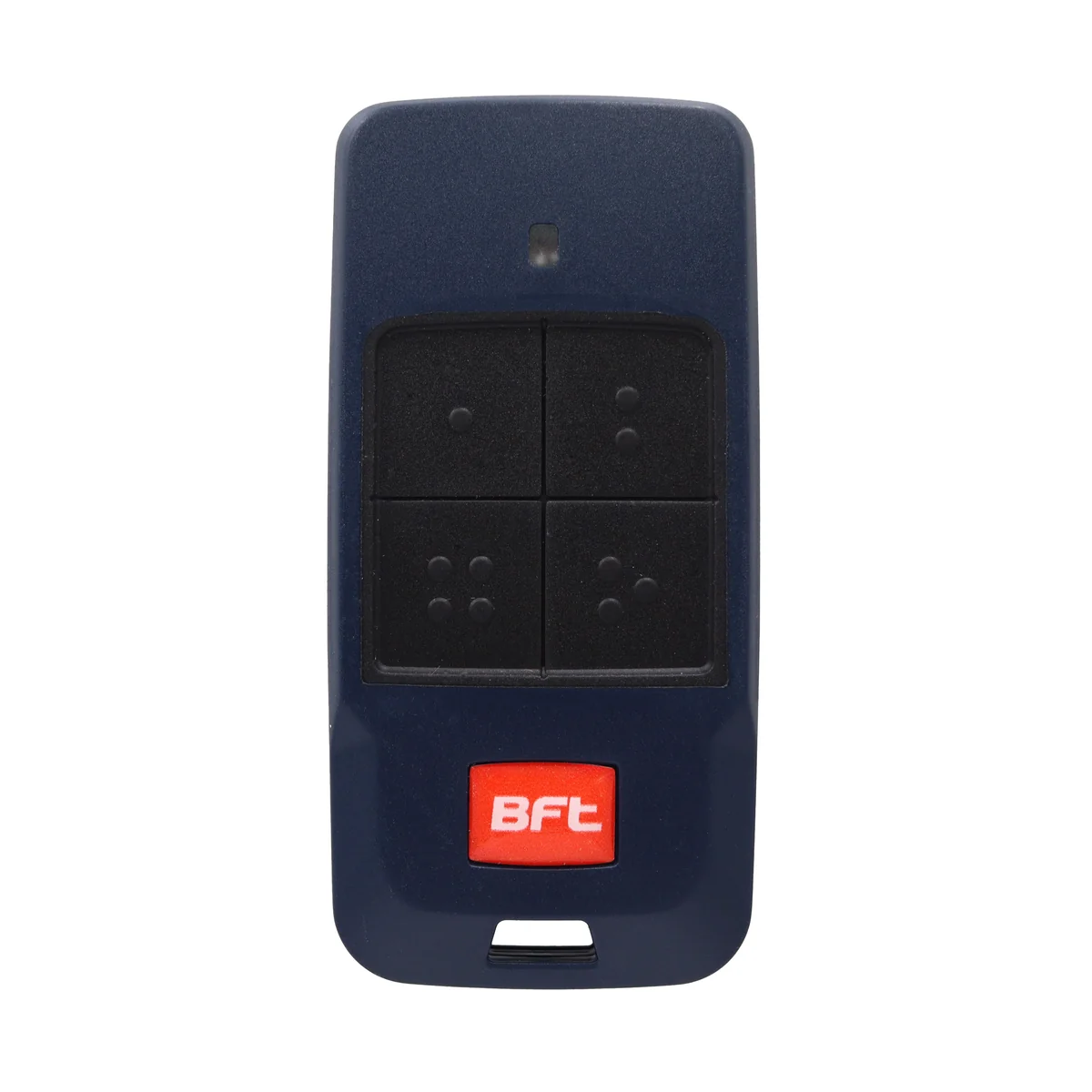

The BFT MITTO COOL C4 is a genuine BFT 4-button remote control transmitter designed for compatible BFT automatic gates, garage doors, barriers and access-control systems.
With four individually programmable buttons, the MITTO COOL C4 is ideal for properties with multiple automatic entrances or users who want to control several compatible BFT automation functions from a single compact remote.
Operating at 433.92 MHz using BFT rolling-code technology, the MITTO COOL C4 provides secure wireless control in a compact keyring-style transmitter.
🎮 Genuine BFT Remote Control
The MITTO COOL C4 is a genuine BFT transmitter designed specifically for compatible BFT automation and receiver systems.
It is suitable as:
- A replacement for a lost BFT remote
- A replacement for a damaged remote
- An additional remote for another user
- A spare transmitter
- A multi-door or multi-gate remote
- A replacement for selected earlier BFT MITTO transmitters
Using a genuine BFT transmitter ensures the correct radio technology and programming system is used with compatible BFT receivers.
🔘 4-Button / 4-Channel Operation
The MITTO COOL C4 features four individual control buttons.
Each button can be assigned to a compatible receiver channel, making the remote particularly useful where multiple automation systems need to be controlled.
For example, a single MITTO COOL C4 could be configured for:
- Button 1 – Driveway Gate
- Button 2 – Garage Door
- Button 3 – Second Gate
- Button 4 – Pedestrian Opening
The actual function assigned to each button depends on the BFT receiver and automation control-board configuration.
🏠 Control Multiple Automations
The four-button configuration makes the MITTO COOL C4 particularly useful for larger properties with multiple automated entrances.
A single transmitter can potentially control compatible:
- Sliding gates
- Swing gates
- Garage doors
- Automatic barriers
- Pedestrian gate functions
- Auxiliary receiver outputs
This can eliminate the need to carry separate remotes for different entrances where each automation uses a compatible BFT receiver.
📡 433.92 MHz Operating Frequency
The MITTO COOL C4 operates at:
- 433.92 MHz
This frequency is used with compatible BFT MITTO radio receiver systems.
Frequency alone does not determine compatibility.
The receiver must also support the appropriate BFT coding protocol.
🔐 Rolling-Code Technology
The MITTO COOL C4 uses BFT rolling-code radio technology.
Rather than repeatedly transmitting a simple fixed code, the rolling-code system changes the transmitted security information according to the BFT radio protocol.
This provides improved protection compared with older fixed-code transmitter systems.
📶 50–100m Nominal Range
BFT specifies a nominal transmitter range of approximately:
- 50–100 metres
Actual operating range will depend on the installation environment.
Factors that can affect radio range include:
- Receiver antenna position
- External antenna installation
- Buildings and walls
- Metal structures
- Electrical interference
- Vehicle construction
- Surrounding terrain
- Receiver position
- Battery condition
An appropriately positioned external antenna can improve receiver performance where greater radio coverage is required.
🔋 CR2032 Battery
The MITTO COOL C4 is powered by:
- 1 × CR2032
- 3V lithium coin-cell battery
The CR2032 battery is replaceable when required.
The compact coin-cell power supply allows the MITTO COOL C4 to maintain its small keyring-style enclosure while providing convenient everyday operation.
🔴 LED Transmission Indicator
The transmitter incorporates an LED indicator to provide visual confirmation when a button is pressed.
If the remote begins operating intermittently or its effective range noticeably decreases, the battery should be checked and replaced if required.
🔑 Compact Keyring Design
The MITTO COOL C4 has been designed as a compact everyday access transmitter.
Its keyring-style enclosure makes it suitable for attaching to:
- Vehicle keys
- House keys
- Work keys
- Access key sets
It can also be conveniently carried in a pocket, bag or vehicle.
📐 Compact Dimensions
The MITTO COOL C4 has compact dimensions of approximately:
- 66 mm high
- 31–32 mm wide
- 13 mm deep
Its compact enclosure provides four control buttons without the bulk associated with many traditional multi-channel gate transmitters.
🧠 Programming Required
A new MITTO COOL C4 must be programmed to the compatible BFT receiver before it can operate the gate, garage door or other automation.
The programming procedure depends on the BFT receiver or control board installed.
Depending on the system, programming may be performed:
- Directly through the receiver
- Through the automation control board
- Using an existing authorised transmitter where supported
- Using supported BFT programming procedures
Always follow the programming procedure applicable to the installed BFT receiver.
🔄 Replacement for Earlier MITTO Remotes
The MITTO COOL C4 is designed for use with compatible BFT MITTO radio systems and can replace selected earlier MITTO transmitters.
Compatibility includes selected:
- BFT MITTO2
- BFT MITTO4
- BFT MITTO2A
- BFT MITTO4A
- BFT MITTO B RCB02
- BFT MITTO B RCB04
- BFT TRC1
- BFT TRC2
- BFT TRC4
Compatibility should always be checked against the receiver where the existing BFT radio system is unknown.
🚧 Automatic Gate Applications
The MITTO COOL C4 is ideal for compatible BFT automatic gate systems.
Applications can include selected:
- Sliding gate operators
- Swing gate operators
- Residential driveway gates
- Commercial gates
- Apartment entrances
- Shared driveways
- Industrial gates
- Pedestrian gate functions
The four-button configuration is particularly useful where more than one automation function needs to be controlled.
🚪 Garage Door Applications
The MITTO COOL C4 can also be programmed to compatible BFT garage door automation systems.
Where compatible receivers are installed, one transmitter can potentially control both a driveway gate and garage door.
For example:
- Button 1 – Front Sliding Gate
- Button 2 – Garage Door
- Button 3 – Side Gate
- Button 4 – Second Garage Door
This provides convenient multi-access control from a single remote.
🚗 Automatic Barrier Applications
The MITTO COOL C4 can also be used with compatible BFT automatic barrier systems.
This makes it suitable for applications such as:
- Apartment car parks
- Commercial car parks
- Staff parking
- Private parking areas
- Controlled vehicle entrances
- Industrial sites
The receiver must use the appropriate compatible BFT radio system.
🏢 Residential & Commercial Use
The MITTO COOL C4 can be used across both residential and commercial BFT automation installations.
Typical applications include:
- Residential homes
- Apartment complexes
- Commercial premises
- Workshops
- Warehouses
- Car parks
- Industrial properties
- Gated communities
For larger shared-access systems, receiver memory capacity and transmitter management requirements should also be considered.
📦 What’s Included
The BFT MITTO COOL C4 package includes:
- 1 × Genuine BFT MITTO COOL C4 Remote Control
- 1 × CR2032 3V Lithium Battery
The transmitter requires programming to the compatible BFT receiver before use.
⭐ Key Features
- Genuine BFT remote control
- MITTO COOL C4
- 4-button transmitter
- 4 individually programmable channels
- Suitable for controlling multiple compatible automations
- 433.92 MHz operating frequency
- BFT rolling-code technology
- Compatible with selected earlier BFT MITTO systems
- Suitable for compatible automatic gates
- Suitable for compatible garage doors
- Suitable for compatible automatic barriers
- Suitable for compatible BFT receivers
- Nominal 50–100m operating range
- Compact keyring-style design
- LED transmission indicator
- CR2032 battery powered
- Battery included
- Replaceable battery
- Approximately 66 × 31–32 × 13 mm
- Programming required before use
- Suitable as a replacement, additional or spare remote
🔧 Specifications
- Manufacturer: BFT
- Model: MITTO COOL C4
- Product Type: Remote Control Transmitter
- Number of Buttons: 4
- Number of Primary Channels: 4
- Operating Frequency: 433.92 MHz
- Coding System: BFT Rolling Code
- Nominal Operating Range: 50–100 m
- Power Supply: 3V
- Battery: 1 × CR2032 Lithium Coin Cell
- Battery Included: Yes
- Approximate Dimensions: 66 × 31–32 × 13 mm
- Keyring Attachment: Yes
- LED Indicator: Yes
- Programming Required: Yes
🔗 Compatibility
The BFT MITTO COOL C4 is designed for compatible BFT automation and receiver systems using the appropriate MITTO radio platform.
It can replace or operate alongside selected:
- BFT MITTO2
- BFT MITTO4
- BFT MITTO2A
- BFT MITTO4A
- BFT MITTO B RCB02
- BFT MITTO B RCB04
- BFT TRC1
- BFT TRC2
- BFT TRC4
Compatible applications include selected BFT:
- Sliding gate operators
- Swing gate operators
- Garage door operators
- Automatic barriers
- External radio receivers
- Integrated control-board receivers
The installed receiver and coding system should be checked where compatibility is uncertain.
⚠️ Please Note
This product is a genuine BFT MITTO COOL C4 remote control.
The MITTO COOL C4 is the four-button version of the MITTO COOL transmitter range.
It operates at 433.92 MHz using BFT rolling-code technology.
A new transmitter must be programmed to the compatible BFT receiver before it can operate the gate, garage door or barrier.
Matching the physical appearance or operating frequency of an existing remote alone does not guarantee compatibility. The receiver and coding system must also be compatible.
One CR2032 3V lithium coin-cell battery is included.
Button and coin-cell batteries can cause serious injury if swallowed. Keep new and used batteries out of reach of children and dispose of used batteries immediately and safely.
If you are unsure whether the MITTO COOL C4 is compatible with your existing BFT automation system, contact our Technical Support team on 1300 733 066 for assistance.
